Toyota Century

2018-06 → present · chassis UWG60 · catalogue 341150 · Japan

Supported model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

26 part groups · 2 illustrations

Illustrations

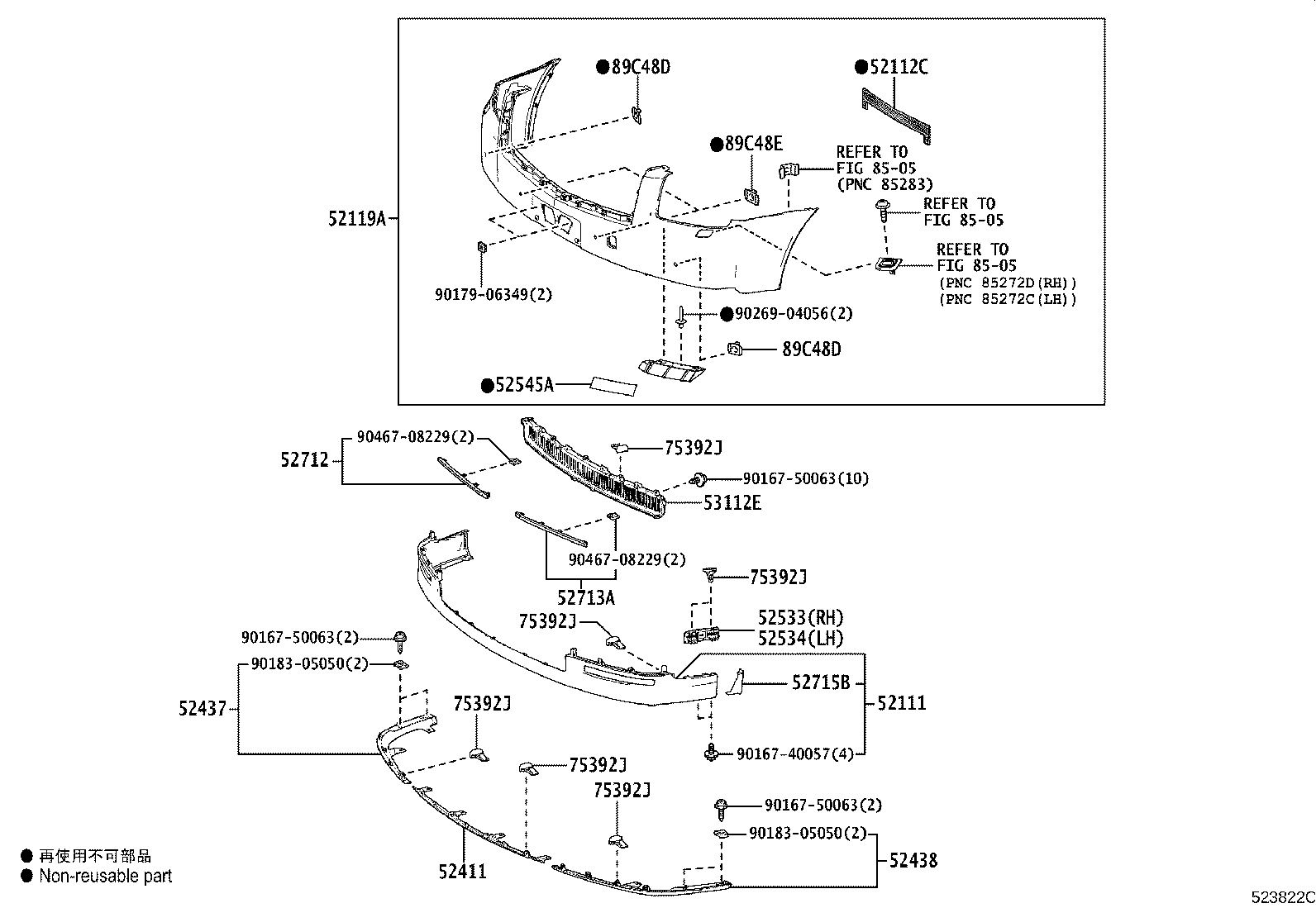

Figure 523775E 523775E 2018-06 → — Figure 523822C 523822C 2018-06 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52111 Bumper Assy, Front
52112C Extension, Front Bumper
52119A Cover, Front Bumper
52128B Cover, Front Bumper Hole, LH
52148H Bracket, Front Bumper Mounting, NO.2
52162C Piece, Front Bumper
52197E Bracket, Front Bumper Seal
52411 Guard, Front Bumper
52437 Cover, Front Bumper Guard, RH
52438 Cover, Front Bumper Guard, LH
52533 Bracket, Front Bumper Retainer, NO.1
52534 Bracket, Front Bumper Retainer, NO.2
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52545A Seal, Front Bumper Side, NO.2
52611 Absorber, Front Bumper Energy
52611B Clip, Front Bumper Energy Absorber
52618 Absorber, Front Bumper, Lower
52712 Moulding, Front Bumper Side, RH
52713A Moulding, Front Bumper Side, LH
52715B Insert, Front Bumper Moulding
53112E Grille, Radiator, Lower NO.1
75392J Retainer, Outside Moulding
89C48D Retainer, Ultrasonic Sensor, Front Corner
89C48E Retainer, Ultrasonic Sensor, Front Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
