Toyota Century

2018-06 → present · chassis UWG60 · catalogue 341150 · Japan

Supported model Data version 2018-07

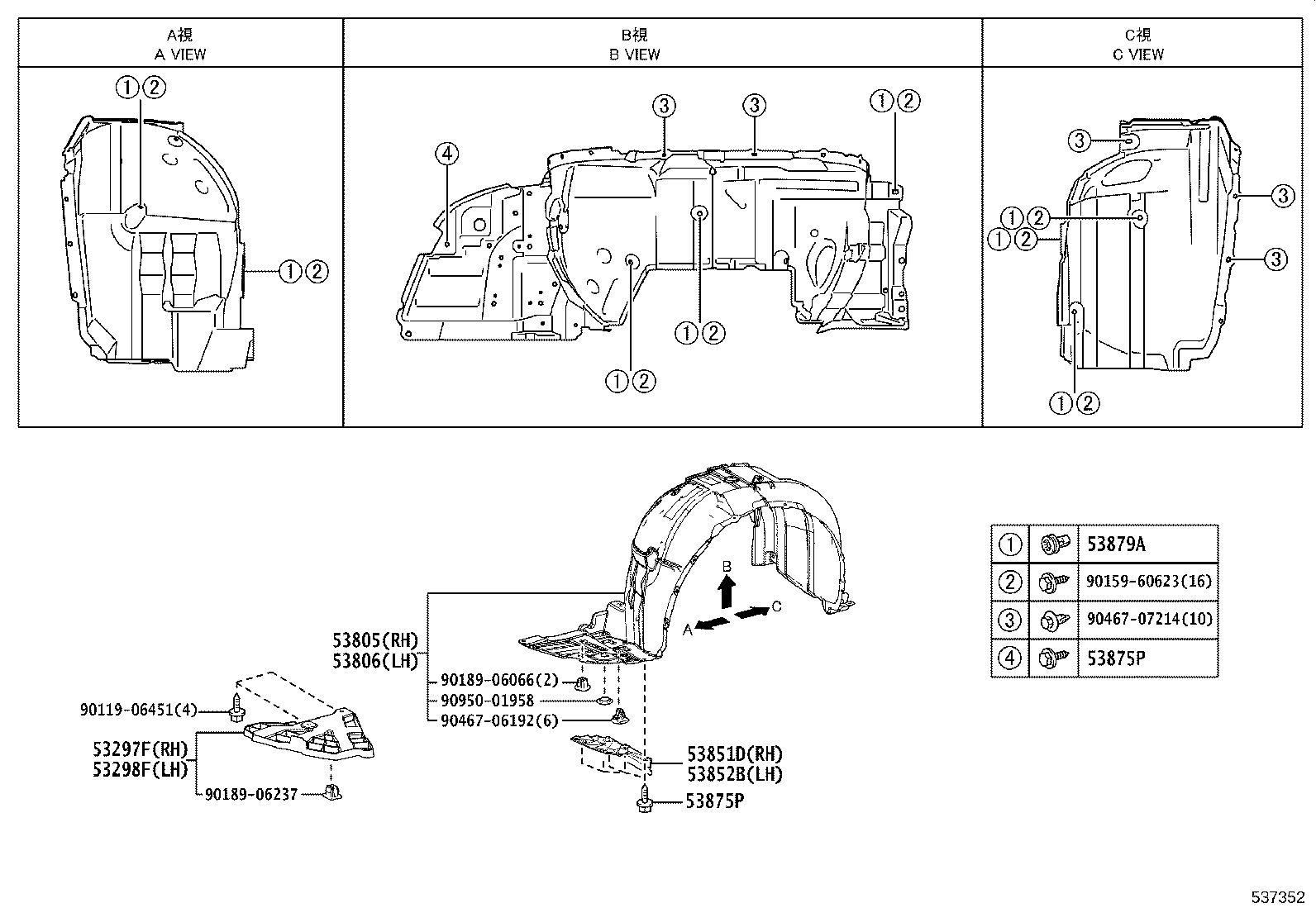

Hood & Front Fender

40 part groups · 2 illustrations

PNC	Description
53153K	Guide, Radiator Grille Side Air, RH
53154L	Guide, Radiator Grille Side Air, LH
53297F	Retainer, Cool Air Intake Duct, NO.2
53298F	Retainer, Cool Air Intake Duct, NO.3
53301	Hood Sub-assy
53301A	Plug, Hole(FOR HOOD)
53341B	Insulator, Hood
53341C	Clip(FOR HOOD INSULATOR)
53378C	Seal, Hood Air Intake Duct
53378D	Clip(FOR HOOD AIR INTAKE DUCT SEAL)
53381E	Seal, Hood TO Radiator Support
53383A	Clip(FOR HOOD TO COWL TOP SEAL)
53384B	Cushion, Hood, Center
53388D	Seal, Hood TO Front Fender, RH
53389B	Seal, Hood TO Front Fender, LH
53445A	Cover, Hood Hinge, RH
53446A	Cover, Hood Hinge, LH
53801	Fender Sub-assy, Front RH
53802	Fender Sub-assy, Front LH
53805	Shield Sub-assy, Front Fender Splash, RH
53806	Shield Sub-assy, Front Fender Splash, LH
53807D	Reinforcement Sub-assy, Front Fender, Top RH
53808D	Reinforcement Sub-assy, Front Fender, Top LH
53825A	Protector, Front Fender, Upper RH
53826A	Protector, Front Fender, Upper LH
53827L	Protector, Front Fender Side Panel, RH
53828K	Protector, Front Fender Side Panel, LH
53837A	Bracket, Front Side Panel, NO.2
53838C	Bracket, Front Side Panel, NO.2 LH
53851D	Pad, Front Wheel Opening Extension, RH
53852B	Pad, Front Wheel Opening Extension, LH
53857	Retainer, Front Wheel Opening Extension, RH
53858	Retainer, Front Wheel Opening Extension, LH
53866	Seal, Front Fender TO Cowl Side, RH
53867	Seal, Front Fender TO Cowl Side, LH
53875P	Screw, NO.1
53879A	Retainer, Front Fender Liner
53882B	Seal, Front Fender, RH
53882N	Clip(FOR FRONT FENDER SEAL)
53883B	Seal, Front Fender, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
