Toyota Century
2018-06 → present · chassis UWG60 · catalogue 341150 · Japan
Supported model
Data version 2018-07
Instrument Panel & Glove Compartment

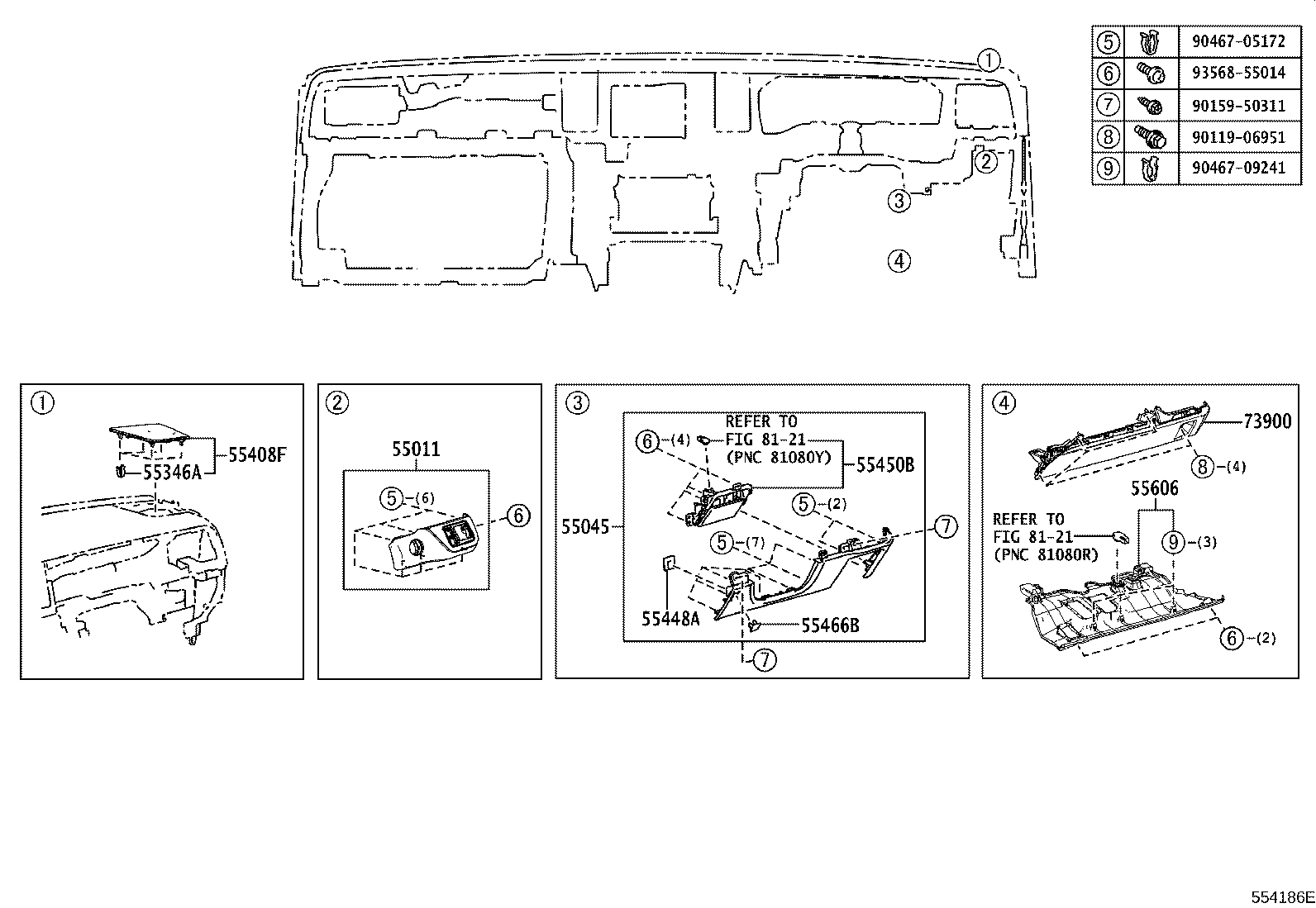

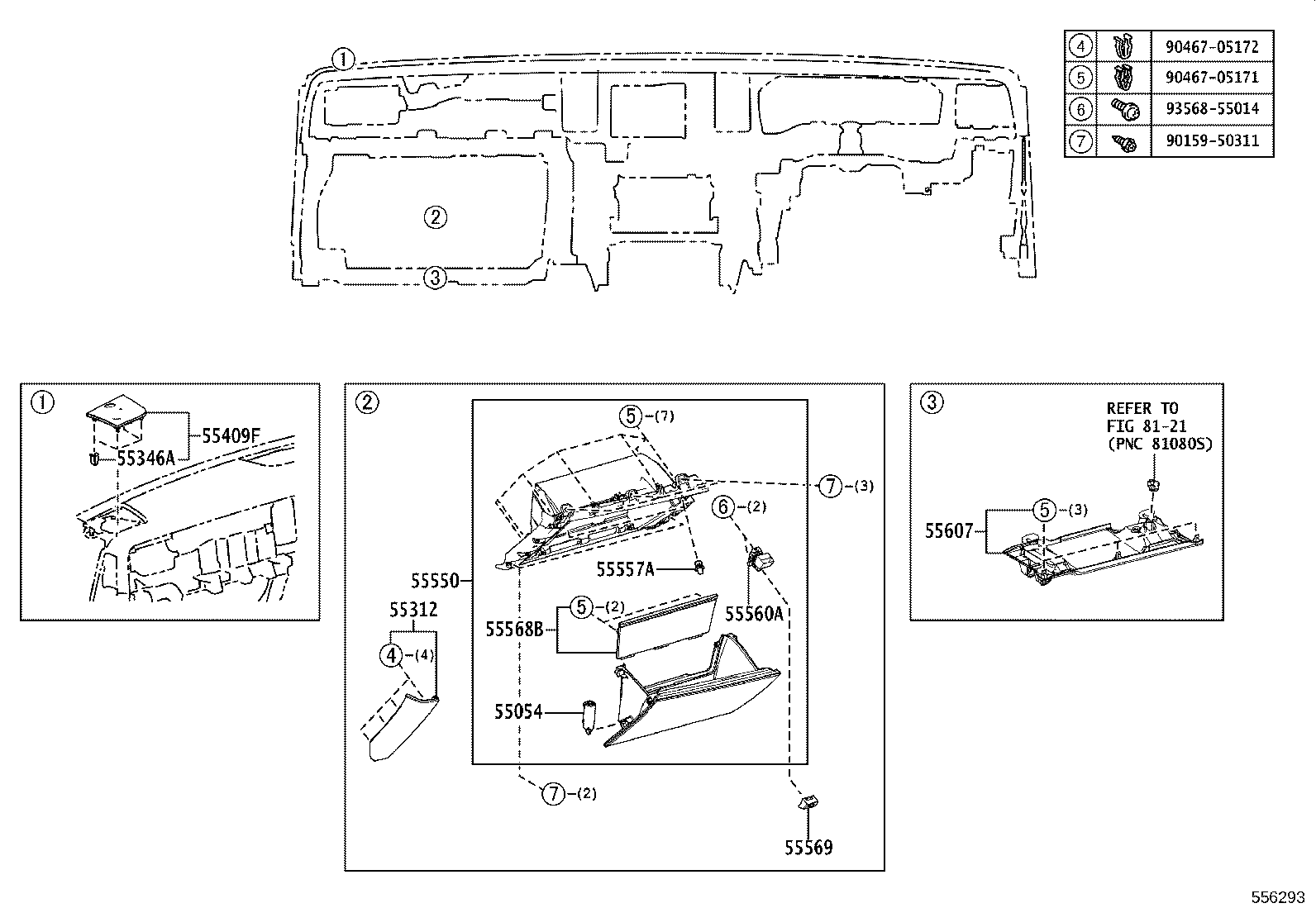

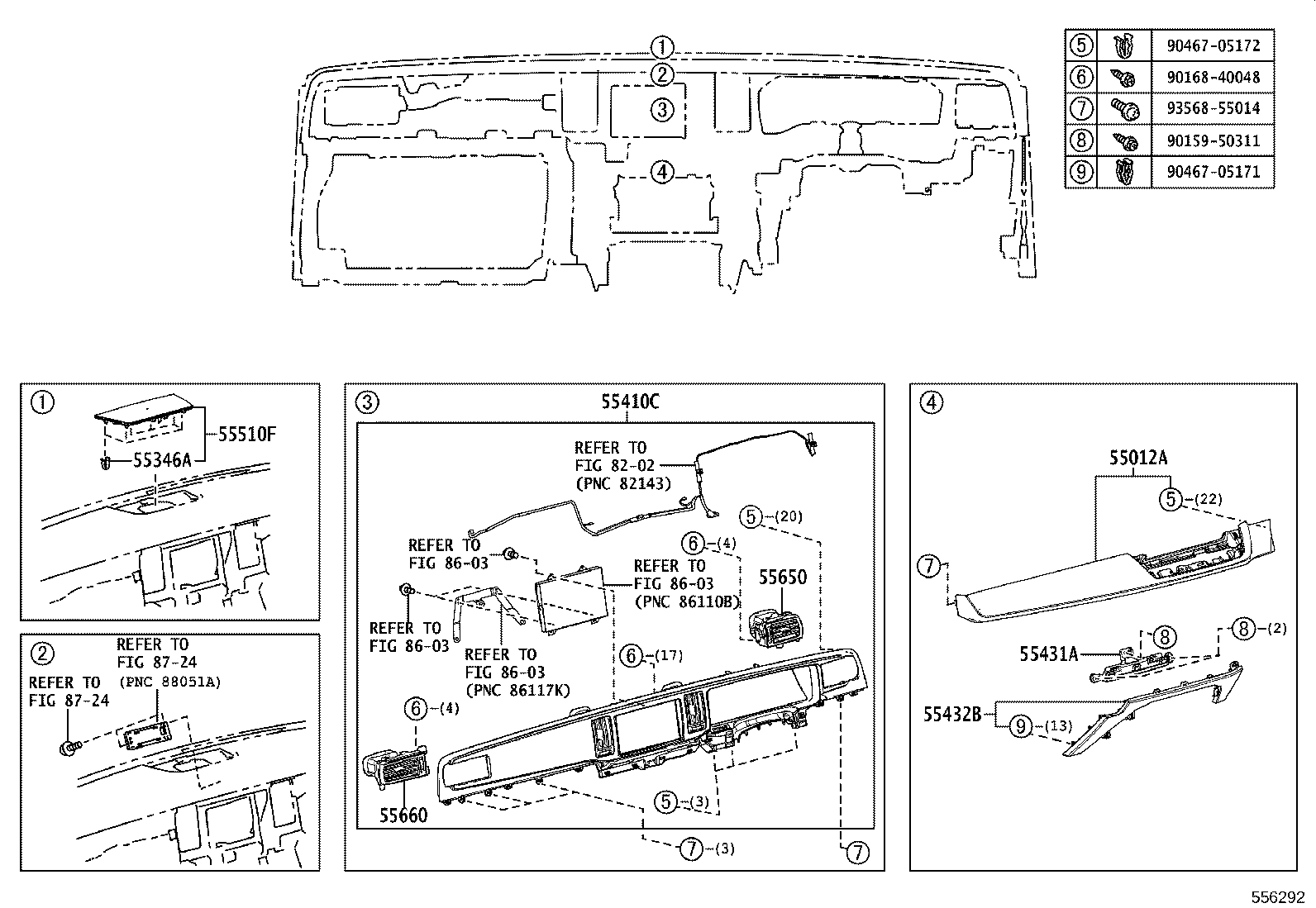

41 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55011 | Garnish Sub-assy, Instrument Panel Safety Pad |
| 55012A | Garnish Sub-assy, Instrument Panel, NO.2 |
| 55045 | Panel Sub-assy, Instrument Panel Finish, Lower |
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55312 | Panel, Instrument, Lower |
| 55315A | Spacer, Instrument Panel, NO.1 |
| 55316 | Spacer, Instrument Panel, NO.2 |
| 55317A | Panel, Instrument Side, RH |
| 55318C | Panel, Instrument Side, LH |
| 55328 | Pin, Instrument Panel, NO.1 |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55346A | Clip, Instrument Panel, NO.2 |
| 55374C | Bracket, Instrument Panel Lower Mounting, NO.1 |
| 55375B | Bracket, Instrument Panel Lower Mounting, NO.2 |
| 55394B | Bolt, Instrument Panel |
| 55394C | Bolt, Instrument Panel |
| 55400 | Pad Assy, Instrument Panel Safety |
| 55404B | Clip, Safety Pad Set |
| 55408F | Panel Sub-assy, Instrument Panel Speaker, NO.1 |
| 55409F | Panel Sub-assy, Instrument Panel Speaker, NO.2 |
| 55410C | Panel Assy, Instrument Cluster Finish |
| 55416A | Retainer, Meter Hood, NO.1 |
| 55431A | Panel, Instrument Panel Finish |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55448A | Cushion, Instrument Panel Finish, NO.1 |
| 55450B | Box Assy, Coin |
| 55458A | Cap, Instrument Panel Safety Pad |
| 55466B | Retainer, Instrument Panel Safety Pad, NO.1 |
| 55510F | Cover Assy, Speaker Opening, NO.1 |
| 55550 | Door Assy, Glove Compartment |
| 55557A | Cushion, Glove Compartment Door Check |
| 55560A | Lock Assy, Glove Compartment Door |
| 55568B | Plate, Glove Compartment Door Finish |
| 55569 | Cover, Glove Compartment Door Lock |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 73900 | Airbag Assy, Instrument Panel, Lower NO.1 |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
