Toyota Century
2018-06 → present · chassis UWG60 · catalogue 341150 · Japan
Supported model
Data version 2018-07

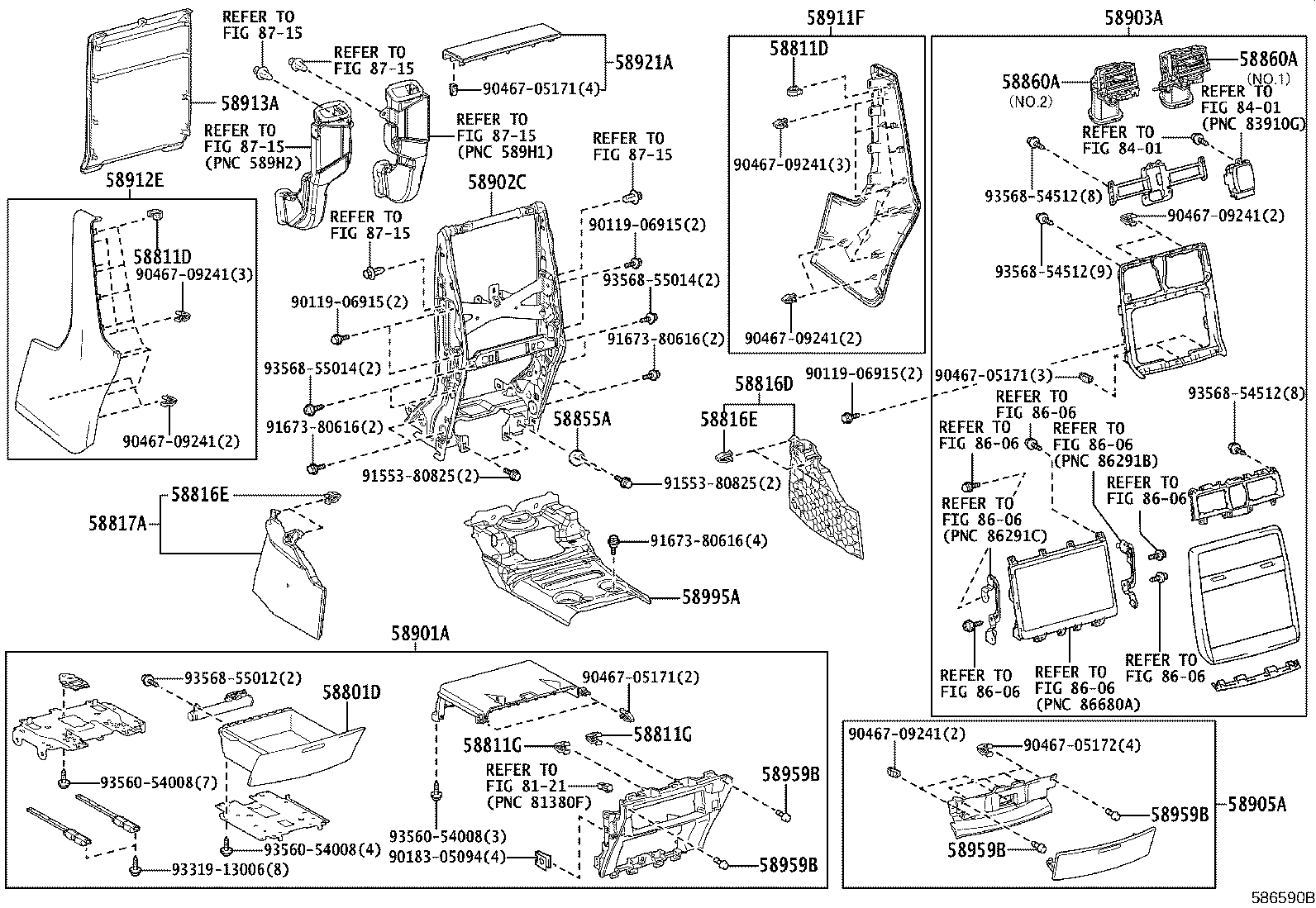

Console Box & Bracket
38 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55442L | Door, Instrument Panel |
| 55618A | Holder, Console Box Cup |
| 58801D | Box Assy, Console |
| 58803C | Box Sub-assy, Console Cup Holder |
| 58805B | Panel Sub-assy, Console, Lower |
| 58810J | Box Assy, Console |
| 58811D | Clip(FOR CONSOLE BOX) |
| 58811G | Clip(CONSOL BOX) |
| 58815A | Carpet, Console Box |
| 58816D | Insert, Console Box, Front NO.1 |
| 58816E | Clip, Console Box Insert, Front |
| 58817A | Insert, Console Box, Front NO.2 |
| 58821C | Panel, Console, Upper |
| 58826A | Pocket, Console Box, Lower |
| 58831A | Garnish, Console Upper Panel, Front |
| 58832A | Garnish, Console Upper Panel, Rear |
| 58834A | Cover, Console, Lower |
| 58837A | Pad, Console Box Silencer, NO.2 |
| 58855A | Stopper, Lower Console Box |
| 58860A | Register Assy, Console Box |
| 58885A | Panel, Equipment Set |
| 58901A | Box Sub-assy, Console, Rear |
| 58902C | Bracket Sub-assy, Console Box Mounting |
| 58903A | Panel Sub-assy, Console Rear End |
| 58905A | Door Sub-assy, Console Compartment, Rear |
| 58910D | Clip(FOR CONSOLE BOX) |
| 58911A | Panel, Box Side, NO.1 |
| 58911F | Panel, Box Side, NO.3 |
| 58912C | Panel, Box Side, NO.2 |
| 58912D | Panel, Box, NO.2 |
| 58912E | Panel, Box Side, NO.4 |
| 58913A | Panel, Box, NO.3 |
| 58920A | Armrest Assy, Rear Console |
| 58921A | Panel, Rear Console, Upper |
| 58959B | Cushion, Console Compartment Door |
| 58959C | Cushion, Console Compartment Door |
| 58995A | Bracket, Console Box Mounting, NO.1 |
| 58997 | Bracket, Console Box Mounting, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
