Toyota Century
2018-06 → present · chassis UWG60 · catalogue 341150 · Japan
Supported model
Data version 2018-07

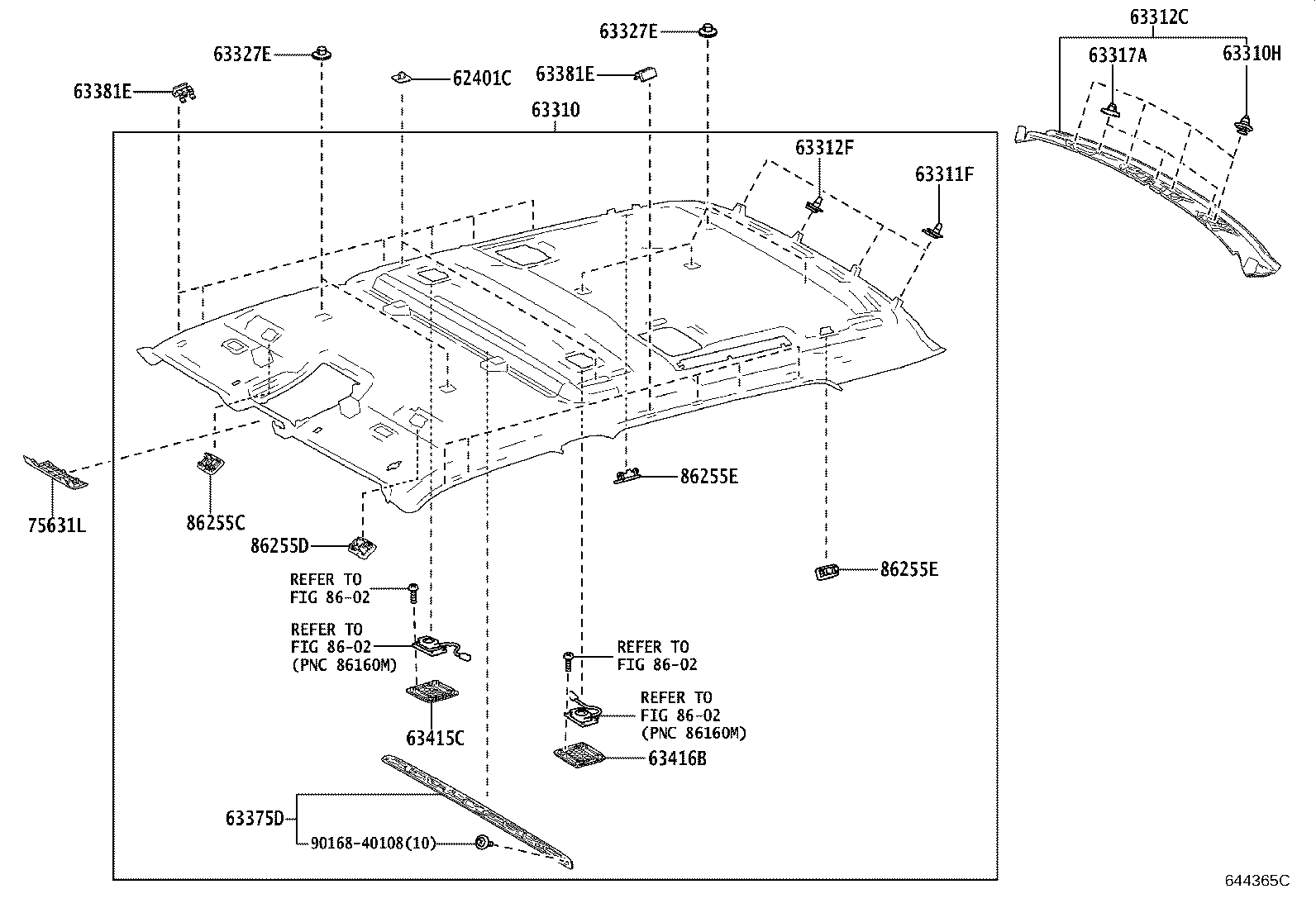

Roof Headlining & Silencer Pad
16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62401C | Fastener, Hook |
| 63310 | Headlining Assy, Roof |
| 63310H | Clip(FOR ROOF HEADLINING) |
| 63311F | Clip, Roof Headlining, NO.1 |
| 63312C | Headlining, Roof, Rear |
| 63312F | Clip, Roof Headlining, NO.2 |
| 63317A | Retainer, Roof Headlining |
| 63327E | Fastener, Roof Headlining, NO.1 |
| 63375D | Moulding, Roof Headlining |
| 63381E | Retainer, Roof Headlining Trim, Front |
| 63415C | Grille, Roof Speaker, RH |
| 63416B | Grille, Roof Speaker, LH |
| 75631L | Garnish, Roof Top, Front |
| 86255C | Case, Microphone, RH |
| 86255D | Case, Microphone, LH |
| 86255E | Case, Microphone, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
