Toyota Century
2018-06 → present · chassis UWG60 · catalogue 341150 · Japan
Supported model
Data version 2018-07
Front Door Panel & Glass

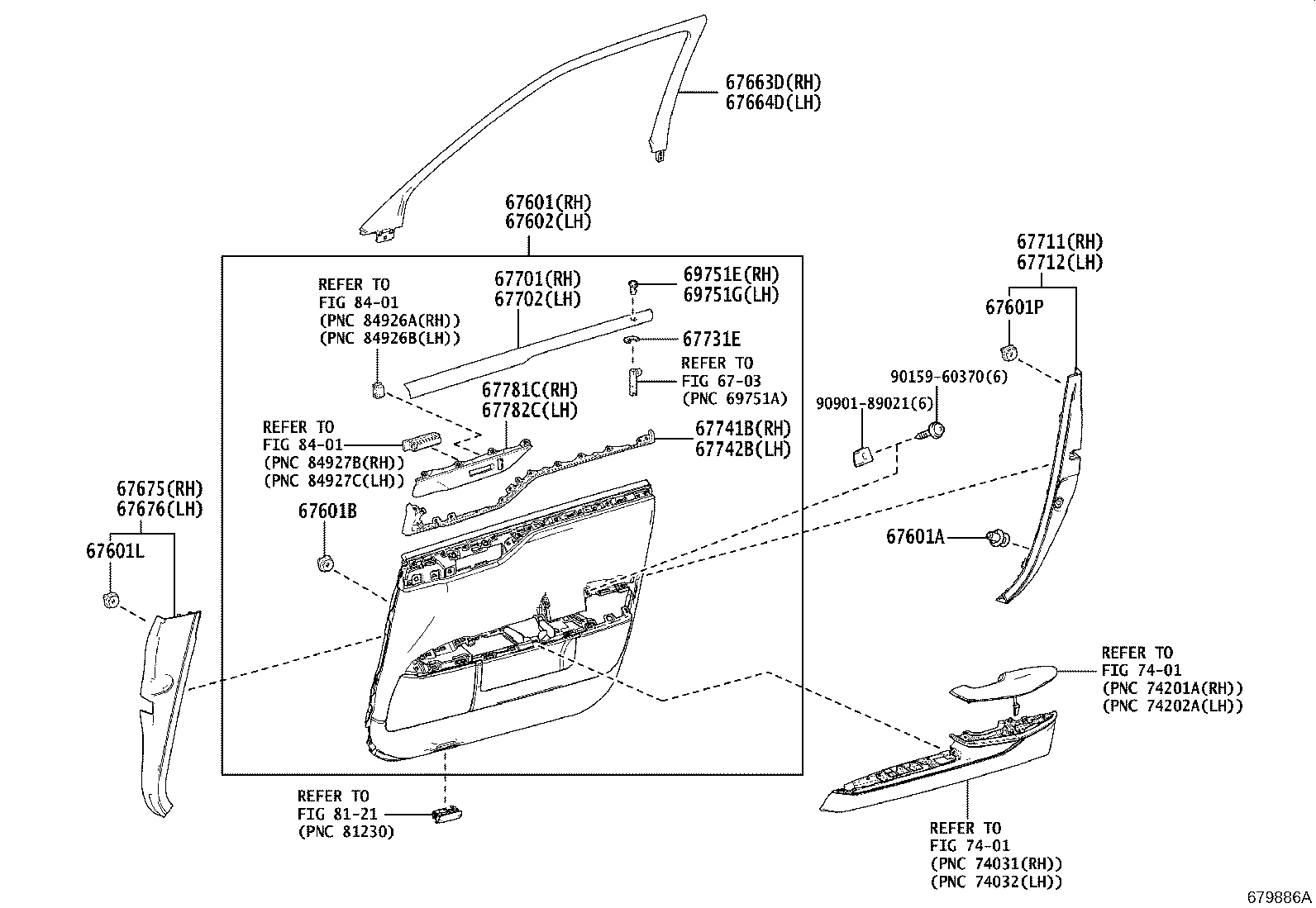

63 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67001 | Panel Sub-assy, Front Door, RH |
| 67001A | Cushion, Front Door Panel |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67041 | Frame Sub-assy, Front Door Window, RH |
| 67042 | Frame Sub-assy, Front Door Window, LH |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601A | Retainer(FOR FRONT DOOR TRIM BOARD) |
| 67601B | Clip(FOR FRONT DOOR TRIM BOARD) |
| 67601L | Clip(FOR FRONT DOOR TRIM BOARD) |
| 67601P | Clip(FOR FRONT DOOR TRIM BOARD) |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67645 | Bracket, Front Door Armrest Set, RH |
| 67646 | Bracket, Front Door Armrest Set, LH |
| 67663D | Garnish, Door Frame, RH |
| 67664D | Garnish, Door Frame, LH |
| 67675 | Cover, Side Trim Board, Front RH |
| 67676 | Cover, Side Trim Board, Front LH |
| 67701 | Cover Sub-assy, Front Door Trim, RH |
| 67702 | Cover Sub-assy, Front Door Trim, LH |
| 67711 | Cover, Front Door Trim, RH |
| 67712 | Cover, Front Door Trim, LH |
| 67731E | Spacer, Side Trim, NO.1 |
| 67741B | Moulding, Front Door Trim, NO.1 RH |
| 67742B | Moulding, Front Door Trim, NO.1 LH |
| 67781C | Ornament Sub-assy, Front Door Trim, RH |
| 67782C | Ornament Sub-assy, Front Door Trim, LH |
| 67811 | Pad, Front Door Silencer |
| 67831 | Cover, Front Door Service Hole, RH |
| 67831C | Cover, Front Door Service Hole |
| 67831D | Clip(FOR FRONT DOOR SERVICE HOLE COVER) |
| 67832 | Cover, Front Door Service Hole, LH |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 67865G | Weatherstrip, Front Door, NO.3 RH |
| 67866F | Weatherstrip, Front Door, NO.3 LH |
| 67867 | Clip, Door Weatherstrip |
| 67867C | Retainer, Front Door Weatherstrip, RH |
| 67867G | Retainer, Door Weatherstrip, RH |
| 67868C | Retainer, Front Door Weatherstrip, LH |
| 67868L | Retainer, Door Weatherstrip, LH |
| 67869B | Clip, Front Door Weatherstrip |
| 67875B | Weatherstrip, Front Door, NO.4 RH |
| 67876B | Weatherstrip, Front Door, NO.4 LH |
| 67923 | Cushion, Front Door Stiffener, NO.1 |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68141C | Run, Front Door Glass, RH |
| 68151C | Run, Front Door Glass, LH |
| 68171B | Weatherstrip, Front Door Glass, Inner RH |
| 68172A | Weatherstrip, Front Door Glass, Inner LH |
| 68192D | Seal, Front Door Belt, Front |
| 68194 | Seal, Front Door Belt, RH |
| 68194B | Seal, Front Door Belt, Rear RH |
| 68195 | Seal, Front Door Belt, LH |
| 68195B | Seal, Front Door Belt, Rear LH |
| 68610B | Check Assy, Front Door, RH |
| 68620 | Check Assy, Front Door, LH |
| 68621A | Cover, Front Door Check, RH |
| 68622 | Cover, Front Door Check, LH |
| 69751E | Holder, Front Door Lock Control Knob |
| 69751G | Holder, Front Door Lock Control Knob |
| 87963 | Cover, Outer Mirror Install Hole, RH |
| 87964 | Cover, Outer Mirror Install Hole, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
