Toyota Century
2018-06 → present · chassis UWG60 · catalogue 341150 · Japan
Supported model
Data version 2018-07

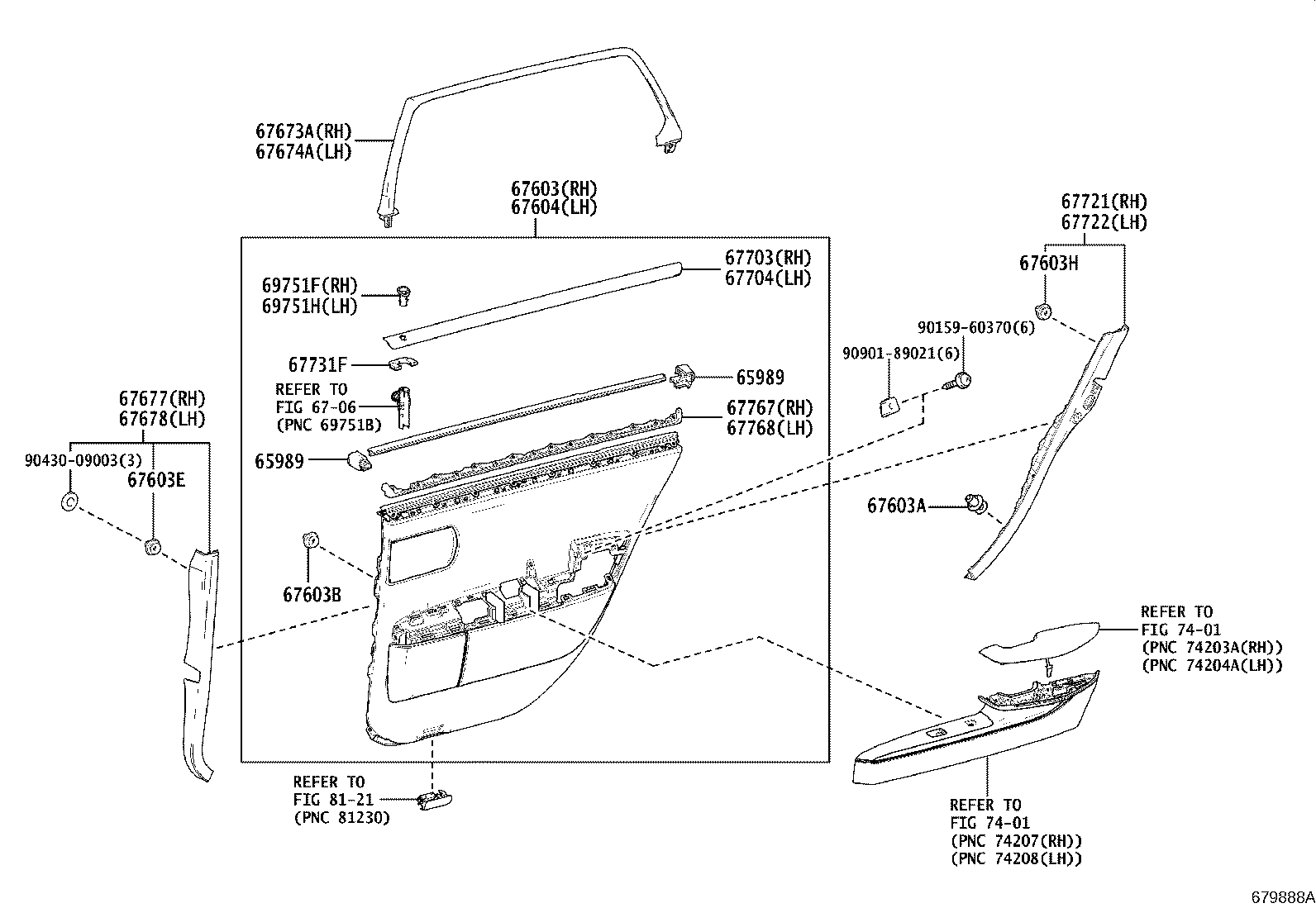

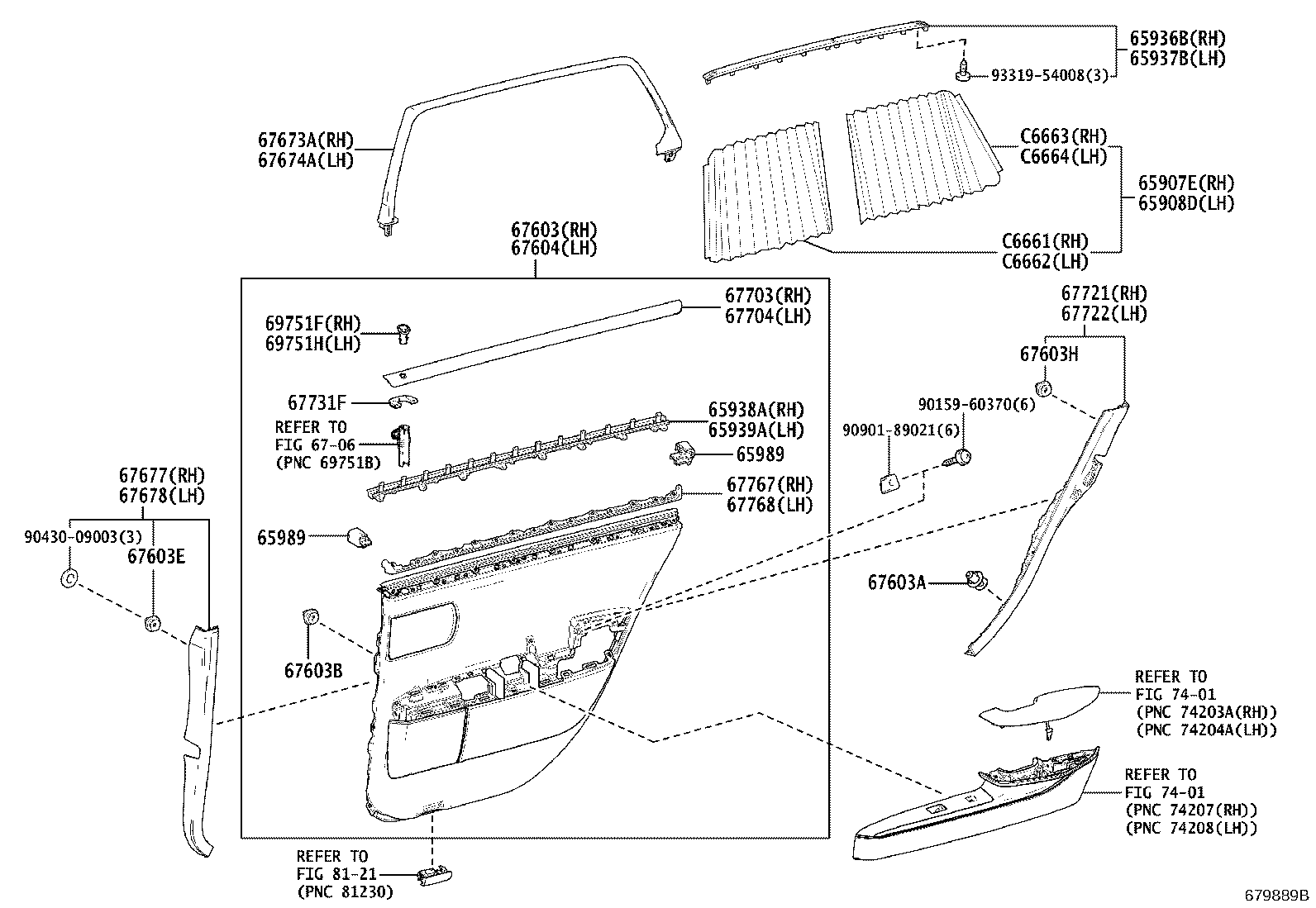

Rear Door Panel & Glass
72 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 65907E | Curtain Sub-assy, Rear RH |
| 65908D | Curtain Sub-assy, Rear LH |
| 65936B | Rail, Curtain, NO.1 |
| 65937B | Rail, Curtain, NO.2 |
| 65938A | Rail, Curtain, NO.3 |
| 65939A | Rail, Curtain, NO.4 |
| 65989 | Cap, Curtain Rail |
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67003C | Cushion, Rear Door Panel |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67043 | Frame Sub-assy, Rear Door Window, RH |
| 67044 | Frame Sub-assy, Rear Door Window, LH |
| 67407E | Bar Sub-assy, Rear Door Window Division, RH |
| 67408E | Bar Sub-assy, Rear Door Window Division, LH |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603A | Retainer(FOR REAR DOOR TRIM BOARD) |
| 67603B | Clip(FOR REAR DOOR TRIM BOARD) |
| 67603E | Clip(FOR REAR DOOR TRIM BOARD) |
| 67603H | Clip(FOR REAR DOOR TRIM BOARD) |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67673A | Garnish, Rear Door Frame, RH |
| 67674A | Garnish, Rear Door Frame, LH |
| 67677 | Cover, Side Trim Board, Rear RH |
| 67678 | Cover, Side Trim Board, Rear LH |
| 67703 | Cover Sub-assy, Rear Door Trim, RH |
| 67704 | Cover Sub-assy, Rear Door Trim, LH |
| 67721 | Cover, Rear Door Trim, RH |
| 67722 | Cover, Rear Door Trim, LH |
| 67731F | Spacer, Side Trim, NO.1 |
| 67767 | Moulding, Rear Door Trim Upper, RH |
| 67768 | Moulding, Rear Door Trim Upper, LH |
| 67811A | Pad, Rear Door Silencer |
| 67833 | Cover, Rear Door Service Hole |
| 67841E | Cover, Rear Door Service Hole, RH |
| 67842E | Cover, Rear Door Service Hole, LH |
| 67857B | Protector, Rear Door Panel, RH |
| 67858B | Protector, Rear Door Panel, LH |
| 67867B | Clip, Door Weatherstrip(FOR REAR DOOR) |
| 67867D | Retainer, Rear Door Weatherstrip, RH |
| 67868D | Retainer, Rear Door Weatherstrip, LH |
| 67871 | Weatherstrip, Rear Door, RH |
| 67871A | Retainer(FOR REAR DOOR WEATHERSTRIP) |
| 67872 | Weatherstrip, Rear Door, LH |
| 67878 | Weatherstrip, Rear Door, Lower RH |
| 67879 | Weatherstrip, Rear Door, Lower LH |
| 67923B | Cushion, Rear Door Stiffener, NO.1 |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68123B | Glass, Rear Door Quarter Window, RH |
| 68124B | Glass, Rear Door Quarter Window, LH |
| 68142C | Run, Rear Door Glass, RH |
| 68152C | Run, Rear Door Glass, LH |
| 68173B | Weatherstrip, Rear Door Glass, Inner RH |
| 68174A | Weatherstrip, Rear Door Glass, Inner LH |
| 68188 | Weatherstrip, Rear Door Quarter Window, RH |
| 68189 | Weatherstrip, Rear Door Quarter Window, LH |
| 68196 | Seal, Rear Door Belt, RH |
| 68196B | Seal, Rear Door Belt, Front RH |
| 68197 | Seal, Rear Door Belt, LH |
| 68197A | Seal, Rear Door Belt, Front LH |
| 68198 | Seal, Rear Door Belt, Rear RH |
| 68199 | Seal, Rear Door Belt, Rear LH |
| 68623 | Cover, Door Check, RH |
| 68624 | Cover, Door Check, LH |
| 68630D | Check Assy, Rear Door, RH |
| 68640A | Check Assy, Rear Door, LH |
| 69751F | Holder, Rear Door Lock Control Knob |
| 69751H | Holder, Rear Door Lock Contral Knob |
| C6661 | Curtain, Rear Door Window, Front RH |
| C6662 | Curtain, Rear Door Window, Front LH |
| C6663 | Curtain, Rear Door Window, Rear RH |
| C6664 | Curtain, Rear Door Window, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
