Toyota Century

2018-06 → present · chassis UWG60 · catalogue 341150 · Japan

Supported model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

74 part groups · 6 illustrations

Illustrations

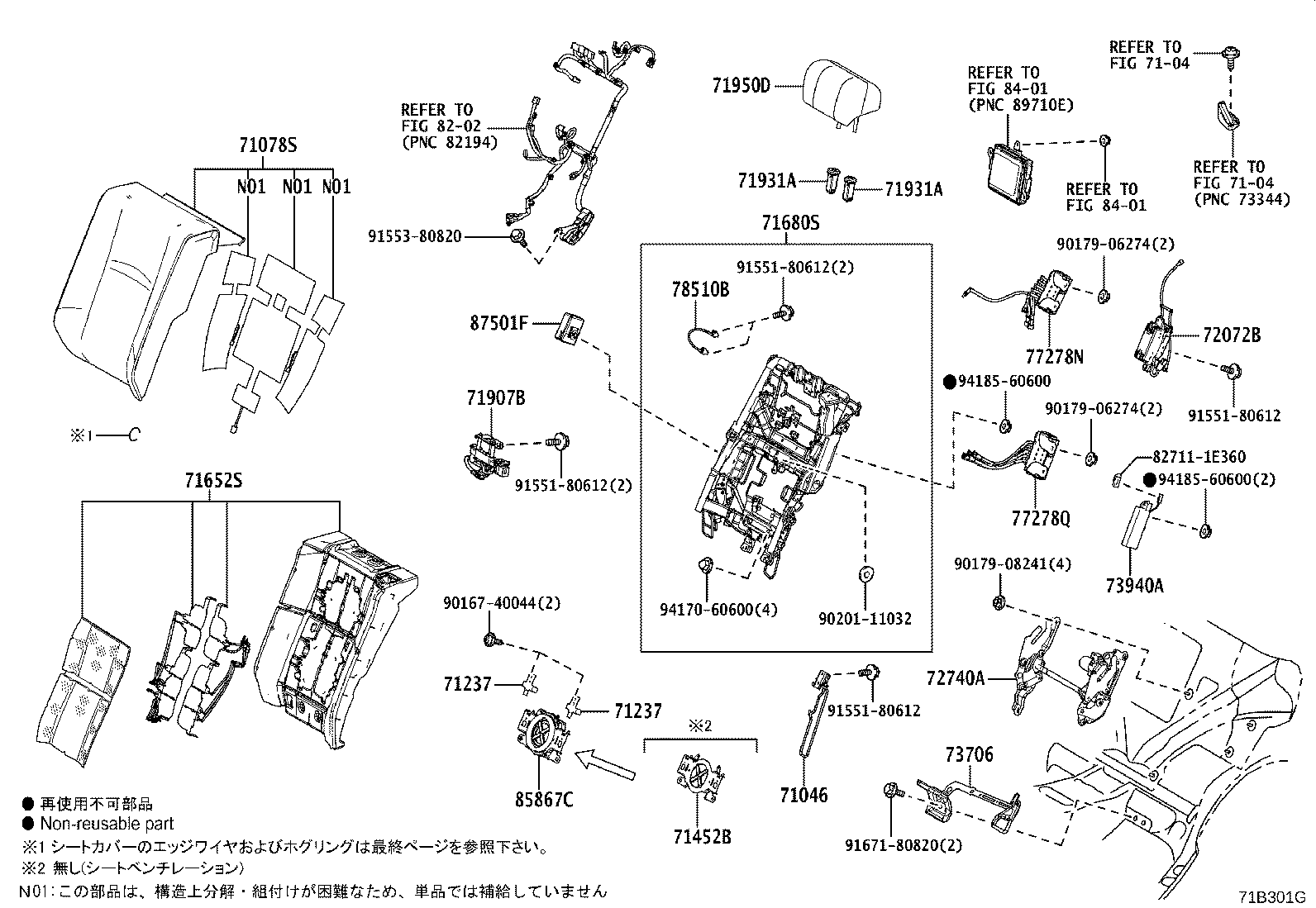

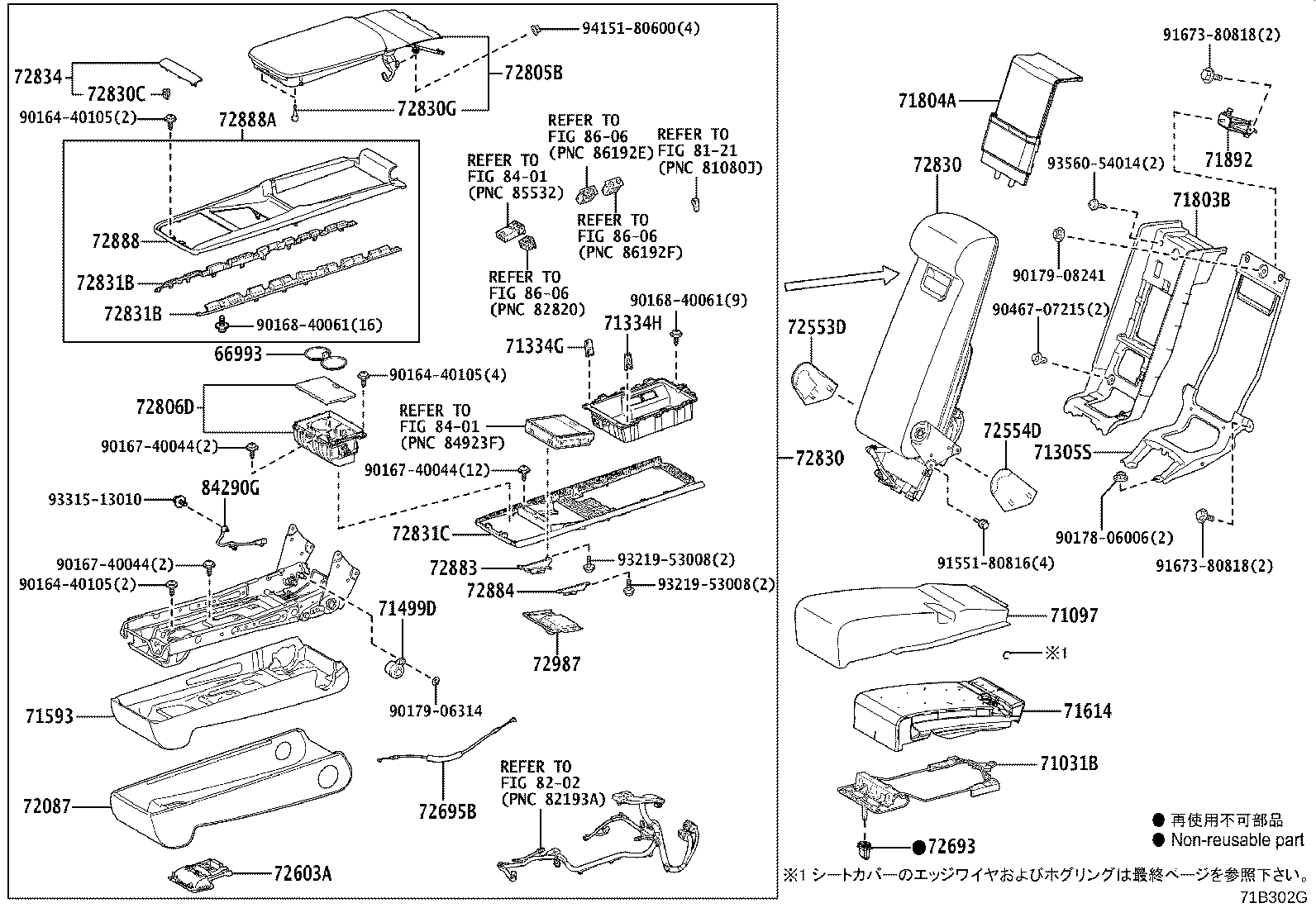

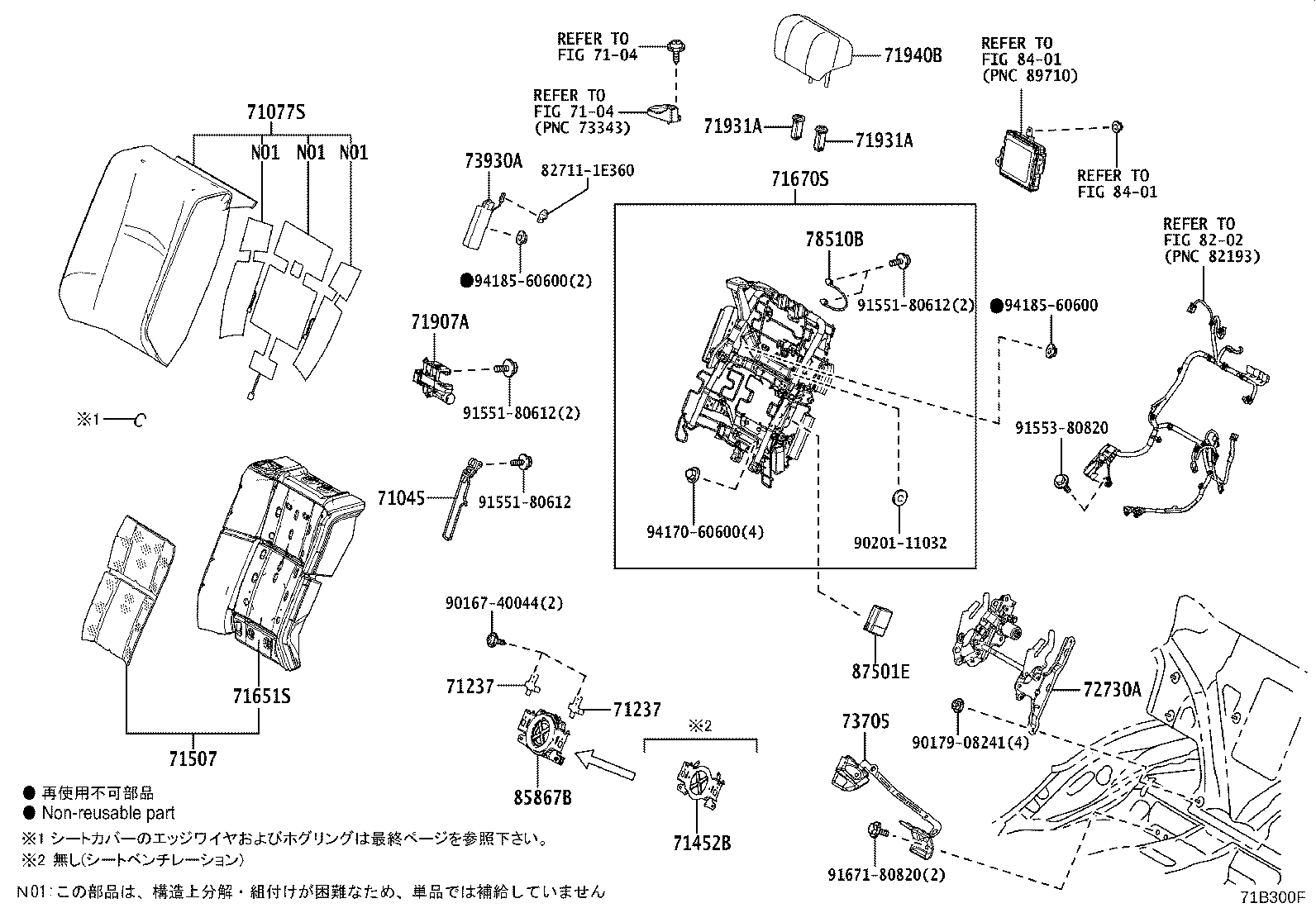

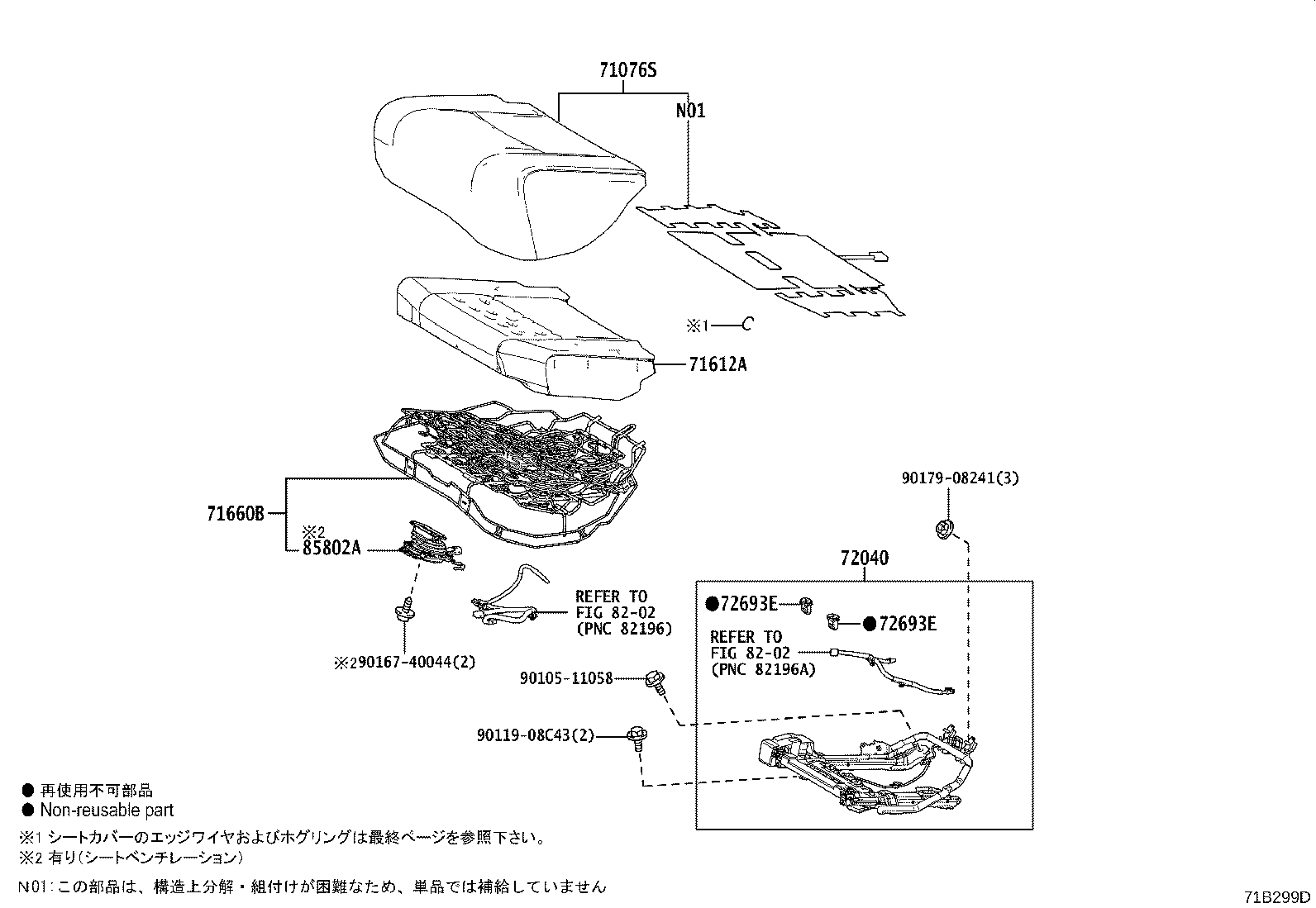

Figure 71B298D 71B298D 2018-06 → — Figure 71B299D 71B299D 2018-06 → — Figure 71B300F 71B300F 2018-06 → — Figure 71B301G 71B301G 2018-06 → — Figure 71B302G 71B302G 2018-06 → — Figure 71A646C 71A646C 2018-06 → —

Part groups

PNCDescription
66993 Tray, Rear Center Seat Cup Holder
71031B Frame Sub-assy, Rear Center Seat Cushion
71045 Wire Sub-assy, Rear Seatback, RH
71046 Wire Sub-assy, Rear Seatback, LH
71075S Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71097 Cover Sub-assy, Rear Center Seat Cushion
71237 Bracket, Rear Seat
71305S Frame Sub-assy, Center Seatback
71334G Guide, Rear Seat Center Armrest, RH
71334H Guide, Rear Seat Center Armrest, LH
71452B Bracket, Rear Seatback
71499D Damper, Rear Seatback Spring
71507 Pad Sub-assy, Rear Seatback, RH
71593 Pad, Rear Seat Center Armrest
71611A Pad, Rear Seat Cushion, RH
71612A Pad, Rear Seat Cushion, LH
71614 Pad, Rear Seat Cushion, Center
71650B Spring Assy, Rear Seat Cushion, RH
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71660B Spring Assy, Rear Seat Cushion, LH
71670S Spring Assy, Rear Seatback, RH(FOR SEPARATE SEAT)
71680S Spring Assy, Rear Seatback, LH(FOR SEPARATE SEAT)
71803B Board Sub-assy, Rear Seat Armrest Hole
71804A Board Sub-assy, Rear Seat Armrest Hole
71892 Bracket, Rear Seatback Set, NO.2
71907A Adjuster Sub-assy, Rear Seat Headrest, NO.1
71907B Adjuster Sub-assy, Rear Seat Headrest, NO.2
71931A Support, Rear Seat Headrest
71940B Headrest Assy, Rear Seat, RH
71950D Headrest Assy, Rear Seat, LH
72030 Adjuster Assy, Rear NO.1 Seat
72040 Adjuster Assy, Rear NO.2 Seat
72072B Pump Sub-assy, Lumber Support, LH
72087 Cover, Rear Seat Center Armrest, NO.1
72553D Cover, Reclining Pedal, RH
72554D Cover, Reclining Pedal, LH
72603A Lock Sub-assy, Rear Seat Center Armrest
72693 Hook, Rear Seat Cushion Lock
72693D Hook, Rear Seat Cushion Lock, RH
72693E Hook, Rear Seat Cushion Lock, LH
72695B Cable, Rear Seat Lock Control, RH
72730A Adjuster Assy, Rear Seat Reclining, RH
72740A Adjuster Assy, Rear Seat Reclining, LH
72805B Door Sub-assy, Rear Seat Center Armrest
72806D Holder Sub-assy, Rear Seat Center Armrest Cup
72830 Armrest Assy, Rear Seat, Center
72830C Clip, Rear Seat Center Armrest
72830G Cushion
72831B Plate, Rear Seat Center Armrest, NO.1
72831C Plate, Rear Seat Center Armrest, NO.2
72834 Panel, Rear Seat Center Armrest, NO.2
72883 Bracket, Rear Seat Center Armrest, RH
72884 Bracket, Rear Seat Center Armrest, LH
72888 Bezel, Rear Seat Center Armrest Box
72888A Bezel Sub-assy, Rear Seat Center Armrest Box
72987 Cover, Rear Seat Center Armrest
73705 Bracket Sub-assy, Child Restraint Seat Anchor, RH
73706 Bracket Sub-assy, Child Restraint Seat Anchor, LH
73930A Airbag Assy, Rear Seat, RH
73940A Airbag Assy, Rear Seat, LH
77278N Valve, Check W/Hose, LH NO.1(FOR SEATBACK)
77278Q Valve, Check W/Hose, LH NO.2(FOR SEATBACK)
78510B Cable Assy, Stop
84290G Switch Assy, Rear Seatback Limit
85801A Blower Sub-assy, Seat Cushion Climate, RH
85802A Blower Sub-assy, Seat Cushion Climate, LH
85867B Blower, Rear Seatback Climate Control, RH
85867C Blower, Rear Seatback Climate Control, LH
87501E Control Sub-assy, Seat Heater, RH
87501F Control Sub-assy, Seat Heater, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
