Toyota Century

2018-06 → present · chassis UWG60 · catalogue 341150 · Japan

Supported model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

29 part groups · 2 illustrations

Illustrations

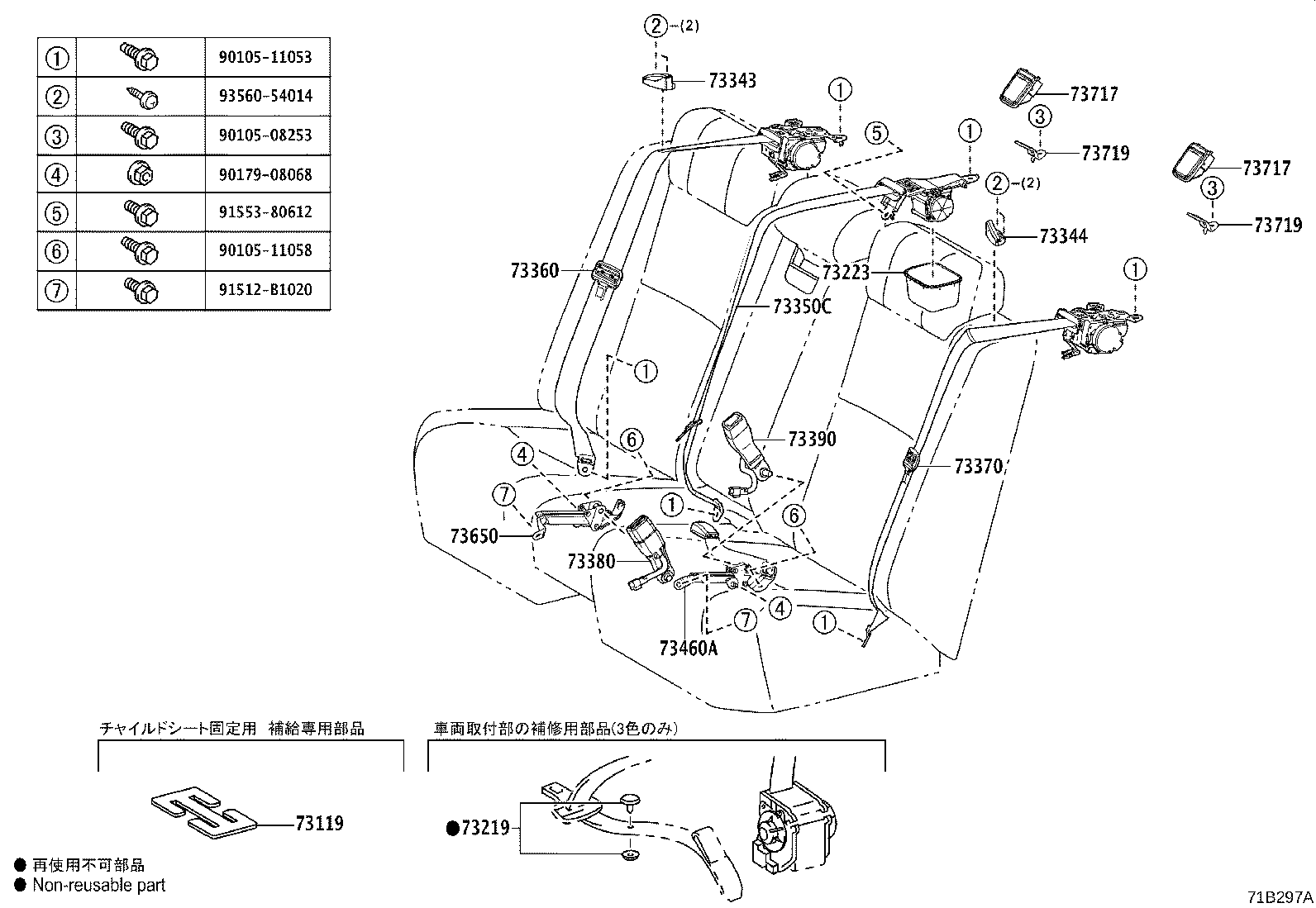

Figure 71B296A 71B296A 2018-06 → — Figure 71B297A 71B297A 2018-06 → —

Part groups

PNCDescription
73119 Plate, Seat Belt Webbing Clip
73135A Cover, Shoulder Belt Anchor, RH
73136A Cover, Shoulder Belt Anchor, LH
73173 Cover, Front Seat Belt Hole, RH
73174 Cover, Front Seat Belt Hole, LH
73187 Guide, Front Seat Shoulder Belt
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73214 Plate, Front Seat Belt Anchor
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73223 Cover, Seat Belt Retractor
73223B Cover, Front Seat Belt Retractor, RH
73224B Cover, Front Seat Belt Retractor, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73343 Guide, Rear Seat Shoulder Belt, RH
73344 Guide, Rear Seat Shoulder Belt, LH
73350C Belt Assy, Rear Seat, Outer Center
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
73460A Belt Assy, Rear Seat Center, Inner
73650 Bracket Assy, Rear Seat Belt Inner Anchor, RH
73717 Cover, Child Restraint Seat Tether Anchor
73719 Bracket, Child Restraint Seat Tether Anchor
85642 Motor, Height Adjustable Anchor, RH
85652 Motor, Height Adjustable Anchor, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
