Toyota Century

2018-06 → present · chassis UWG60 · catalogue 341150 · Japan

Supported model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

24 part groups · 2 illustrations

Illustrations

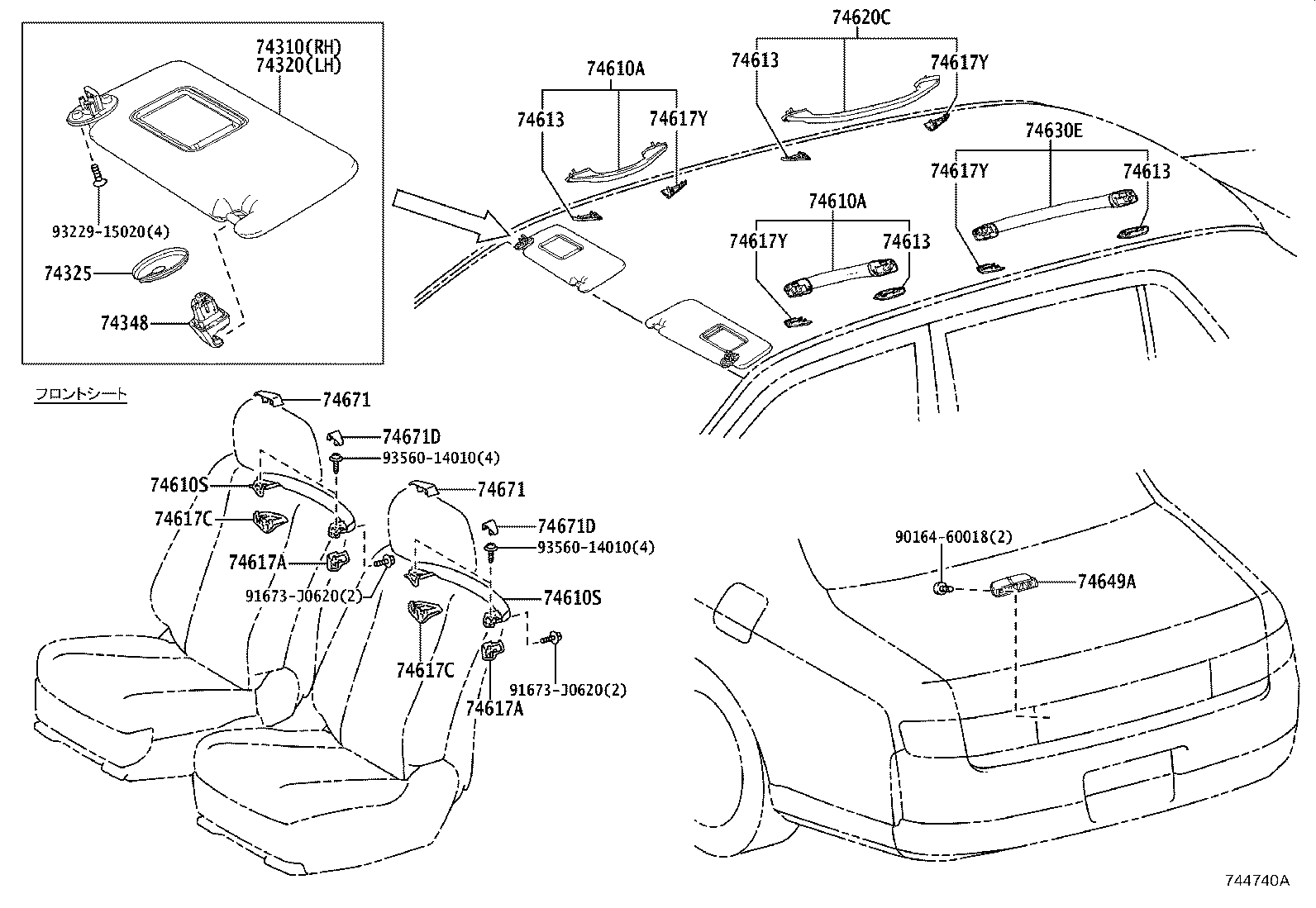

Figure 744739B 744739B 2018-06 → — Figure 744740A 744740A 2018-06 → —

Part groups

PNCDescription
74031 Base Sub-assy, Front Door Armrest Lower, RH
74032 Base Sub-assy, Front Door Armrest Lower, LH
74201A Panel Sub-assy, Front Armrest Base, Upper RH
74202A Panel Sub-assy, Front Armrest Base, Upper LH
74203A Panel Sub-assy, Rear Armrest Base, Upper RH
74204A Panel Sub-assy, Rear Armrest Base, Upper LH
74207 Panel Sub-assy, Rear Armrest Base, Lower RH
74208 Panel Sub-assy, Rear Armrest Base, Lower LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74325 Cover, Visor Bracket
74348 Holder, Visor
74610A Grip Sub-assy, Assist
74610S Grip Assy, Assist
74611Q Clip
74613 Plug, Assist Grip
74617A Plug, Assist Grip
74617C Plug, Assist Grip
74617Y Plug, Assist Grip
74620C Grip Assy, Assist, Rear RH
74630E Grip Assy, Assist, Rear LH
74649A Grip, Luggage Compartment Door Assist
74671 Support, Assist Grip
74671D Support, Assist Grip
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
