Toyota Century

2018-06 → present · chassis UWG60 · catalogue 341150 · Japan

Supported model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

76 part groups · 10 illustrations

Illustrations

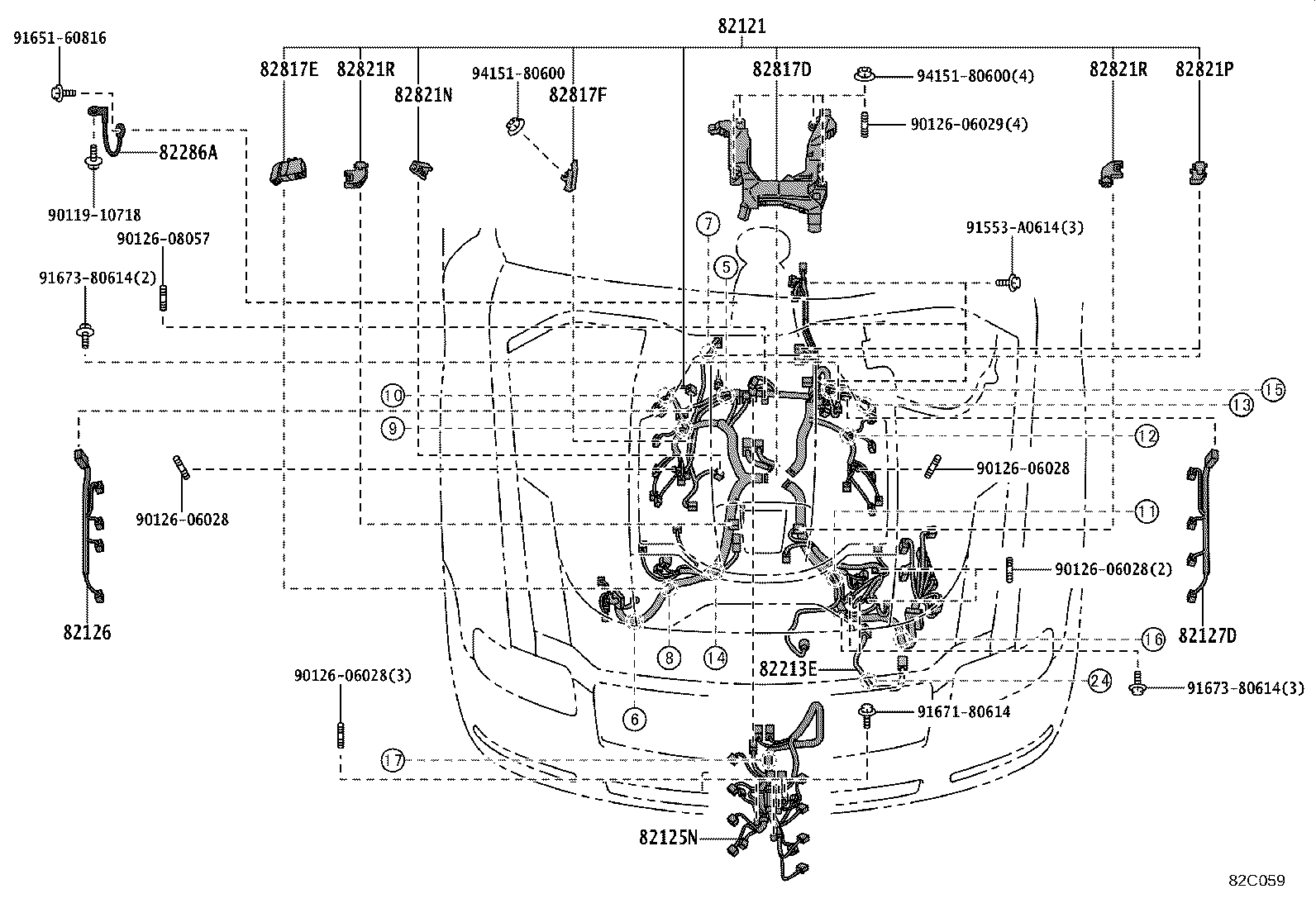

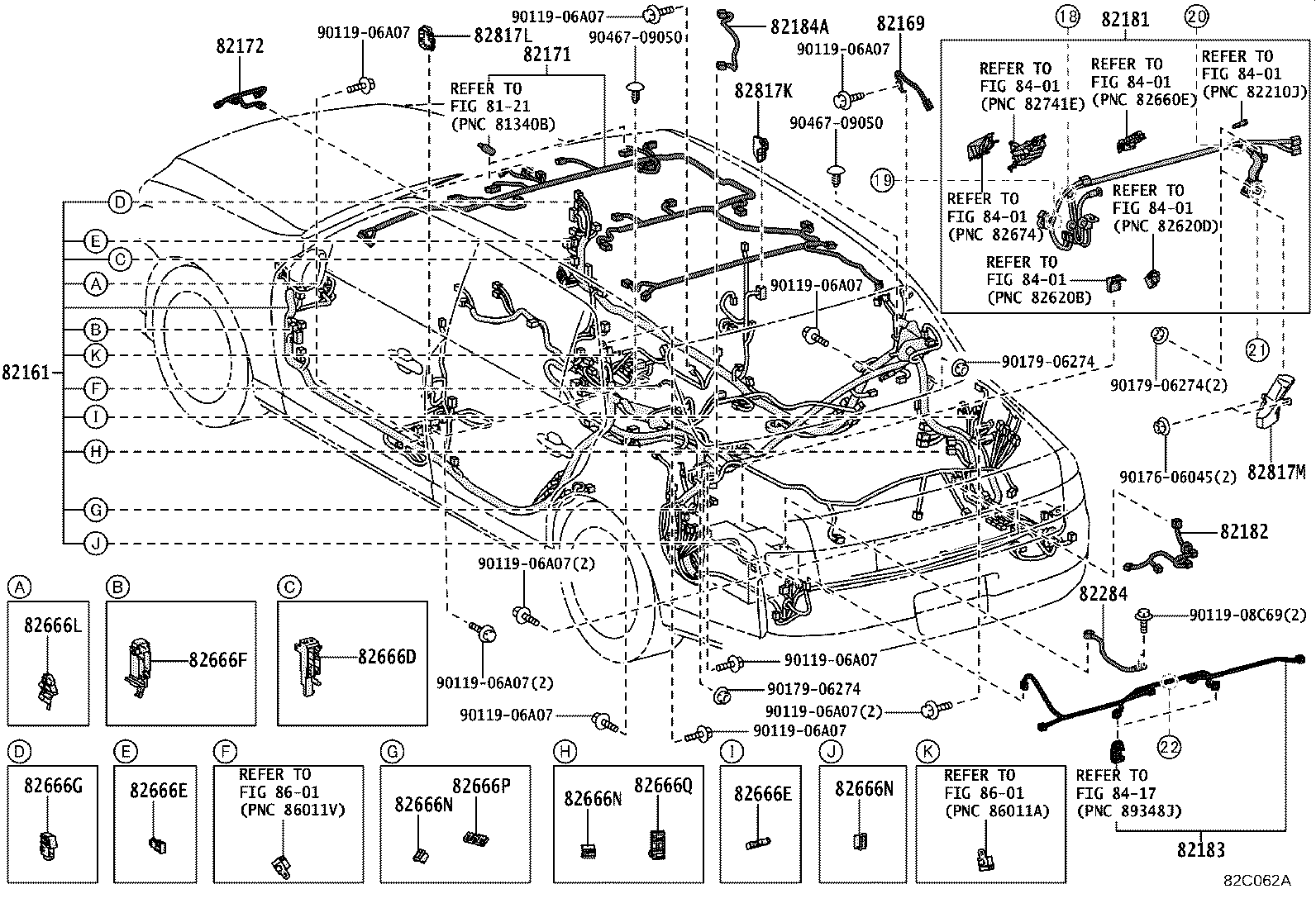

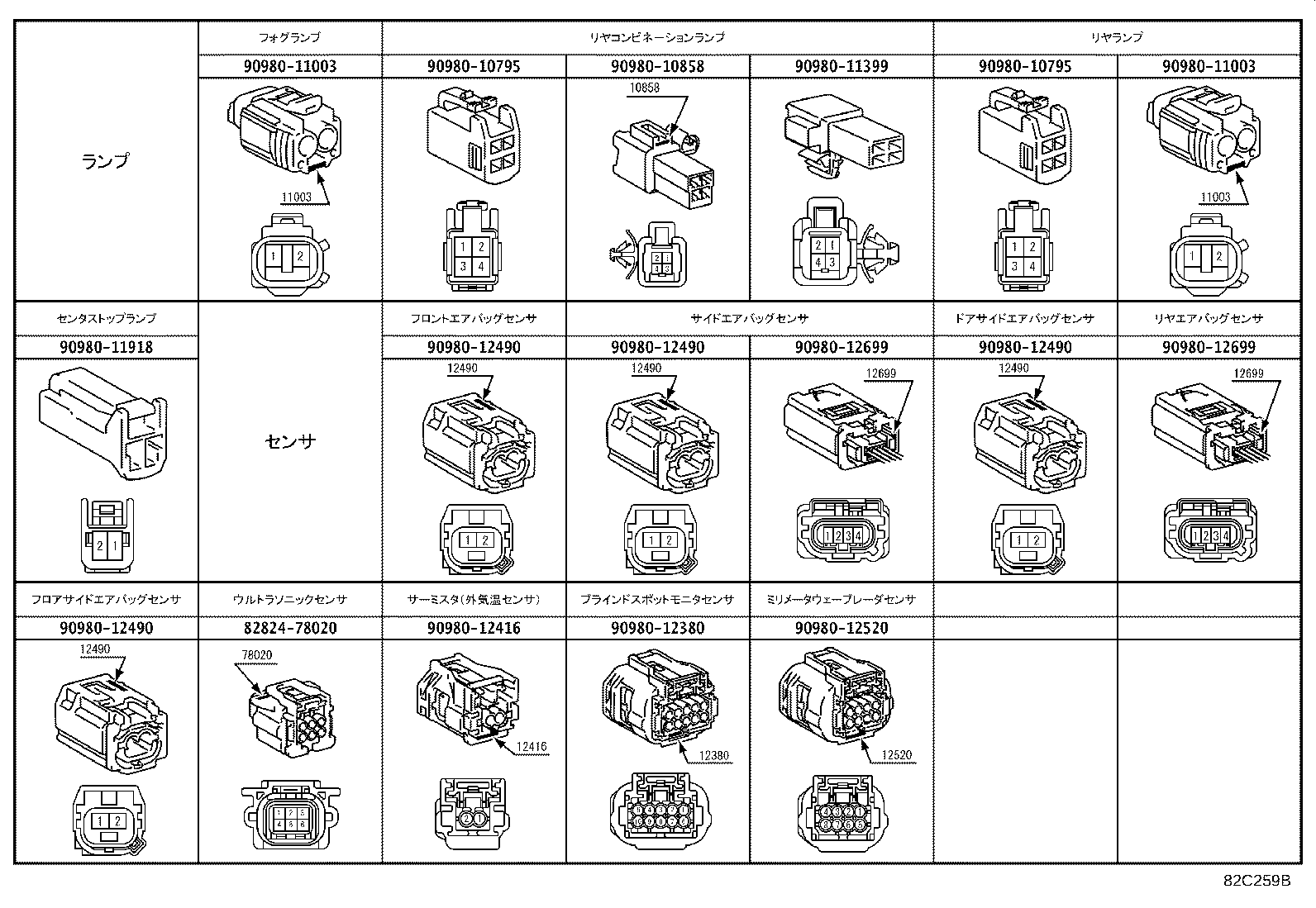

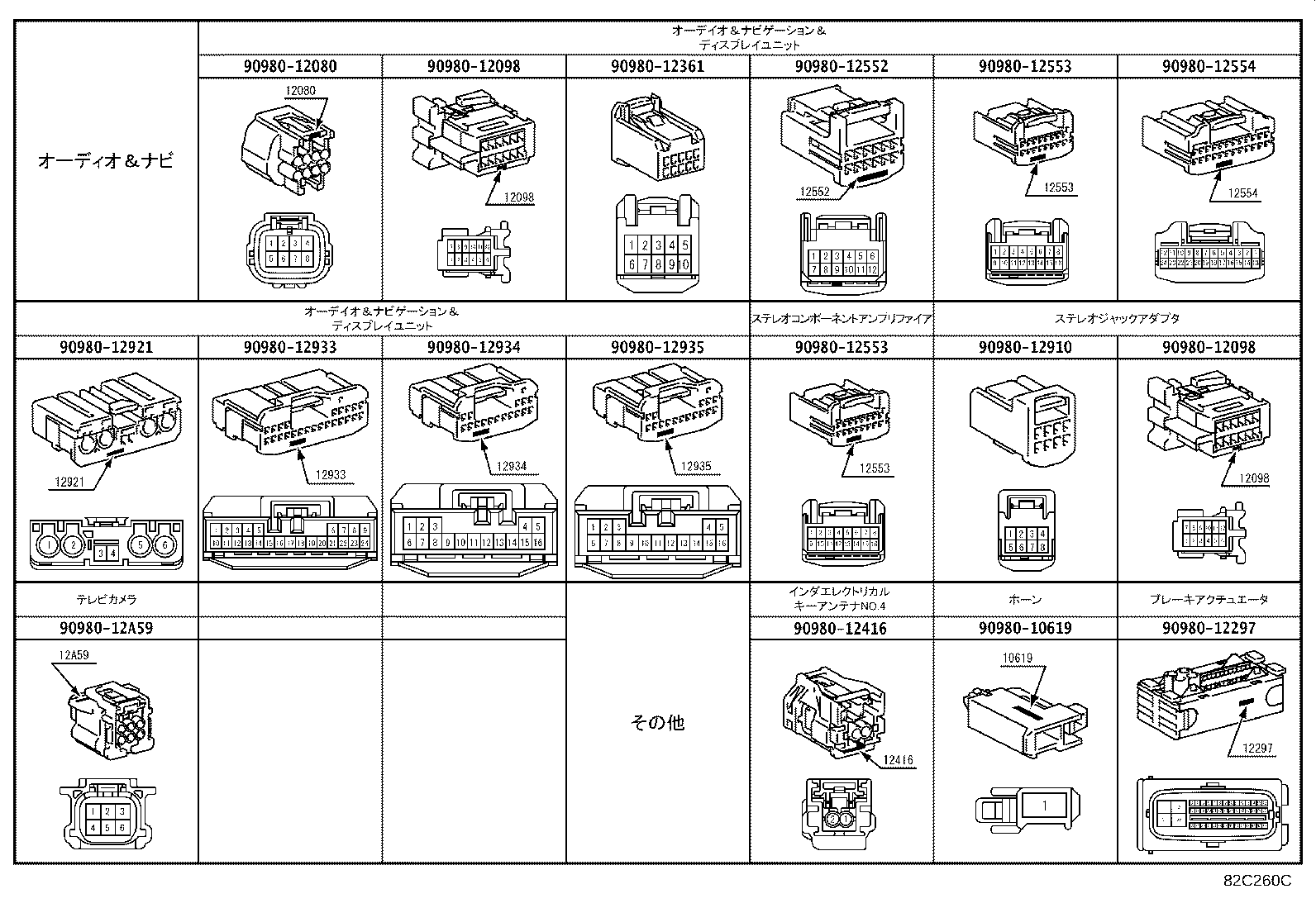

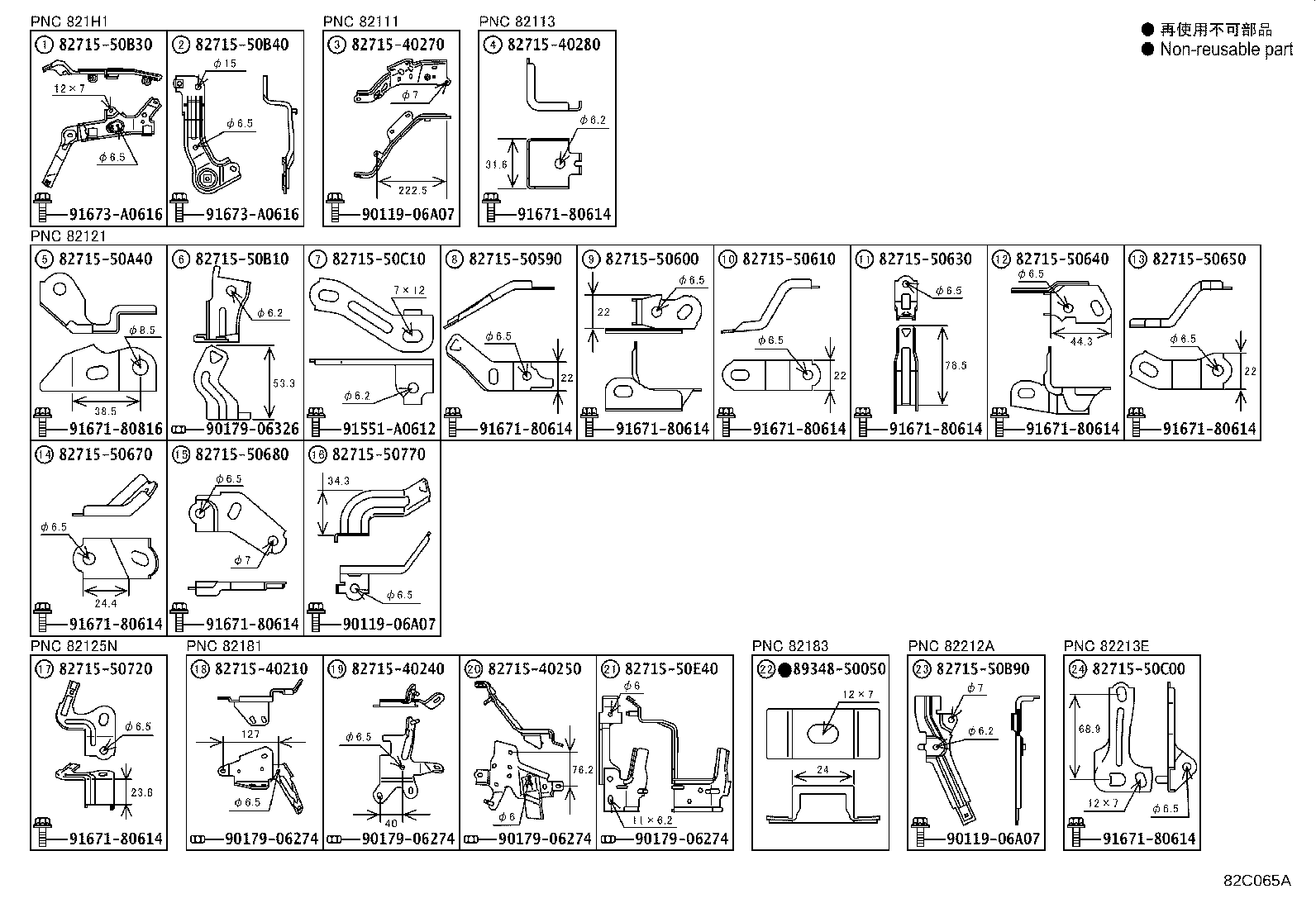

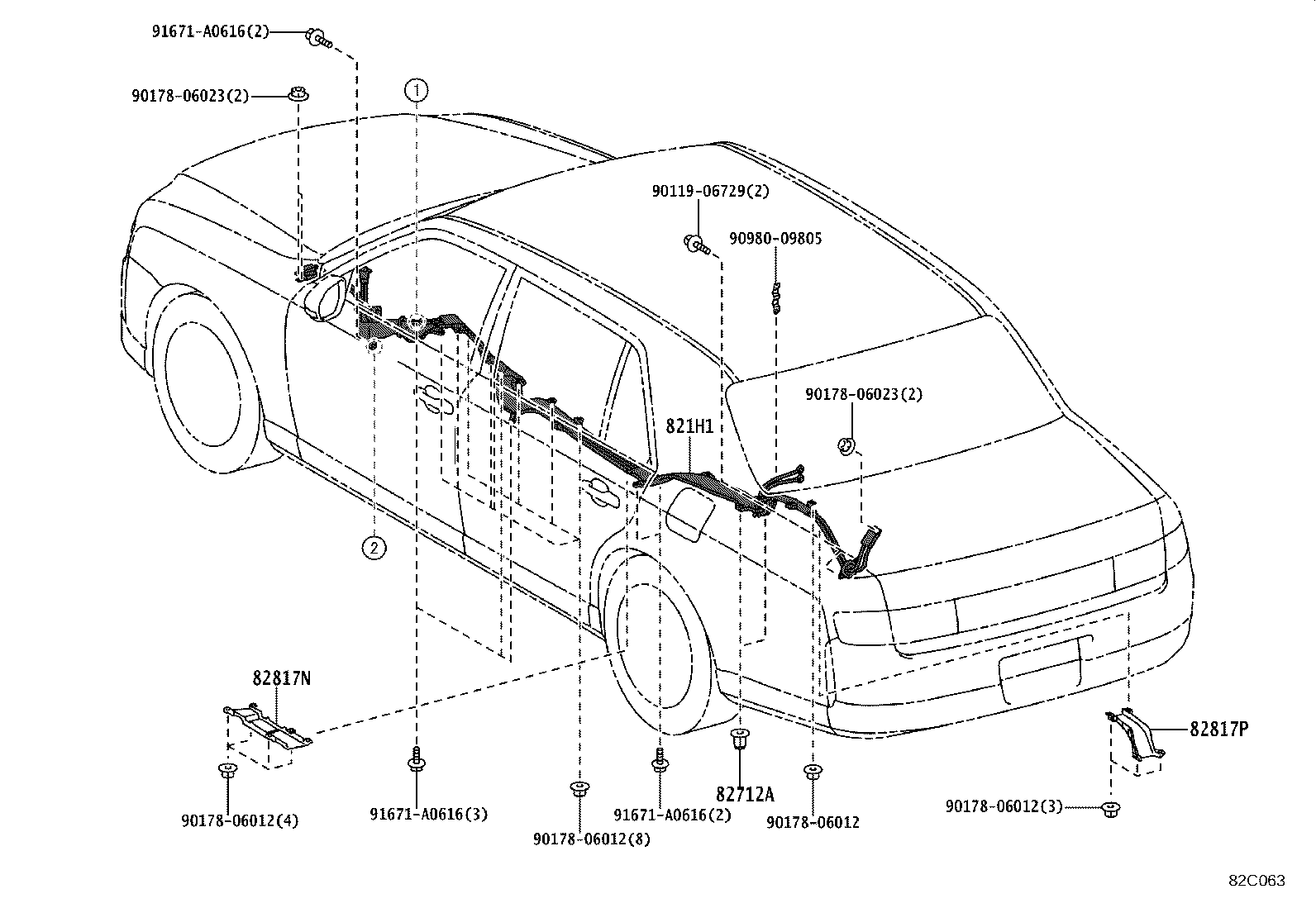

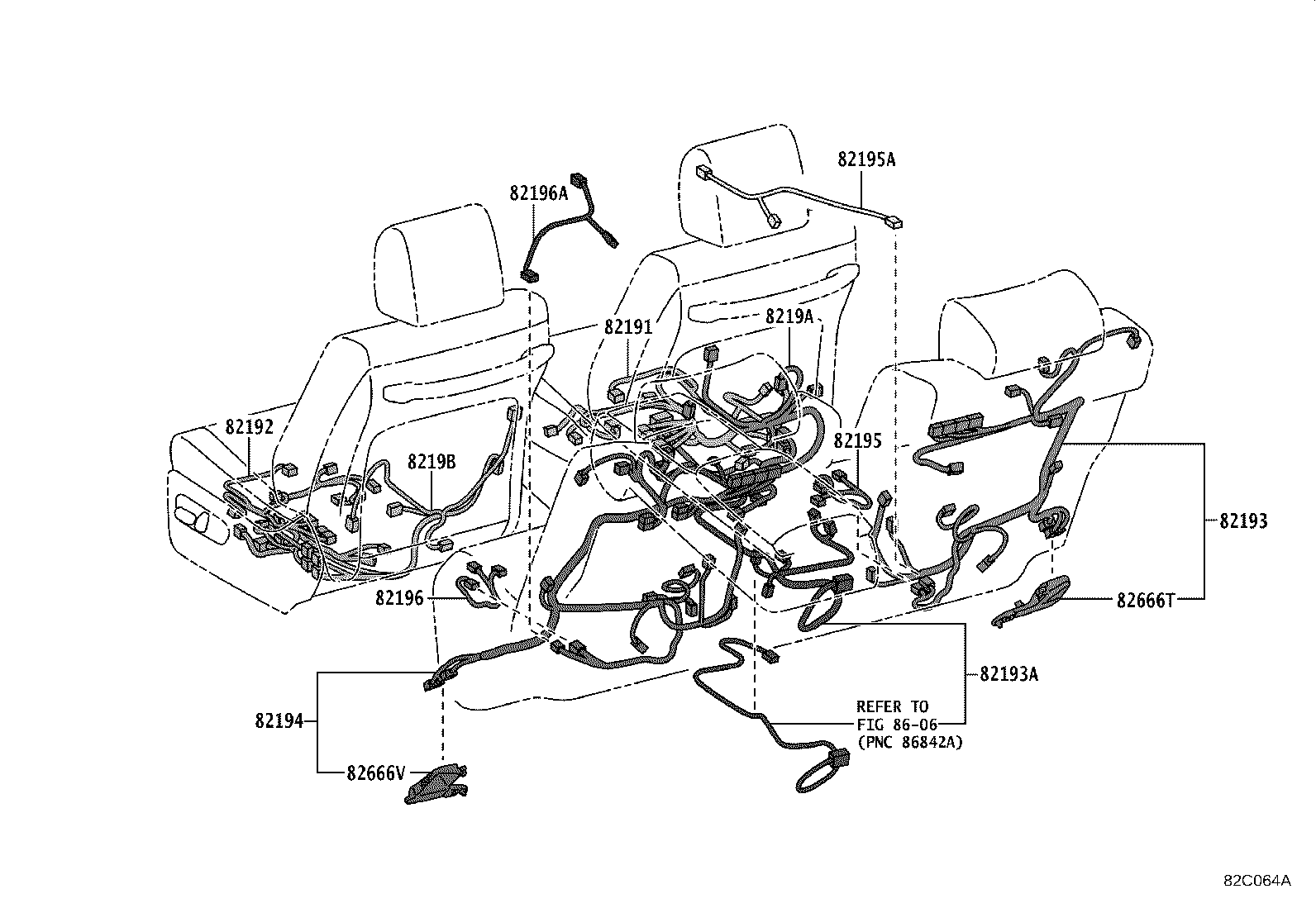

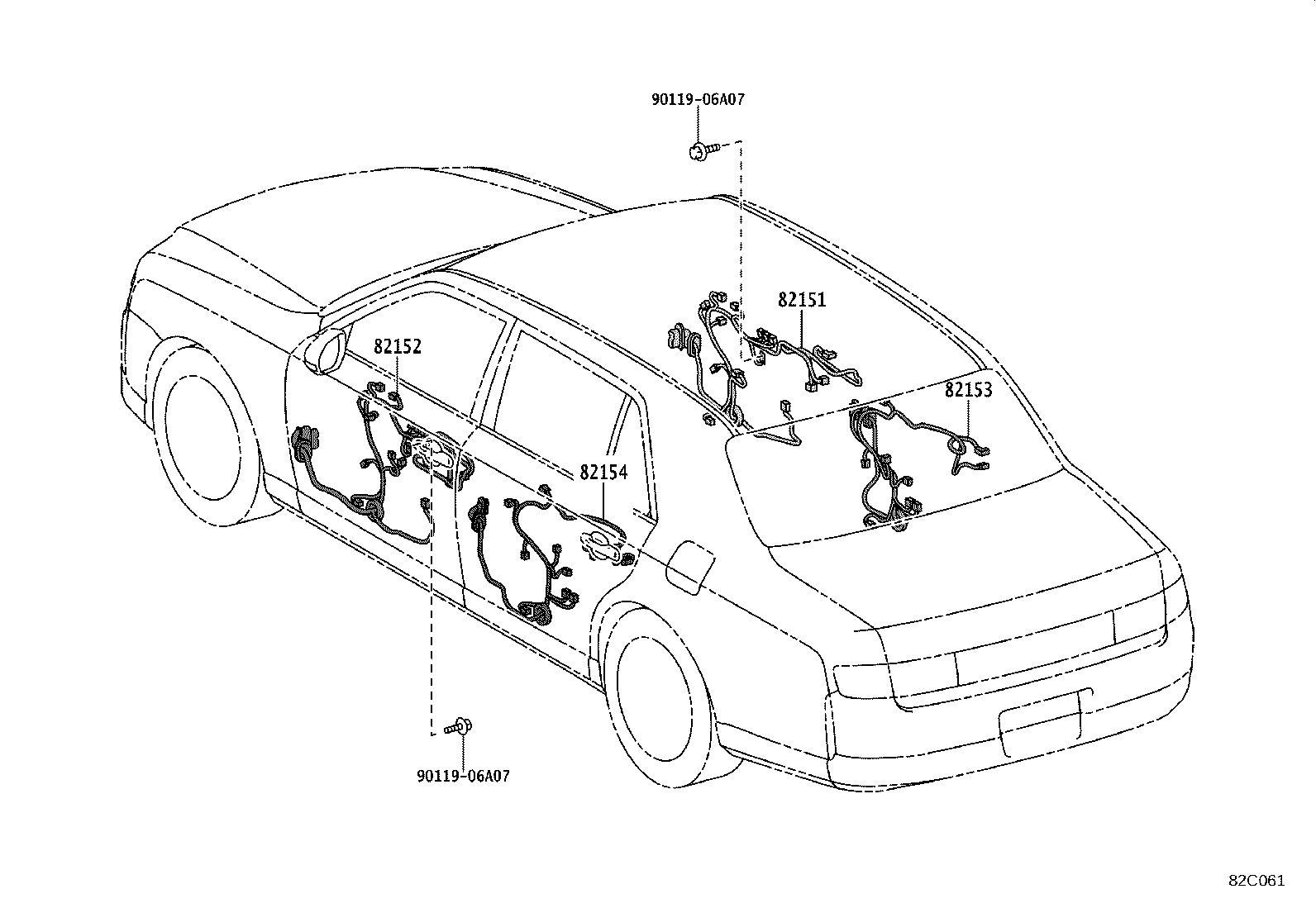

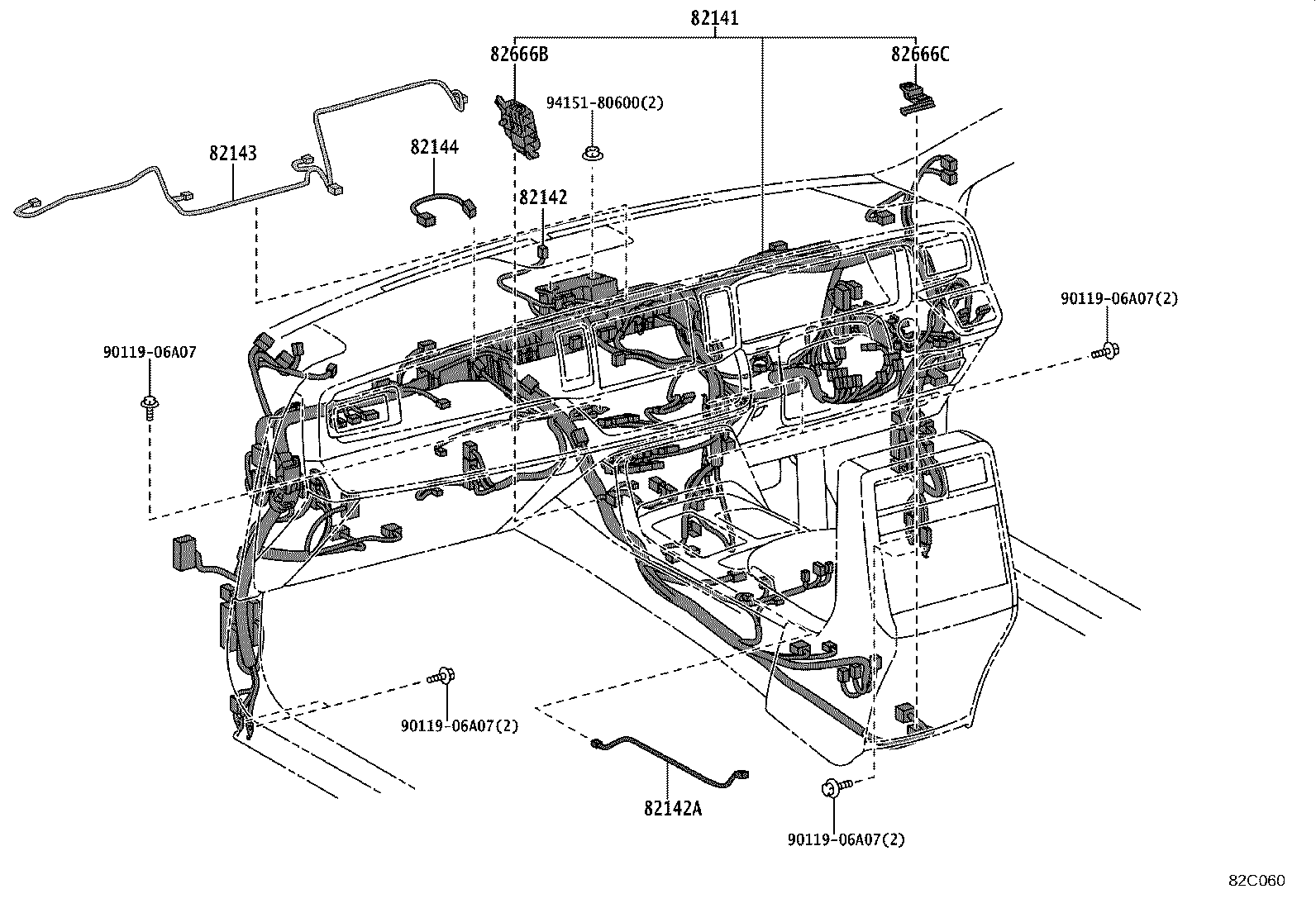

Figure 82C058 82C058 2018-06 → — Figure 82C059 82C059 2018-06 → — Figure 82C060 82C060 2018-06 → — Figure 82C061 82C061 2018-06 → — Figure 82C062A 82C062A 2018-06 → — Figure 82C063 82C063 2018-06 → — Figure 82C064A 82C064A 2018-06 → — Figure 82C065A 82C065A 2018-06 → — Figure 82C259B 82C259B 2018-06 → — Figure 82C260C 82C260C 2018-06 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82112B Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82125N Wire, Engine, NO.5
82126 Wire, Engine
82127D Wire, Engine, NO.7
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82144 Wire, Instrument Panel, NO.4
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2
82183 Wire, Luggage Room, NO.3
82184A Wire, Luggage Room, NO.4
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82193 Wire, Rear Seat, RH
82193A Wire, Rear Seat, NO.1
82194 Wire, Rear Seat, LH
82195 Wire, Rear Seat, RH NO.2
82195A Wire, Rear Seat, RH NO.3
82196 Wire, Rear Seat, LH NO.2
82196A Wire, Rear Seat, LH NO.3
8219A Wire, Front Seat, RH NO.2
8219B Wire, Front Seat, LH NO.2
821H1 Wire, Floor Under
82212A Harness, Air Conditioner
82213E Wire, Heater Blower
82284 Wire, Earth
82286A Wire, Earth, NO.2
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666P Holder, Connector NO.11
82666Q Holder, Connector NO.12
82666T Holder, Connector NO.14
82666V Holder, Connector NO.15
82712A Support, Wiring Harness
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82821A Cover, Connector
82821E Cover, Connector
82821H Cover, Connector
82821M Cover, Connector
82821N Cover, Connector
82821P Cover, Connector
82821R Cover, Connector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
