Toyota Century

2018-06 → present · chassis UWG60 · catalogue 341150 · Japan

Supported model Data version 2018-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

163 part groups · 12 illustrations

Illustrations

Part groups

PNC	Description
28371	Relay, Ignition, NO.1
28371C	Relay, Ignition, NO.2
28380A	Resister, Fuel Pump
28380C	Relay Assy, Fuel Pump
82210J	Fusible Link
82210M	Fusible Link
82210N	Instrument Panel Fusible Link
82210P	Engine Room Fusible Link
82210R	Luggage Room Fusible Link
82600D	Instrument Panel Fuse
82600E	Engine Room Fuse
82600F	Fuse, Fuse Block
82600L	Luggage Room Fuse
82620B	Block Assy, Fusible Link
82620D	Block Assy, Fusible Link
82644	Computer, Semiconductor Power Integration
82644B	Computer, Semiconductor Power Integration, NO.2
82657	Packing, Relay Block, NO.1
82657A	Packing, Relay Block, NO.2
82657B	Packing, Relay Block, NO.3
82660B	Block Assy, Relay
82660C	Block Assy, Relay
82660D	Block Assy, Relay
82660E	Block Assy, Relay
82661	Cover, Relay Block, NO.1
82661A	Cover, Relay Block, NO.2
82662A	Cover, Relay Block, Upper, NO.1
82662B	Cover, Relay Block, Upper, NO.2
82662C	Cover, Relay Block, Upper, NO.3
82662D	Cover, Relay Block, Upper, NO.4
82662J	Cover, Relay Block, Upper, NO.5
82663	Cover, Relay Block, Lower
82663A	Cover, Relay Block, Lower, NO.2
82663B	Cover, Relay Block, Lower, NO.3
82663C	Cover, Relay Block Lower, NO.4
82663D	Cover, Relay Block, Lower, NO.5

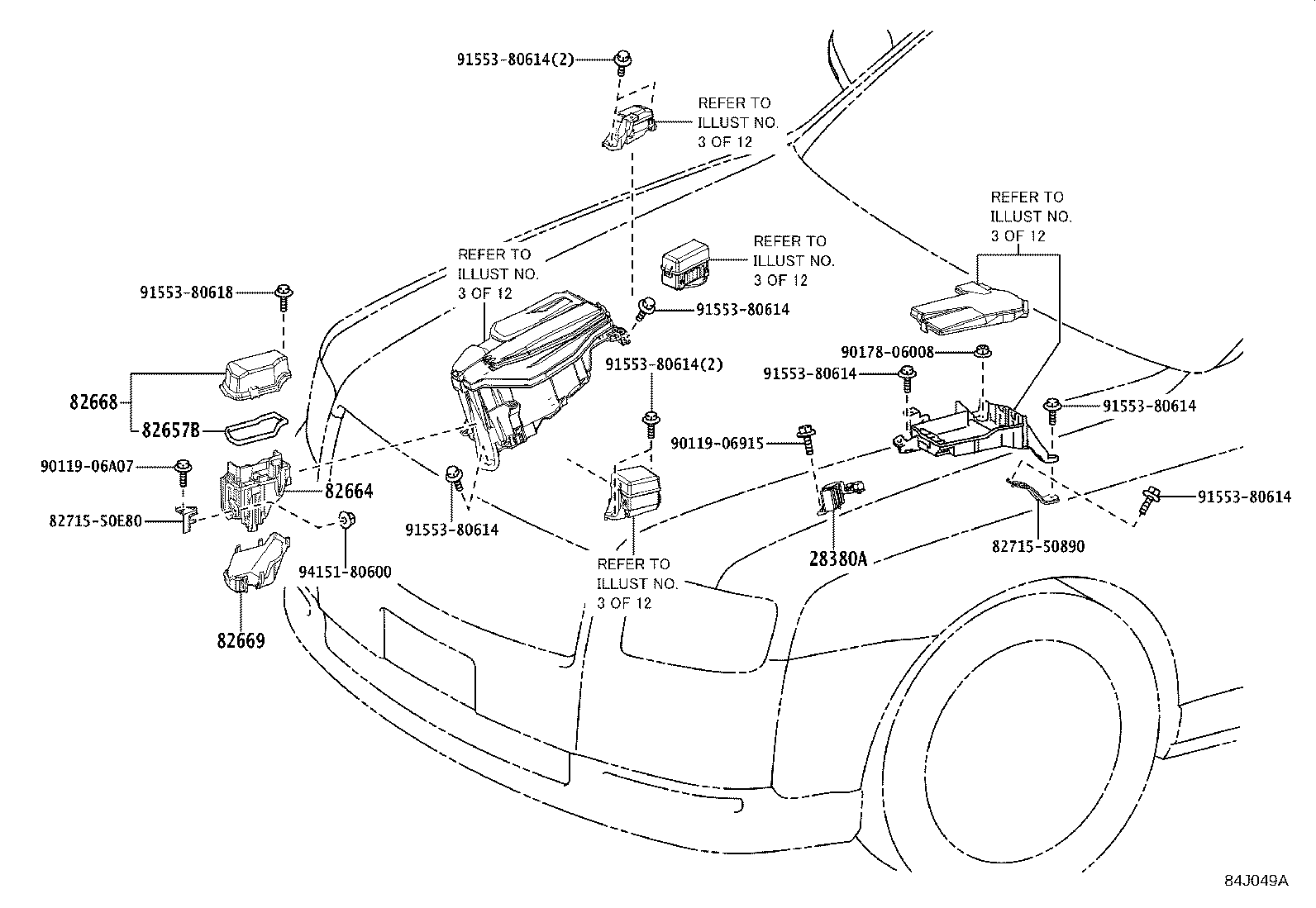

82664	Block, Connector Holder
82668	Cover, Connector Holder Block, Upper
82669	Cover, Connector Holder Block, Lower
82672A	Cover, Junction Block
82672B	Cover, Junction Block
82672C	Cover, Junction Block
82672D	Cover, Junction Block
82673A	Bracket, Junction Block, NO.1
82673B	Bracket, Junction Block, NO.2
82673F	Bracket, Junction Block
82673J	Bracket, Junction Block
82674	Cover, Junction Block Lower
82677	Cover, Junction Block, Upper NO.2
82712E	Support, Wiring Harness
82715	Bracket,Wiring Harness Clamp
82715X	Bracket, Wiring Harness Clamp, NO.2
82715Y	Bracket, Wiring Harness Clamp, NO.3

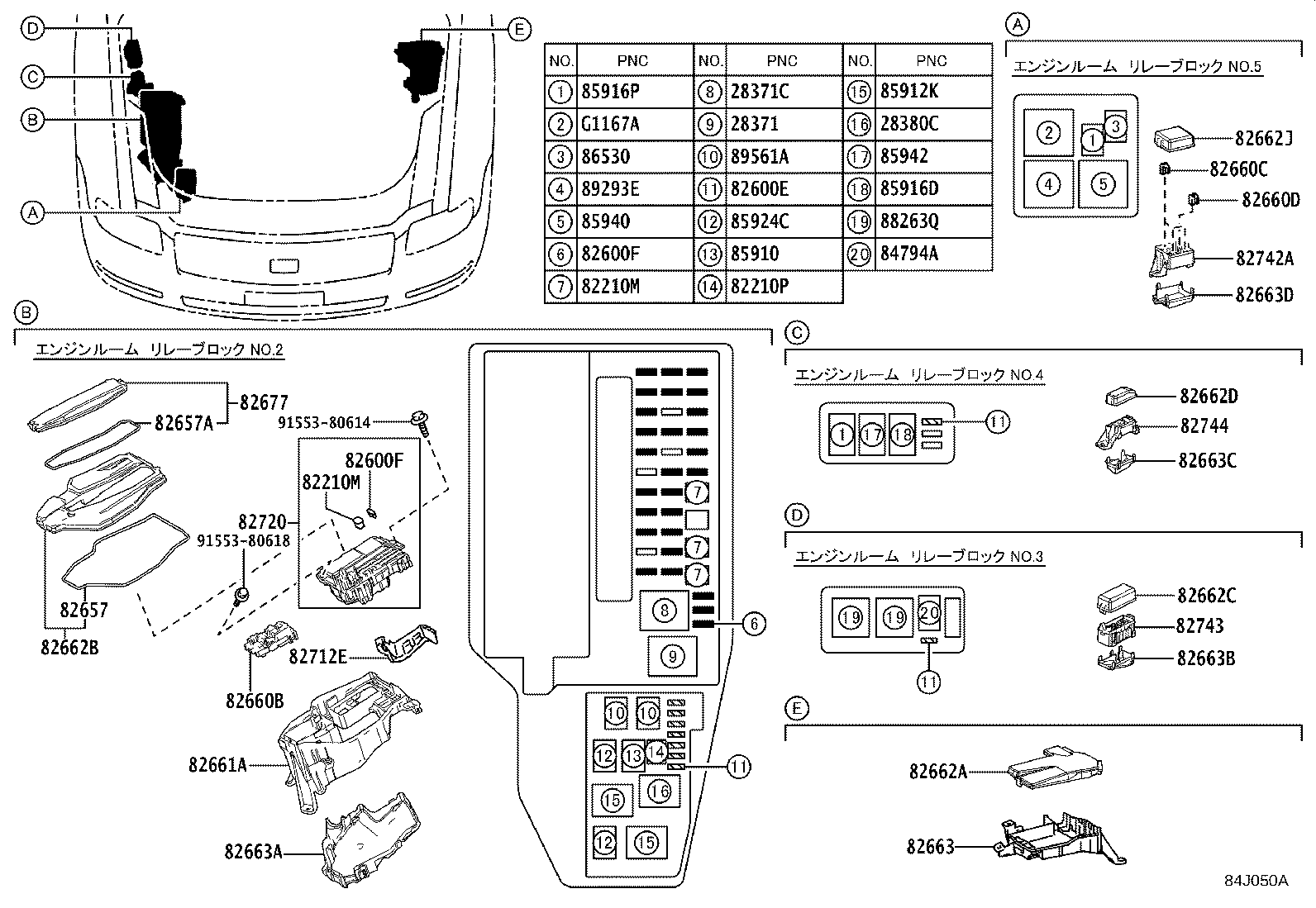

82720	Block Assy, Engine Room Junction

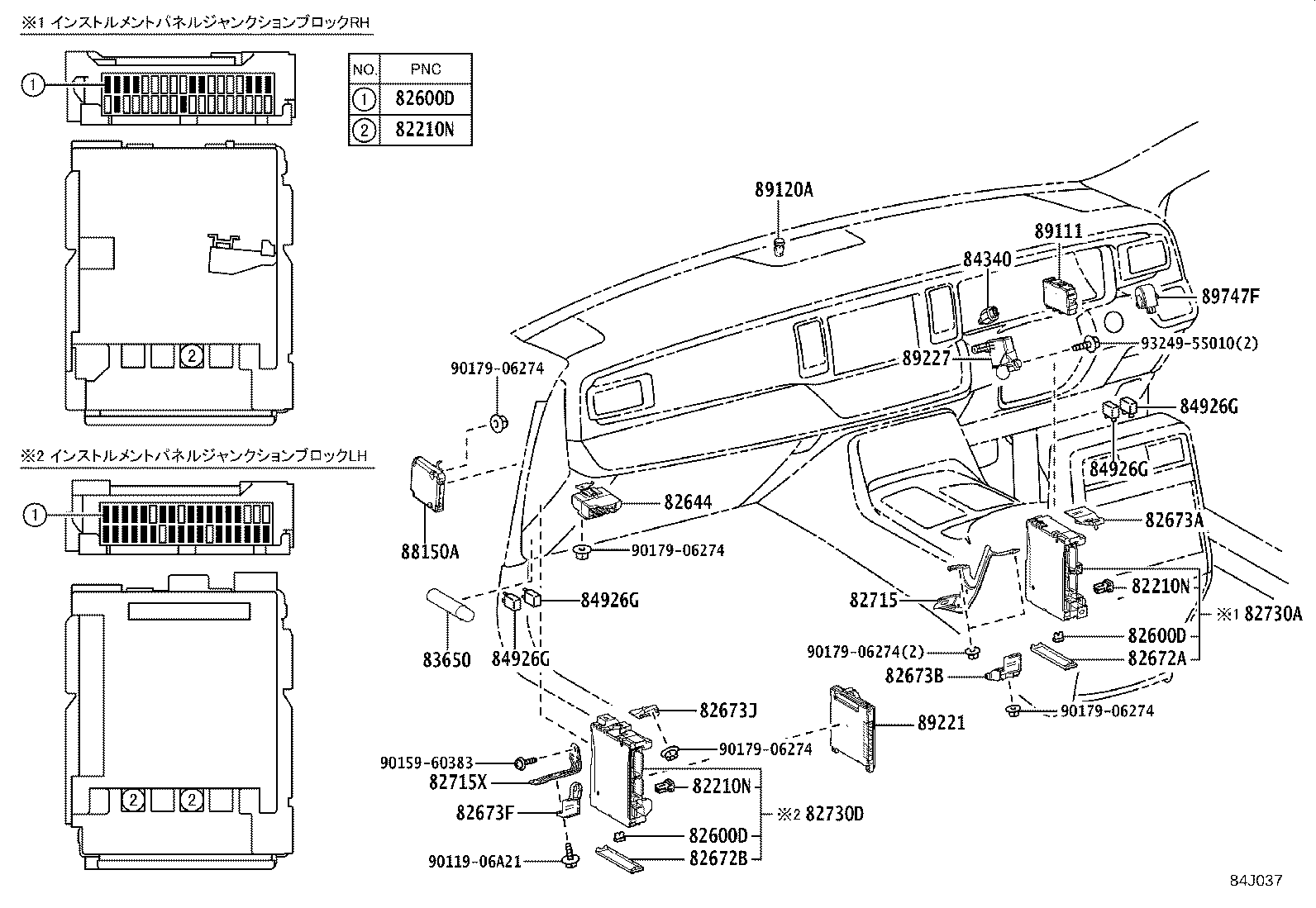

82730A	Block Assy, Driver Side Junction
82730D	Block Assy, Passenger Side Junction
82730E	Block Assy, Junction, RH
82730F	Block Assy, Junction, LH

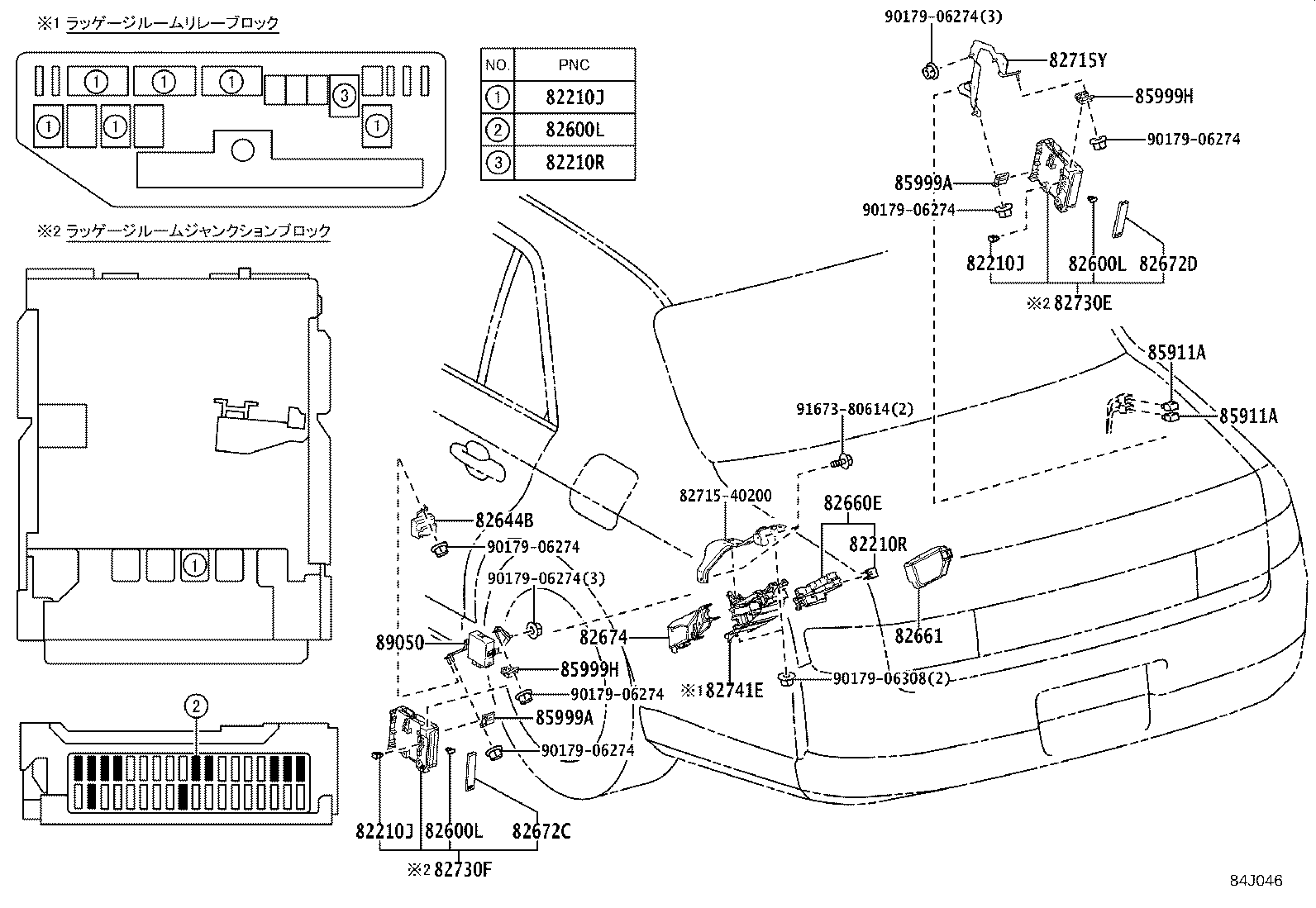

82741E	Block, Luggage Room Relay, NO.1
82742A	Block, Engine Room Relay, NO.5
82743	Block, Engine Room Relay, NO.3
82744	Block, Engine Room Relay, NO.4

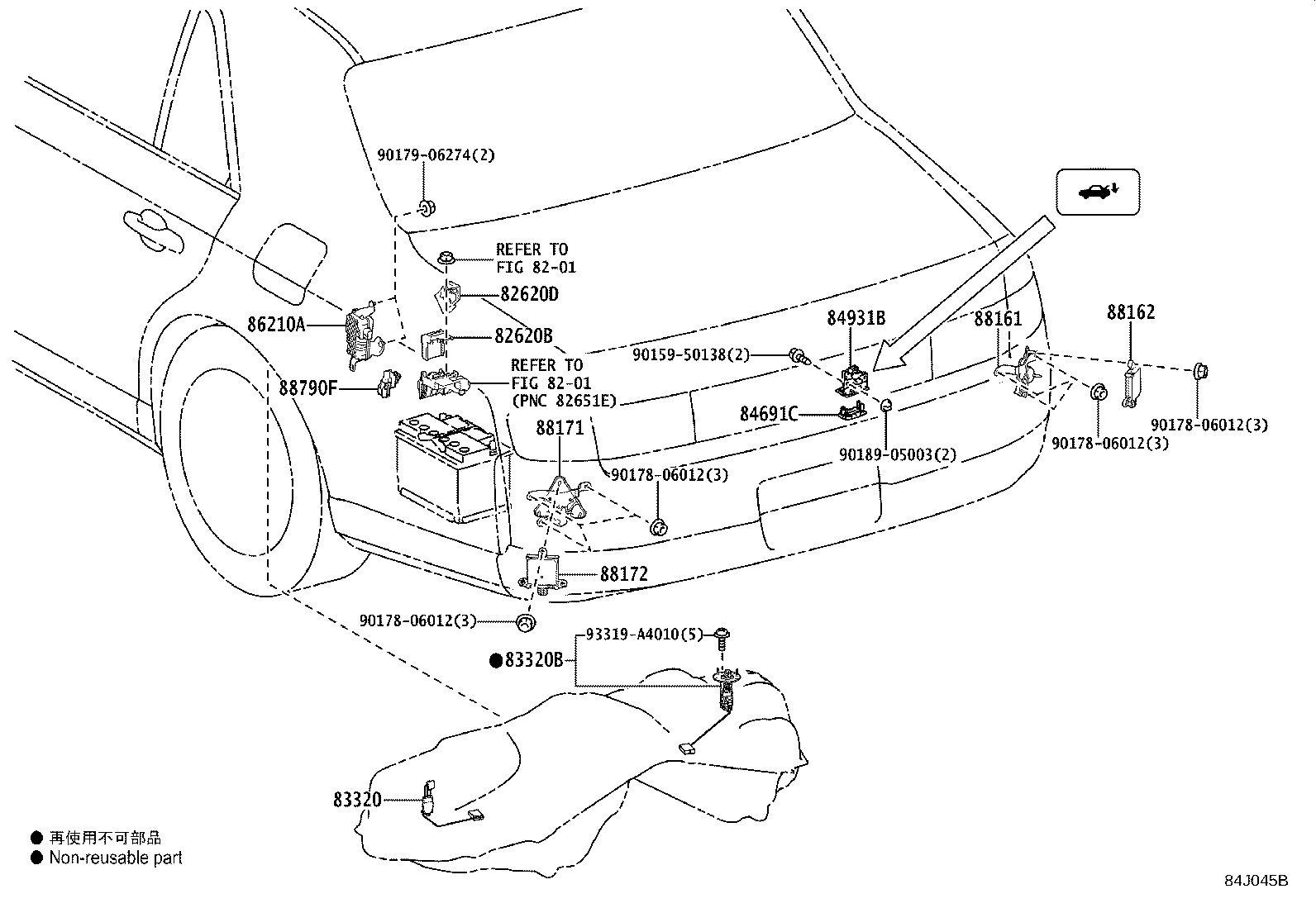

83320	Gage Assy, Fuel Sender
83320B	Gage Assy, Fuel Sender, NO.2
83530	Switch Assy, Oil Pressure (FOR ENGINE)
83531C	Switch, Oil Pressure, (PB1)
83531D	Switch, Oil Pressure, (PB2)
83531E	Switch, Oil Pressure, (PB3)
83650	Fusee
83910G	Clock Assy

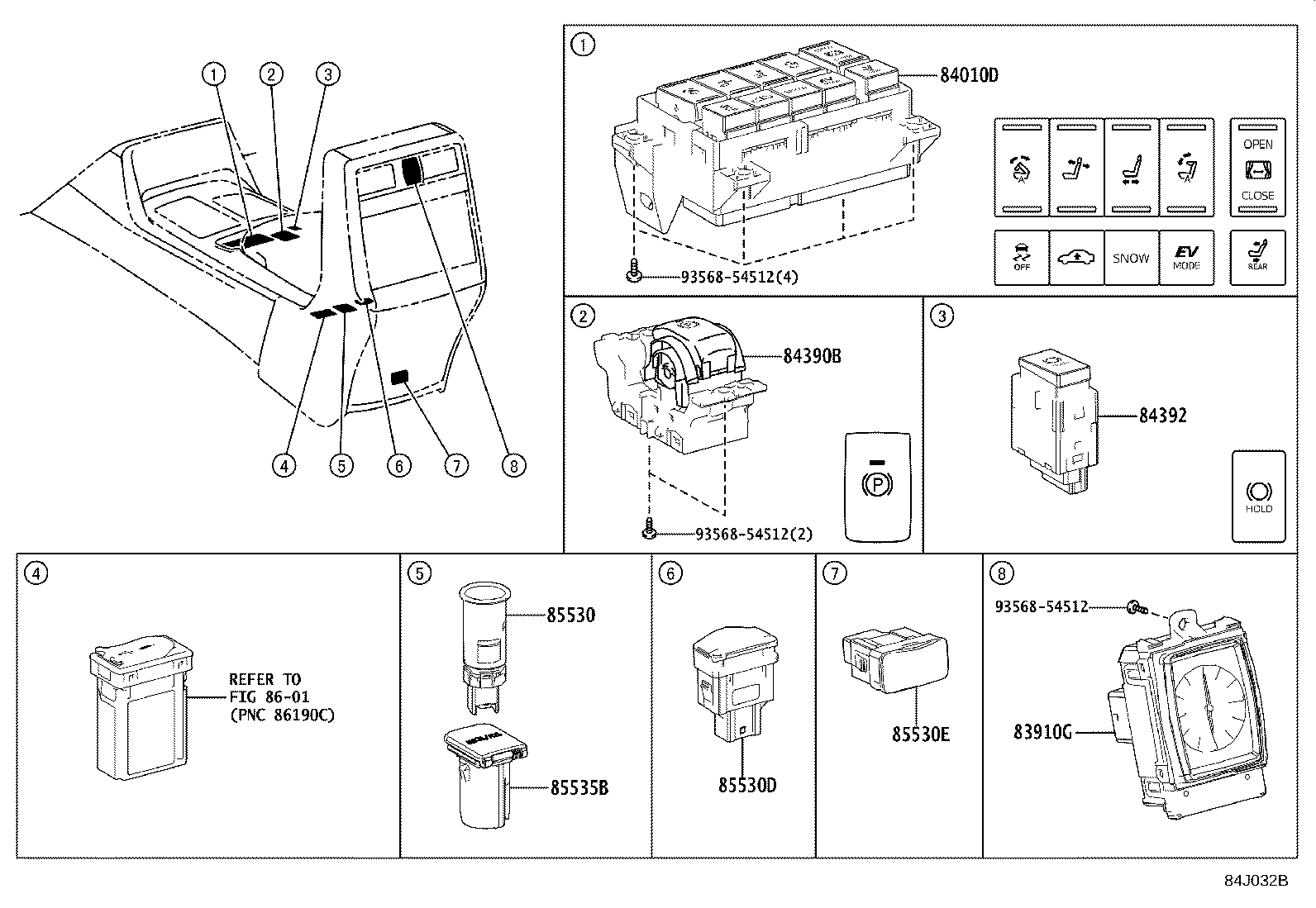

84010D	Control & Panel Assy, Integration
84040	Master Switch Assy,Multiplex Network

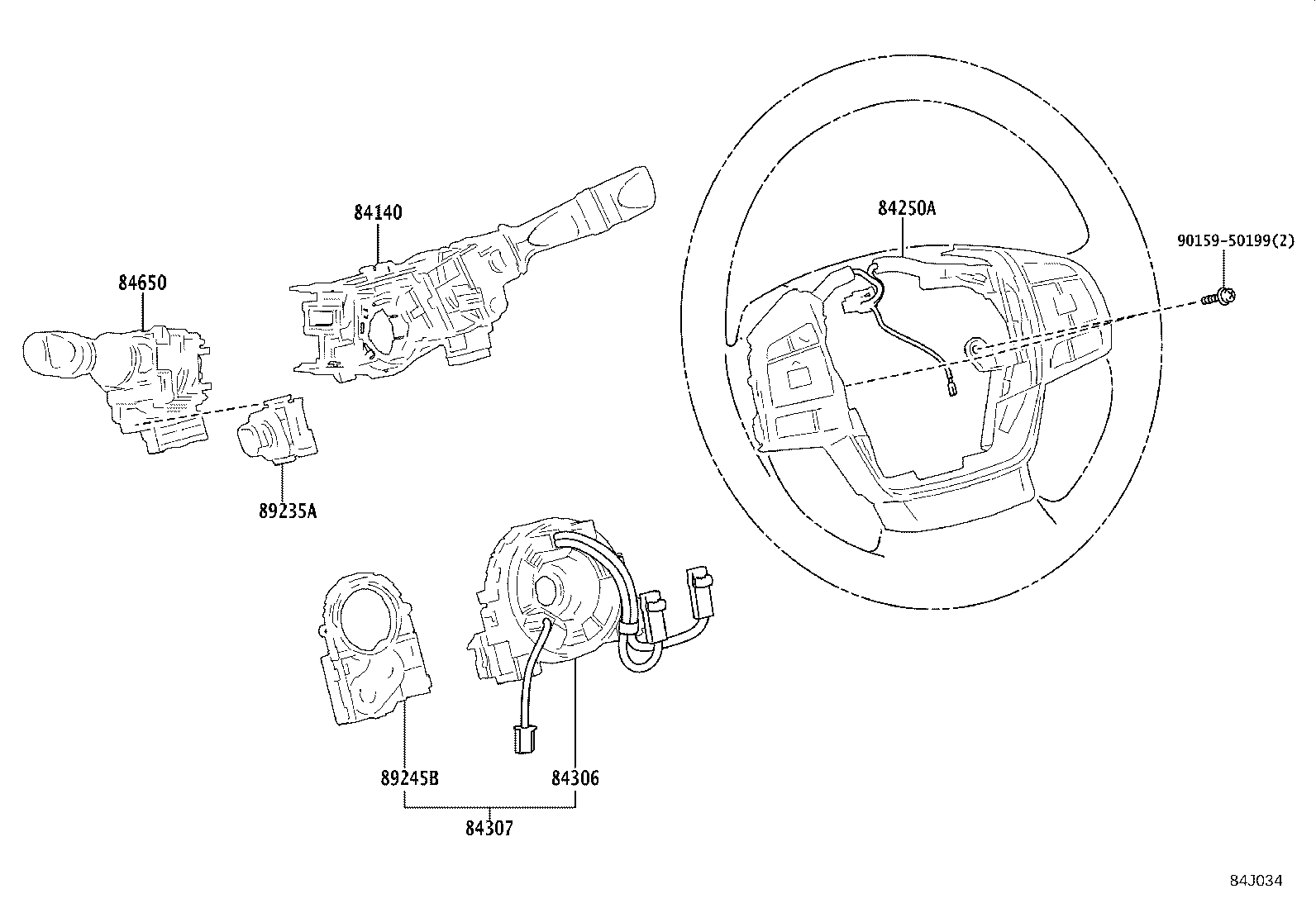

84140	Switch Assy, Headlamp Dimmer
84150D	Switch Assy, Headlamp Cleaner

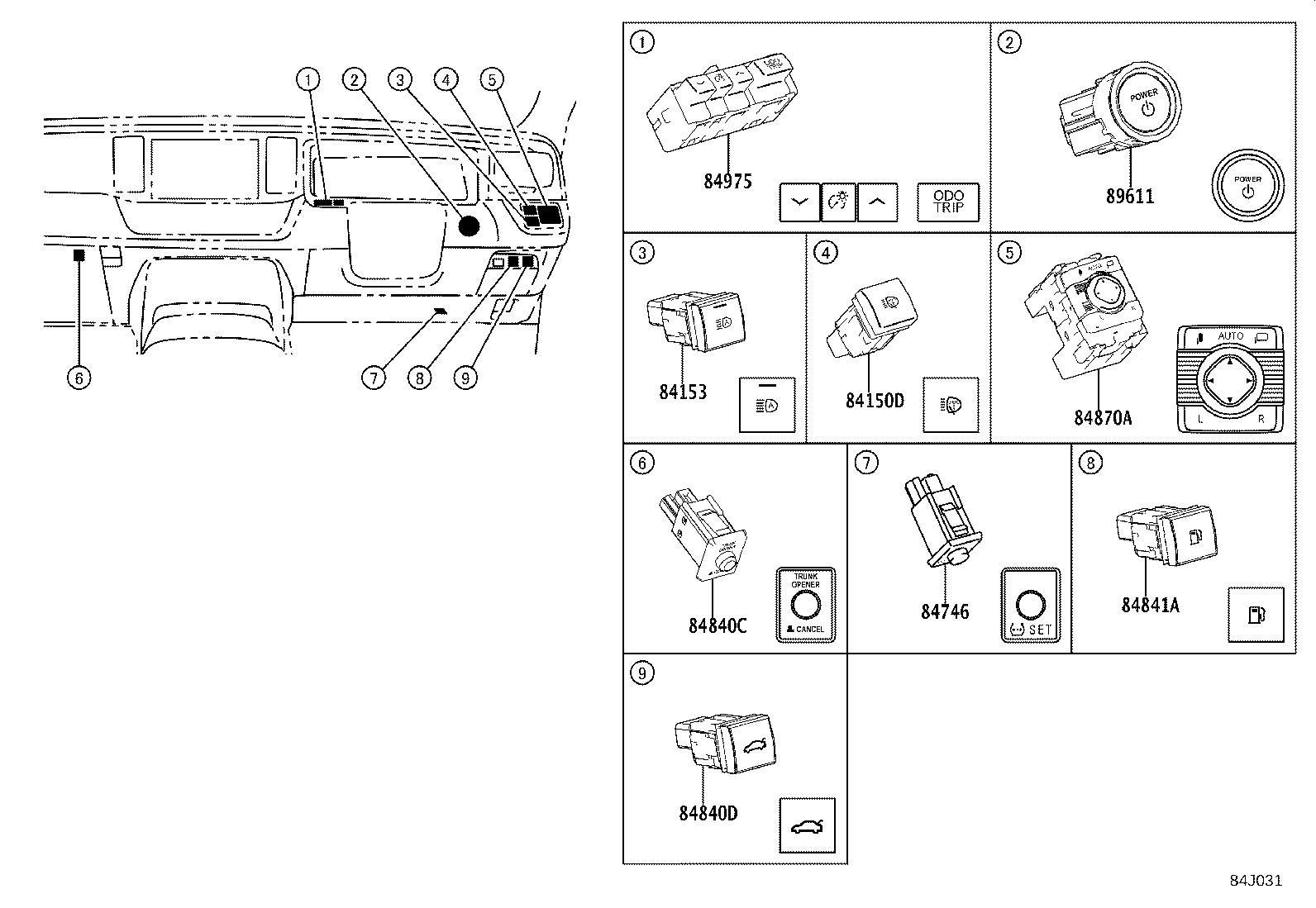

84153	Switch, Auto High Beam
84233	Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234	Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84250A	Switch Assy, Steering Pad
84306	Cable Sub-assy, Spiral
84307	Cable Sub-assy, Spiral W/Sensor
84340	Switch Assy, Stop Lamp
84390B	Switch Assy, Electric Parking Brake
84392	Switch, Brake Hold
84650	Switch Assy, Windshield Wiper
84656A	Bezel, Switch
84656C	Bezel, Switch NO.2
84691C	Bezel, Switch
84746	Switch, Tire Pressure Warning
84794A	Relay, FR Wiper Deicer
84810	Switch Assy, Power Window Regulator
84810D	Switch Assy, Power Window Regulator, Rear
84840C	Switch Assy, Luggage Door Opening, Cancel
84840D	Switch Assy, Luggage Door Opening
84841A	Switch, Fuel Lid Opener
84870A	Switch Assy, Outer Mirror

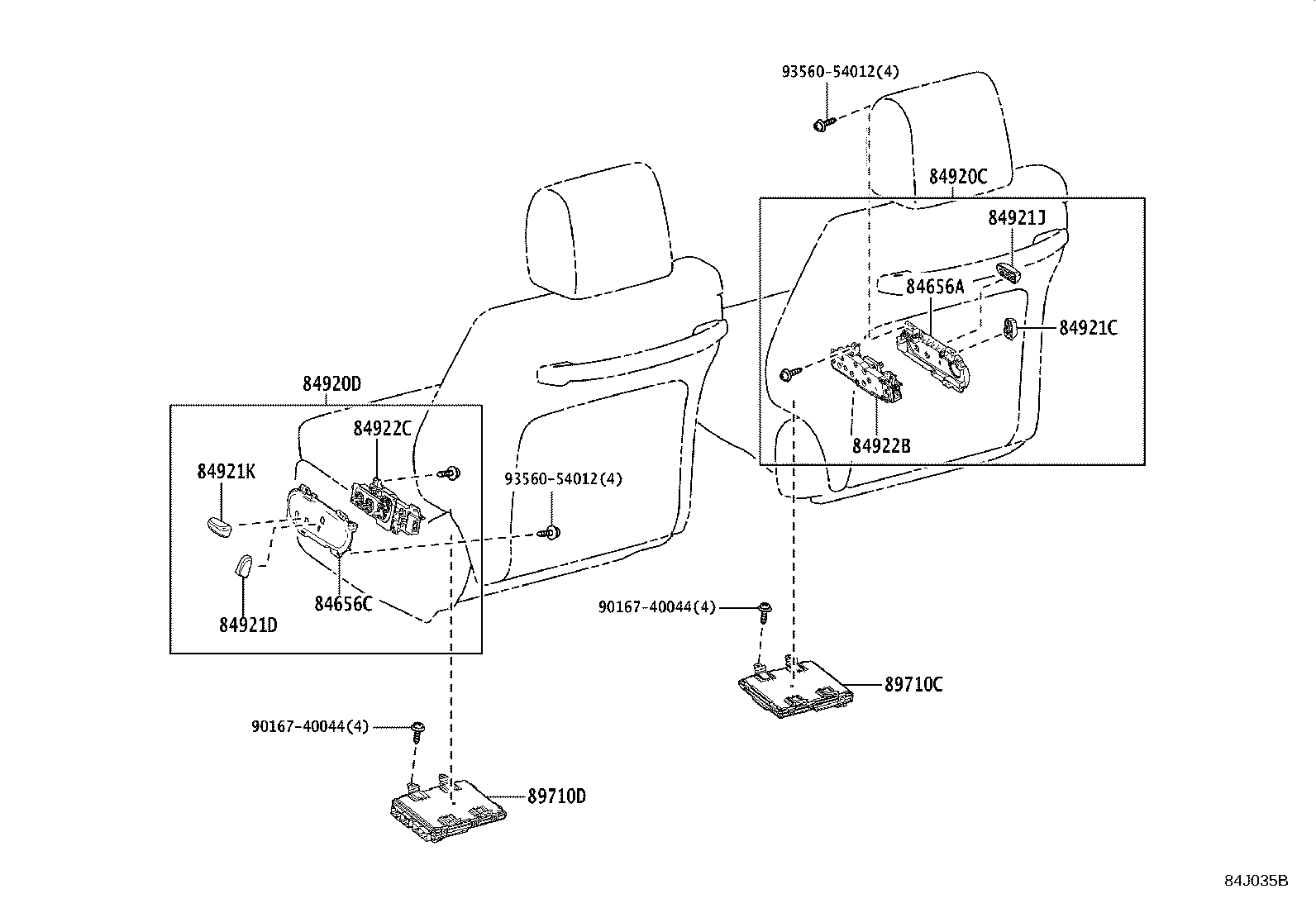

84920C	Switch Assy, Power Seat Front, RH
84920D	Switch Assy, Power Seat Front, LH
84921C	Knob, Power Seat Switch, RH
84921D	Knob, Power Seat Switch, LH
84921J	Knob, Power Seat Switch, RH
84921K	Knob, Power Seat Switch, LH
84922B	Switch, Front Power Seat, RH
84922C	Switch, Front Power Seat, LH

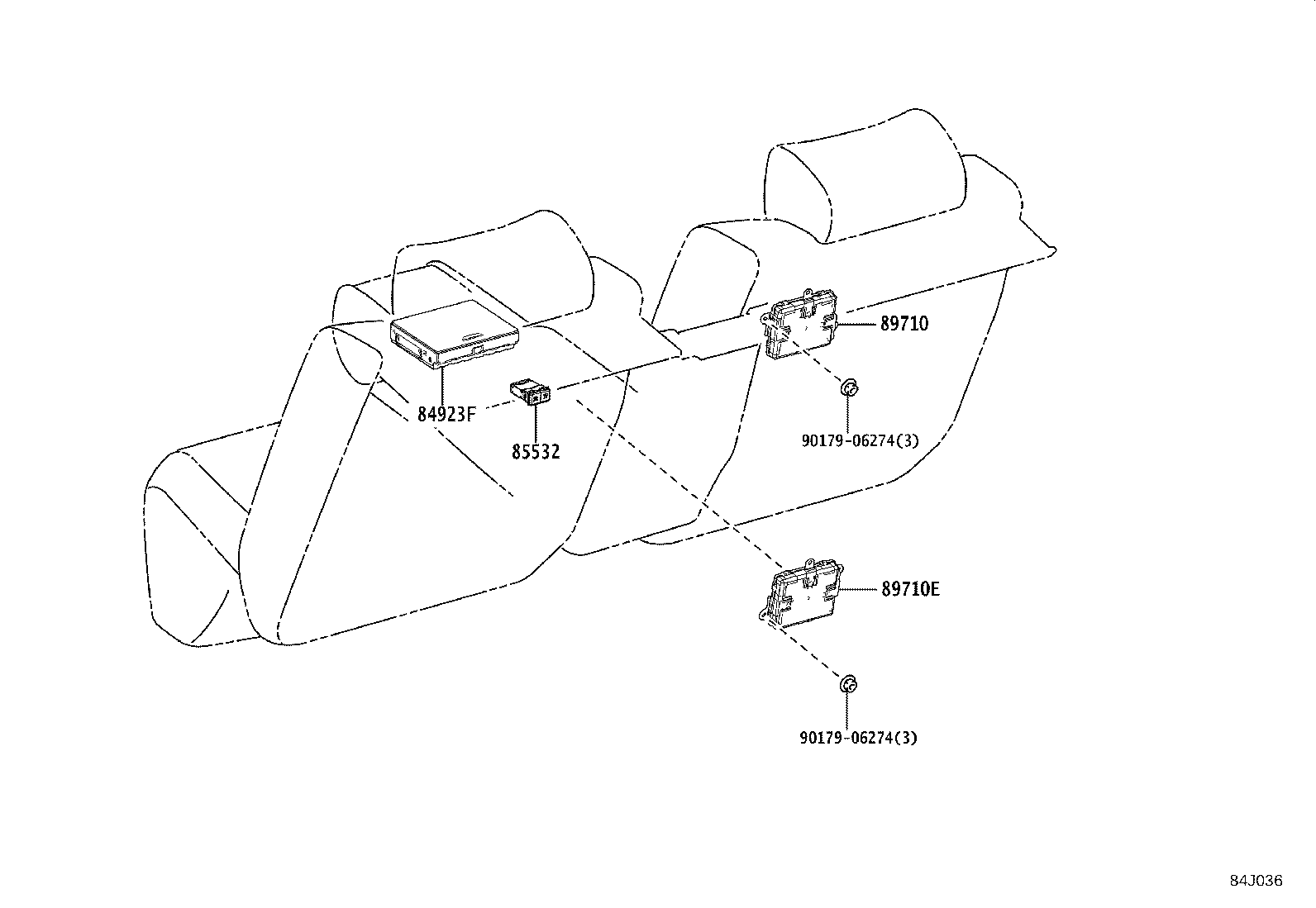

84923F	Switch, Rear Control
84926A	Switch, Height Adjustable Anchor
84926B	Switch, Height Adjustable Anchor
84926G	Relay, Seat Belt Anchor

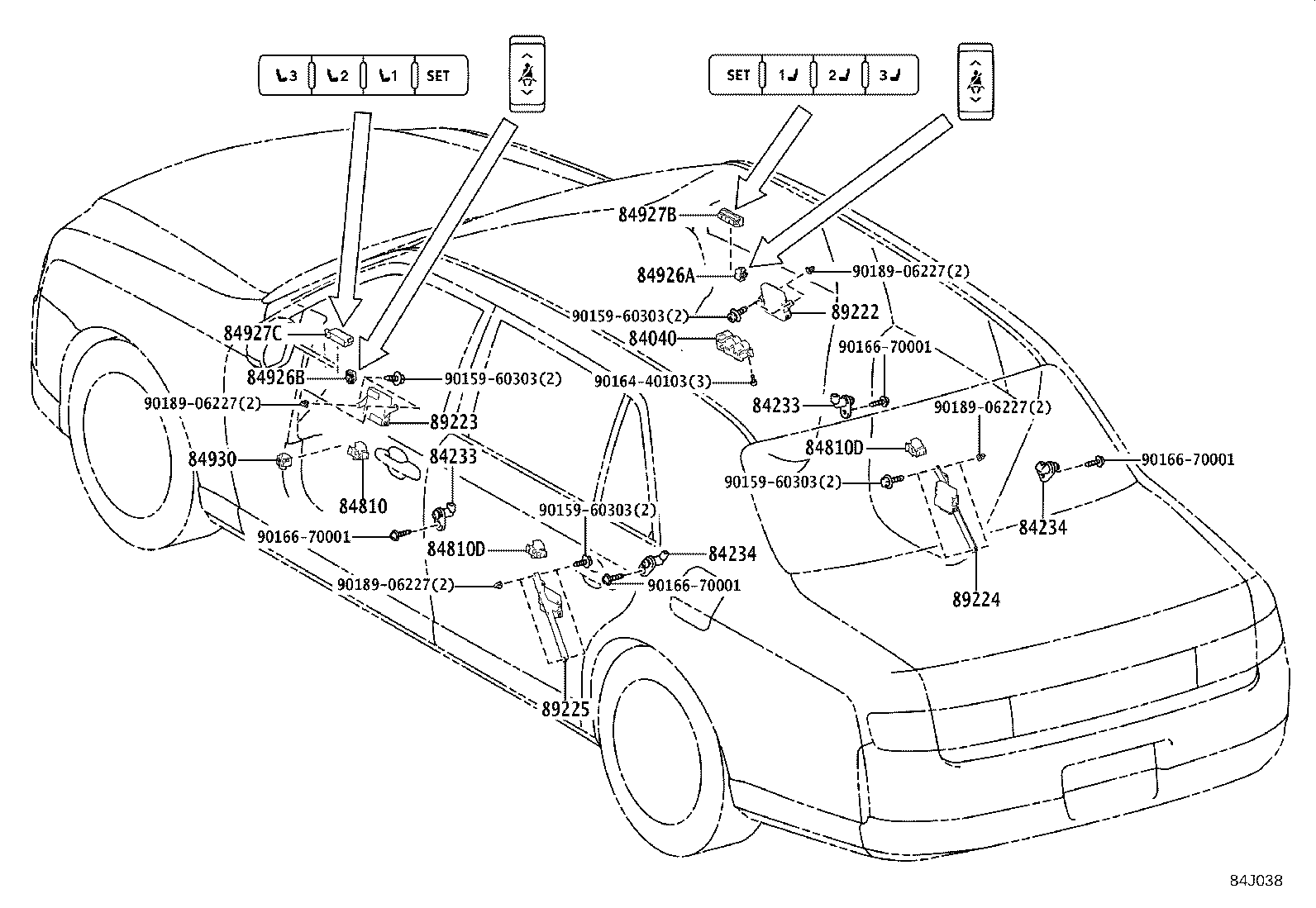

84927B	Switch, Seat Memory, RH
84927C	Switch, Seat Memory, LH
84930	Switch Assy, Door Control
84931B	Switch, Door Control
84975	Switch, Trip
85530	Socket Assy, Power Outlet, NO.1
85530D	Socket Assy, Power Outlet, NO.2
85530E	Socket Assy, Power Outlet, NO.3
85532	Socket, Usb Charger
85535B	Cover, Power Outlet Socket, NO.1
85910	Relay Assy, Circuit Opening
85911A	Relay, Auto Curtain
85912K	Relay, Vvt
85916D	Relay, Fog Lamp
85916P	Relay, Headlamp
85924C	Relay, Igct
85940	Relay Assy, Windshield Wiper
85942	Relay, Headlamp Cleaner Control
85999A	Bracket, Relay, NO.2
85999H	Bracket, Relay
86210A	Inverter Assy, Voltage
86530	Relay Assy, Horn
88150A	Computer Assy, Driving Support
88161	Bracket, Blind Spot Monitor, RH
88162	Sensor, Blind Spot Monitor, RH
88171	Bracket, Blind Spot Monitor, LH
88172	Sensor, Blind Spot Monitor, LH
88263Q	Relay, Abs Motor
88790F	Thermistor Assy
89050	Computer Assy, Parking Brake
89111	Computer, Network Gateway
89120A	Sensor, Automatic Light Control
89221	Computer, Multiplex Network Body
89222	Computer, Multiplex Network Door, Front RH
89223	Computer, Multiplex Network Door, Front LH
89224	Computer, Multiplex Network Door, Rear RH
89225	Computer, Multiplex Network Door, Rear LH
89227	Computer, Multiplex Tilt & Telescopic
89235A	Switch, Tilt & Telescopic
89245B	Sensor, Steering
89293E	Relay, Air Suspension
89451A	Sensor, Shift Lever Position
89465	Sensor, Oxygen
89465A	Sensor, Oxygen NO.2
89467B	Sensor, Air Fuel Ratio
89491	Sensor, Engine Oil Level
89491A	Gasket, Engine Oil Level Sensor
89561A	Relay, Efi
89611	Switch, Push Start
89615	Sensor, Knock Control
89710	Computer Assy, Position Control
89710C	Computer Assy, Position Control, RH
89710D	Computer Assy, Position Control, LH
89710E	Computer Assy, Position Control, NO.2
89747F	Buzzer, Blind Spot Monitor
G1167A	Relay (FOR OIL PUMP MOTOR)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
