Toyota Century

2018-06 → present · chassis UWG60 · catalogue 341150 · Japan

Supported model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

12 part groups · 2 illustrations

Illustrations

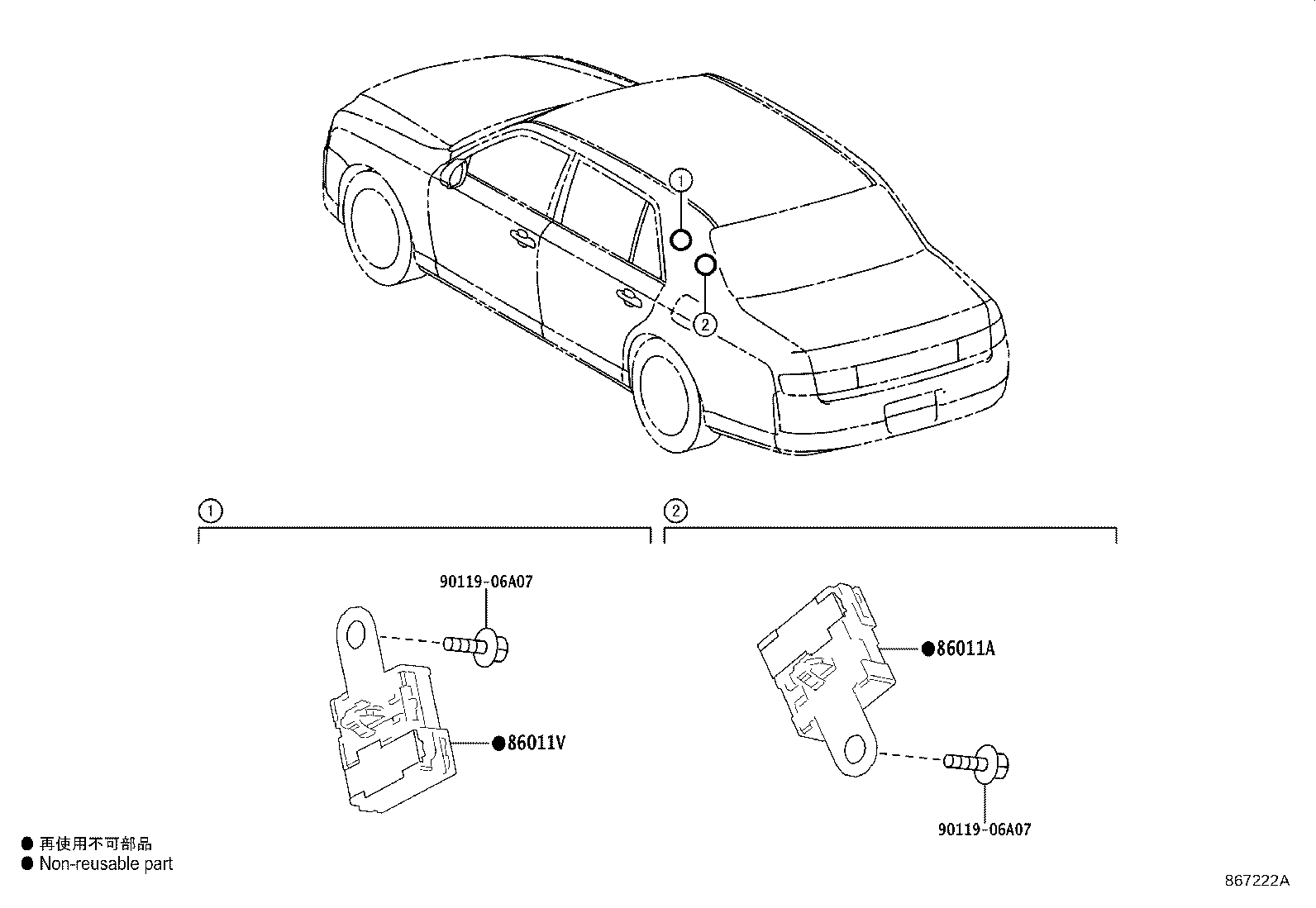

Figure 867221A 867221A 2018-06 → — Figure 867222A 867222A 2018-06 → —

Part groups

PNCDescription
82143D Wire, Instrument Panel, NO.1
82143E Wire, Instrument Panel, NO.2
86011A Condenser, Radio Setting
86011V Condenser, Radio Setting
86120 Receiver Assy, Radio
86190C Adapter Assy, Stereo Jack, NO.1
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86240 Equalizer Assy,Stereo Component
86280 Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86286 Bracket, Amplifier, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
