Toyota Century

2018-06 → present · chassis UWG60 · catalogue 341150 · Japan

Supported model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

13 part groups · 2 illustrations

Illustrations

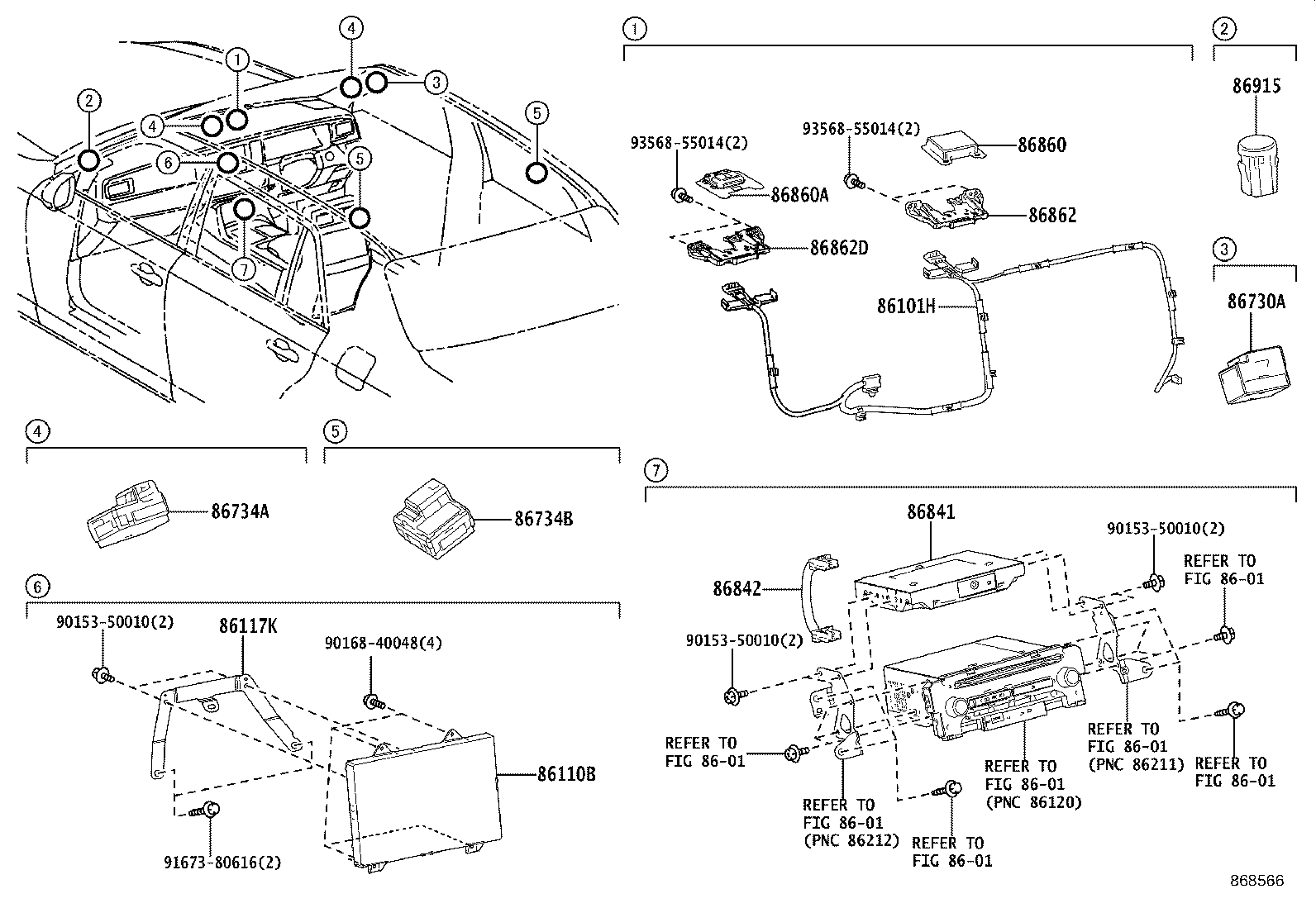

Figure 867223B 867223B 2018-06 → 2021-05 Figure 868566 868566 2021-05 → —

Part groups

PNCDescription
86101H Cord Sub-assy, Antenna
86110B Multi-display Assy
86117K Bracket, Multi-display, NO.1
86730A Microphone Assy, Telephone
86734A Microphone, Active Noise Control, Front
86734B Microphone, Active Noise Control, Rear
86841 Computer, Navigation
86842 Wire, Navigation, NO.1
86860 Antenna Assy, Navigation
86860A Antenna, Navigation
86862 Bracket, Navigation Antenna
86862D Bracket, Navigation Antenna, NO.2
86915 Transceiver, Optical Beacon
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
