Toyota Century

2018-06 → present · chassis UWG60 · catalogue 341150 · Japan

Supported model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

20 part groups · 2 illustrations

Illustrations

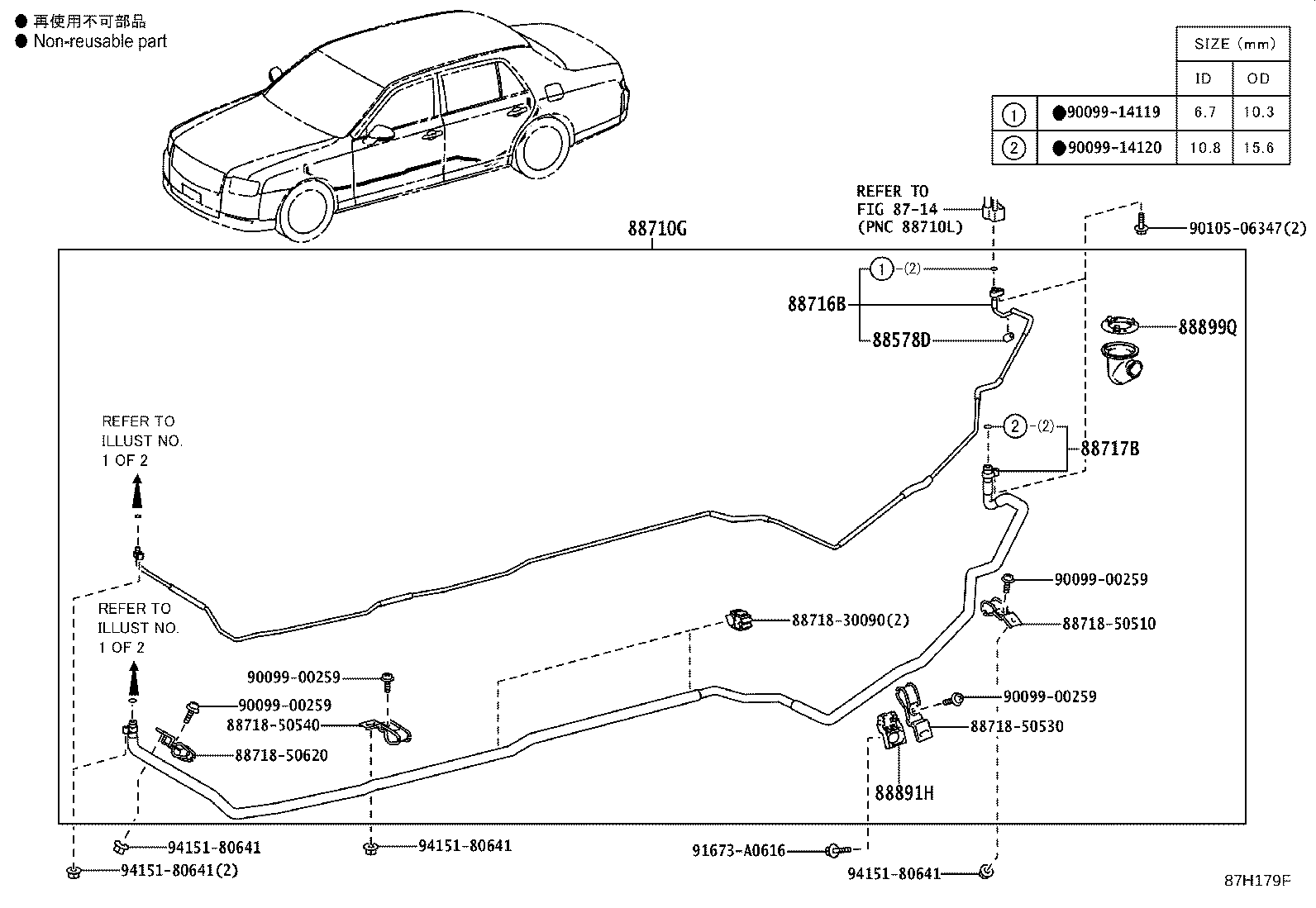

Figure 87H178B 87H178B 2018-06 → — Figure 87H179F 87H179F 2018-06 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88374D Valve, Service NO.3
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88375F Cap, Service Valve, NO.3
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88578D Packing, Cooler Pipe, NO.1
88706A Tube Sub-assy, Liquid, A
88707B Tube Sub-assy, Suction, B
88710G Tube & Accessory Assy, Air Conditioner, NO.2
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712C Hose, Suction
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88717B Pipe, Cooler Refrigerant Suction, B
88719A Sensor, Air Conditioner Pressure
88891H Cover, Cooler, NO.1
88899Q Plate, Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
