Toyota Century
2023-10 → present · chassis GRG75 · catalogue 343110 · Japan
Supported model
Data version 2023-10

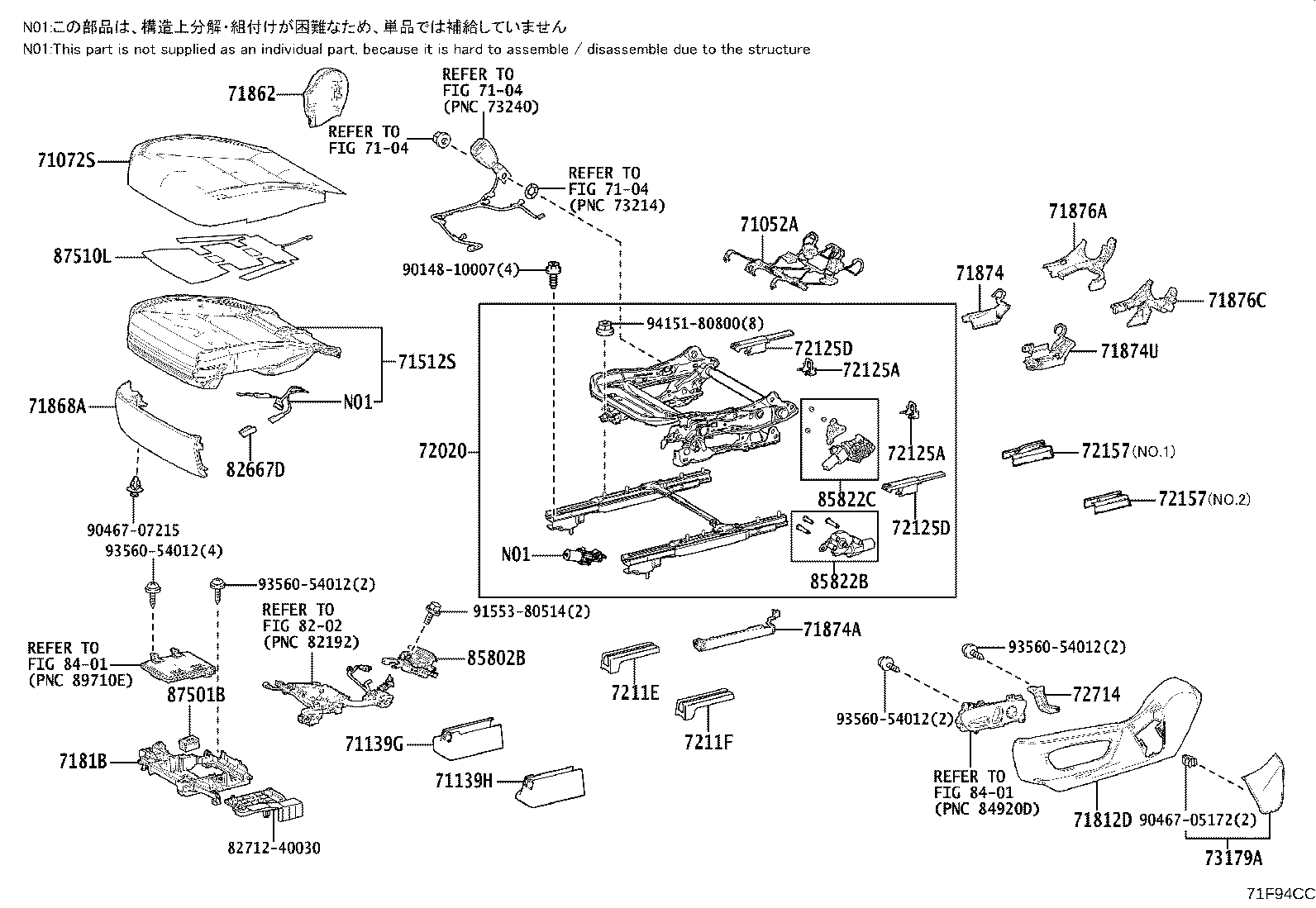

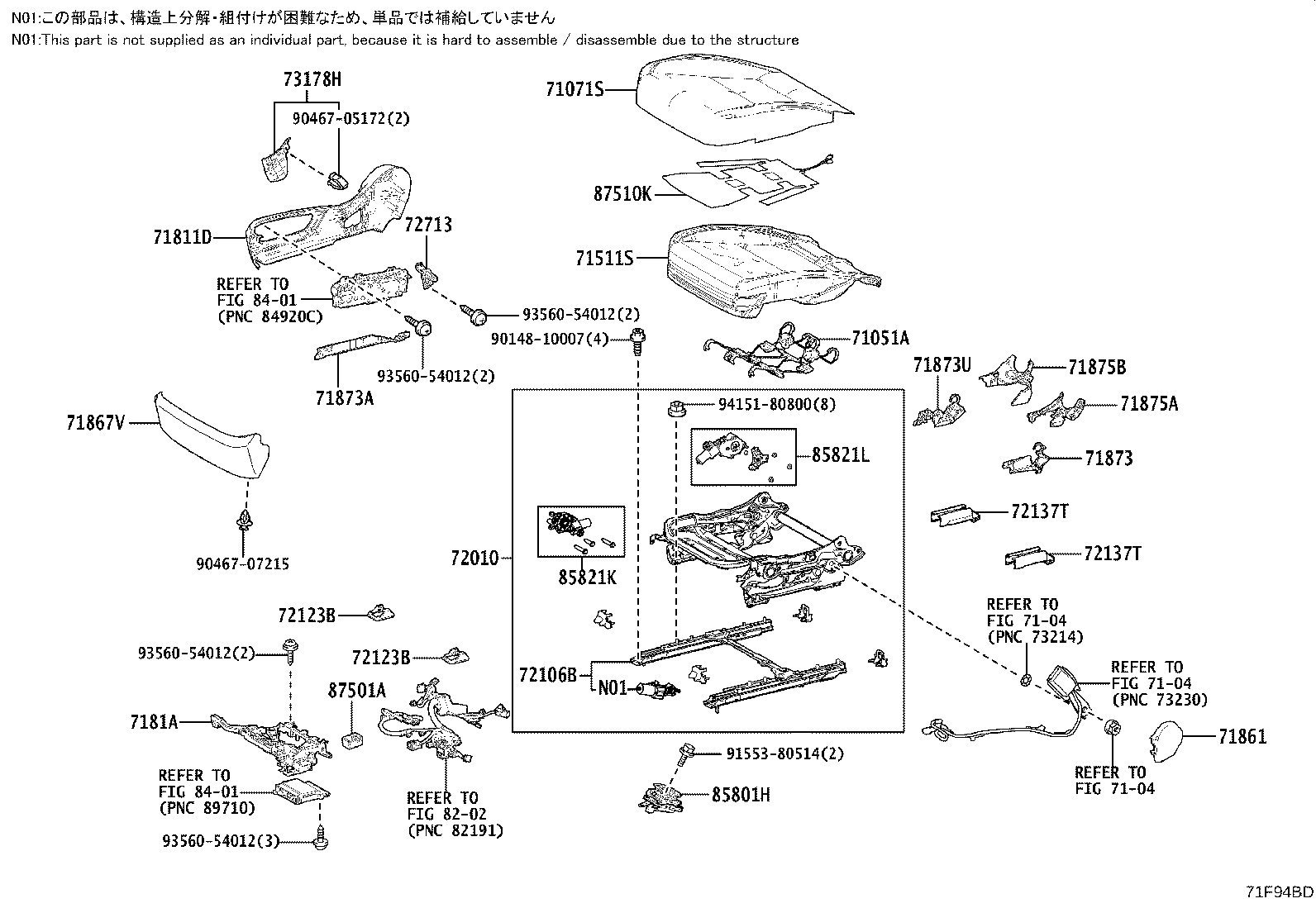

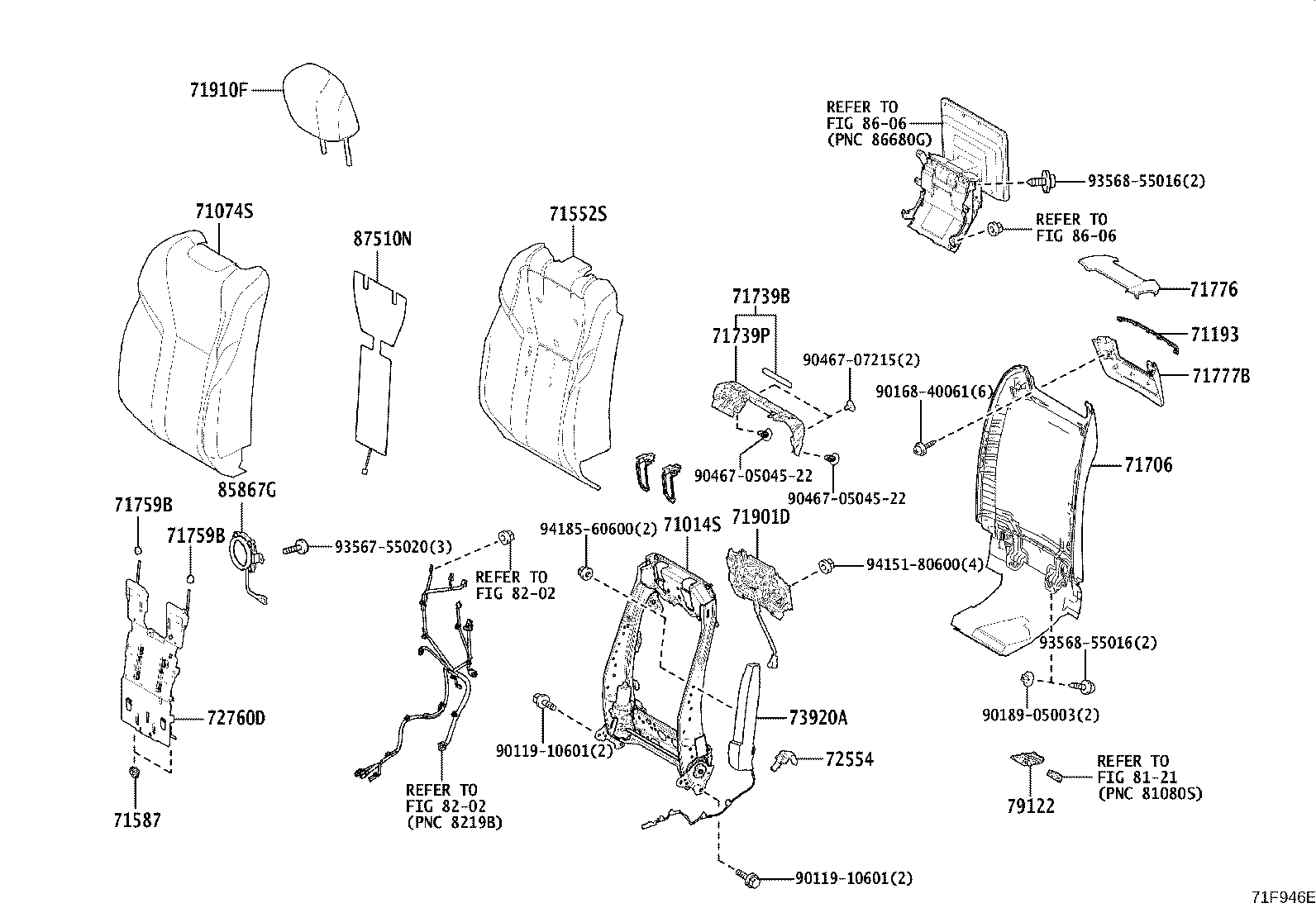

Front Seat & Seat Track
85 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 71013S | Frame Sub-assy, Front Seatback, RH |
| 71014S | Frame Sub-assy, Front Seatback, LH |
| 71051A | Spring Sub-assy, Front Seat Cushion, RH |
| 71052A | Spring Sub-assy, Front Seat Cushion, LH |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71139G | Cover, Front Seat Leg |
| 71139H | Cover, Front Seat Leg |
| 71193 | Plate, Front Seatback Board Set |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71587 | Protector, Front Seatback Edge |
| 71705 | Board Sub-assy, Front Seatback, RH |
| 71706 | Board Sub-assy, Front Seatback, LH |
| 71739A | Bezel, Front Seatback |
| 71739B | Bezel, Front Seatback, NO.2 |
| 71739N | Bezel, Front Seatback, RH |
| 71739P | Bezel, Front Seatback, LH |
| 71759B | Hook, Front Seatback |
| 71776 | Cover, Front Seatback Board, NO.1 |
| 71777B | Cover, Front Seatback Board, NO.2 |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 7181A | Holder, Front Seat Cushion Wire Harness, RH |
| 7181B | Holder, Front Seat Cushion Wire Harness, LH |
| 71821B | Bracket, Front Seat Shield Set, NO.1 |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71867V | Shield, Front Seat Cushion, Front RH |
| 71868A | Shield, Front Seat Cushion, Inner NO.1 LH |
| 71873 | Shield, Front Seat Cushion, Lower RH |
| 71873A | Shield, Front Seat Cushion, Lower |
| 71873U | Shield, Front Seat Cushion, Lower RH |
| 71874 | Shield, Front Seat Cushion, Lower LH |
| 71874A | Shield, Front Seat Cushion, Lower LH |
| 71874U | Shield, Front Seat Cushion, Lower LH |
| 71875A | Cover, Reclining Adjuster Inside, RH |
| 71875B | Cover, Reclining Adjuster Inside, RH |
| 71876A | Cover, Reclining Adjuster Inside, LH |
| 71876C | Cover, Reclining Adjuster Inside, LH |
| 71901D | Insert Sub-assy, Front Seat Headrest, LH |
| 71910E | Headrest Assy, Front Seat, RH |
| 71910F | Headrest Assy, Front Seat, LH |
| 71931 | Support, Front Seat Headrest |
| 72010 | Adjuster Assy, Front Seat, RH |
| 72020 | Adjuster Assy, Front Seat, LH |
| 72106B | Rail Sub-assy, Seat Track, Upper RH |
| 7211E | Cover, FR Seat Track Lwr Rail, NO.1 |
| 7211F | Cover, FR Seat Track Lwr Rail, NO.2 |
| 72123B | Cover, Seat Track Bracket, Outer Front |
| 72125A | Cover, Seat Track, Upper Rear |
| 72125D | Cover, Seat Track, Upper Rear NO.2 |
| 72137T | Cover, Seat Track Bracket, Outer Rear RH |
| 72157 | Cover, Seat Track Bracket, Inner |
| 72553B | Protector, Reclining Cover, RH |
| 72554 | Protector, Reclining Cover, LH |
| 72713 | Bracket, Seat Adjuster Shield Clamp, RH |
| 72714 | Bracket, Seat Adjuster Shield Clamp, LH |
| 72750D | Adjuster Assy, Lumbar Support, RH |
| 72760D | Adjuster Assy, Lumbar Support, LH |
| 73178H | Cap, Seat Belt Anchor Cover, RH |
| 73179A | Cap, Seat Belt Anchor Cover, LH |
| 73910A | Airbag Assy, Front Seat, RH |
| 73920A | Airbag Assy, Front Seat, LH |
| 79121A | Bracket, Front Seat Cushion, RH |
| 79122 | Bracket, Front Seat Cushion, LH |
| 82667D | Holder, Connector |
| 85801H | Blower Sub-assy, Seat Cushion Climate, RH |
| 85802B | Blower Sub-assy, Seat Cushion Climate, LH |
| 85821K | Motor Assy, Power Seat Tilt, RH |
| 85821L | Motor Assy, Power Seat Lifter, RH |
| 85822B | Motor Assy, Power Seat Tilt, LH |
| 85822C | Motor Assy, Power Seat Lifter, LH |
| 85867 | Blower, Seatback Climate Control, RH |
| 85867G | Blower, Seatback Climate Control, LH |
| 87501A | Control Sub-assy, Seat Heater, RH |
| 87501B | Control Sub-assy, Seat Heater, LH |
| 87510K | Heater Assy, Front Seat Cushion, RH |
| 87510L | Heater Assy, Front Seat Cushion, LH |
| 87510M | Heater Assy, Front Seatback, RH |
| 87510N | Heater Assy, Front Seatback, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
