Toyota Mark 2 V,WG
1988-10 → 1997-04 · chassis GX70,LX76,YX7# · catalogue 351110 · Japan
Discontinued model
Data version 1997-10

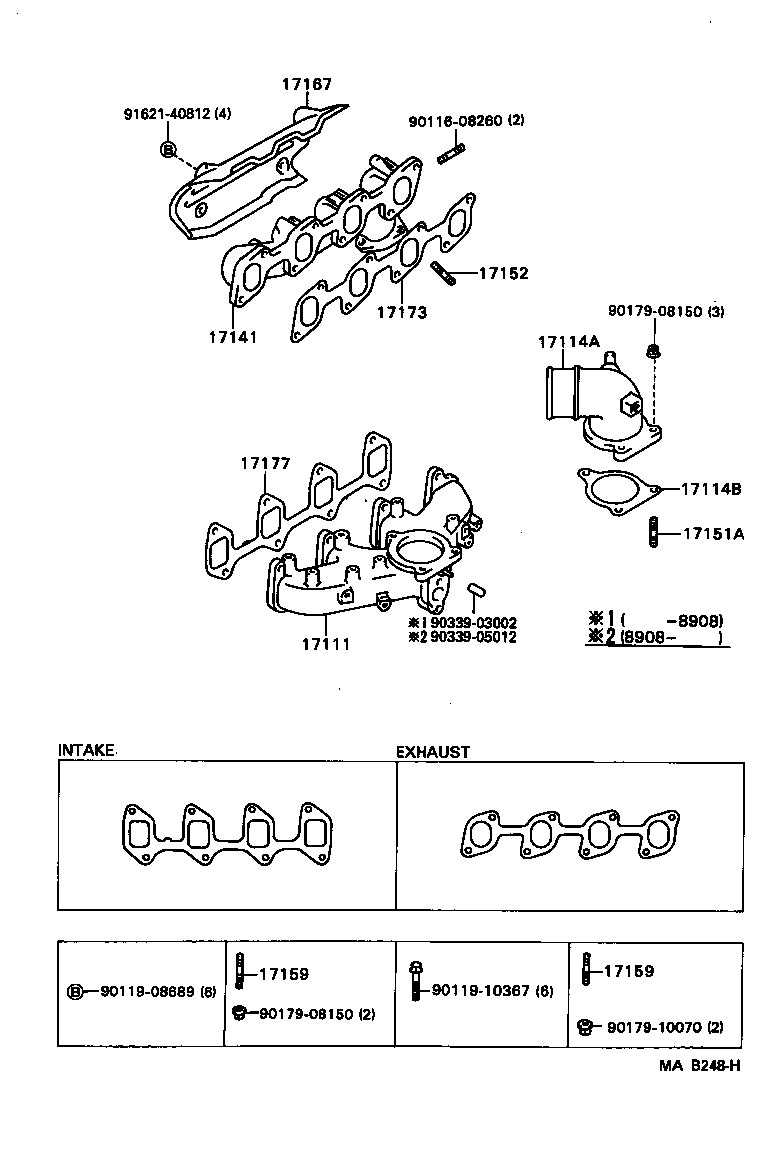

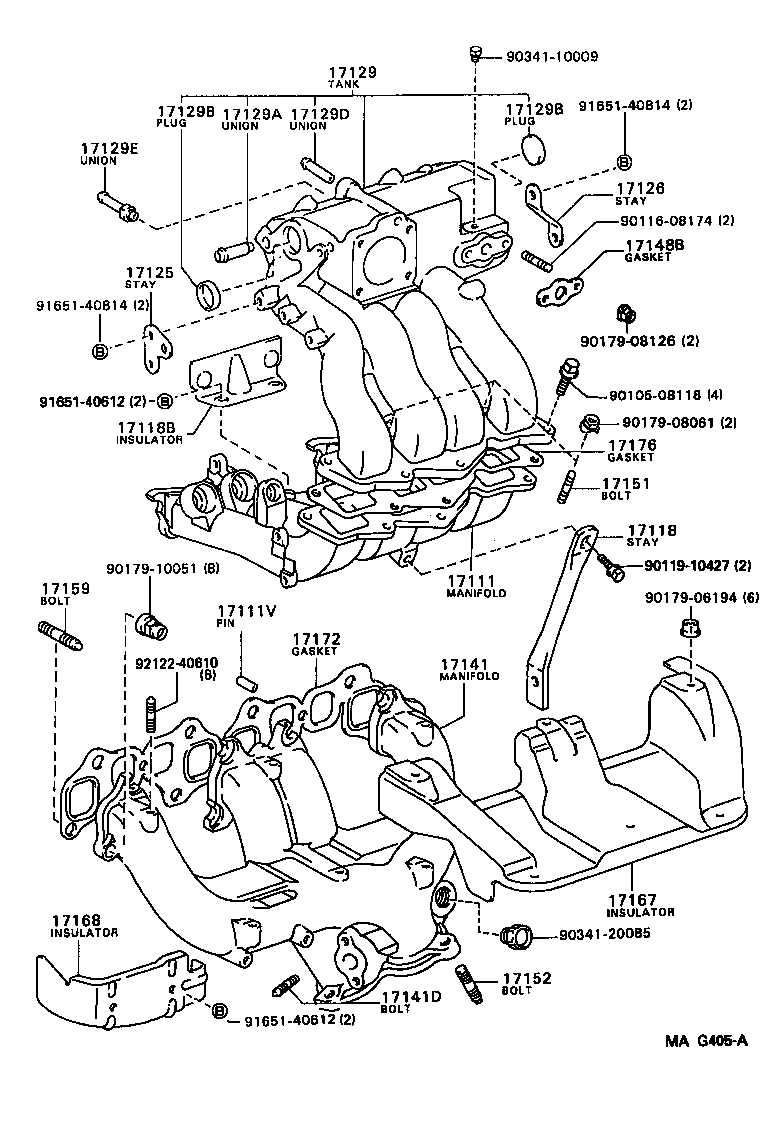

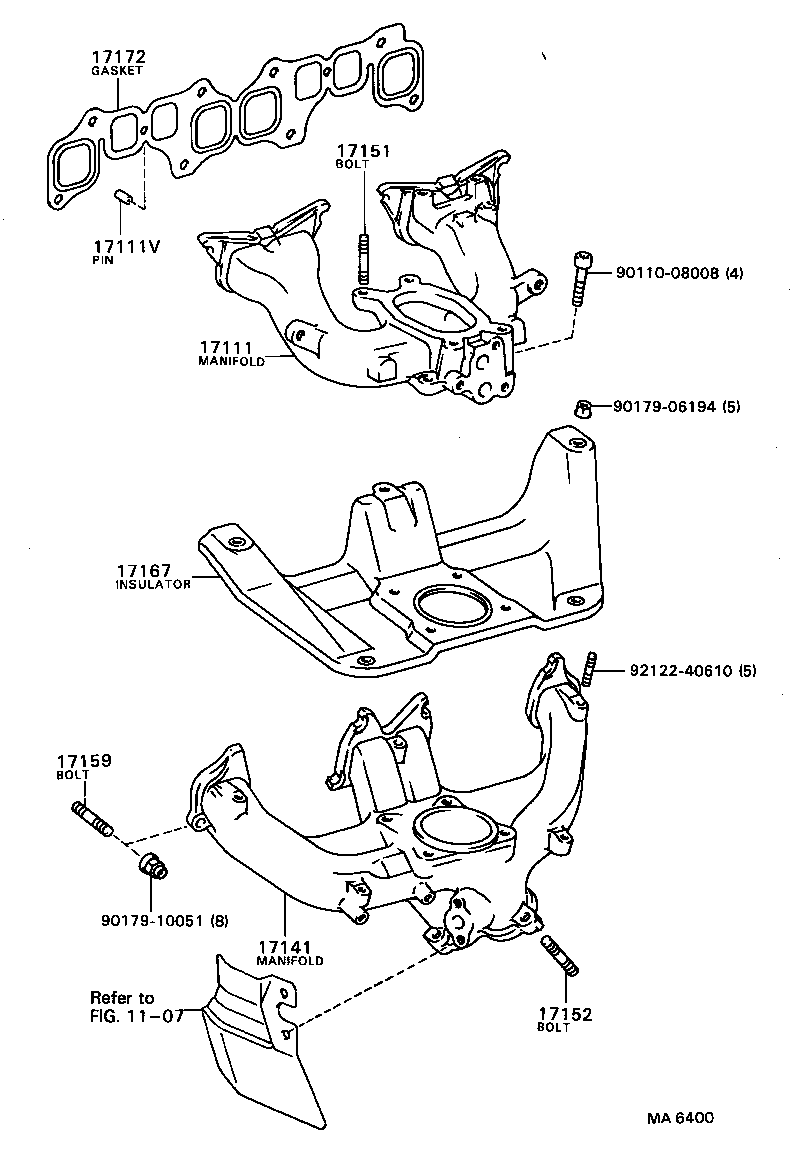

Manifold
29 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17110A | Union, Vacuum Hose |
| 17111 | Manifold, Intake |
| 17111V | Pin, Straight(FOR INTAKE MANIFOLD SETTING) |
| 17114A | Flange, Intake |
| 17114B | Gasket, Intake Flange |
| 17118 | Stay, Manifold |
| 17118B | Insulator, Intake Manifold |
| 17119 | Stay, Manifold, NO.2 |
| 17125 | Stay, Surge Tank, NO.1 |
| 17126 | Stay, Surge Tank, NO.2 |
| 17129 | Tank, Intake Air Surge |
| 17129A | Union, NO.1 |
| 17129B | Plug |
| 17129D | Union, NO.2 |
| 17129E | Union, NO.3 |
| 17129J | Plug, Tight(FOR INTAKE AIR SURGE TANK) |
| 17141 | Manifold, Exhaust |
| 17141D | Bolt, Stud(FOR OXYGEN SENSOR) |
| 17148B | Gasket, Egr Inlet |
| 17151 | Bolt, Stud(FOR MANIFOLD TO CARBURETOR) |
| 17151A | Bolt, Stud(FOR MANIFOLD TO VENTURI) |
| 17152 | Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE) |
| 17159 | Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) |
| 17167 | Insulator, Exhaust Manifold Heat, NO.1 |
| 17168 | Insulator, Exhaust Manifold Heat, NO.2 |
| 17172 | Gasket, Manifold TO Cylinder Head |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17176 | Gasket, Air Surge Tank TO Intake Manifold |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
