Disc Wheel & Wheel Cap

6 part groups · 3 illustrations

Illustrations

Figure MCL418A

MCL418A 1988-10 → —

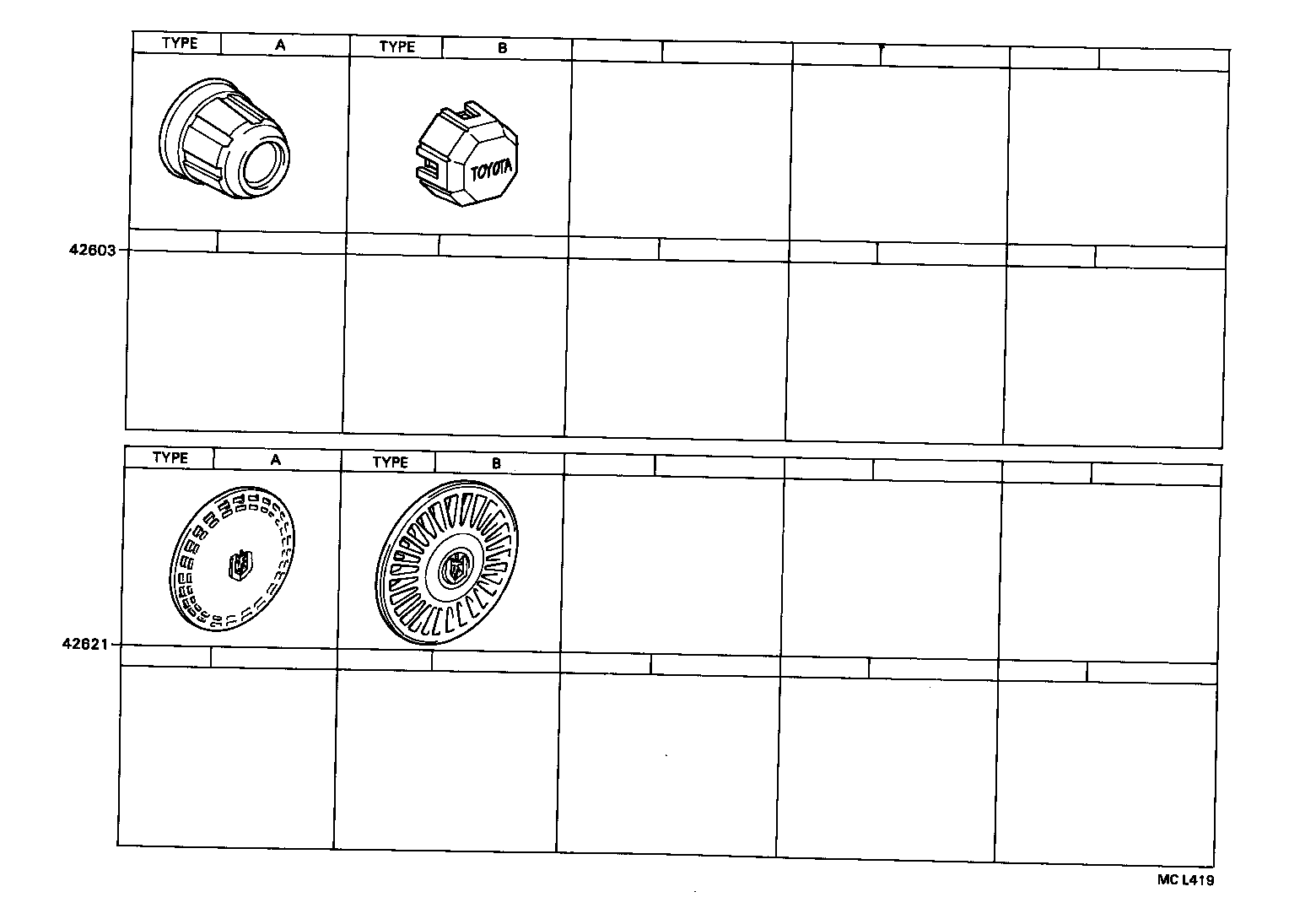

Figure MCL419

MCL419 1988-10 → —

Figure MCW215

MCW215 1988-10 → —

Part groups

PNC	Description
42601	Wheel, Disc
42601A	Wheel, Disc (FOR SPARE)
42601C	Nut, Hub (FOR AXLE)
42603	Ornament Sub-assy, Wheel Hub
42611G	Valve (FOR TUBELESS TIRE)
42621	Cap, Wheel

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
