Toyota Mark 2 V,WG

1988-10 → 1997-04 · chassis GX70,LX76,YX7# · catalogue 351110 · Japan

Discontinued model Data version 1997-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

19 part groups · 3 illustrations

Illustrations

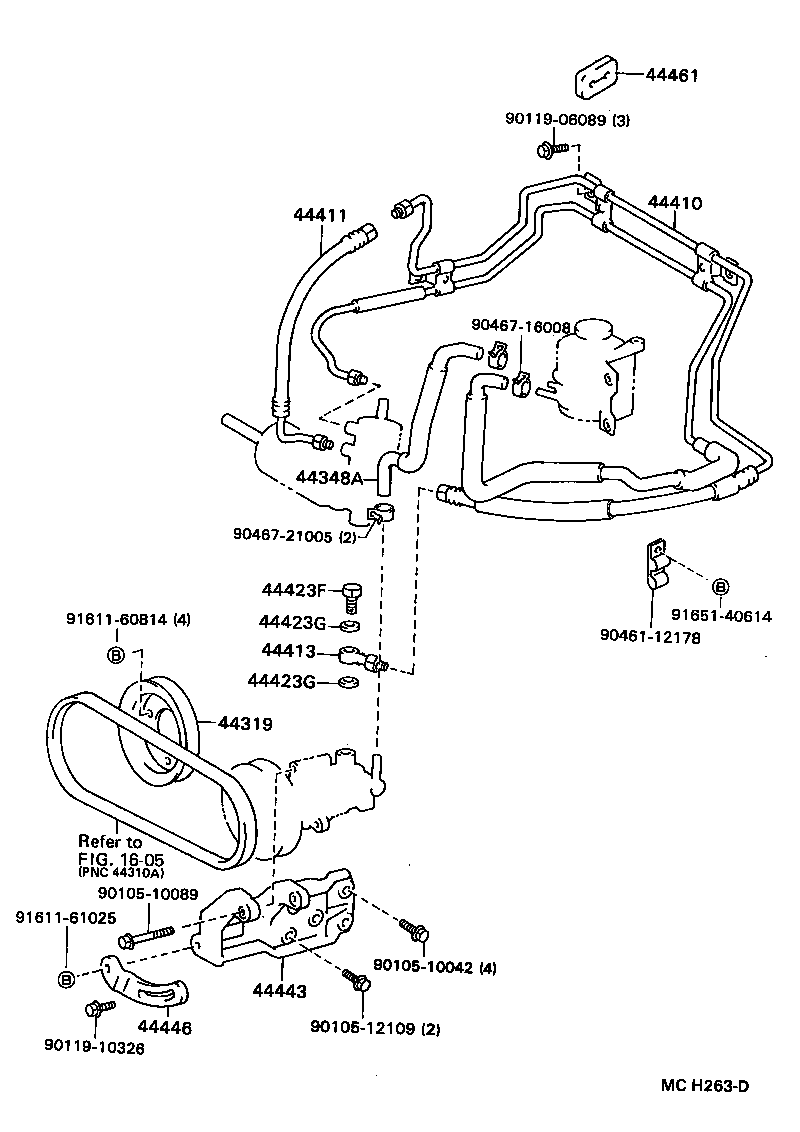

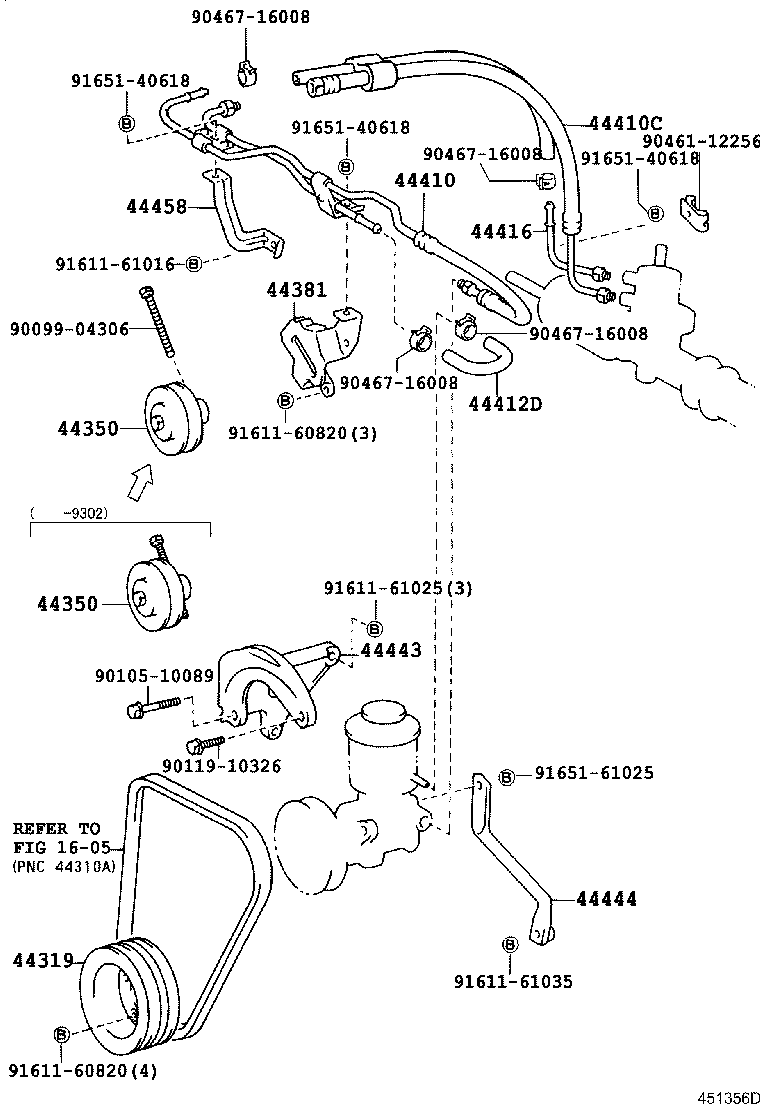

Figure NC0668 NC0668 1988-10 → — Figure MCH263D MCH263D 1988-10 → — Figure 451356D 451356D 1988-10 → —

Part groups

PNCDescription
44319 Pulley, Vane Pump Drive
44348A Hose, Oil Reservoir TO Pump, NO.1
44350 Pulley Assy, Power Steering Idle
44381 Bracket, Power Steering Idle Pulley
44410 Tube Assy, Pressure Feed
44410C Tube Assy, Pressure Feed, NO.1
44411 Hose, Pressure Feed
44412 Hose, Return
44412C Clamp(FOR RETURN HOSE)
44412D Hose, Return, NO.1
44413 Tube, Pressure Feed, NO.1
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44423F Bolt, Union
44423G Gasket, Union Bolt
44443 Bracket, Pump
44444 Stay, Pump, Rear
44446 Strut, Adjusting
44458 Bracket, Tube Support, NO.2
44461 Insulator, Tube Refrigerant
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
