Toyota Mark 2 V,WG
1988-10 → 1997-04 · chassis GX70,LX76,YX7# · catalogue 351110 · Japan
Discontinued model
Data version 1997-10
Fuel Tank & Tube

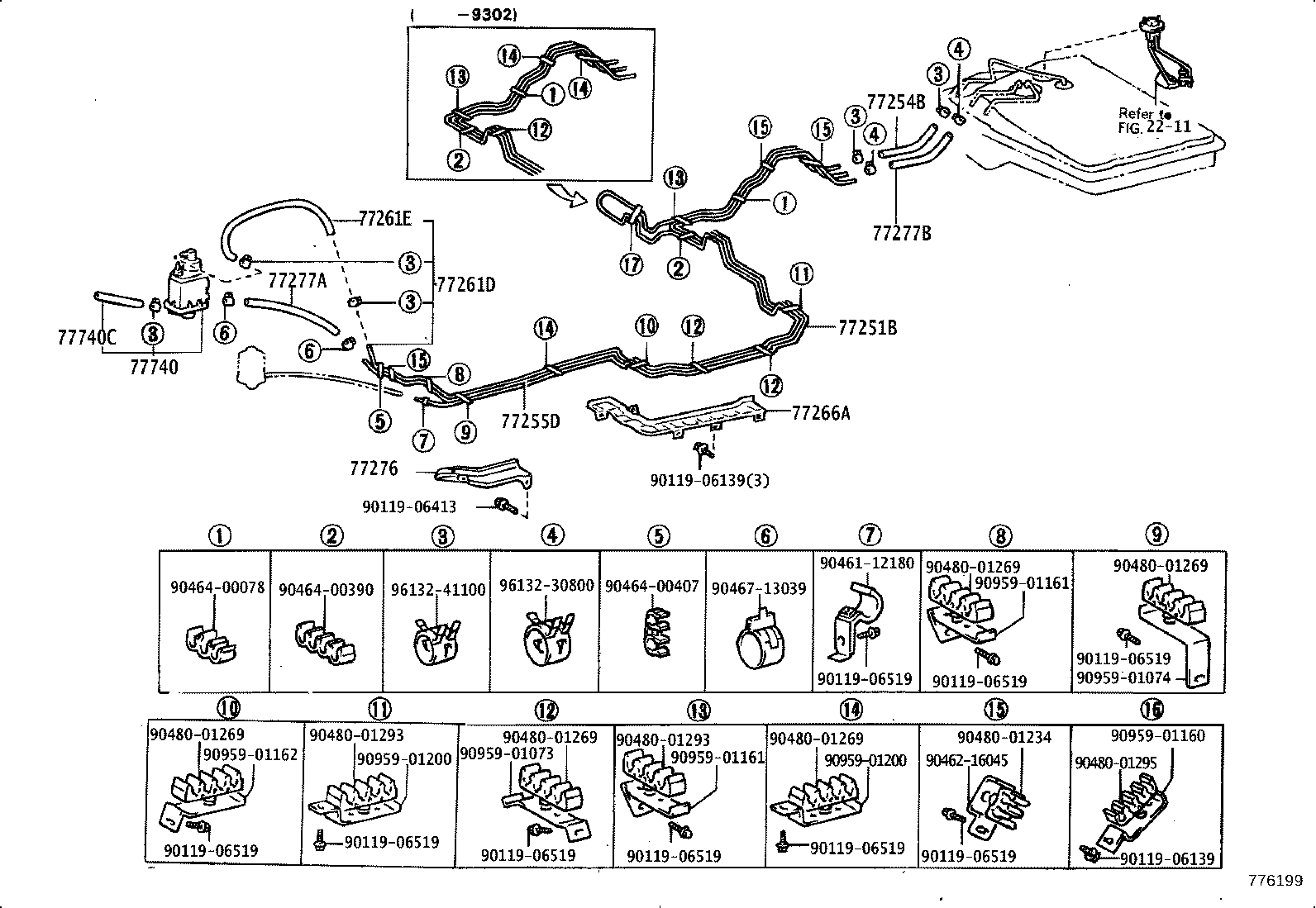

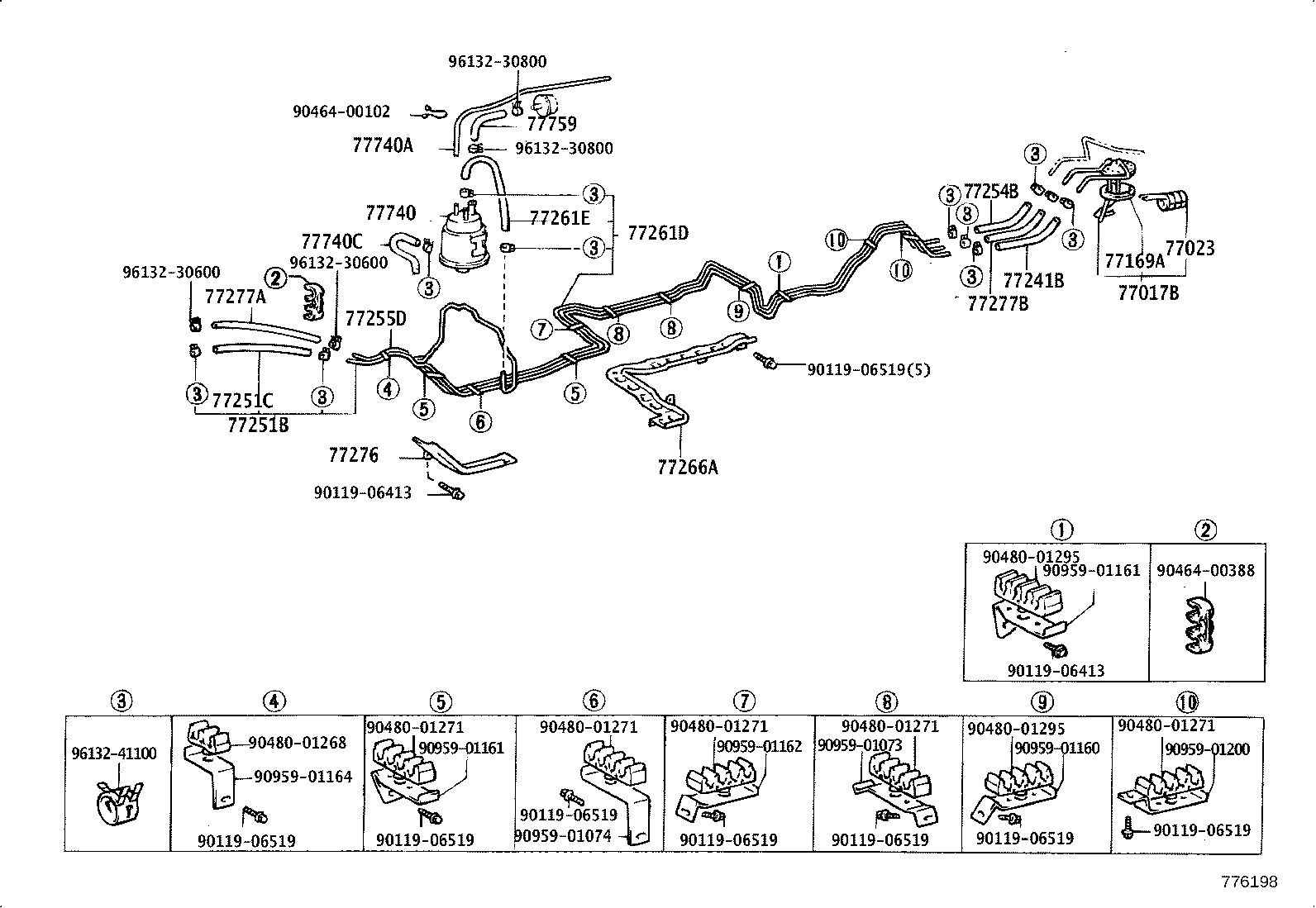

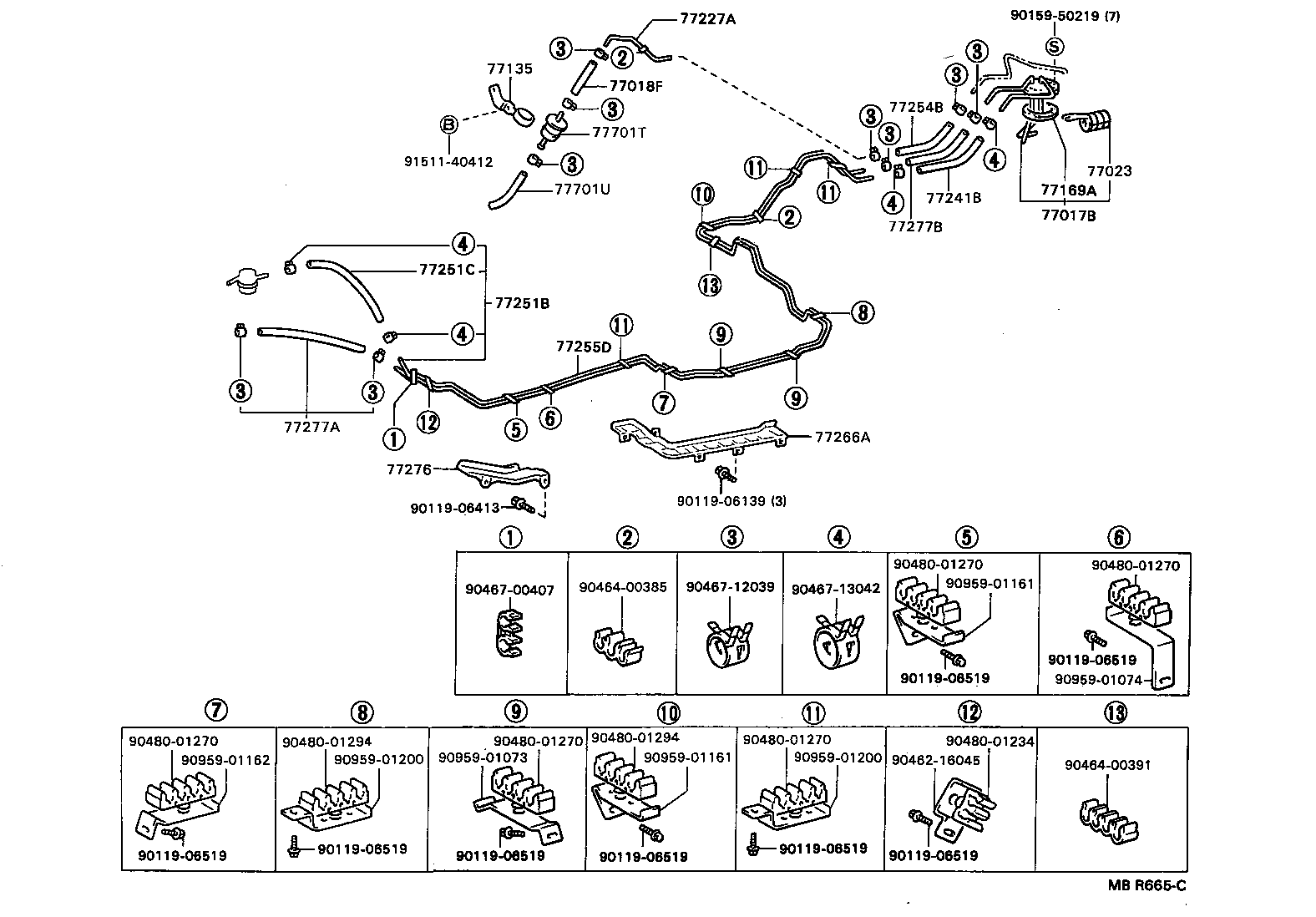

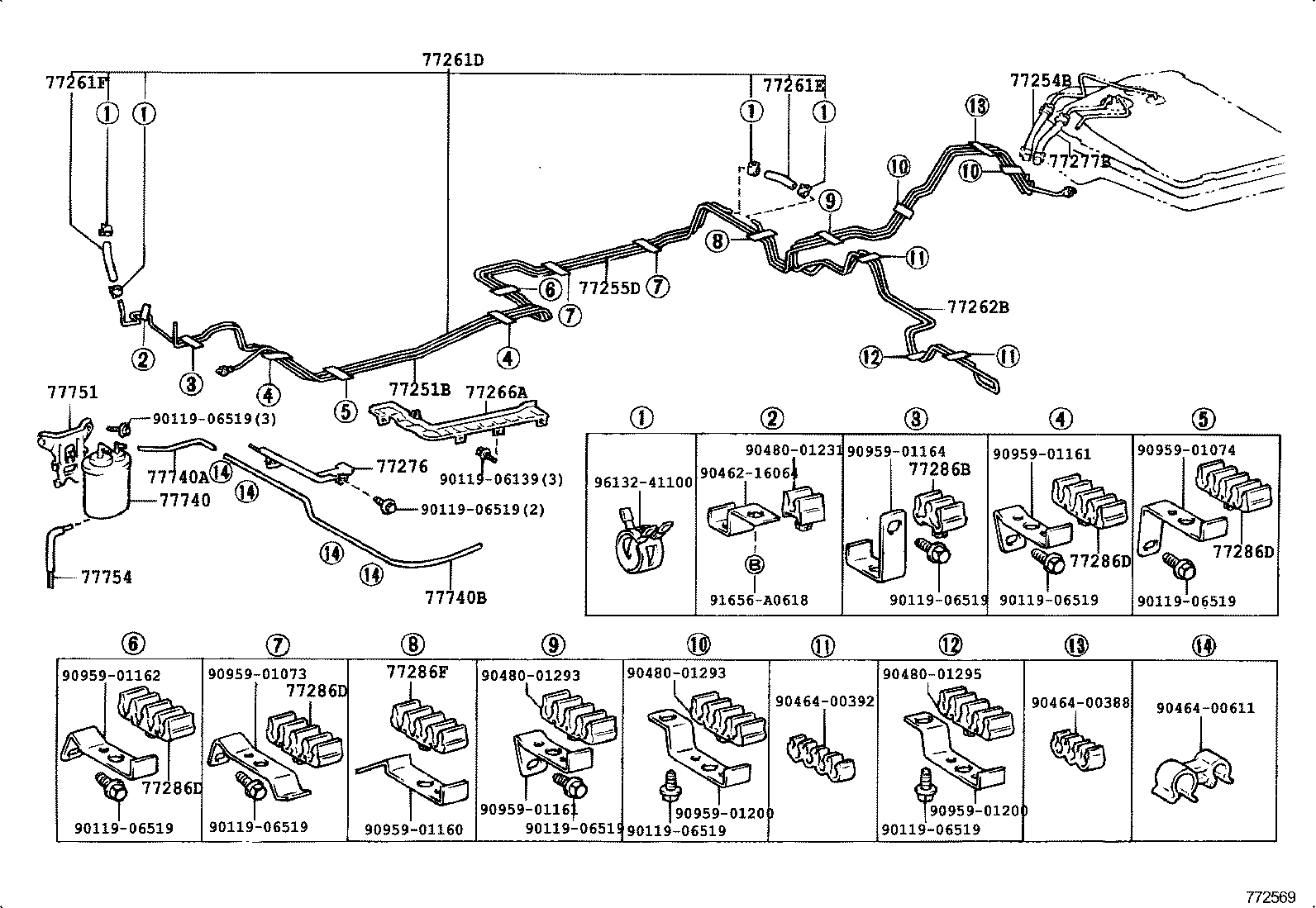

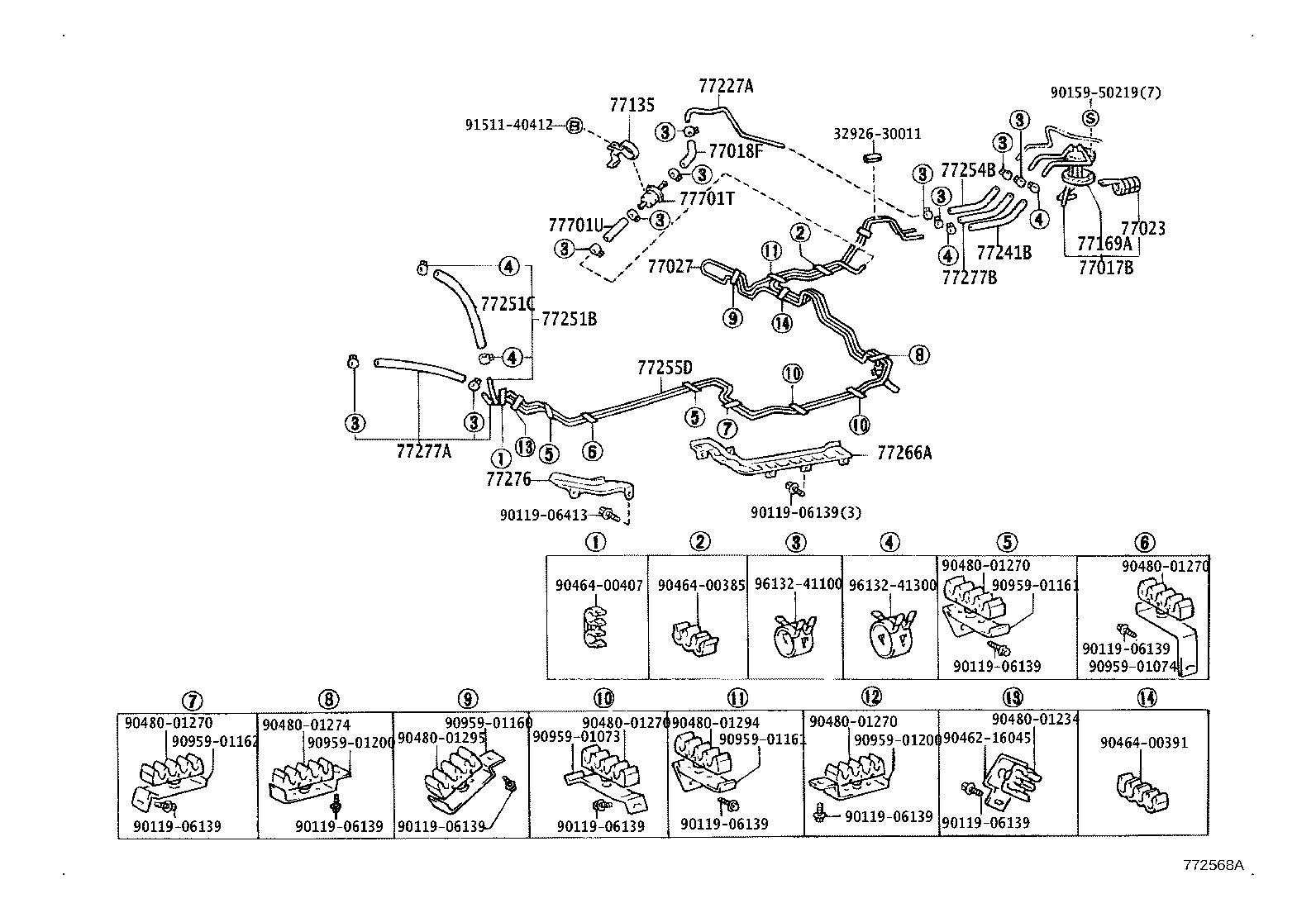

66 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 77017B | Tube Sub-assy, Fuel Tank Vent |
| 77018E | Tube Sub-assy, Fuel Tank Evaporation Vent |
| 77018F | Hose, Fuel Tank Evaporation Vent |
| 77023 | Filter Sub-assy, Fuel Suction Tube |
| 77027 | Tube Sub-assy, Fuel Evaporation, NO.2 |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77037 | Lock Sub-assy, Fuel Filler Opening Lid |
| 77100 | Tank Assy, Fuel |
| 77100A | Plug(FOR FUEL TANK) |
| 77100B | Gasket(FOR FUEL TANK) |
| 77135 | Bracket, Check Valve |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77179A | Gasket, Fuel Tank Breather Tube |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77201A | Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE) |
| 77202 | Tube Sub-assy, Breather |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77227A | Tube, Fuel Tank Evaporation Vent |
| 77241B | Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1) |
| 77251B | Tube, Fuel Main |
| 77251C | Hose, Fuel, NO.1(FOR FUEL MAIN TUBE) |
| 77254B | Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.1) |
| 77255D | Tube, Fuel Return |
| 77259A | Hose, Fuel(FOR BREATHER TUBE) |
| 77261D | Tube, Fuel Tank TO Canister |
| 77261E | Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE) |
| 77261F | Hose, Fuel, NO.2 (FOR FUEL TANK TO CANISTER TUBE) |
| 77262B | Tube, Fuel Tank TO Canister, NO.2 |
| 77266A | Protector, Fuel Tube, NO.1 |
| 77276 | Protector, Fuel Hose |
| 77277A | Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1) |
| 77277B | Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1) |
| 77277R | Protector, Fuel Tank Filler Pipe |
| 77286B | Clamp, Fuel Tube W/Grommet, NO.2 |
| 77286D | Clamp, Fuel Tube, NO.2 |
| 77286F | Clamp, Fuel Tube, NO.2 |
| 77290 | Shield Assy, Fuel Tank Filler Pipe |
| 77293A | Shield, Fuel Tank Filler Pipe, NO.3 |
| 77306 | Lever Sub-assy, Fuel Lid Lock Open |
| 77306A | Spring, Fuel Lid Open Lever |
| 77308A | Cushion(FOR FUEL INLET BOX COVER) |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77358A | Stopper, Fuel Filler Opening Lid |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77391 | Ring, Fuel Inlet Box |
| 77603B | Band Sub-assy, Fuel Tank, NO.2 RH |
| 77604B | Band Sub-assy, Fuel Tank, NO.2 LH |
| 77611 | Band, Fuel Tank |
| 77641A | Protector, Fuel Tank, NO.1 |
| 77652A | Cushion, Fuel Tank, NO.2 |
| 77653A | Cushion, Fuel Tank, NO.3 |
| 77655A | Cushion, Fuel Tank, NO.5 |
| 77656A | Cushion, Fuel Tank, NO.4 |
| 77656B | Cushion, Fuel Tank, NO.6 |
| 77701T | Valve, Check (FOR MAIN FUEL TANK) |
| 77701U | Hose, Fuel (FOR CHECK VALVE) |
| 77740 | Canister Assy, Charcoal |
| 77740A | Hose, Fuel, NO.1(FOR CHARCOAL CANISTER) |
| 77740B | Hose, Fuel, NO.2(FOR CHARCOAL CANISTER) |
| 77740C | Hose, Fuel, NO.3(FOR CHARCOAL CANISTER) |
| 77751 | Bracket, Charcoal Canister Base |
| 77754 | Hose, Charcoal Canister Outlet, NO.1 |
| 77759 | Hose, Charcoal Canister |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
