Toyota Mark 2 V,WG
1988-10 → 1997-04 · chassis GX70,LX76,YX7# · catalogue 351110 · Japan
Discontinued model
Data version 1997-10
Meter
19 part groups · 4 illustrations
Part groups

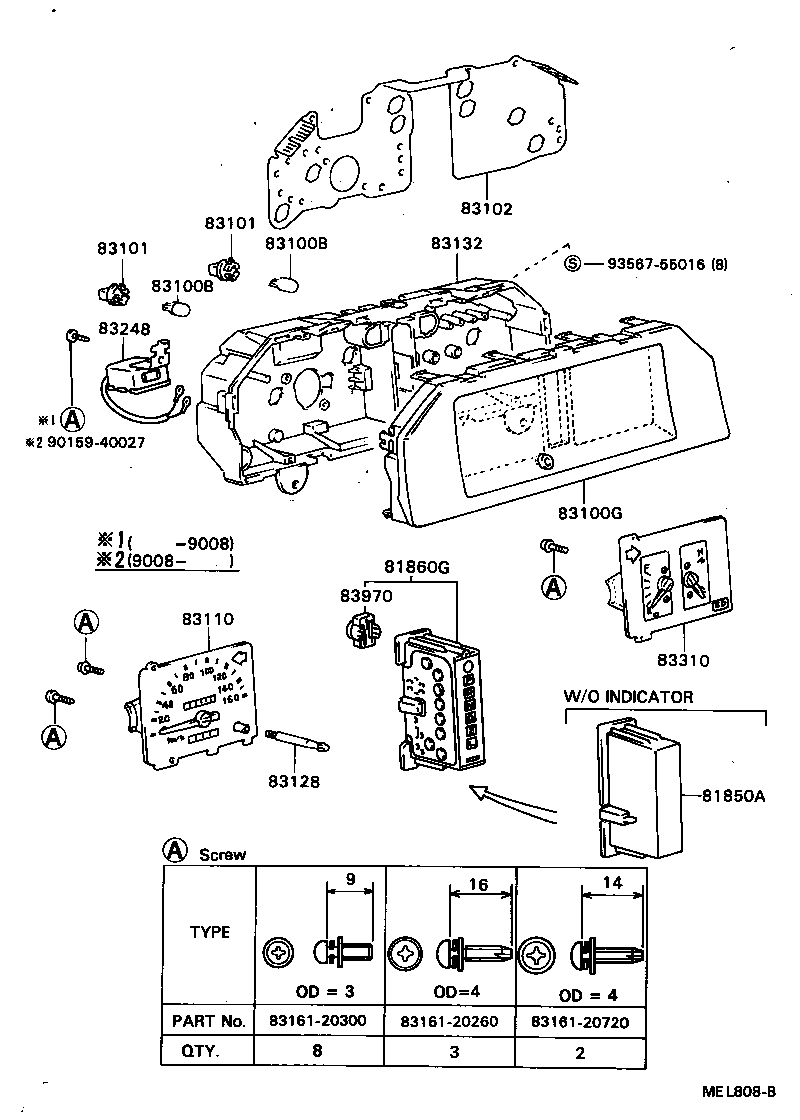

| PNC | Description |
|---|---|
| 81850A | Lamp Assy, Indicator |
| 81850F | Bulb, Indicator Lamp |
| 81860G | Lamp Assy, Transmission Indicator |
| 83100B | Bulb, Combination Meter, NO.1 |
| 83100G | Glass, Combination Meter |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83102 | Plate Sub-assy, Combination Meter Circuit, NO.1 |
| 83110 | Speedometer Assy |
| 83128 | Knob, Trip Counter |
| 83132 | Case, Combination Meter |
| 83189 | Bracket, Meter |
| 83248 | Chime, Speed Warning |
| 83270 | Tachometer Assy, Engine |
| 83310 | Gage Assy, Fuel Receiver |
| 83410 | Gage Assy, Water Temperature Receiver |
| 83710 | Cable Assy, Speedometer Drive, NO.1 |
| 83770 | Adapter Assy, Speedometer Cable |
| 83910 | Clock Assy |
| 83970 | Buzzer Assy, Reverse Warning |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
