Toyota Mark 2 V,WG

1988-10 → 1997-04 · chassis GX70,LX76,YX7# · catalogue 351110 · Japan

Discontinued model Data version 1997-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

86 part groups · 9 illustrations

Illustrations

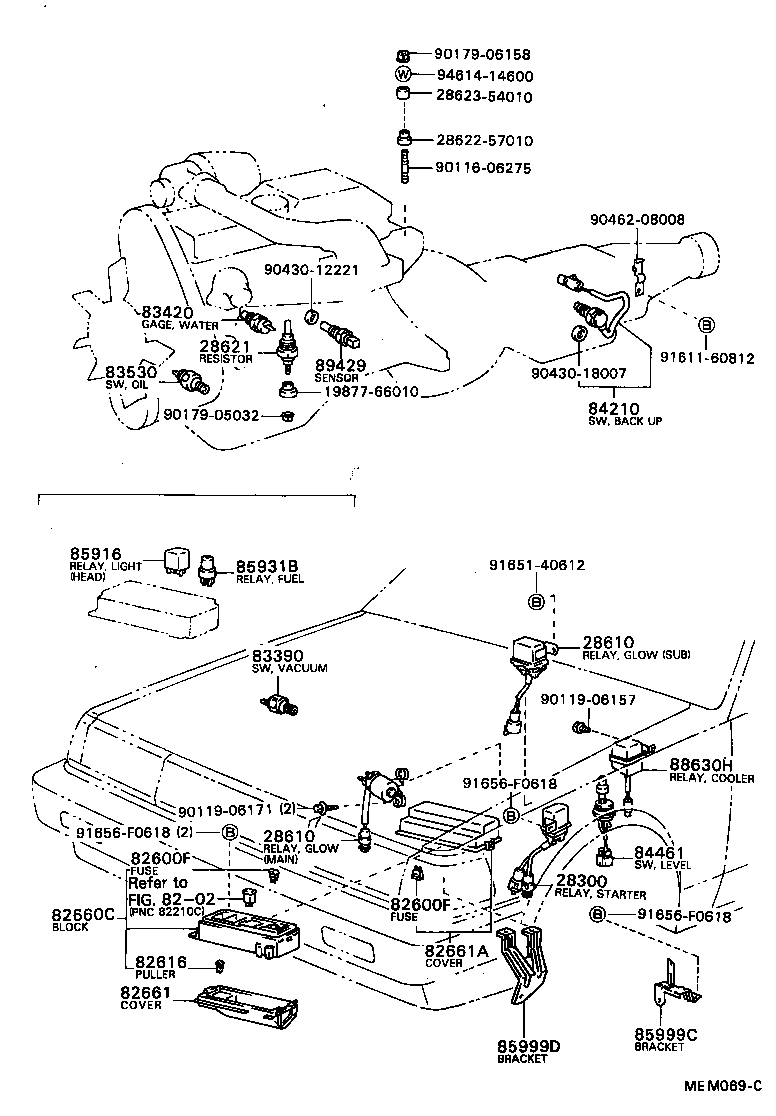

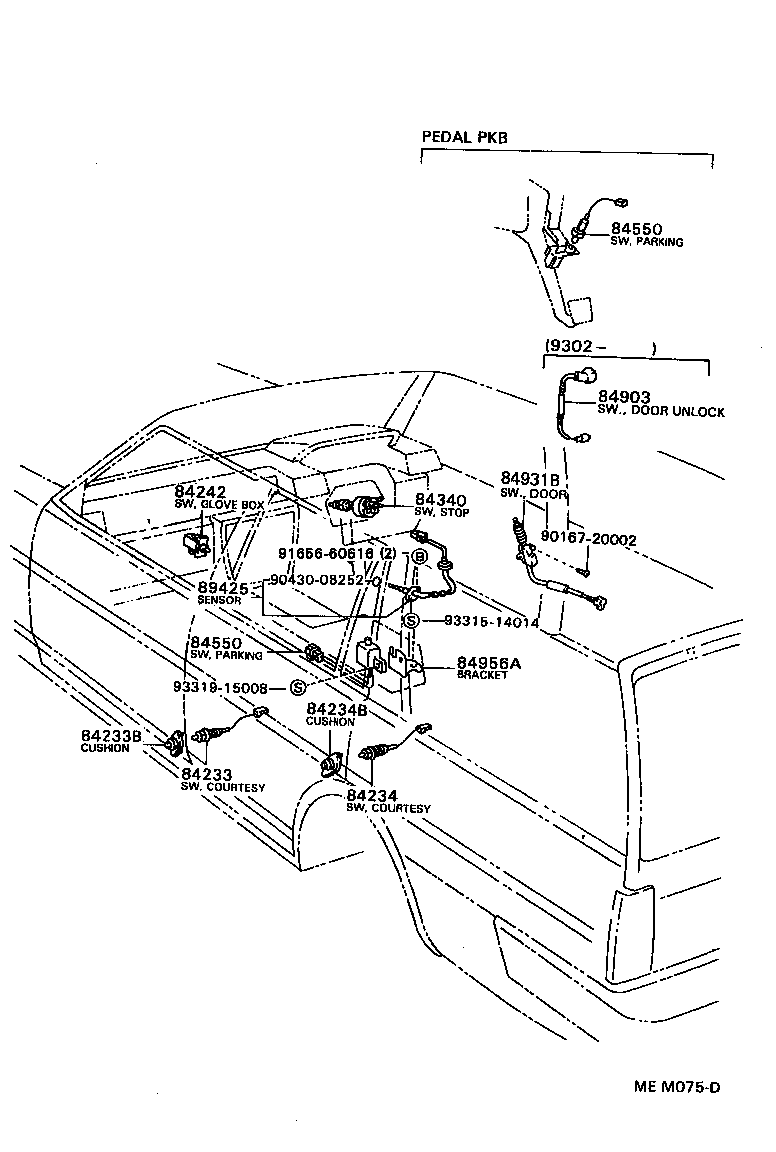

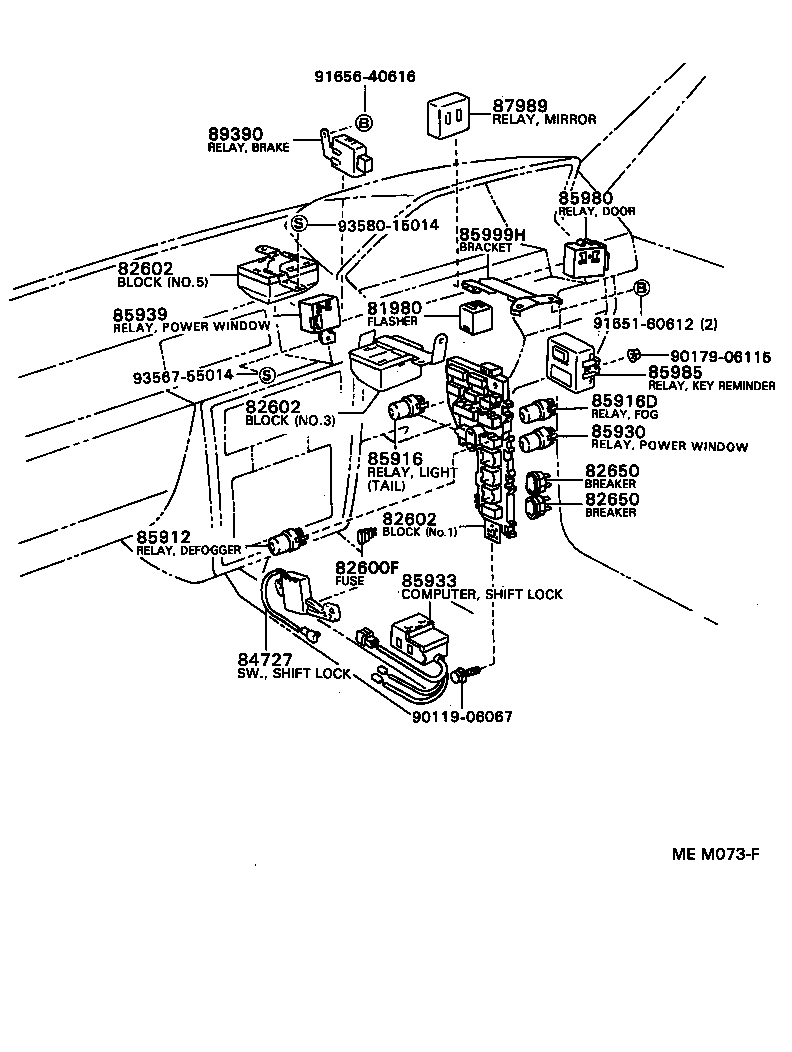

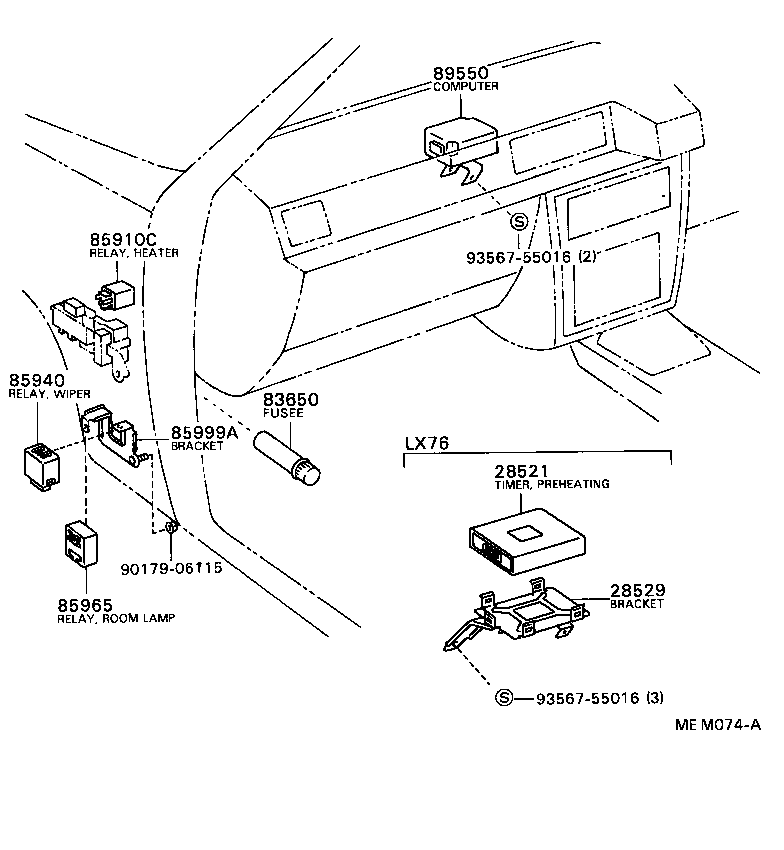

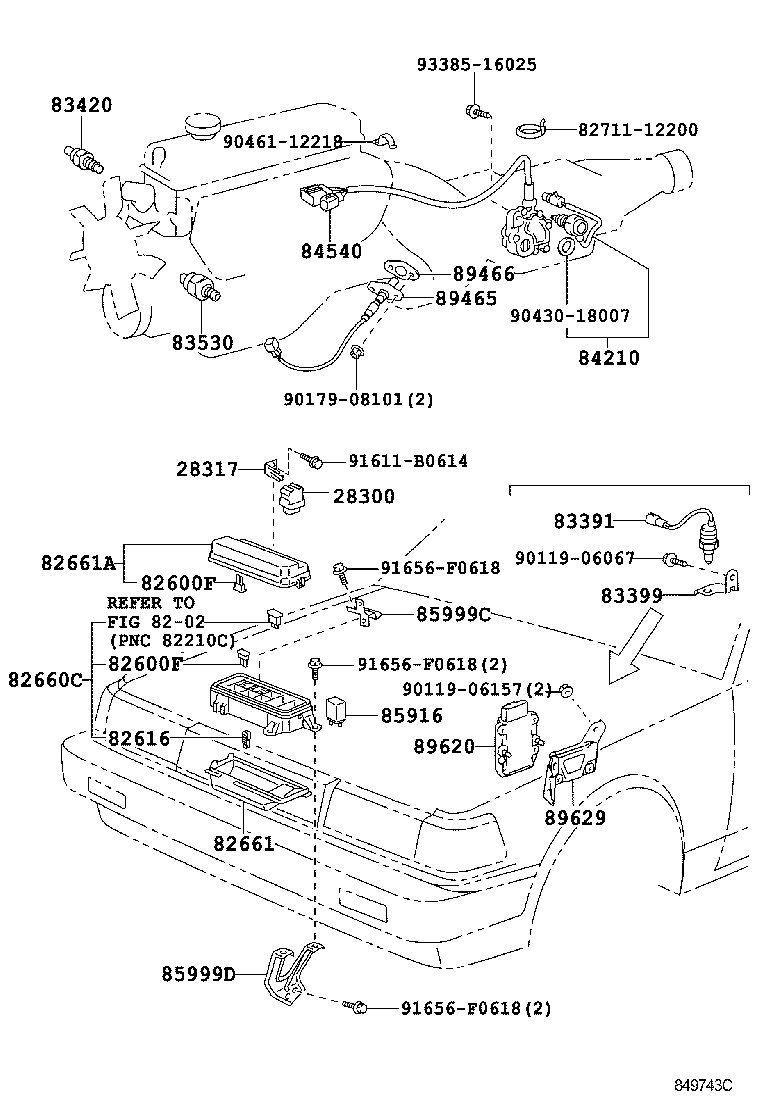

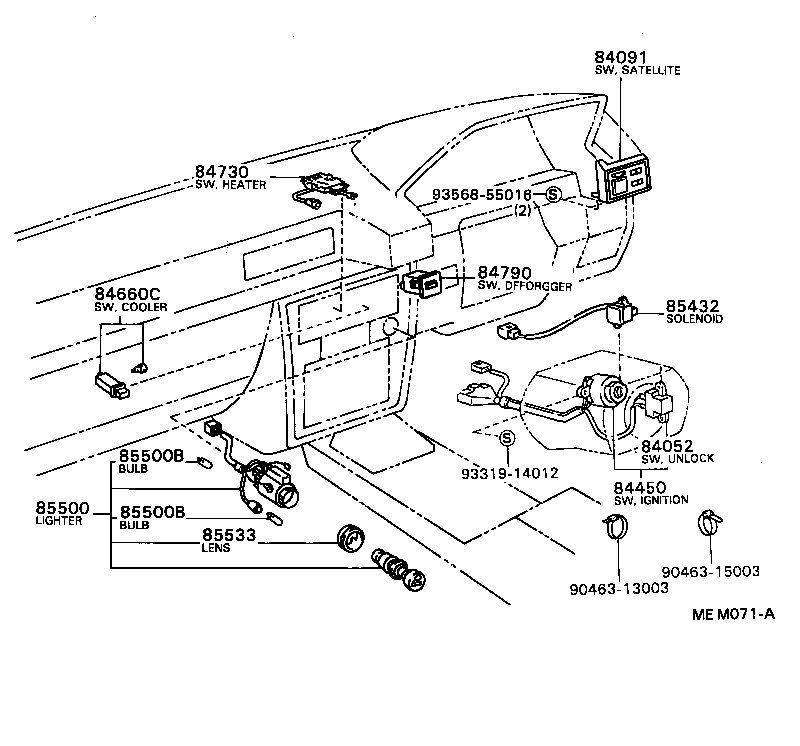

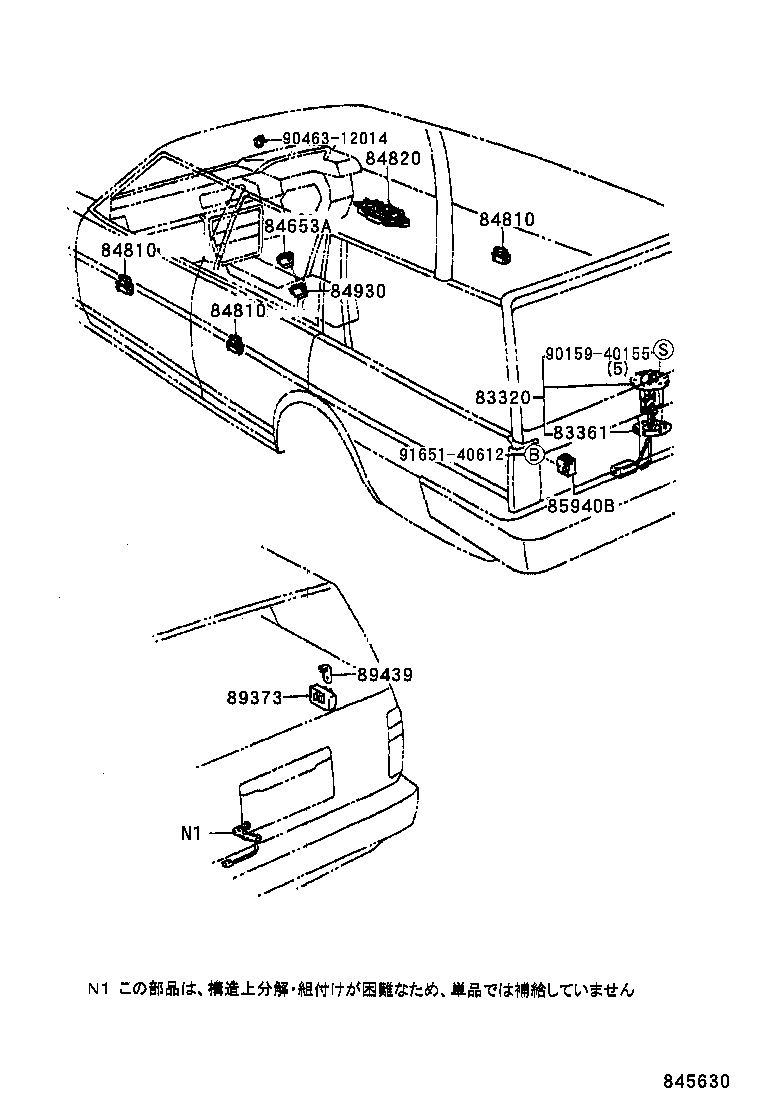

Figure 84E141B 84E141B 1988-10 → — Figure MEM069C MEM069C 1988-12 → — Figure 849743C 849743C 1988-12 → — Figure MEM071A MEM071A 1988-10 → — Figure MEM072A MEM072A 1988-10 → — Figure MEM073F MEM073F 1988-10 → — Figure MEM074A MEM074A 1988-10 → — Figure MEM075D MEM075D 1988-10 → — Figure 845630 845630 1988-10 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28317 Bracket, Starter Relay
28521 Timer, Preheating
28529 Bracket, Preheating Timer, NO.1
28610 Relay Assy, Intake Heater OR Glow Plug
28621 Resistor, Glow Plug
81980 Flasher Assy, Turn Signal
82600F Fuse, Fuse Block
82602 Block Sub-assy, Relay
82616 Puller, Fuse
82650 Breaker Assy, Wiring Circuit, NO.1
82660C Block Assy, Relay
82661 Cover, Relay Block, NO.1
82661A Cover, Relay Block, NO.2
83320 Gage Assy, Fuel Sender
83361 Gasket, Fuel Sender Gage
83390 Switch Assy, Vacuum Warning
83391 Switch, Vacuum
83399 Bracket, Vacuum Switch
83420 Gage Assy, Water Temperature Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83650 Fusee
84052 Switch Assy, Un-lock Warning
84091 Switch Set, Satellite
84110 Switch Assy, Light Control, NO.1
84140 Switch Assy, Headlamp Dimmer
84210 Switch Assy, Back-up Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84233B Cushion, Courtesy Switch (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84234B Cushion, Courtesy Switch (FOR REAR DOOR)
84242 Switch, Glove Box Lamp
84310 Switch Assy, Turn Signal
84312 Plate, Horn Contact
84340 Switch Assy, Stop Lamp
84450 Switch Assy, Ignition OR Starter
84461 Switch, Level Warning
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84653A Switch, Rear Wiper
84660C Switch, Cooler
84727 Switch, Shift Lock Control
84730 Switch Assy, Heater Blower
84790 Switch Assy, Rear Window Defogger
84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84903 Switch Sub-assy, Door Un-lock
84930 Switch Assy, Door Control
84931B Switch, Door Control
84956A Bracket, Hand Brake Signal Switch
85432 Solenoid, Key Interlock
85500 Lighter Assy, Cigarette
85500B Bulb, Cigarette Lighter
85533 Lens, Cigarette Lighter Indicator
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85912 Relay, Defogger
85916 Relay, Light Control
85916D Relay, Fog Lamp
85930 Relay Assy, Power Window
85931B Relay, Fuel Heater
85933 Computer, Shift Lock Control
85939 Relay, Power Window
85940 Relay Assy, Windshield Wiper
85940B Relay Assy, Rear Wiper
85965 Relay, Room Lamp Control
85980 Relay Assy, Door Control
85985 Relay, Key Reminder
85999A Bracket, Relay, NO.2
85999C Bracket, Relay, NO.3
85999D Bracket, Relay, NO.4
85999H Bracket, Relay
87989 Relay, Mirror Control
88630G Relay Assy, Cooler
88630H Relay Assy, Cooler
89373 Sensor, Lamp Failure Indicator
89390 Relay, Brake Warning
89425 Sensor, Exhaust Gas Temperature
89429 Sensor, Oil Temperature
89439 Bracket, Sensor
89465 Sensor, Oxygen
89466 Gasket, Oxygen Sensor
89550 Computer Assy, Emission Control
89615 Sensor, Knock Control
89620 Igniter Assy
89629 Bracket, Igniter Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
