Toyota Mark 2 V,WG

1988-10 → 1997-04 · chassis GX70,LX76,YX7# · catalogue 351110 · Japan

Discontinued model Data version 1997-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Wiper

13 part groups · 2 illustrations

Illustrations

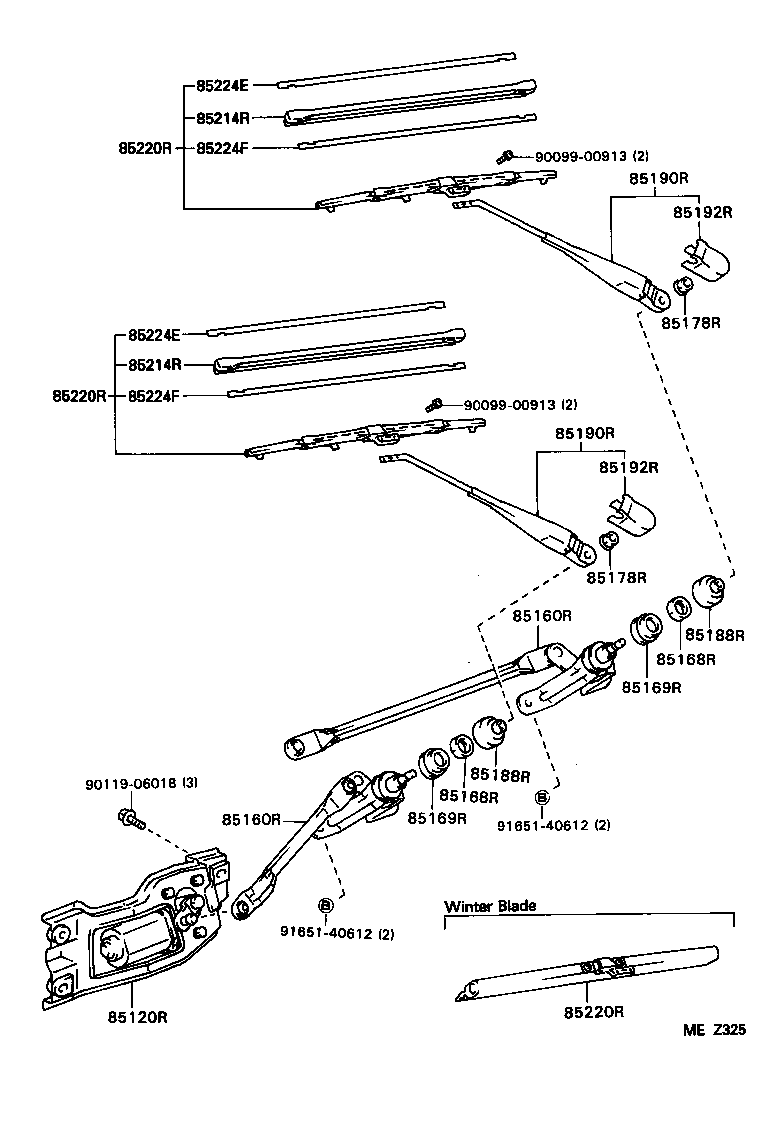

Figure MEL991 MEL991 1988-10 → — Figure MEZ325 MEZ325 1995-02 → —

Part groups

PNCDescription
85120R Motor And Bracket Assy, Rear Wiper
85160R Link Assy, Rear Wiper
85168R Nut, Rear Wiper Link Pivot, NO.1
85169R Washer, Rear Wiper Link Pivot, NO.1
85178R Nut (FOR REAR WIPER ARM SETTING)
85188R Cap, Rear Wiper Pivot, NO.1
85190R Arm Assy, Rear Wiper
85192R Cover, Rear Wiper Arm
85214R Rubber, Rear Wiper
85220R Blade Assy, Rear Wiper
85221R Blade, Rear Wiper
85224E Plate, Rear Wiper Rubber Backing, NO.1
85224F Plate, Rear Wiper Rubber Backing, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
