Toyota Mark 2 V,WG

1988-10 → 1997-04 · chassis GX70,LX76,YX7# · catalogue 351110 · Japan

Discontinued model Data version 1997-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

10 part groups · 3 illustrations

Illustrations

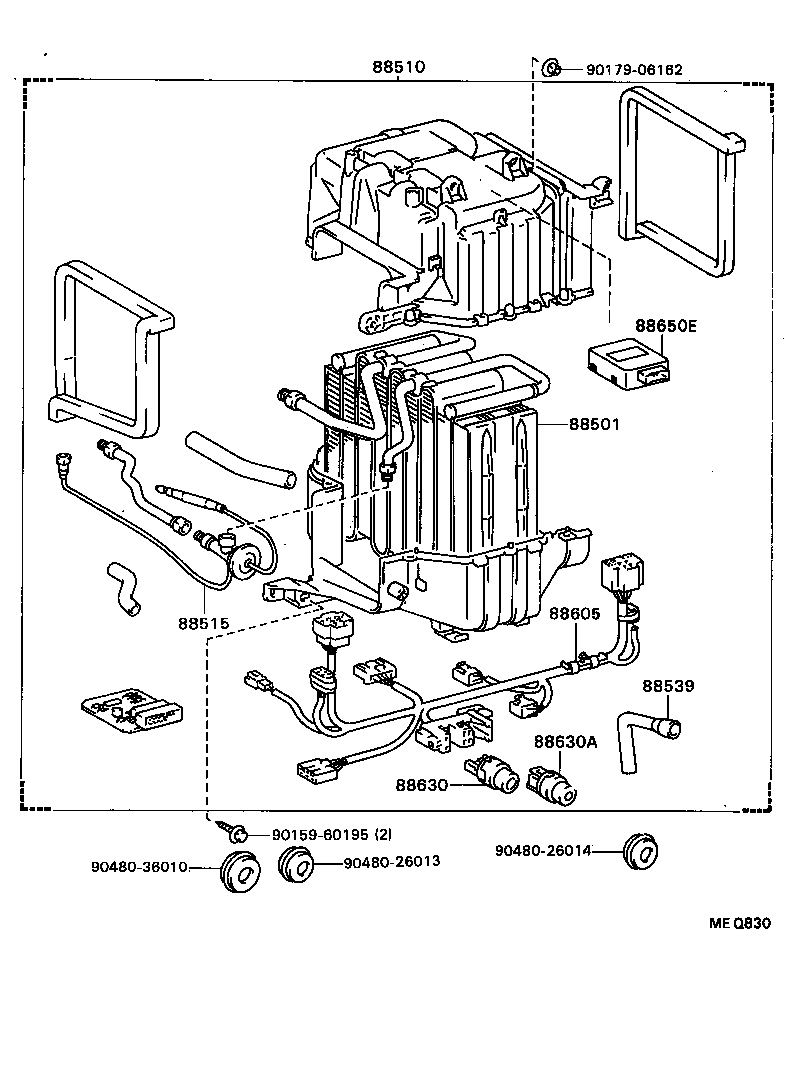

Figure MEM487B MEM487B 1988-10 → 1990-08 Figure MEM487B MEM487B 1988-12 → — Figure MEQ830 MEQ830 1990-08 → —

Part groups

PNCDescription
88501 Evaporator Sub-assy, Cooler, NO.1
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88539 Hose, Cooler Unit Drain, NO.1
88605 Harness Sub-assy, Cooler Wiring, NO.1
88630 Relay Assy, Cooler
88630A Relay Assy, Cooler
88650 Amplifier Assy, Cooler Stabilizer
88650E Amplifier Assy, Air Conditioner, NO.1
88688A Bracket, Cooler Stabilizer Amplifier
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
