Toyota Mark 2 V,WG

1988-10 → 1997-04 · chassis GX70,LX76,YX7# · catalogue 351110 · Japan

Discontinued model Data version 1997-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

15 part groups · 3 illustrations

Illustrations

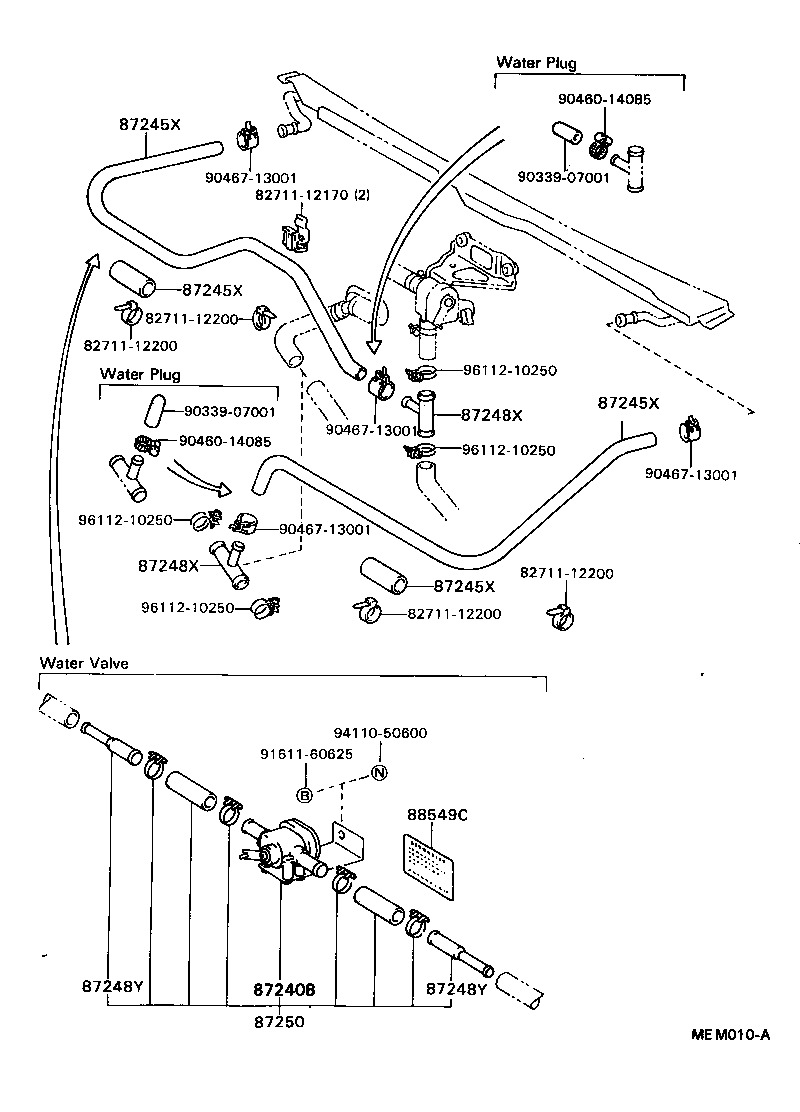

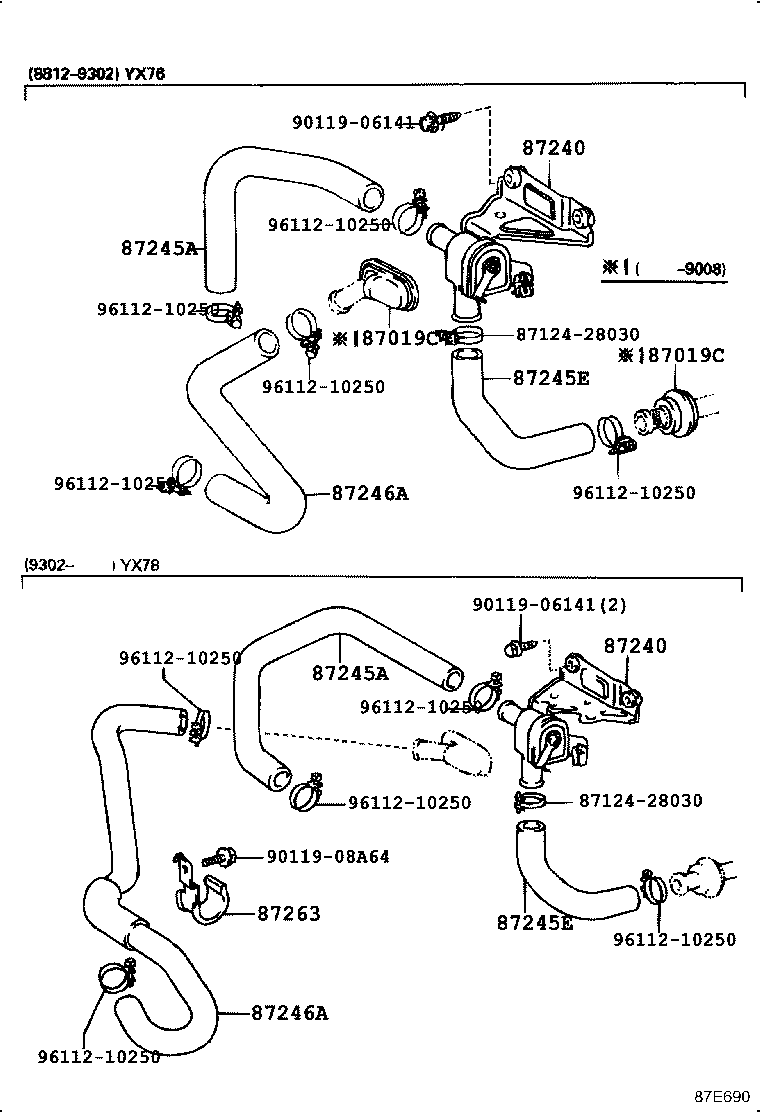

Figure 87E689 87E689 1988-10 → — Figure 87E690 87E690 1988-12 → — Figure MEM010A MEM010A 1988-10 → —

Part groups

PNCDescription
87019C Grommet, Heater Hose
87209 Hose Sub-assy, Water
87240 Valve Assy, Heater Water
87240B Valve Assy, Heater Water, NO.2
87245A Hose, Heater Water, Inlet A
87245E Hose, Heater Water, Inlet E
87245X Hose, Heater Water
87246A Hose, Heater Water, Outlet A
87246E Hose, Heater Water, Outlet E
87248X Pipe, Heater Water
87248Y Pipe, Heater Water, NO.2
87249A Pipe, Heater Water Outlet, A
87250 Hose And Valve Assy
87263 Bracket, Heater Water Pipe, NO.1
88549C Plate, Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
