Toyota Mark 2 V,WG
1988-10 → 1997-04 · chassis GX70,LX76,YX7# · catalogue 351110 · Japan
Discontinued model
Data version 1997-10

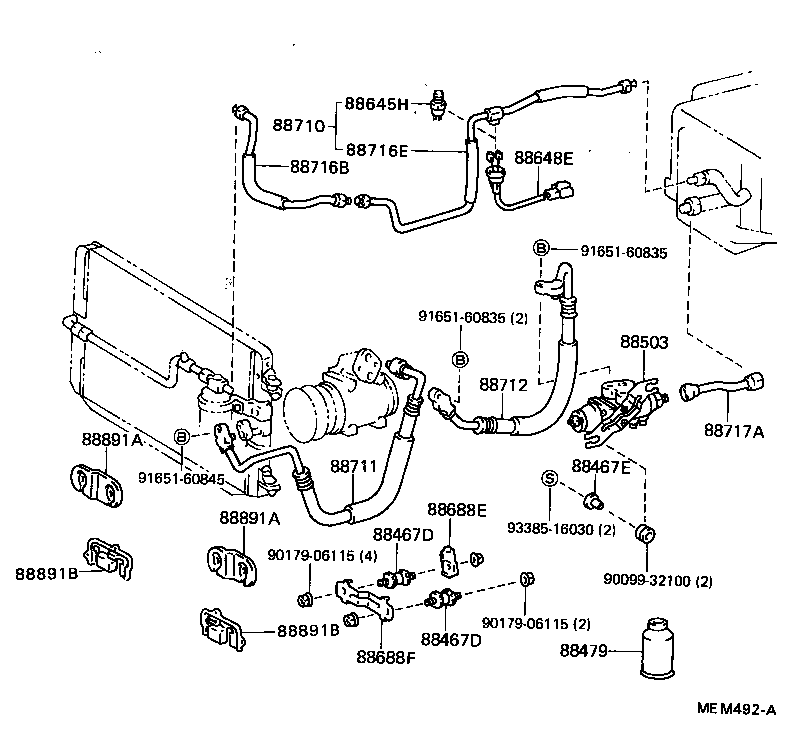

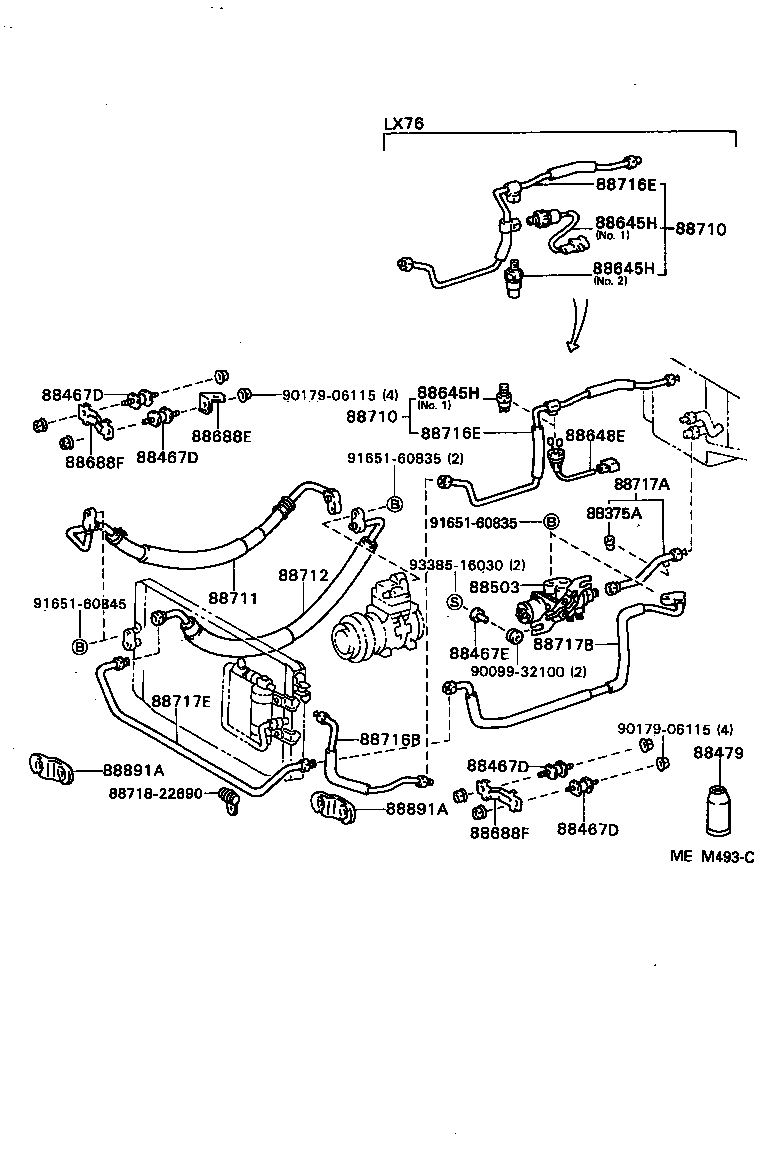

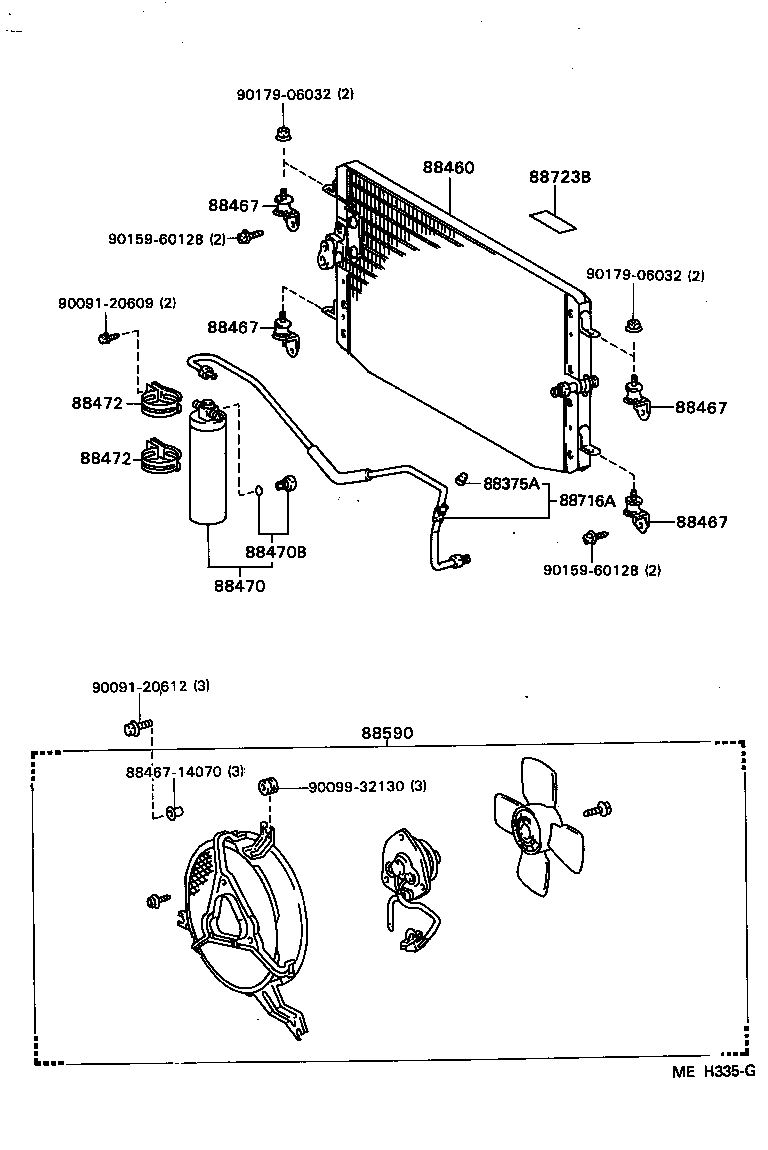

Heating & Air Conditioning - Cooler Piping
29 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 88375A | Cap, Service Valve (FOR COOLER PIPE) |
| 88375B | Cap, Service Valve, NO.1 |
| 88450 | Condenser Assy, W/Receiver |
| 88460 | Condenser Assy, Cooler |
| 88467 | Cushion, Cooler Condenser, NO.1 |
| 88467D | Cushion, Cooler Refrigerant Pipe Clamp |
| 88467E | Cushion, Pressure Regulator |
| 88470 | Receiver & Dryer Assy, Cooler |
| 88470B | Bolt, Fuse |
| 88472 | Bracket, Receiver Tank, NO.1 |
| 88479 | Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT) |
| 88503 | Regulator Assy, Pressure |
| 88590 | Blower Assy, W/Shroud |
| 88645H | Switch, Pressure NO.1 |
| 88648E | Wiring, Cooler |
| 88688E | Bracket, Cooler Refrigerant Hose, NO.1 |
| 88688F | Bracket, Cooler Refrigerant Hose, NO.2 |
| 88710 | Tube Assy, Air Conditioner |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88716A | Pipe, Cooler Refrigerant Liquid, A |
| 88716B | Pipe, Cooler Refrigerant Liquid, B |
| 88716E | Pipe, Cooler Refrigerant Liquid, E |
| 88717A | Pipe, Cooler Refrigerant Suction, A |
| 88717B | Pipe, Cooler Refrigerant Suction, B |
| 88717E | Pipe, Cooler Refrigerant Suction, E |
| 88723B | Label, Cooler Service Caution |
| 88891A | Packing A (FOR COOLER) |
| 88891B | Packing B (FOR COOLER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
