Toyota Mark 2 V,WG

1988-10 → 1997-04 · chassis GX70,LX76,YX7# · catalogue 351110 · Japan

Discontinued model Data version 1997-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

12 part groups · 4 illustrations

Illustrations

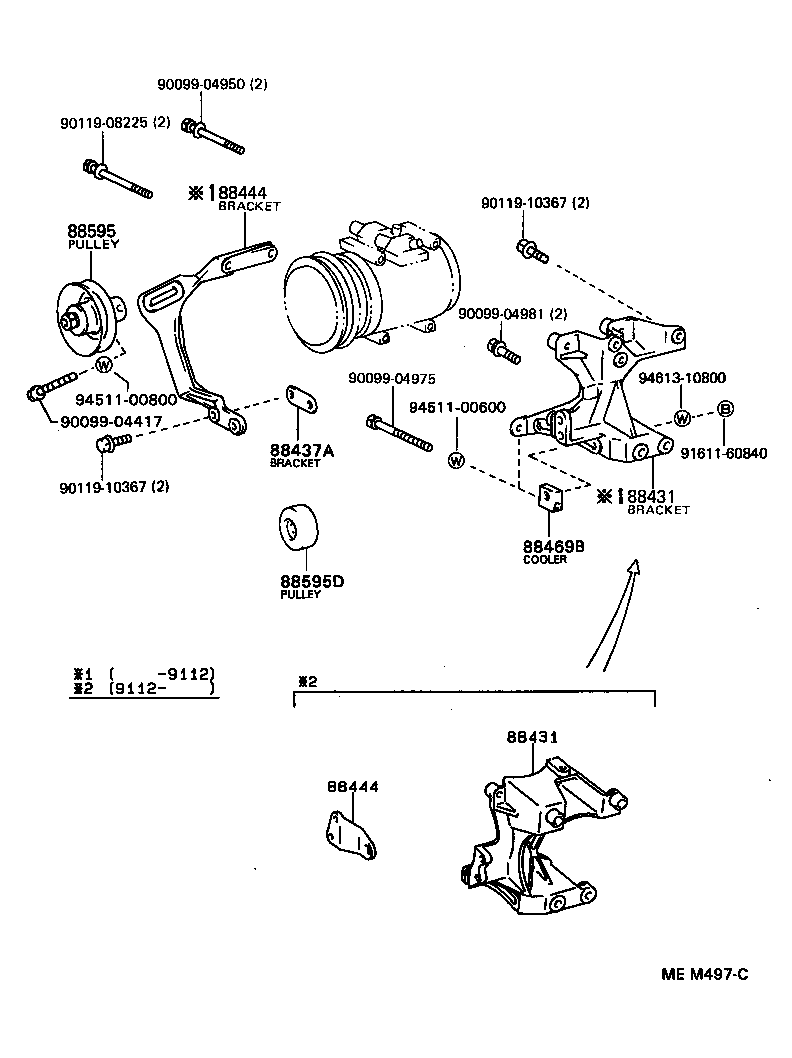

Figure MEM494C MEM494C 1988-10 → — Figure 87B135 87B135 1988-12 → — Figure 87B138 87B138 1988-10 → — Figure MEM497C MEM497C 1988-12 → —

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88320 Compressor Assy, Cooler
88330A Washer (FOR MAGNET CLUTCH)
88403 Hub Sub-assy, Magnet Clutch
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88437A Attachment, Compressor
88444 Bracket, Idle Pulley
88469B Collar
88595 Pulley, Cooler Compressor Idle
88595D Pulley Assy, Idle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
