Toyota Mark 2 WG

1997-04 → 2001-12 · chassis MCV2#,SXV2# · catalogue 351120 · Japan

Discontinued model Data version 2002-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

3 part groups · 5 illustrations

Illustrations

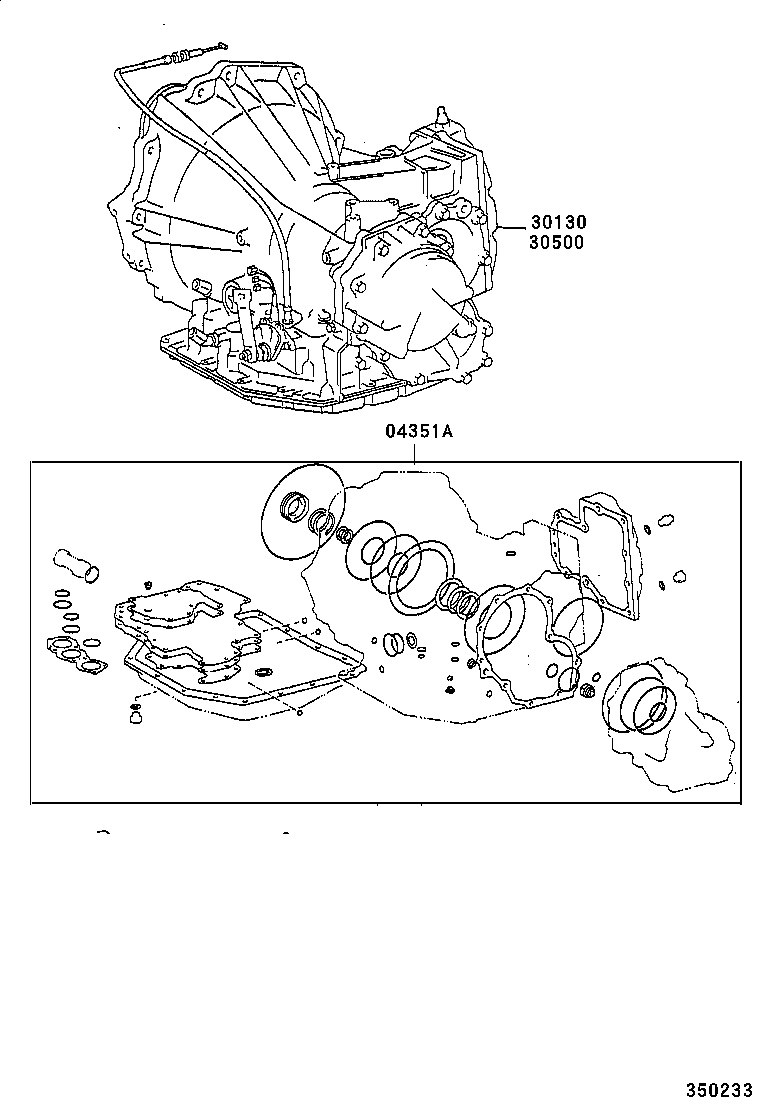

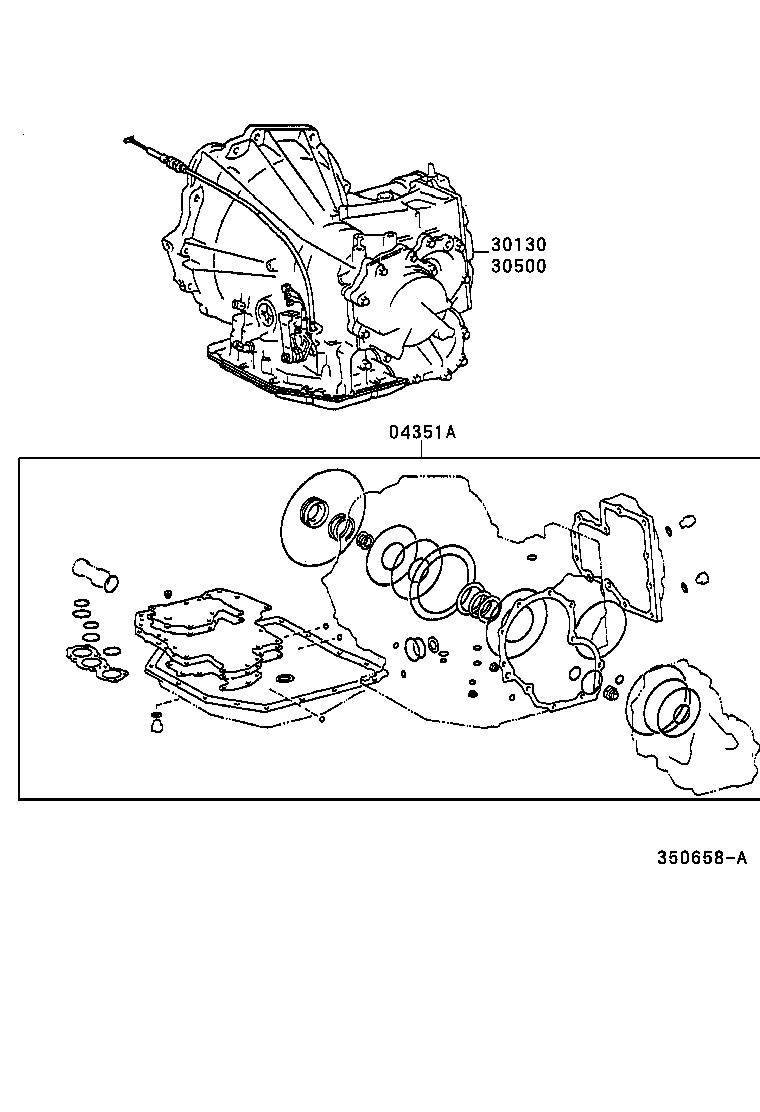

Figure 350232 350232 1997-04 → 1999-08 Figure 350232 350232 1999-08 → — Figure 350233 350233 1997-04 → — Figure 350658A 350658A 1997-06 → — Figure 350994 350994 1999-08 → —

Part groups

PNCDescription
04351A Gasket Kit, Transaxle Overhaul(ATM)
30130 Transaxle Assy, Rebuilt
30500 Transaxle Assy, Automatic
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
