Toyota Mark 2 WG

1997-04 → 2001-12 · chassis MCV2#,SXV2# · catalogue 351120 · Japan

Discontinued model Data version 2002-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

6 part groups · 6 illustrations

Illustrations

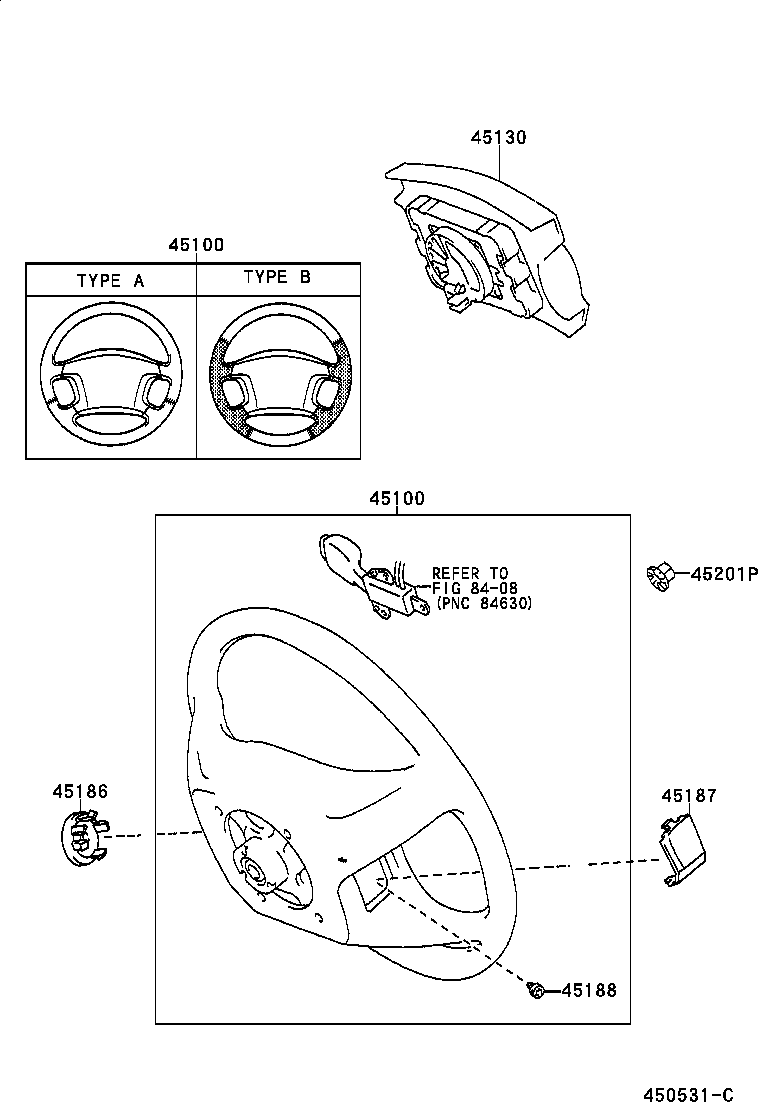

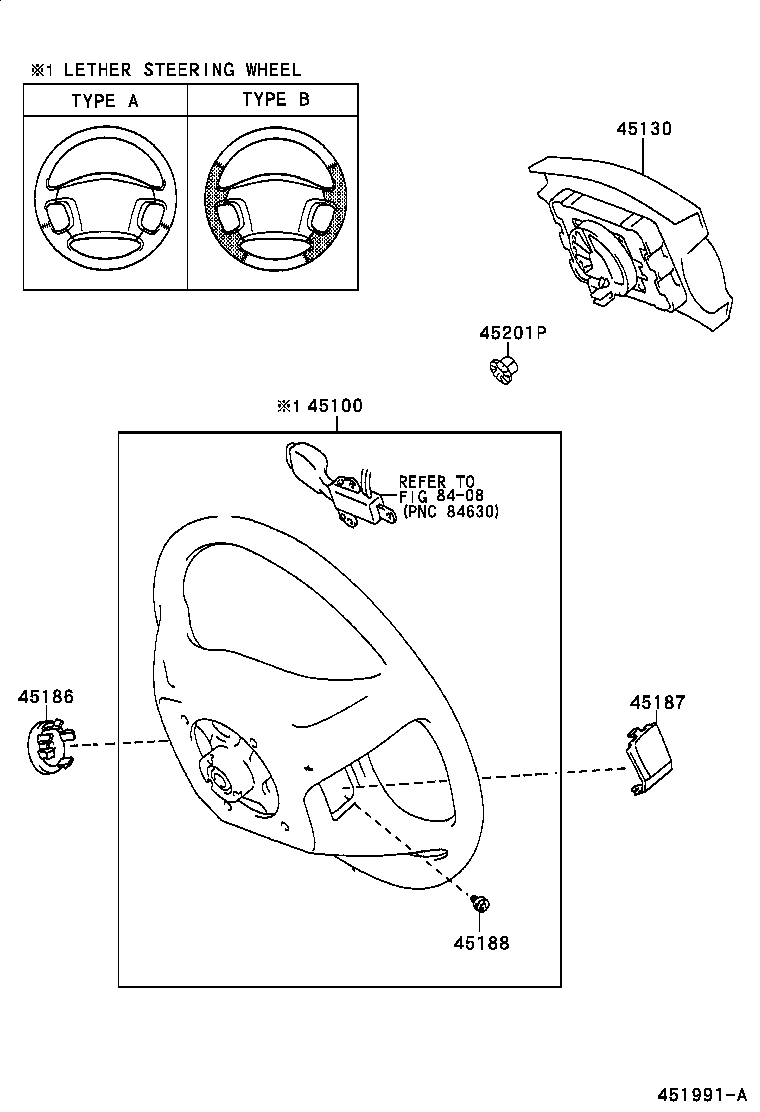

Figure 451523A 451523A 1997-04 → 1999-08 Figure 450530B 450530B 1997-04 → 1999-08 Figure 450531C 450531C 1997-04 → 1999-08 Figure 451295B 451295B 1999-08 → — Figure 451978A 451978A 1999-08 → — Figure 451991A 451991A 1999-08 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45130 Button Assy, Horn
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45188 Screw, Steering Wheel Pad Attaching
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
