Toyota Mark 2 WG
1997-04 → 2001-12 · chassis MCV2#,SXV2# · catalogue 351120 · Japan
Discontinued model
Data version 2002-06

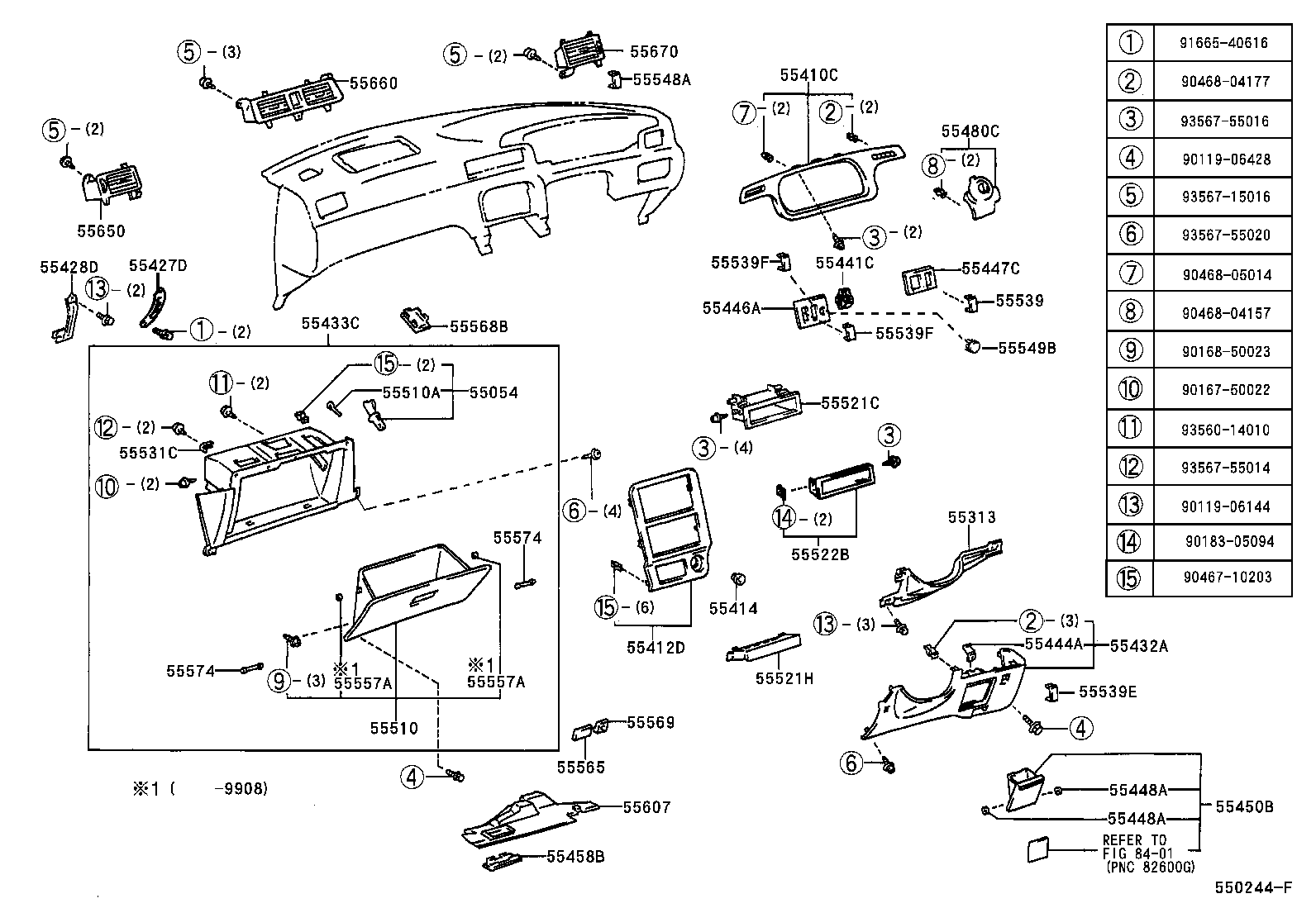

Instrument Panel & Glove Compartment
52 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55304B | Bracket Sub-assy, Instrument Panel Bracket Mounting |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55313 | Panel, Instrument, Lower LH |
| 55328 | Pin, Instrument Panel, NO.1 |
| 55331 | Reinforcement, Instrument Panel |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55410C | Panel Assy, Instrument Cluster Finish |
| 55412D | Panel, Instrument Cluster Finish, Center |
| 55414 | Bezel, Cigar Lighter Hole |
| 55427D | Retainer, Instrument Finish Panel, Lower, NO.1 |
| 55428D | Retainer, Instrument Finish Panel, Lower NO.2 |
| 55432A | Panel, Instrument Panel Finish, Lower RH |
| 55433C | Panel, Instrument Panel Finish, Lower LH |
| 55441C | Box, Instrument Panel Coin |
| 55444A | Spring, Instrument Panel Box |
| 55446A | Base, Switch Hole, NO.1 |
| 55447C | Base, Switch Hole, NO.2 |
| 55448A | Cushion, Instrument Panel Finish, NO.1 |
| 55450B | Box Assy, Coin |
| 55458A | Cap, Instrument Panel Safety Pad |
| 55458B | Cover, Instrument, Lwr |
| 55480C | Key Bezel |
| 55510 | Door Assy, Glove Compartment |
| 55510A | Cushion(FOR GLOVE COMPARTMENT DOOR) |
| 55521C | Cover, Stereo Opening |
| 55521H | Cover Assy, Stereo Opening |
| 55522B | Cover, Radio Tuner Opening |
| 55531C | Pin, Glove Door Stopper |
| 55539 | Cover, Spare Switch Hole |
| 55539E | Cover, Spare Switch Hole |
| 55539F | Cover, Spare Switch Hole |
| 55548A | Cover, Instrument Panel Hole |
| 55549B | Cover, Instrument Panel Hole, NO.2 |
| 55557A | Cushion, Glove Compartment Door Check |
| 55565 | Handle, Glove Compartment Door Lock |
| 55568B | Plate, Glove Compartment Door Finish |
| 55569 | Cover, Glove Compartment Door Lock |
| 55574 | Shaft, Glove Compartment Door Hinge |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55950A | Nozzle Assy, Defroster |
| 55962 | Nozzle, Side Defroster, NO.2 |
| 55963A | Retainer, Side Defroster |
| 55971B | Duct, Side Defroster Nozzle, NO.1 |
| 55972A | Duct, Side Defroster Nozzle, NO.2 |
| 55981 | Garnish, Defroster Nozzle, NO.1 |
| 73970A | Airbag Assy, Instrument Panel Passenger |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
