Toyota Mark 2 WG
1997-04 → 2001-12 · chassis MCV2#,SXV2# · catalogue 351120 · Japan
Discontinued model
Data version 2002-06
Roof Panel & Back Window Glass
58 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 61815G | Cover, Roof Side, Inner Upper LH |
| 61816E | Cover, Roof Side, Inner Upper LH |
| 63102A | Panel Sub-assy, Windshield Header |
| 63105A | Frame Sub-assy, Back Door Opening |
| 63111 | Panel, Roof |
| 63141G | Reinforcement, Roof Panel, NO.1 |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63144A | Reinforcement, Roof Panel, NO.4 |
| 63147F | Bracket, Roof Panel Reinforcement, RH |
| 63148A | Reinforcement, Roof Panel, NO.7 |
| 63148E | Bracket, Roof Panel Reinforcement, LH |
| 63185A | Bracket, Roof Rack, Front RH |
| 63186A | Bracket, Roof Rack, Front LH |
| 63189A | Bracket, Roof Rack, Center |
| 63199 | Bracket, Roof Rack, Center LH |

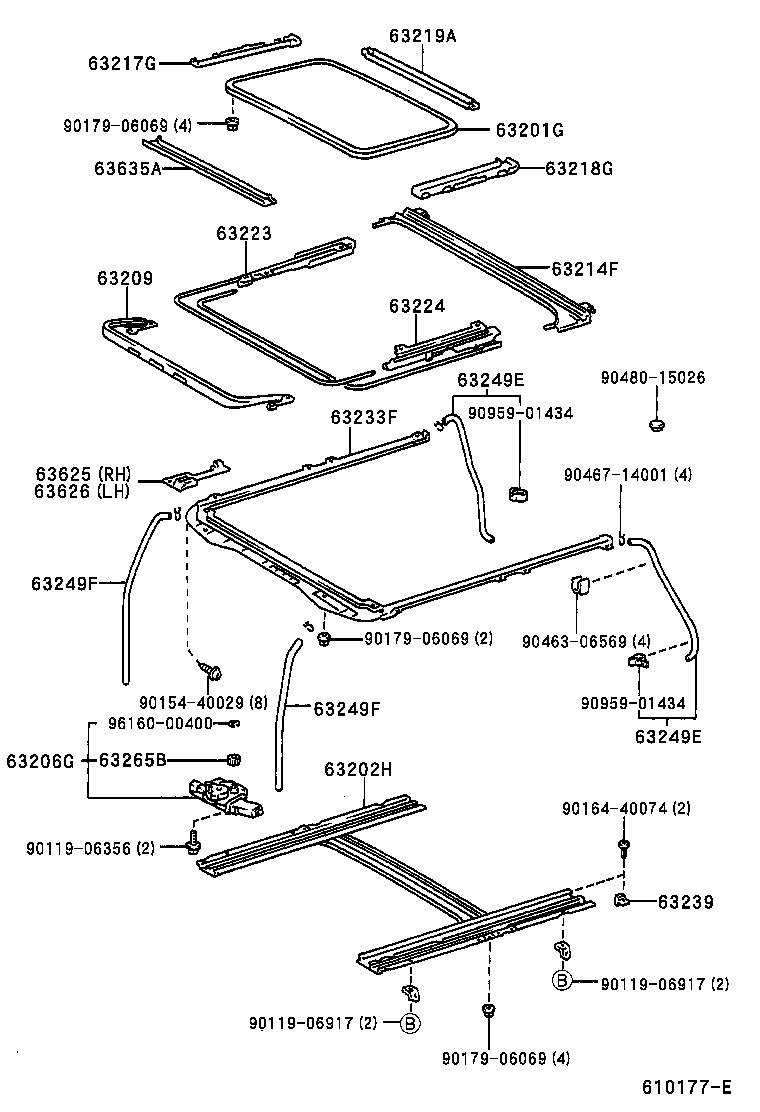

| 63201G | Glass Sub-assy, Sliding Roof |
| 63202H | Rail Sub-assy, Slide Roof |
| 63206G | Gear Sub-assy, Sliding Roof Drive |
| 63209 | Panel Sub-assy, Roof Wind Deflector |
| 63214F | Channel, Roof Drip, Rear |
| 63217G | Garnish, Sliding Roof Side, RH |
| 63218G | Garnish, Sliding Roof Side, LH |
| 63219A | Garnish, Sliding Roof, Rear |
| 63223 | Cable, Sliding Roof Drive, RH |
| 63224 | Cable, Sliding Roof Drive, LH |
| 63233F | Frame, Removable Roof Housing |
| 63239 | Stopper, Sliding Roof Panel |
| 63243C | Bracket, Sliding Roof Housing Center Mounting, RH |
| 63244C | Bracket, Sliding Roof Housing Center Mounting, LH |
| 63249E | Hose, Sliding Roof Drain |
| 63249F | Hose, Sliding Roof Drain |
| 63265B | Gear, Sliding Roof Drive |

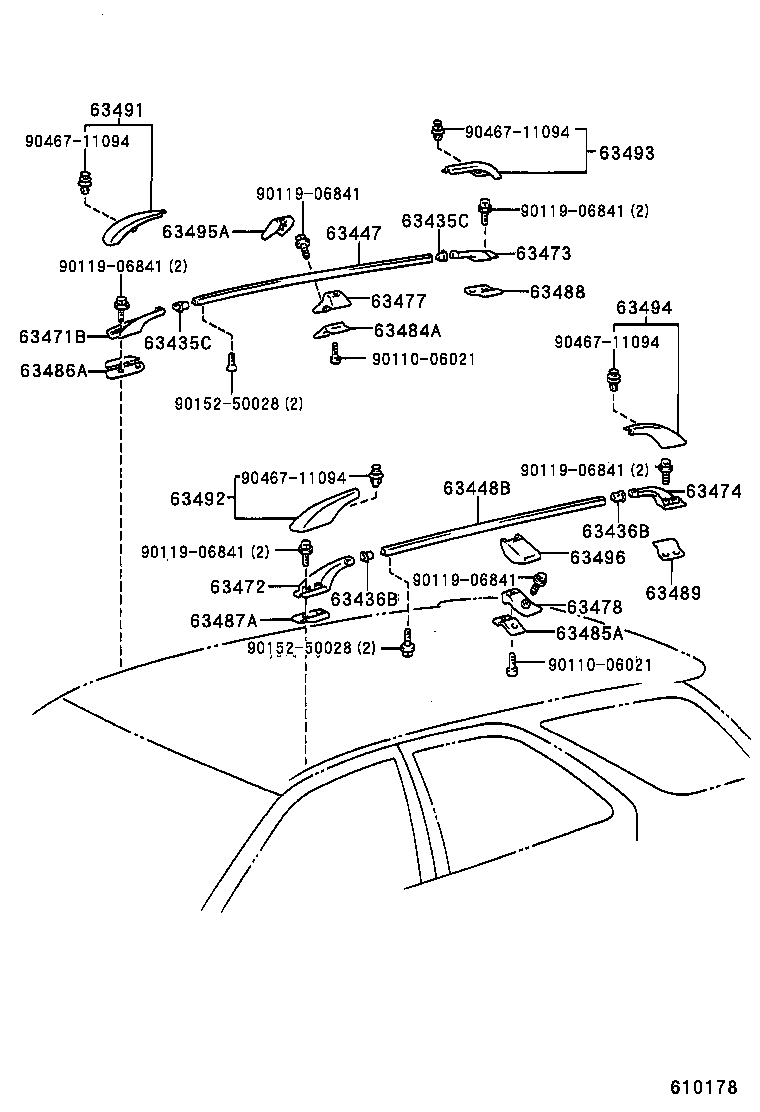

| 63435C | Seal, Roof Carrier, NO.1 RH |
| 63436B | Seal, Roof Carrier, NO.1 LH |
| 63447 | Bar, Roof Carrier, Front |
| 63448B | Bar, Roof Carrier, LH |
| 63471B | Leg, Roof Rack, Front RH |
| 63472 | Leg, Roof Rack, Front LH |
| 63473 | Leg, Roof Rack, Rear RH |
| 63474 | Leg, Roof Rack, Rear LH |
| 63477 | Support, Roof Rack, Center RH |
| 63478 | Support, Roof Rack, Center LH |
| 63484A | Cushion, Roof Rack Leg, Center RH |
| 63485A | Cushion, Roof Rack Leg, Center LH |
| 63486A | Cushion, Roof Rack Leg, Front RH |
| 63487A | Cushion, Roof Rack Leg, Front LH |
| 63488 | Cushion, Roof Rack Leg, Rear RH |
| 63489 | Cushion, Roof Rack Leg, Rear LH |
| 63491 | Cover, Roof Rack Leg, Front RH |
| 63492 | Cover, Roof Rack Leg, Front LH |
| 63493 | Cover, Roof Rack Leg, Rear RH |
| 63494 | Cover, Roof Rack Leg, Rear LH |
| 63495A | Cover, Roof Rack Leg, Center |
| 63496 | Cover, Roof Rack Leg, Center LH |
| 63625 | Block, Sliding Roof Guide, RH |
| 63626 | Block, Sliding Roof Guide, LH |
| 63635A | Garnish, Sliding Roof, Front |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
