Toyota Mark 2 WG
1997-04 → 2001-12 · chassis MCV2#,SXV2# · catalogue 351120 · Japan
Discontinued model
Data version 2002-06
Meter
18 part groups · 4 illustrations
Part groups

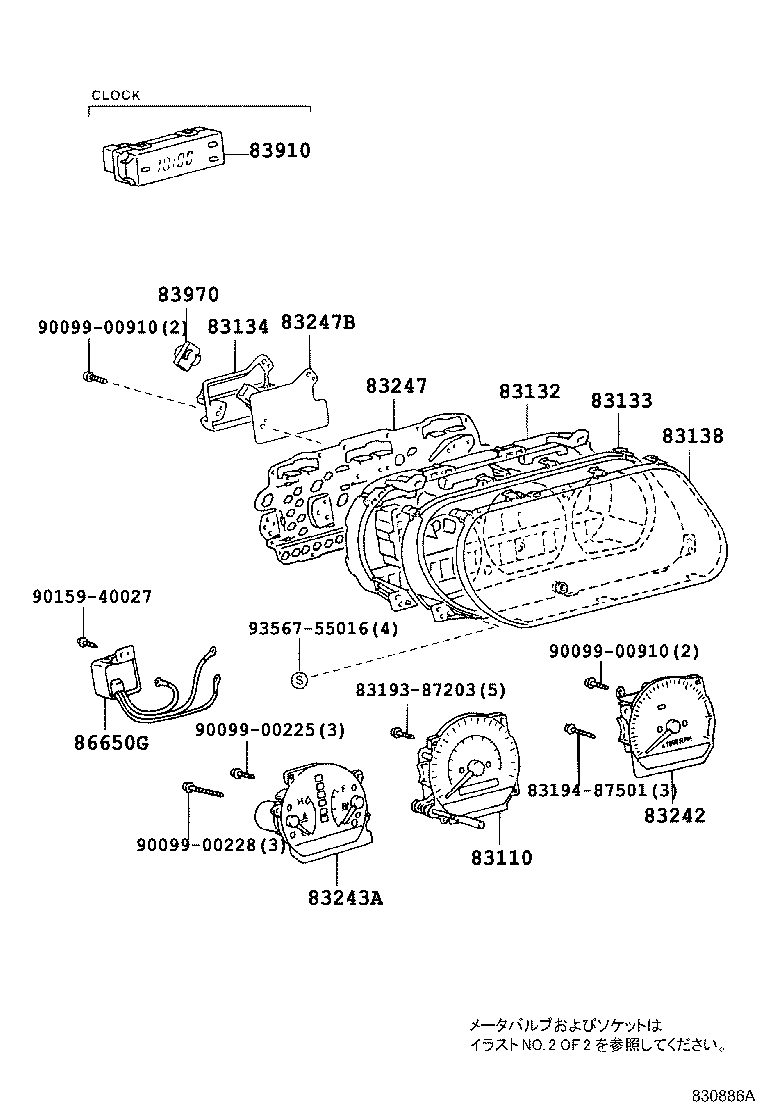

| PNC | Description |
|---|---|

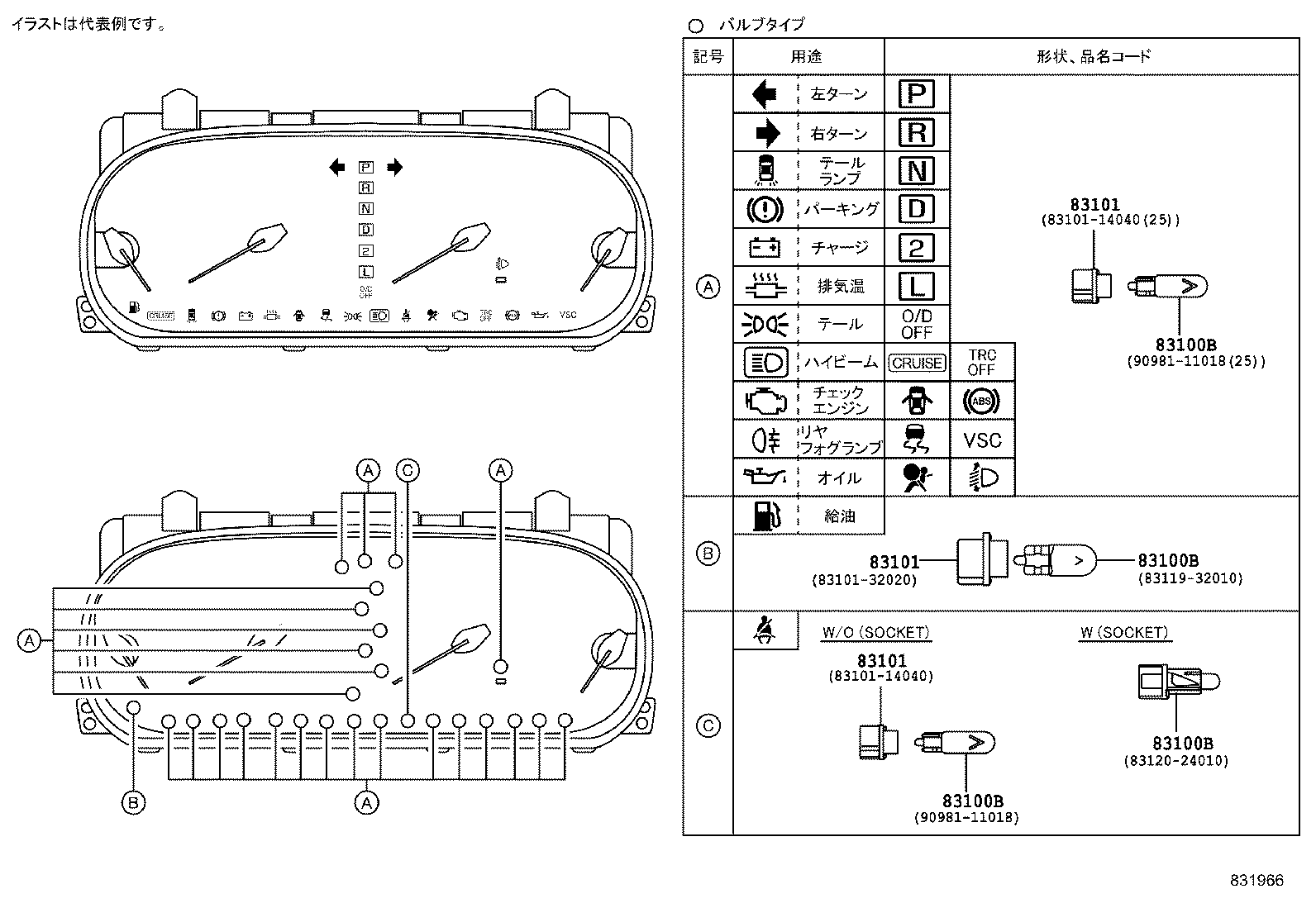

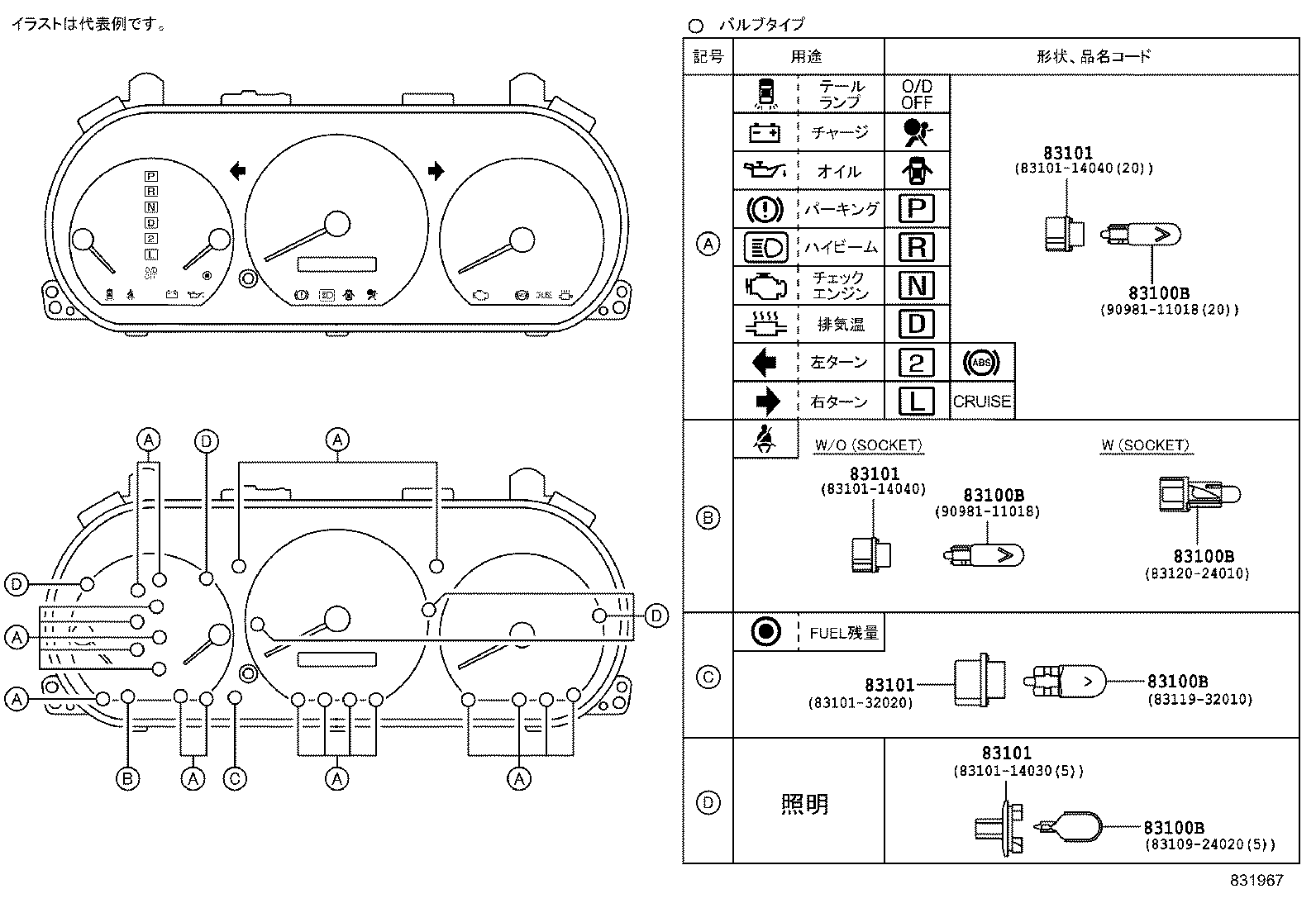

| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83110 | Speedometer Assy |
| 83129 | Wire, Meter |
| 83132 | Case, Combination Meter |
| 83133 | Plate, Combination Meter, NO.1 |
| 83134 | Cover, Combination Meter, NO.1 |
| 83138 | Glass, Speedometer |
| 83242 | Tachometer Assy, Engine |
| 83243A | Gauge Sub-assy, Fuel Receiver |
| 83244 | Gauge Sub-assy, Water Temperature Receiver |
| 83247 | Plate, Meter Circuit |
| 83247B | Plate, Meter Circuit, NO.2 |
| 83247C | Plate, Mater Circuit, NO.3 |
| 83275 | Plate,Computer Meter Circuit NO.1 |
| 83910 | Clock Assy |
| 83970 | Buzzer Assy, Reverse Warning |
| 86650G | Buzzer Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
