Toyota Mark 2 WG

1997-04 → 2001-12 · chassis MCV2#,SXV2# · catalogue 351120 · Japan

Discontinued model Data version 2002-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

5 part groups · 7 illustrations

Illustrations

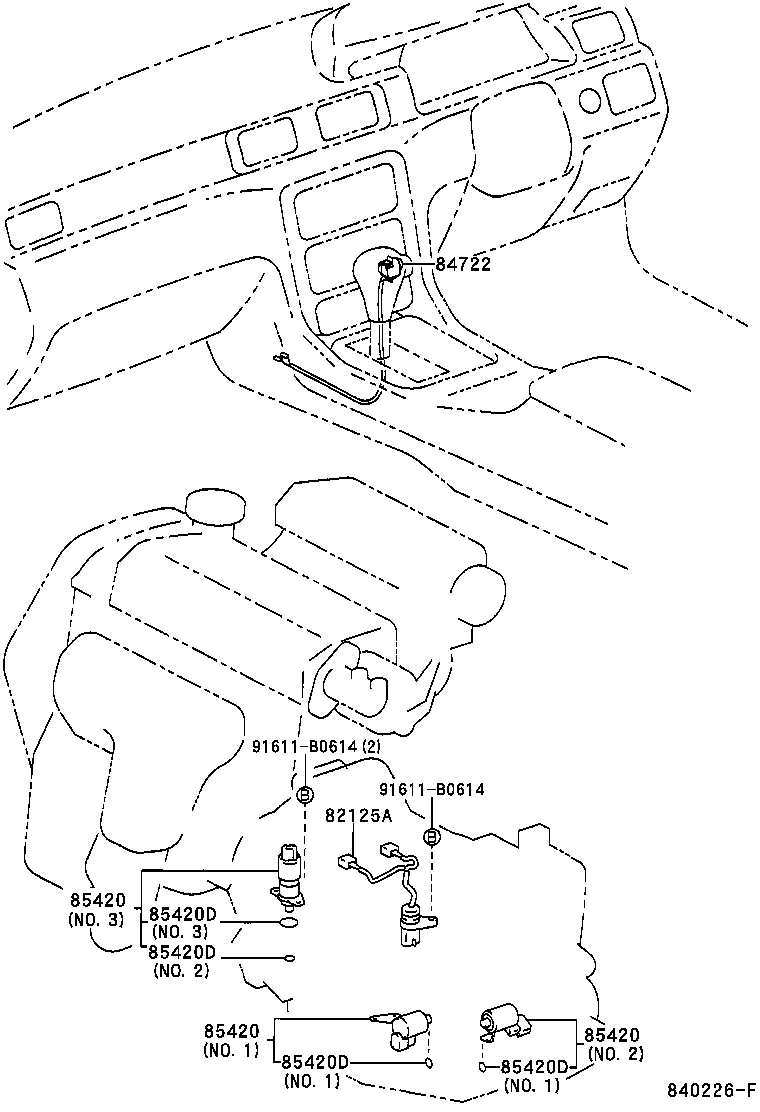

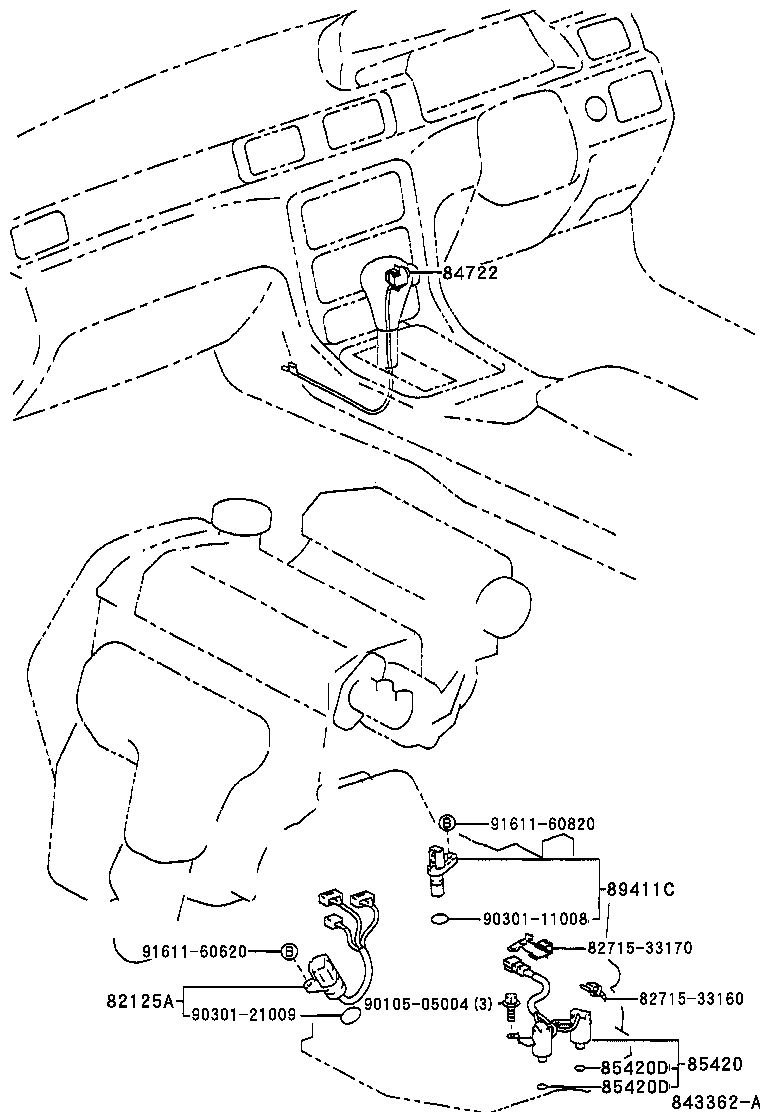

Figure 841900B 841900B 1997-04 → 1998-08 Figure 841900B 841900B 1998-08 → 1999-08 Figure 841900B 841900B 1999-08 → — Figure 842232B 842232B 1999-08 → — Figure 840225C 840225C 1997-04 → 1998-08 Figure 840226F 840226F 1997-04 → — Figure 843362A 843362A 1997-06 → —

Part groups

PNCDescription
82125A Wire, Transmission
84722 Switch, Transmission Control
85420 Solenoid Assy, Transmission
85420D Ring, O (FOR TRANSMISSION SOLENOID)
89411C Sensor, Speed
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
