Toyota Mark 2 WG
1997-04 → 2001-12 · chassis MCV2#,SXV2# · catalogue 351120 · Japan
Discontinued model
Data version 2002-06
Abs & Vsc

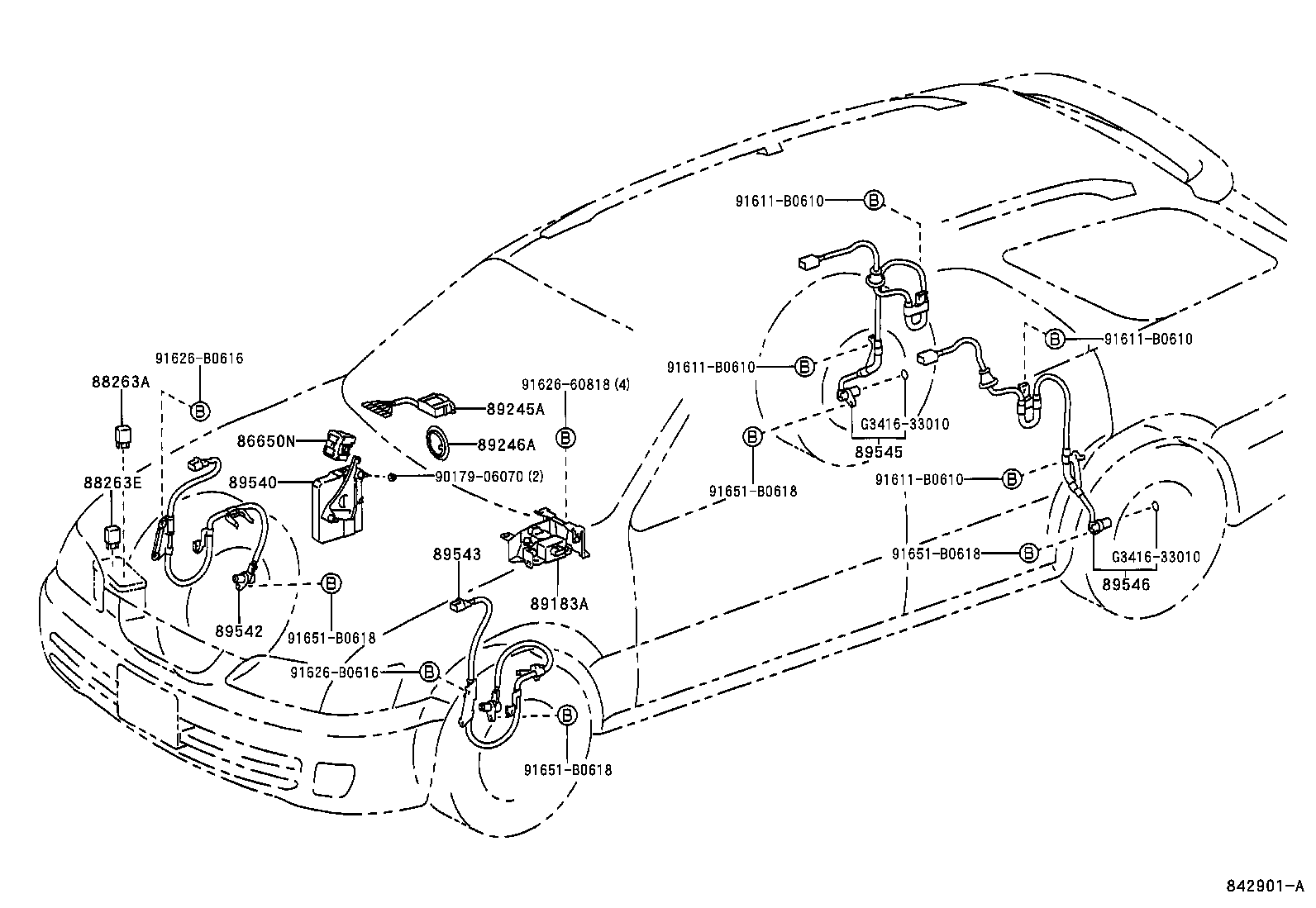

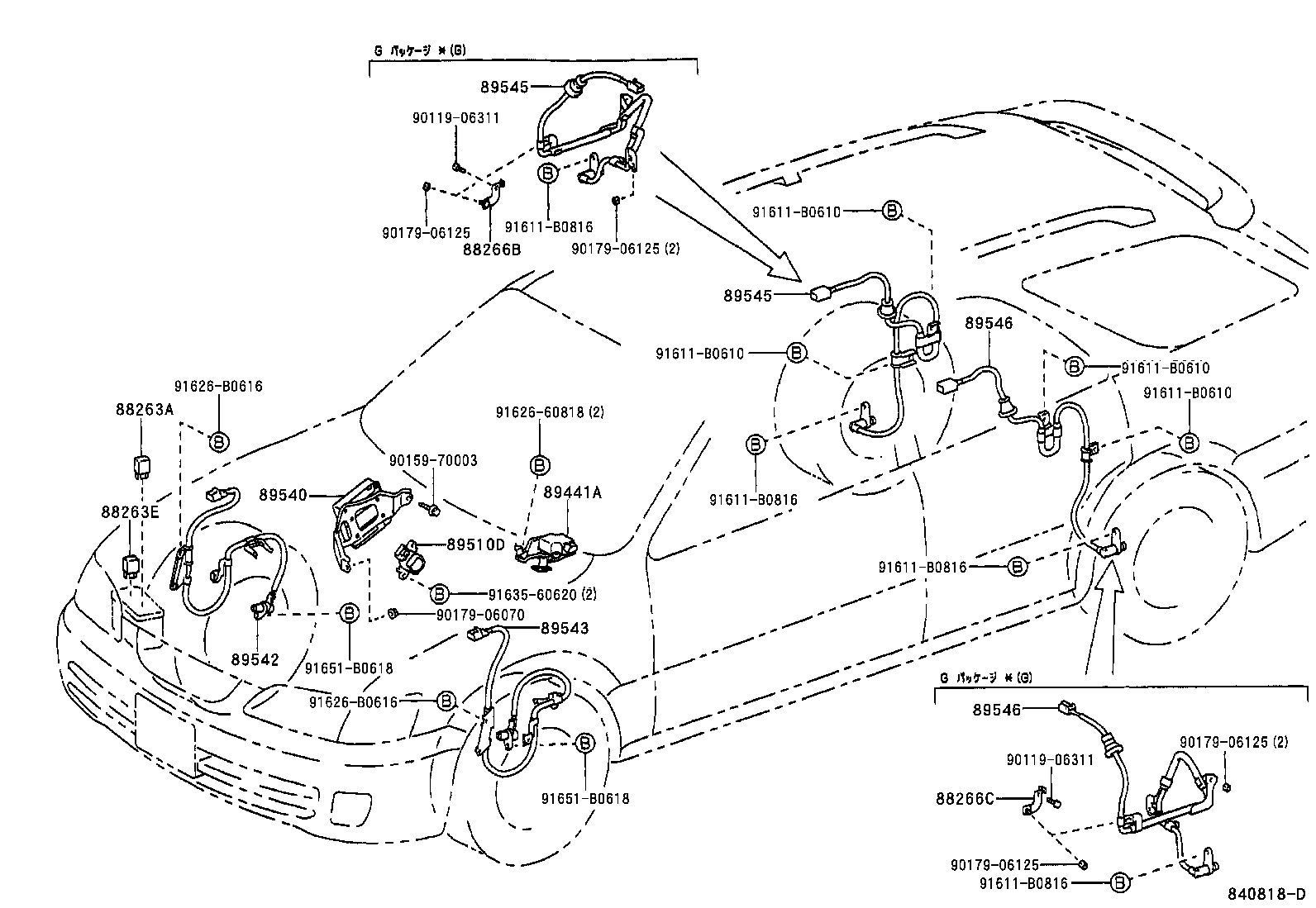

15 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 86650N | Buzzer Assy |
| 88263A | Relay, Skid Control |
| 88263E | Relay, Skid Control NO.2 |
| 88266B | Clamp, Skid Control Sensor, NO.1 |
| 88266C | Clamp, Skid Control Sensor, NO.2 |
| 89183A | Sensor, Yawrate |
| 89245A | Sensor, Steering |
| 89246A | Disc, Sensor Steering |
| 89441A | Sensor, Deceleration |
| 89510D | Sensor Assy, Brake Pedal Stroke |
| 89540 | Computer Assy, Skid Control |
| 89542 | Sensor, Speed, Front RH |
| 89543 | Sensor, Speed, Front LH |
| 89545 | Sensor, Speed, Rear RH |
| 89546 | Sensor, Speed, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
