Toyota Mark 2 WG
1997-04 → 2001-12 · chassis MCV2#,SXV2# · catalogue 351120 · Japan
Discontinued model
Data version 2002-06

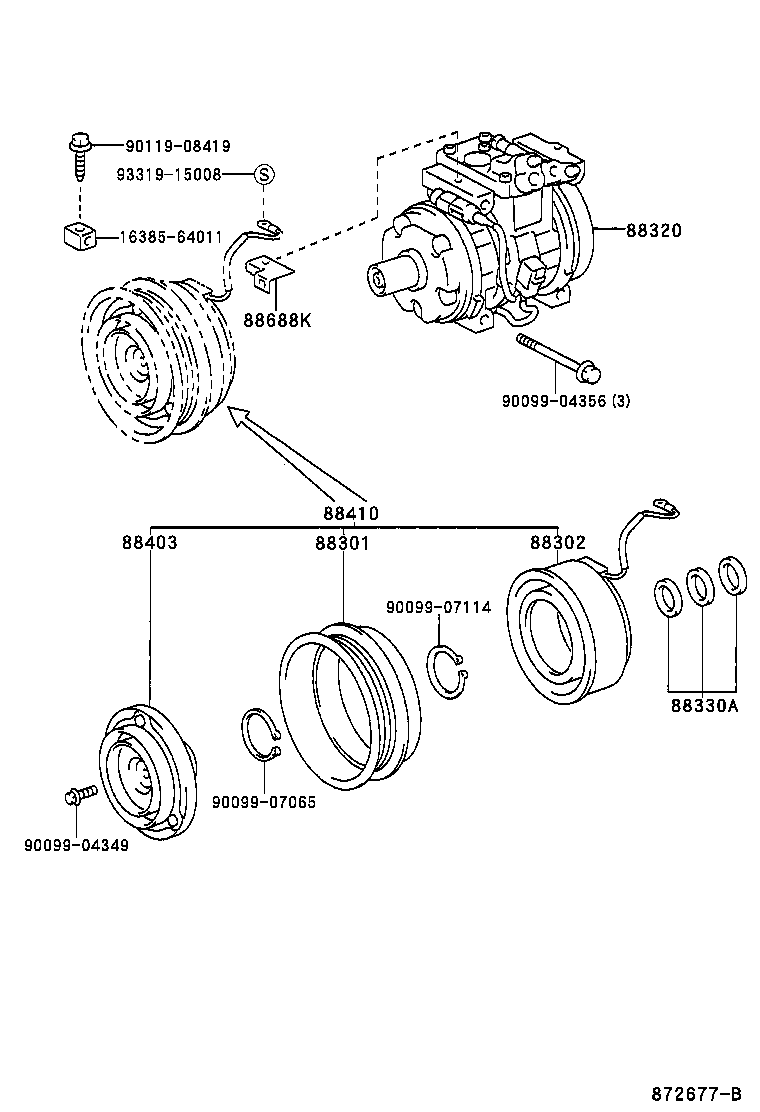

Heating & Air Conditioning - Compressor
9 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 88301 | Rotor Sub-assy, Magnet Clutch |
| 88302 | Stator Sub-assy, Magnet Clutch |
| 88320 | Compressor Assy, Cooler |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88403 | Hub Sub-assy, Magnet Clutch |
| 88410 | Clutch Assy, Magnet |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88688K | Bracket, Cooler Compressor |
| 88688N | Bracket, Cooler |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
