Toyota Mark X Zio

2007-09 → 2013-10 · chassis ANA1#,GGA10 · catalogue 351130 · Japan

Supported model Data version 2015-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 8 illustrations

Illustrations

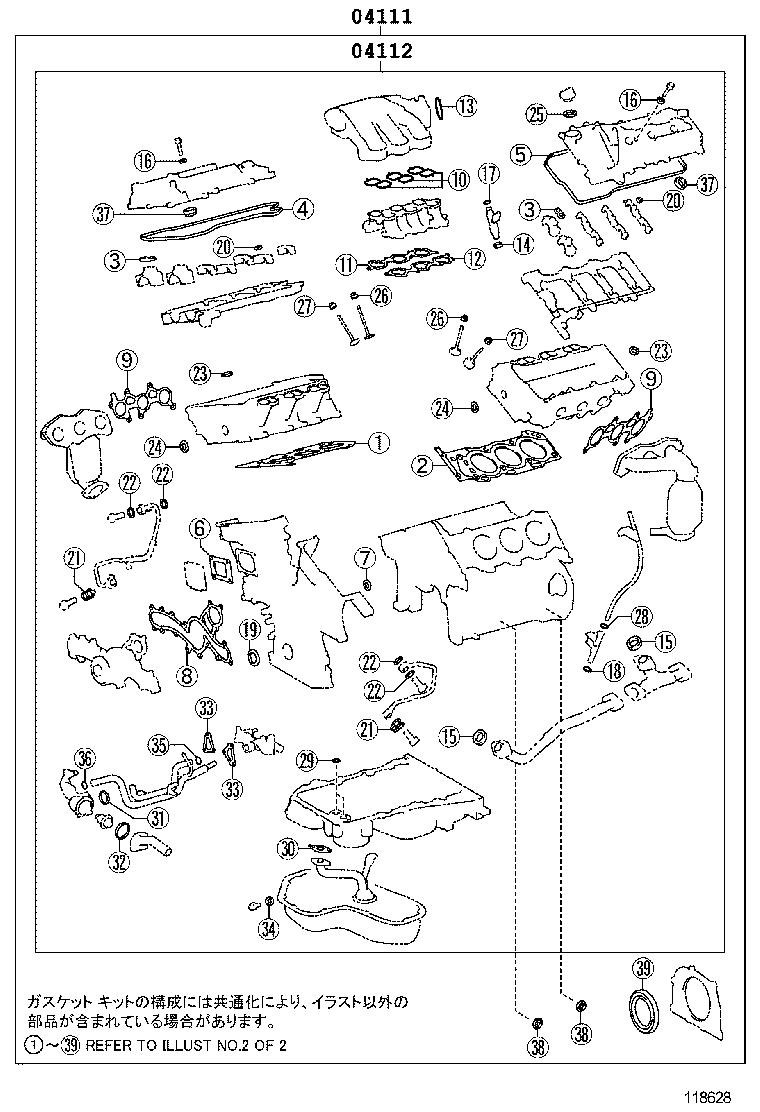

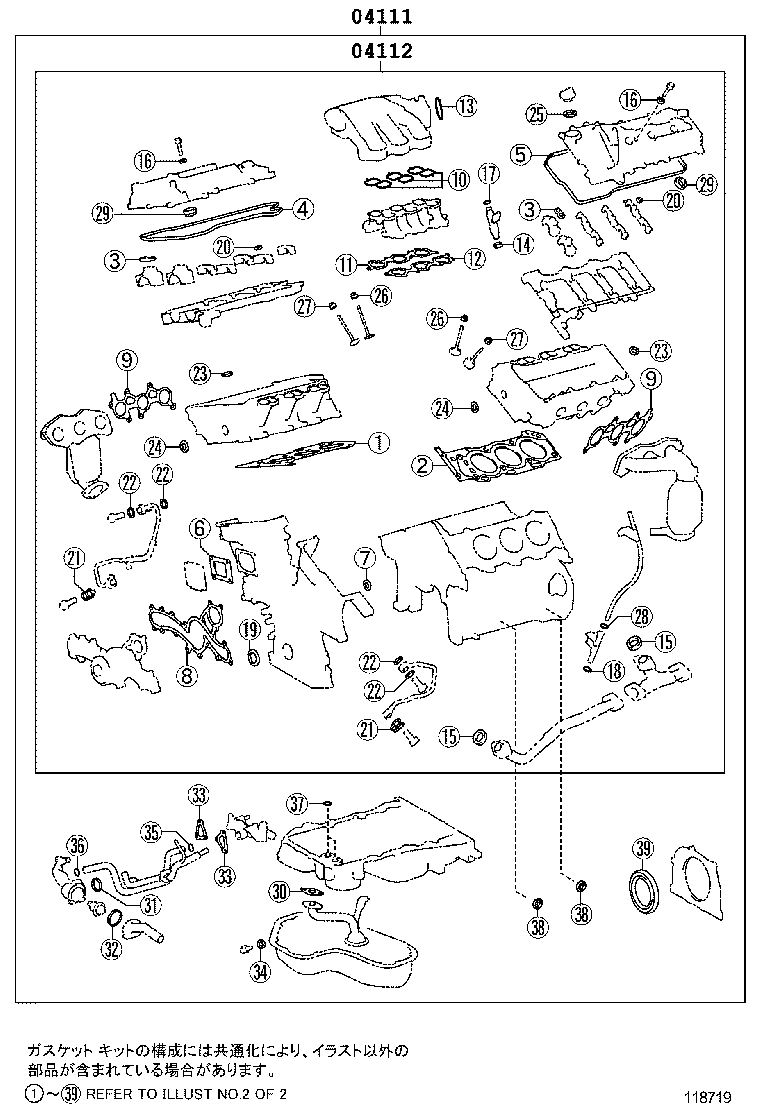

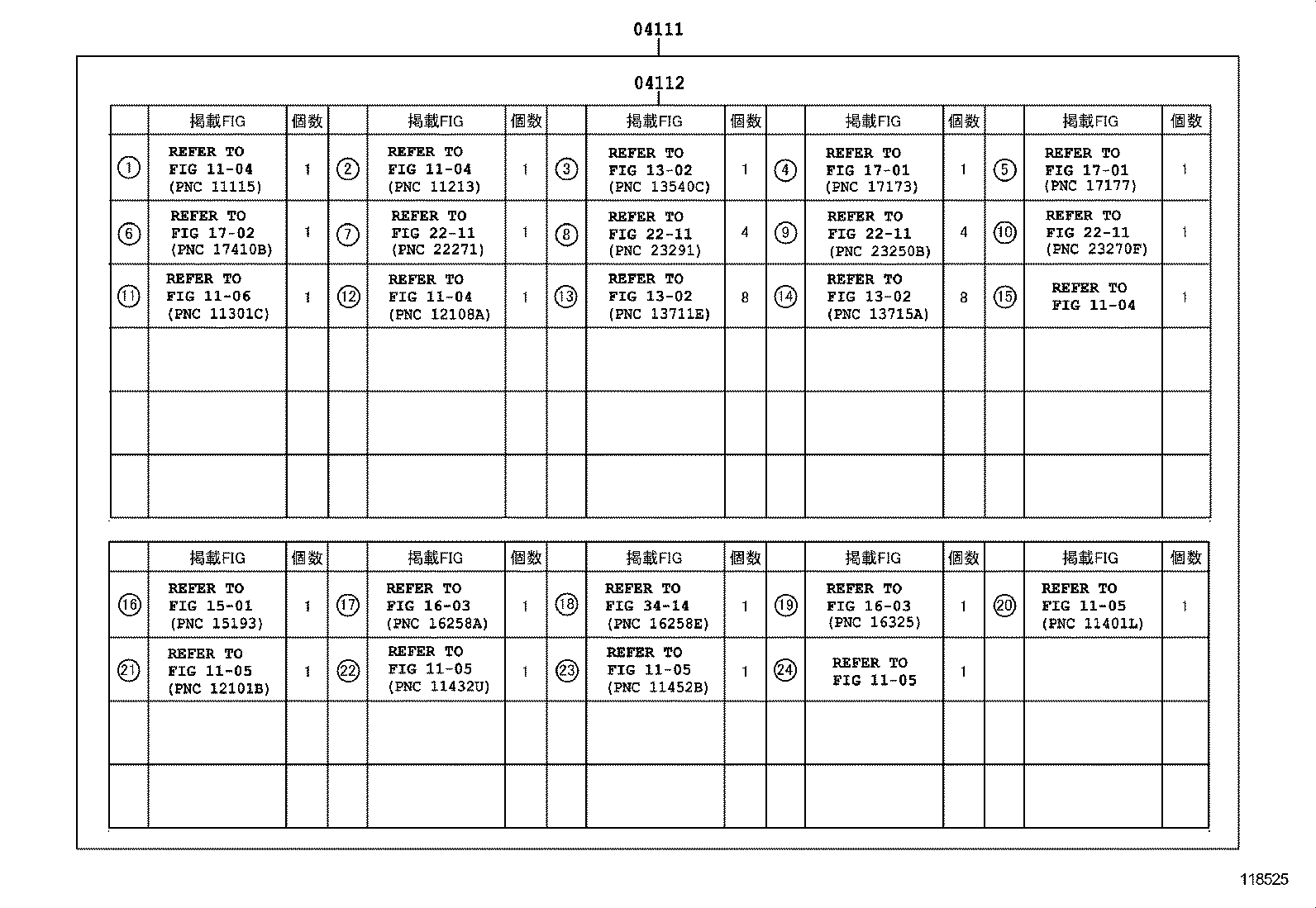

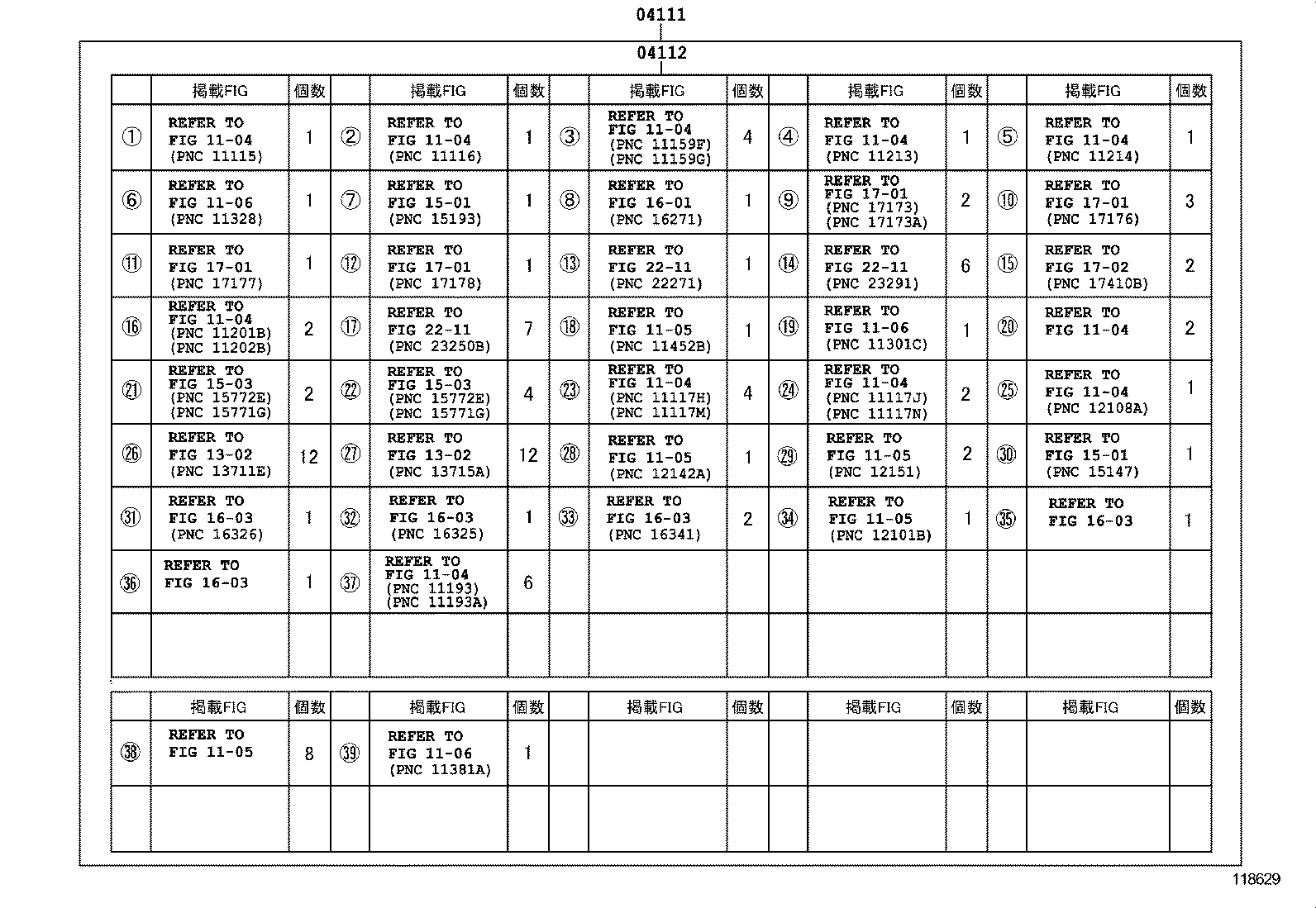

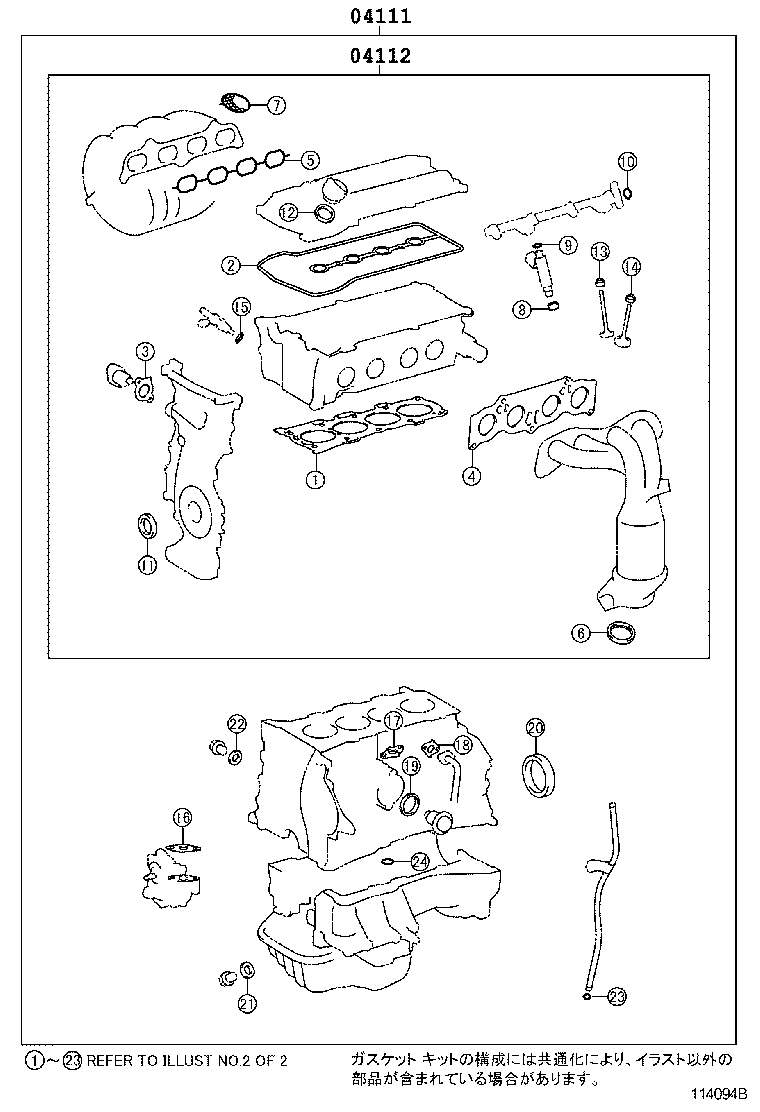

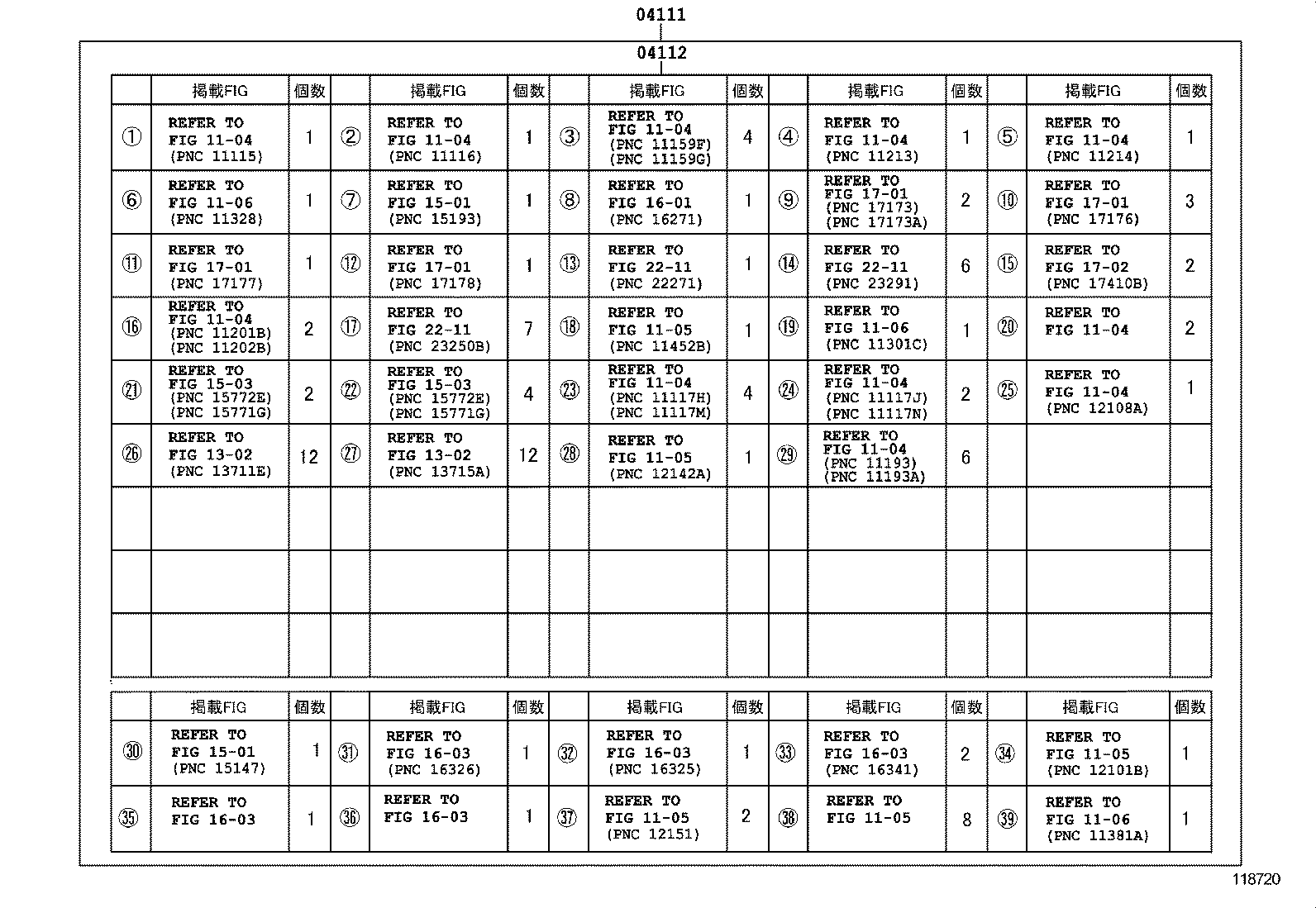

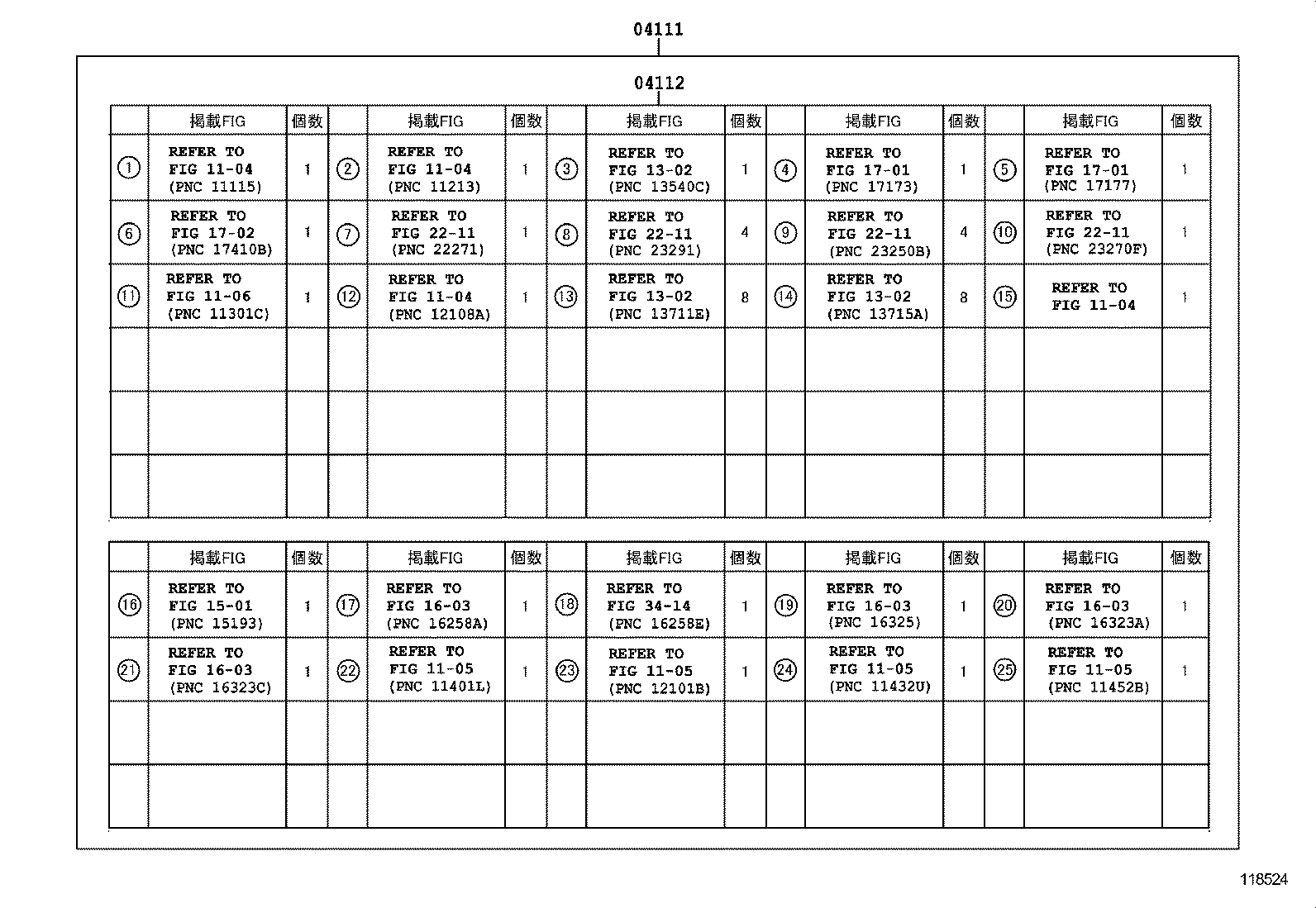

Figure 116821A 116821A 2007-09 → — Figure 118524 118524 2007-09 → — Figure 114094B 114094B 2011-01 → — Figure 118525 118525 2011-01 → — Figure 118719 118719 2007-09 → 2011-08 Figure 118720 118720 2007-09 → 2011-08 Figure 118628 118628 2011-08 → — Figure 118629 118629 2011-08 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
