Toyota Mark X Zio
2007-09 → 2013-10 · chassis ANA1#,GGA10 · catalogue 351130 · Japan
Supported model
Data version 2015-04

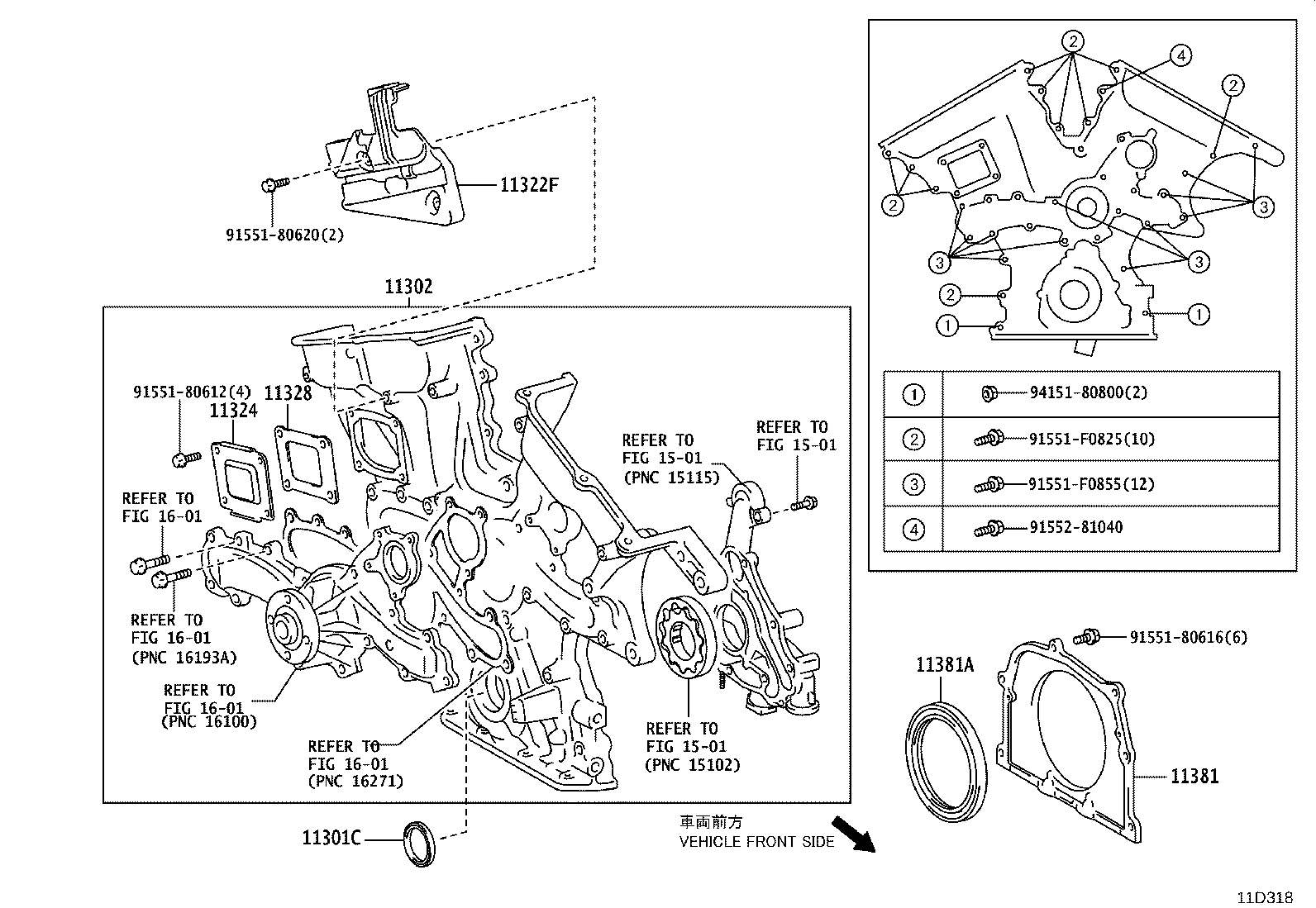

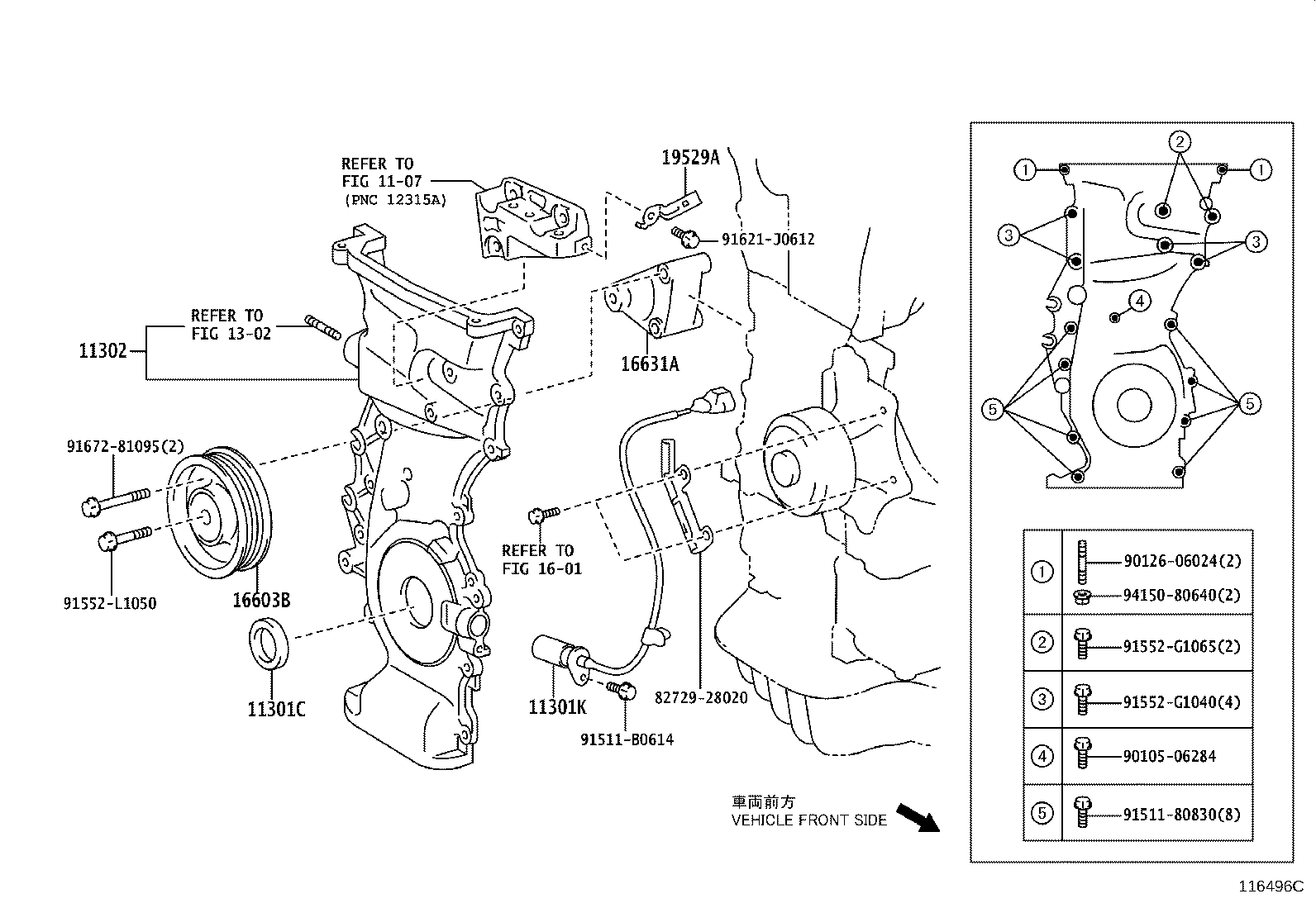

Timing Gear Cover & Rear End Plate
12 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11301C | Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) |
| 11301K | Sensor, Crank Position |
| 11302 | Cover Sub-assy, Timing Chain OR Belt |
| 11322F | Cover, Timing Gear, NO.2 |
| 11324 | Plate, Timing Chain Cover |
| 11328 | Gasket, Timing Gear OR Chain Cover |
| 11381 | Retainer, Engine Rear Oil Seal |
| 11381A | Seal, Engine Rear Oil |
| 16603B | Pulley Sub-assy, Idler |
| 16631A | Bracket, Idler Pulley |
| 16659B | Plate, Idler Pulley Cover, NO.2 |
| 19529A | Clamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
