Toyota Mark X Zio

2007-09 → 2013-10 · chassis ANA1#,GGA10 · catalogue 351130 · Japan

Supported model Data version 2015-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

25 part groups · 10 illustrations

Illustrations

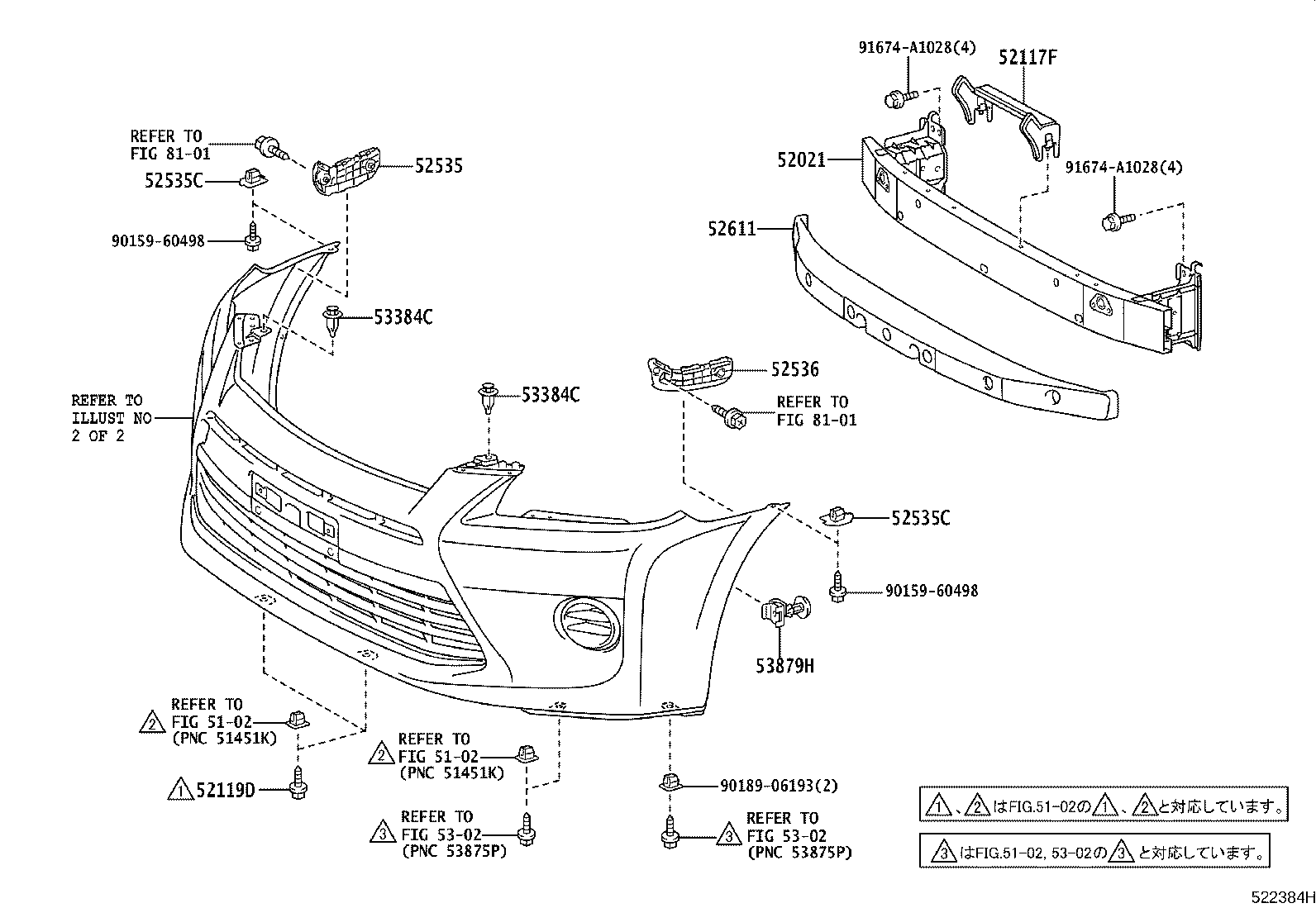

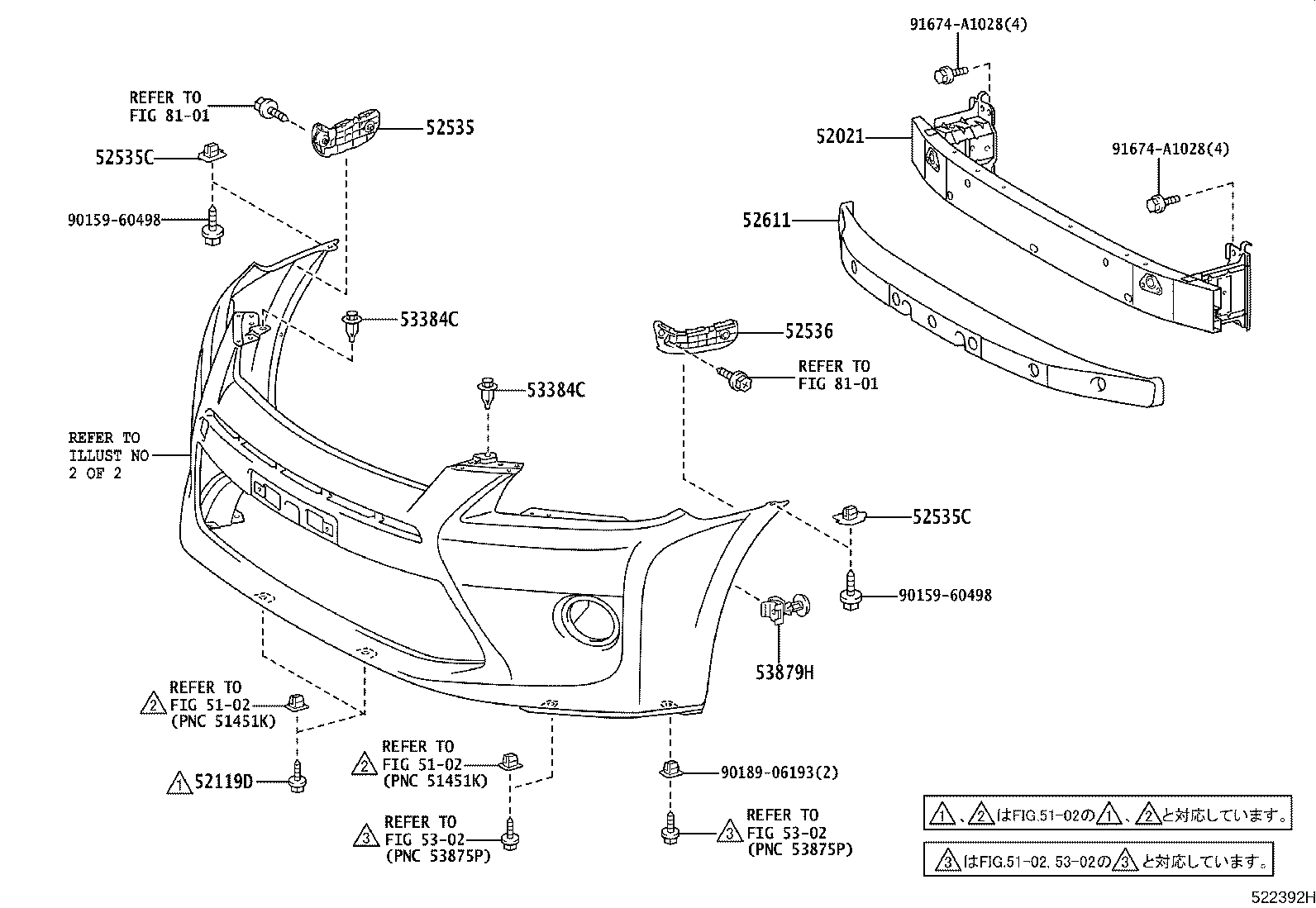

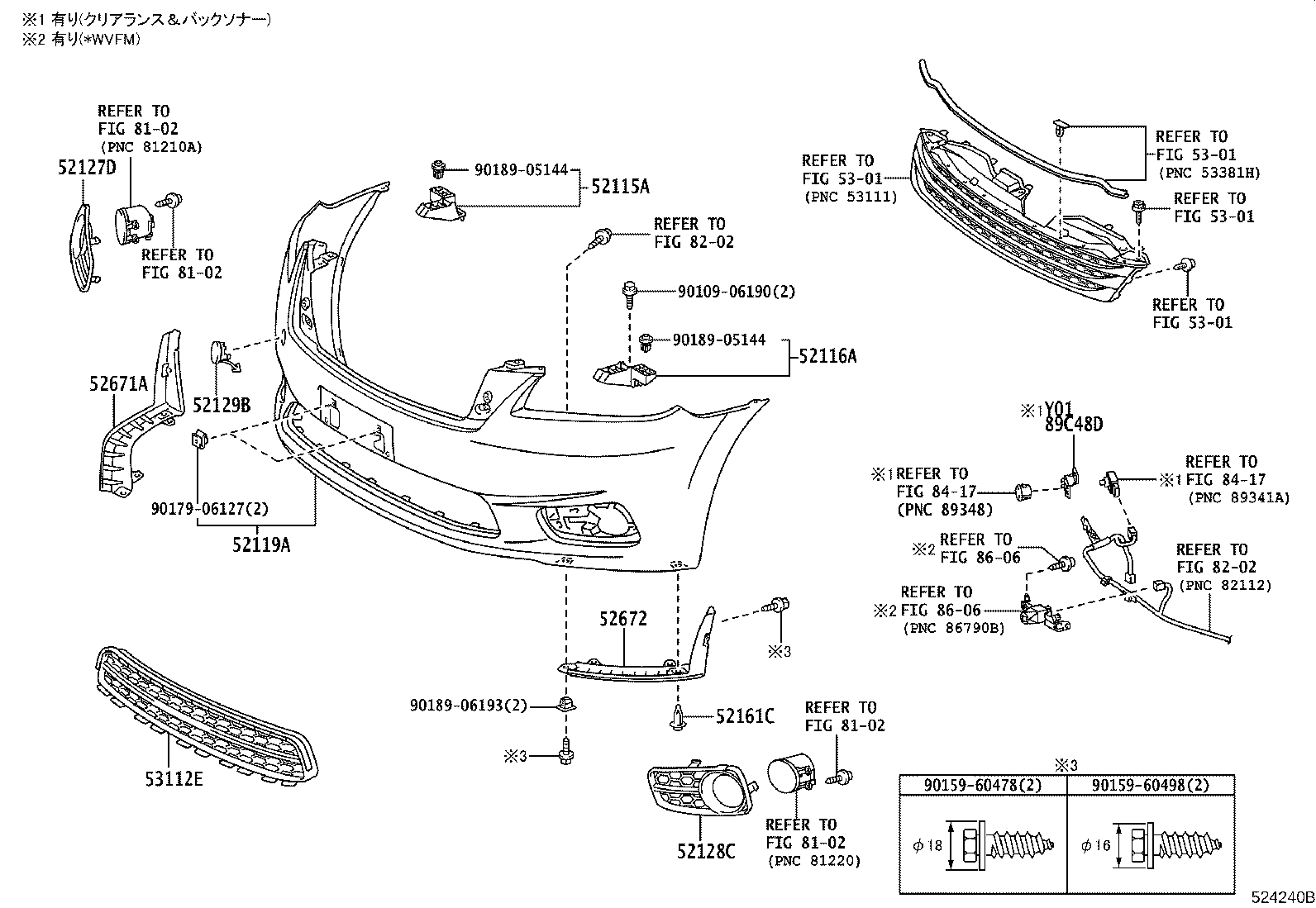

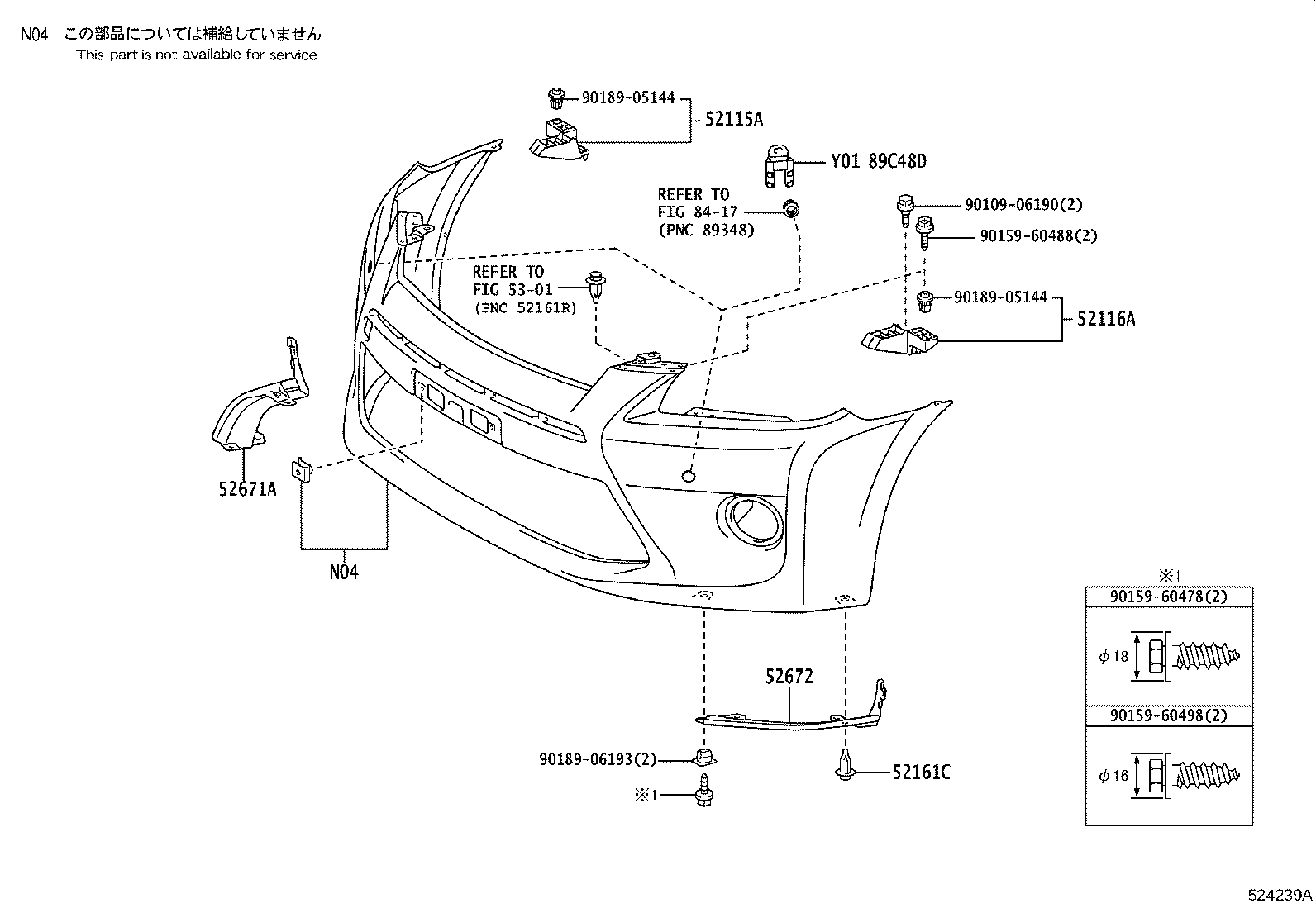

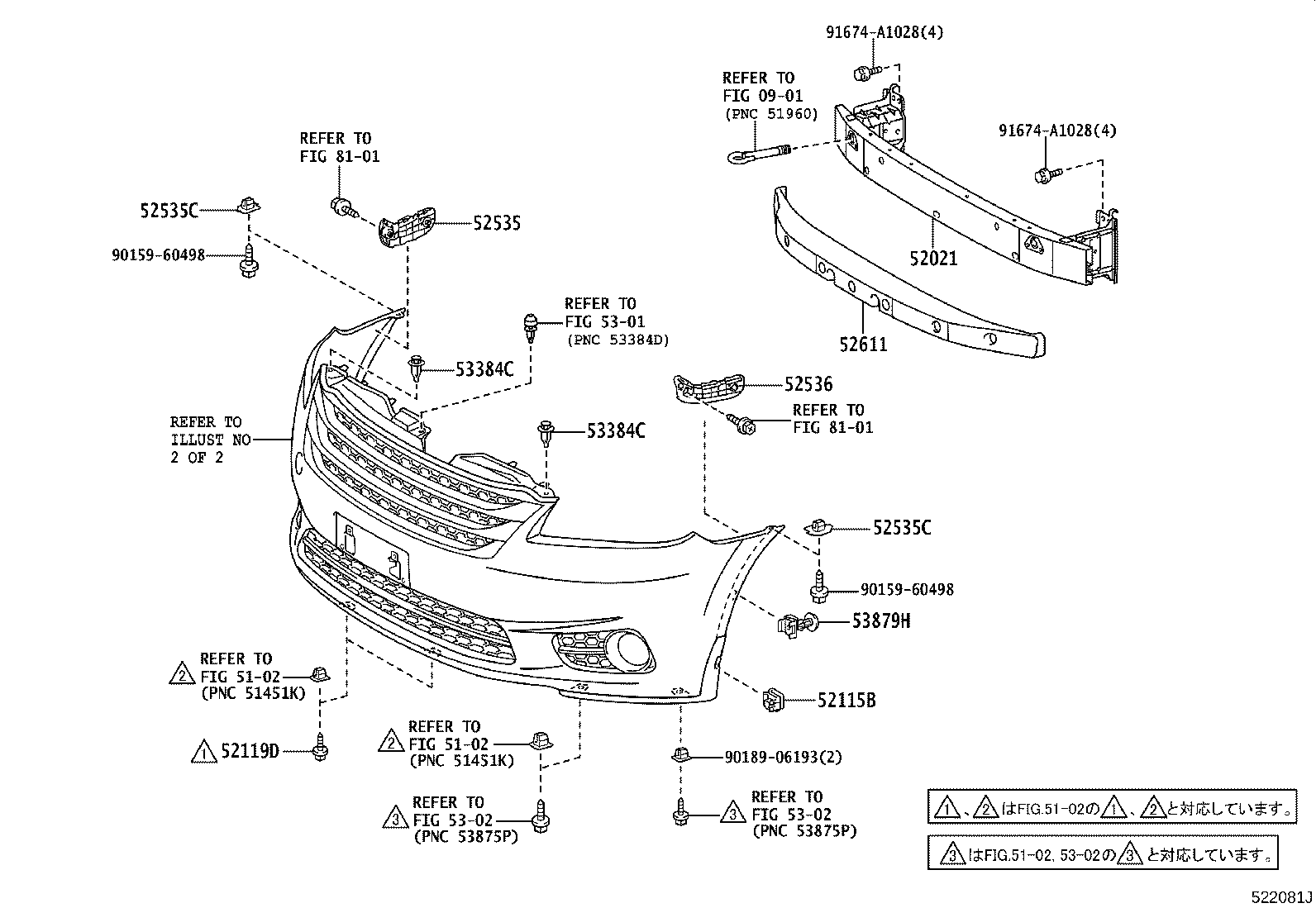

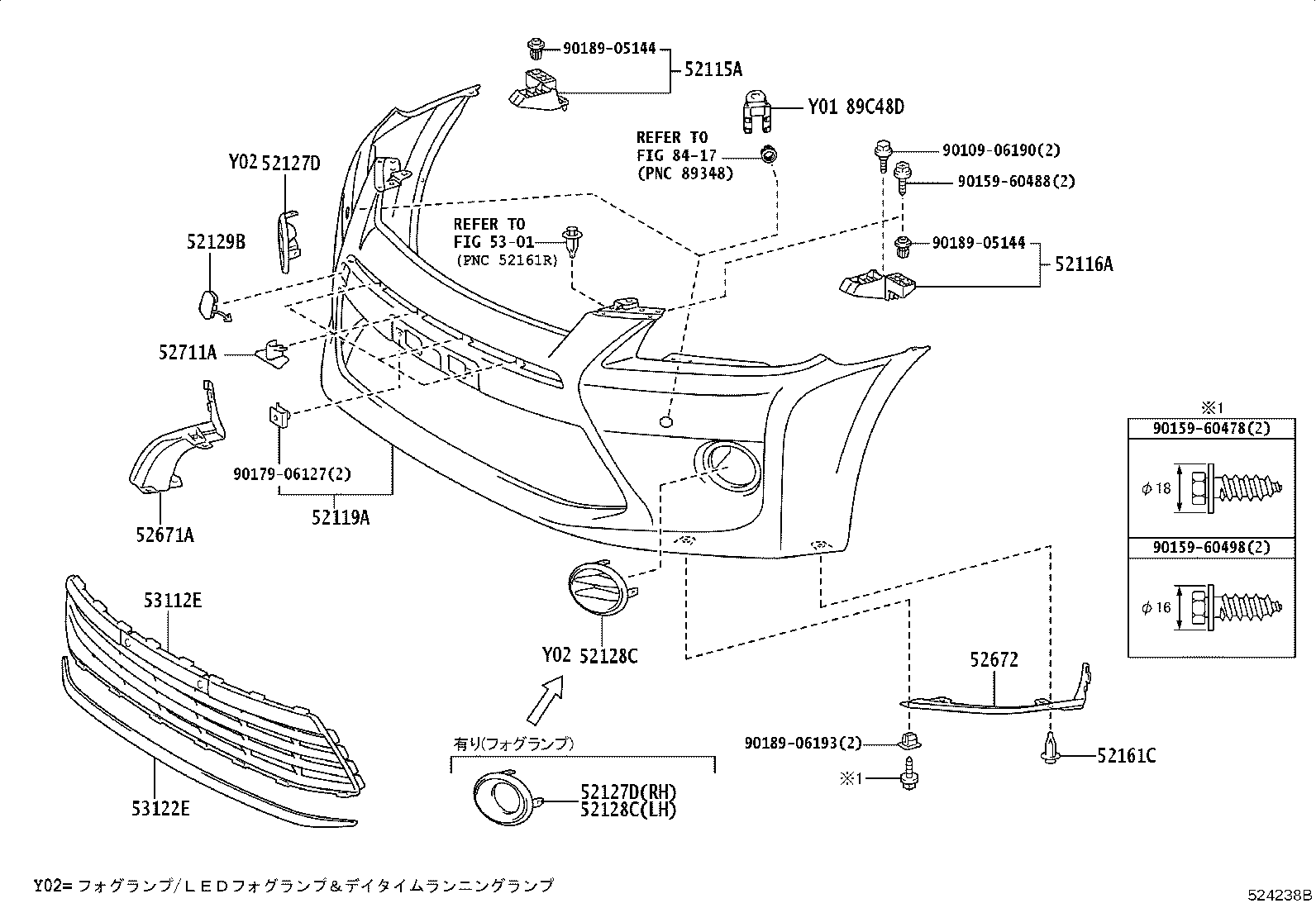

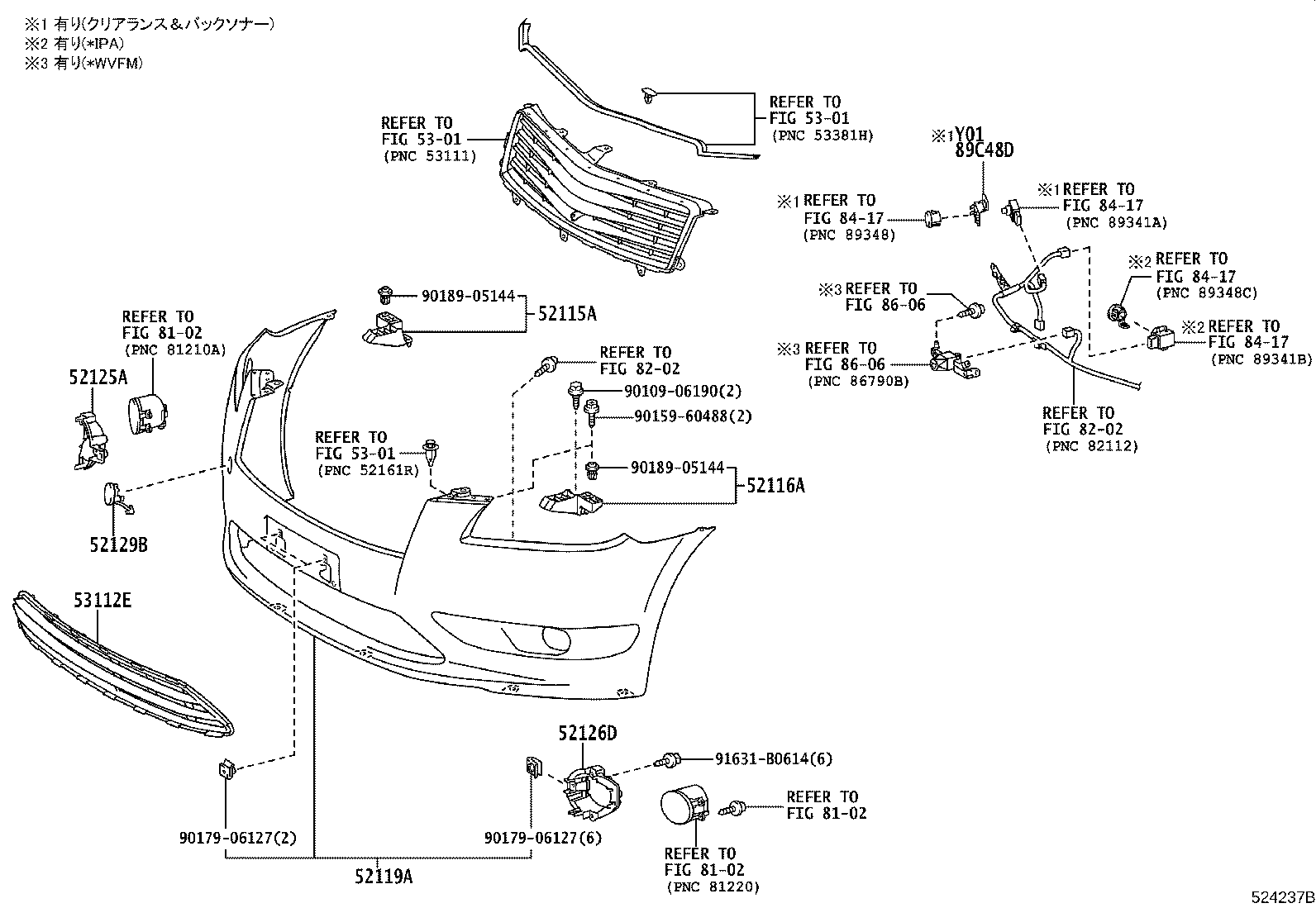

Figure 521821K 521821K 2007-09 → 2011-02 Figure 521821K 521821K 2007-09 → — Figure 524237B 524237B 2007-09 → 2011-02 Figure 524237B 524237B 2007-09 → — Figure 522081J 522081J 2009-02 → — Figure 524240B 524240B 2009-02 → — Figure 522384H 522384H 2011-02 → — Figure 524238B 524238B 2011-02 → — Figure 522392H 522392H 2011-02 → — Figure 524239A 524239A 2011-02 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52115A Support, Front Bumper Side, RH
52115B Retainer, Front Bumper Extension, NO.1
52116A Support, Front Bumper Side, LH
52117F Support, Front Bumper, Upper
52119A Cover, Front Bumper
52119D Screw, NO.1
52125A Bracket, Fog Lamp Mounting, RH
52126D Bracket, Fog Lamp Mounting, LH
52127D Cover, Front Bumper Hole, RH
52128C Cover, Front Bumper Hole, LH
52129B Cover, Front Bumper, Lower
52161C Piece, Front Bumper
52535 Retainer, Front Bumper Side, RH
52535C Retainer, Front Bumper Side
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
52671A Extension, Front Bumper Arm, RH
52672 Extension, Front Bumper Arm, LH
52711A Garnish, Front Bumper
53112E Grille, Radiator, Lower NO.1
53122E Moulding, Radiator Grille, Lower
53384C Cushion, Hood, Center
53879H Retainer, Front Fender Liner
89C48D Retainer, Ultrasonic Sensor, Front Corner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
