Toyota Mark X Zio
2007-09 → 2013-10 · chassis ANA1#,GGA10 · catalogue 351130 · Japan
Supported model
Data version 2015-04

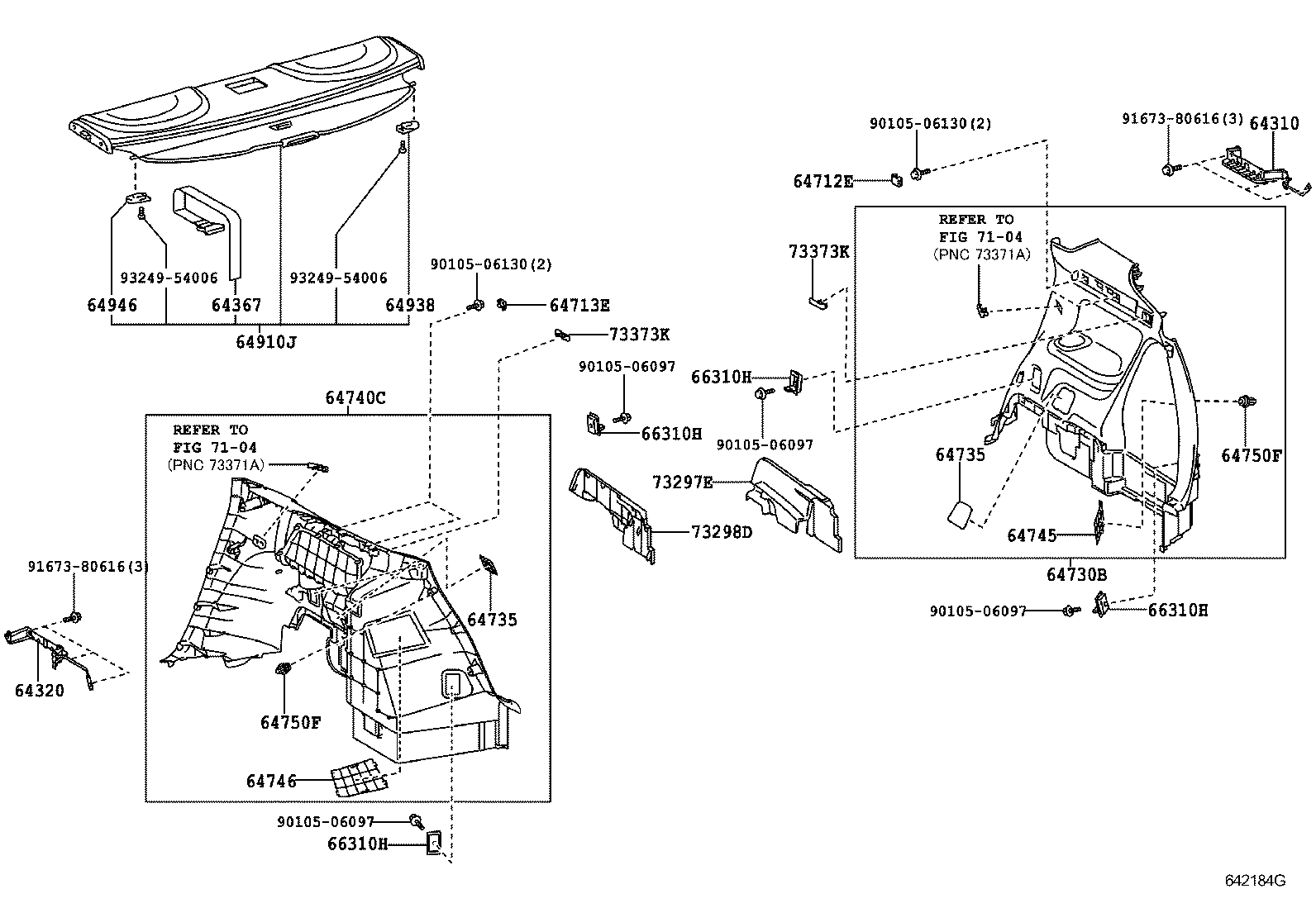

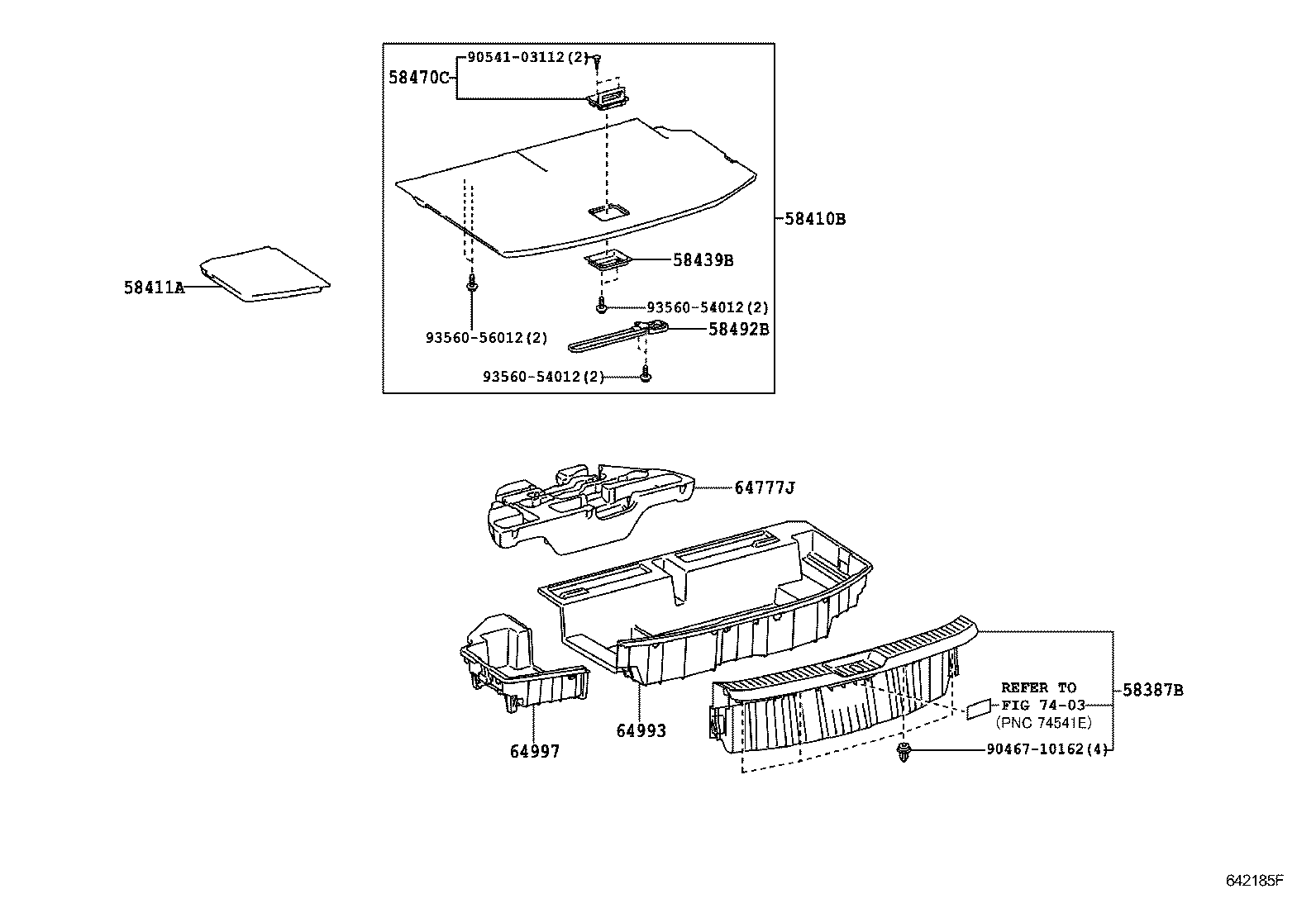

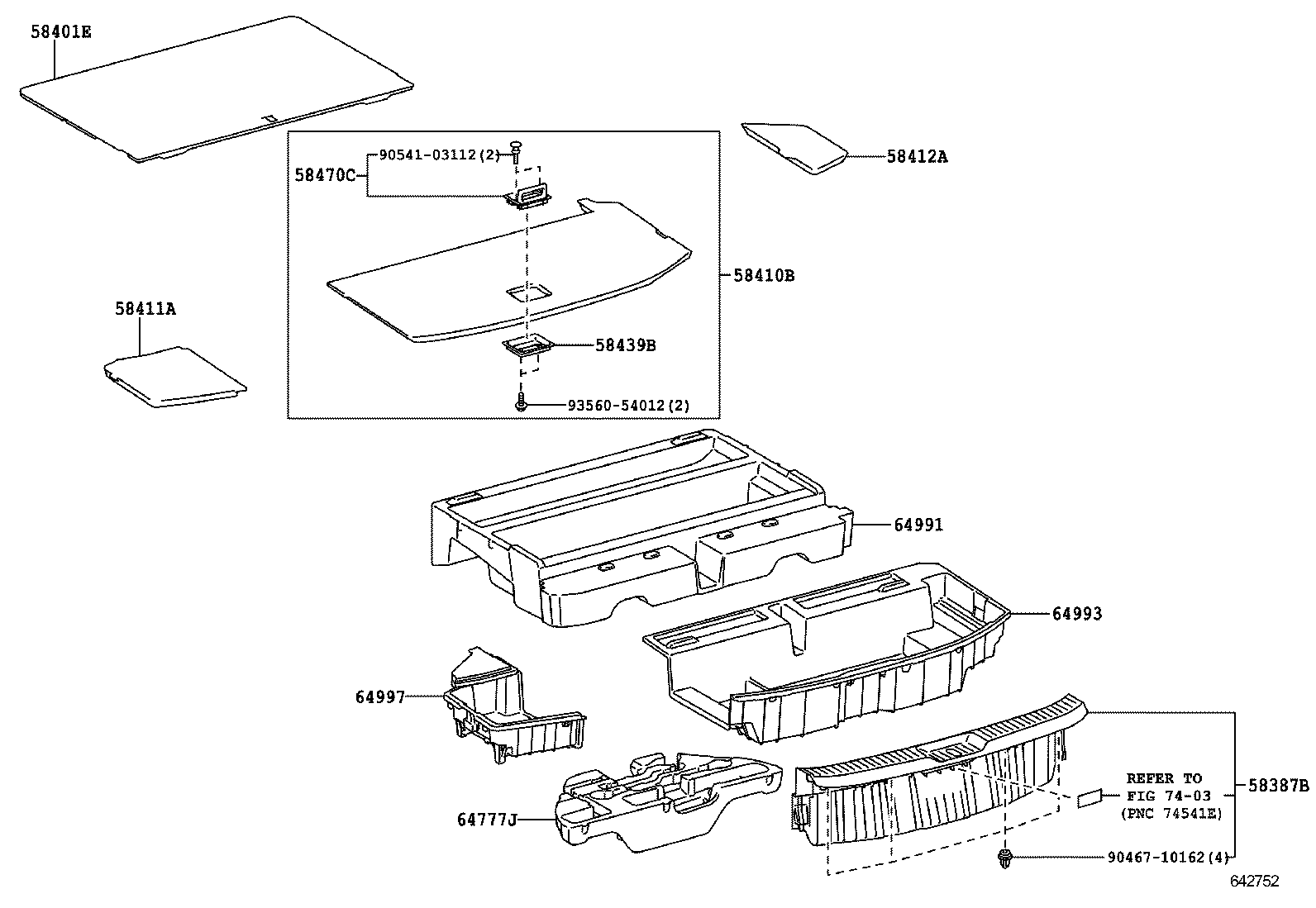

Deck Board & Deck Trim Cover
30 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 58387B | Plate, Rear Floor Finish |
| 58401E | Board Sub-assy, Deck |
| 58410B | Board Assy, Deck |
| 58411A | Board, Deck, NO.1 |
| 58412A | Board, Deck, NO.2 |
| 58439B | Protector, Deck Board, NO.1 |
| 58470C | Handle Assy, Deck Board |
| 58492B | Hook, Deck Board Lock |
| 64310 | Bracket, Package Tray Trim, RH |
| 64320 | Bracket, Package Tray Trim, LH |
| 64367 | Suspender, Package Tray Trim |
| 64712E | Cover, Luggage Compartment Trim, RH |
| 64713E | Cover, Luggage Compartment Trim, LH |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64735 | Cover, Deck Trim Side Service Hole |
| 64740C | Panel Assy, Deck Trim Side, LH |
| 64745 | Cover, Rear Combination Lamp Service, RH |
| 64746 | Cover, Rear Combination Lamp Service, LH |
| 64750F | Clip(FOR DECK SIDE TRIM PANEL) |
| 64777J | Cushion, Spare Wheel |
| 64910J | Cover Assy, Tonneau |
| 64938 | Hook, Tonneau Cover, A |
| 64946 | Hook, Tonneau Cover, B |
| 64991 | Box, Deck Floor, Front |
| 64993 | Box, Deck Floor, Rear |
| 64997 | Box, Deck Floor, LH |
| 66310H | Hook Assy, Rope |
| 73297E | Cover, Deck Trim Side Belt Hole, RH |
| 73298D | Cover,Deck Trim Side Belt Hole, LH |
| 73373K | Cover, Rear Seat Shoulder Belt Hole |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
