Toyota Mark X Zio

2007-09 → 2013-10 · chassis ANA1#,GGA10 · catalogue 351130 · Japan

Supported model Data version 2015-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

24 part groups · 2 illustrations

Illustrations

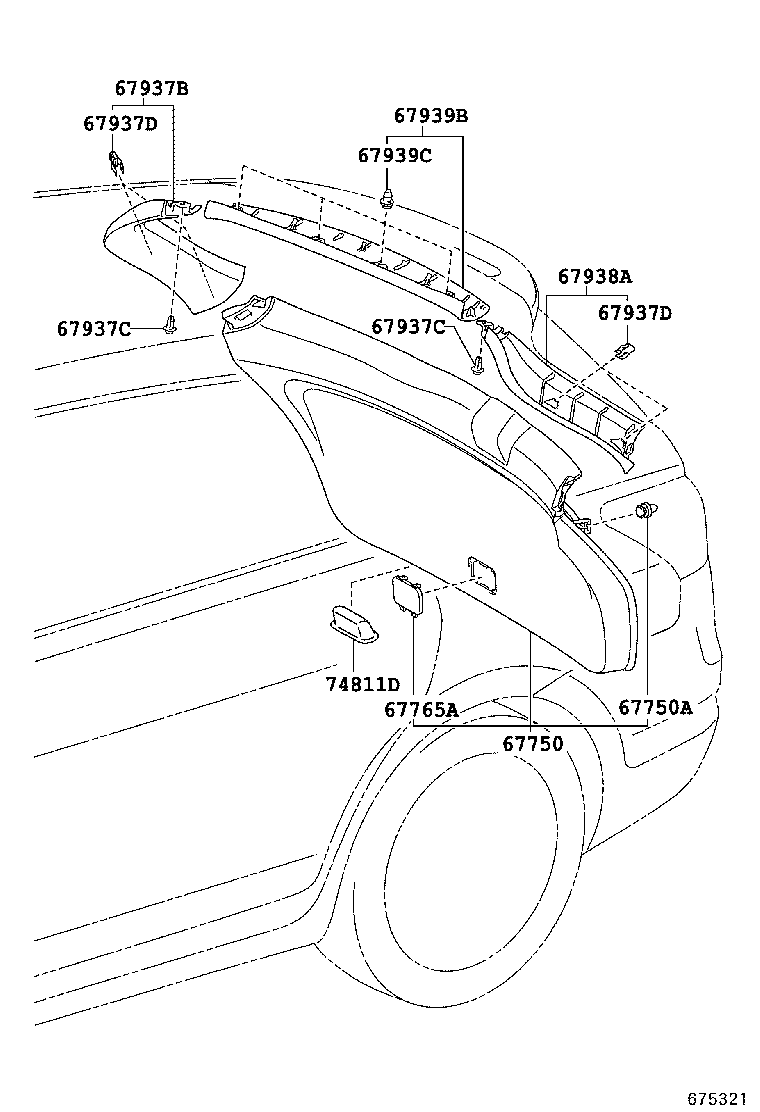

Figure 675322E 675322E 2007-09 → — Figure 675321 675321 2007-09 → —

Part groups

PNCDescription
62785F Spacer, Back Door Glass
64813B Dam, Back Window Glass Adhesive
64818C Spacer, Back Window Glass, NO.1
64819B Spacer, Back Window Glass, NO.2
67005 Panel Sub-assy, Back Door
67005B Cushion(FOR BACK DOOR PANEL)
67372A Weight, Back Door
67750 Board Assy, Back Door Trim
67750A Clip(FOR BACK DOOR TRIM)
67765A Cover, Back Door Service Hole, NO.1
67881A Weatherstrip, Back Door
67937B Garnish, Back Door Side, RH
67937C Clip(FOR BACK DOOR SIDE GARNISH)
67937D Retainer, Door Trim
67938A Garnish, Back Door Side, LH
67939B Garnish, Back Door, Center
67939C Clip(FOR BACK DOOR CENTER GARNISH)
68131 Glass, Back Door
68911D Cover, Back Door Stay, RH
68912B Cover, Back Door Stay, LH
74811D Handle, Door Pull
75571E Moulding, Back Window, Outside Upper RH
75572E Moulding, Back Window, Outside Upper LH
75573C Moulding, Back Window, Outside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
