Toyota Mark X Zio
2007-09 → 2013-10 · chassis ANA1#,GGA10 · catalogue 351130 · Japan
Supported model
Data version 2015-04

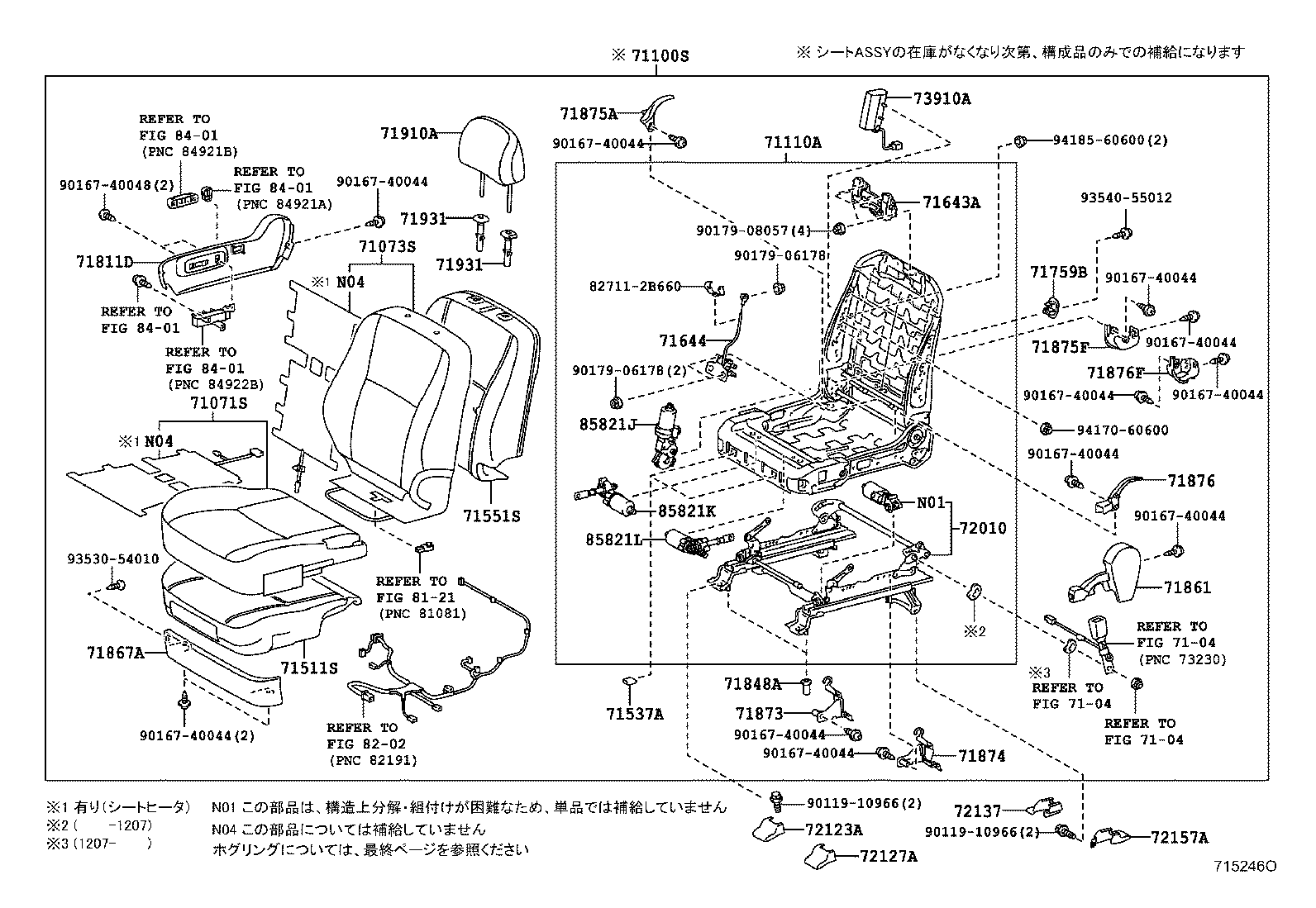

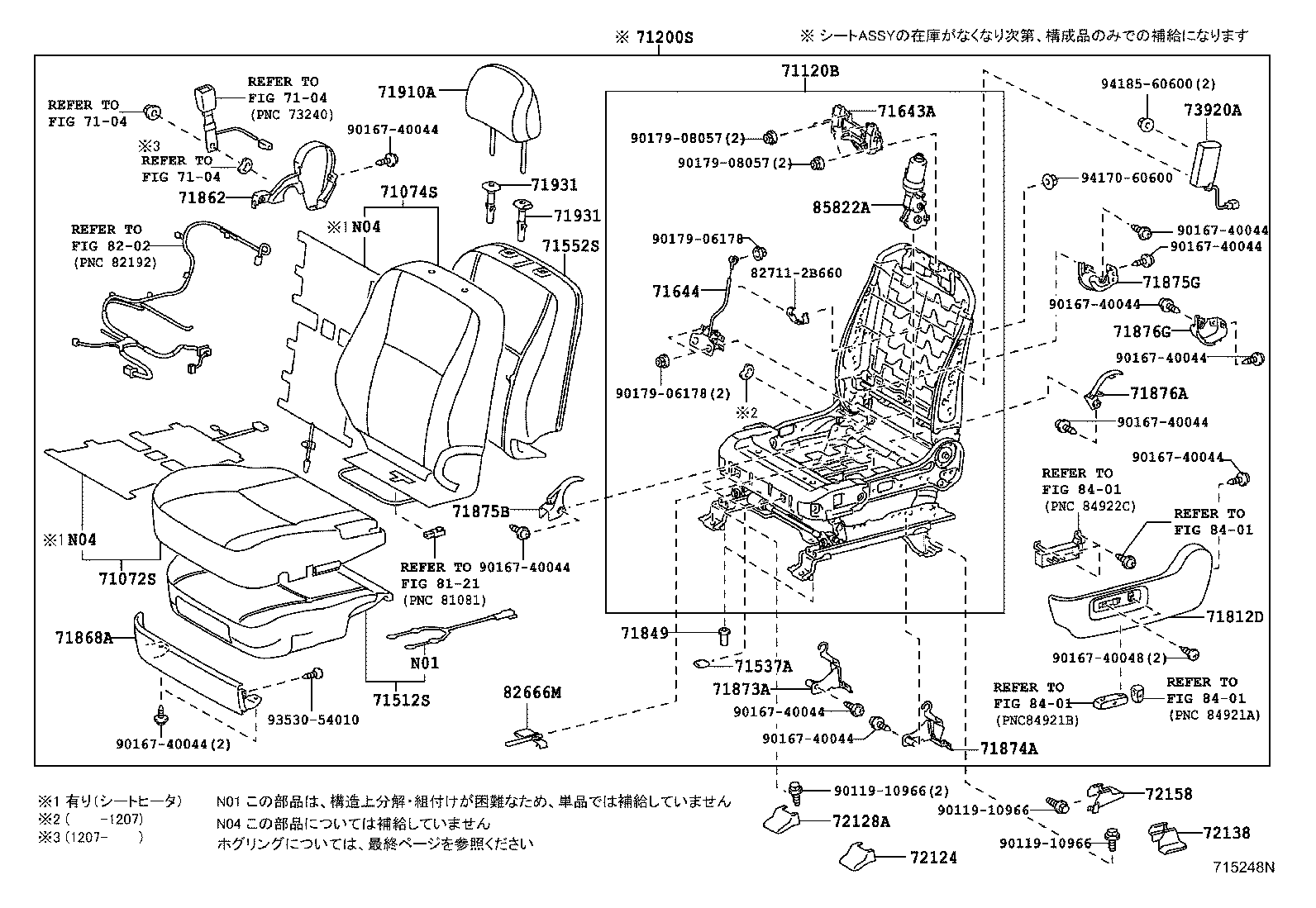

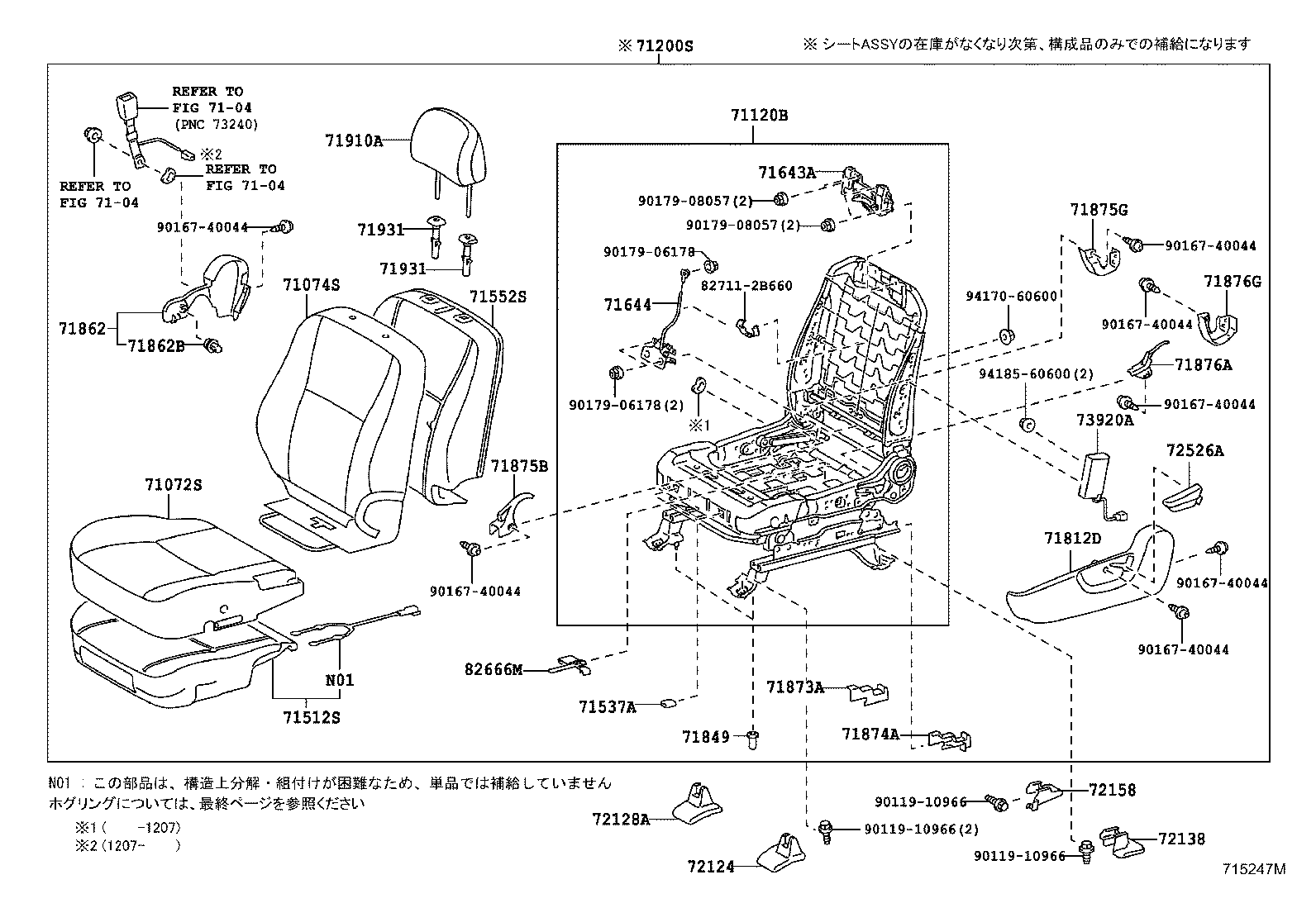

Front Seat & Seat Track
60 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71100S | Seat Assy, Front RH |
| 71110A | Frame Assy, Front Seat W/Adjuster, RH |
| 71120B | Frame Assy, Front Seat W/Adjuster, LH |
| 71200S | Seat Assy, Front LH |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71537A | Protector, Front Seat Cushion |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71643A | Unit, Active Headrest, Upr |
| 71644 | Unit, Active Headrest, Lwr |
| 71759B | Hook, Front Seatback |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71848A | Cap, Seat Adjuster Cover, RH |
| 71849 | Cap, Seat Adjuster Cover, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71861B | Clip(FOR FRONT SEAT SHIELD, RH) |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71862B | Clip(FOR FRONT SEAT SHIELD, LH) |
| 71867A | Shield, Front Seat Cushion, Inner NO.1 RH |
| 71868A | Shield, Front Seat Cushion, Inner NO.1 LH |
| 71873 | Shield, Front Seat Cushion, Lower RH |
| 71873A | Shield, Front Seat Cushion, Lower |
| 71874 | Shield, Front Seat Cushion, Lower LH |
| 71874A | Shield, Front Seat Cushion, Lower LH |
| 71875A | Cover, Reclining Adjuster Inside, RH |
| 71875B | Cover, Reclining Adjuster Inside, RH |
| 71875F | Cover, Reclining Adjuster Inside, RH (FOR RH SEAT) |
| 71875G | Cover, Reclining Adjuster Inside, RH (FOR LH SEAT) |
| 71876 | Cover, Reclining Adjuster Inside, LH |
| 71876A | Cover, Reclining Adjuster Inside, LH |
| 71876F | Cover, Reclining Adjuster Inside, LH (FOR RH SEAT) |
| 71876G | Cover, Reclining Adjuster Inside, LH (FOR LH SEAT) |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 72010 | Adjuster Assy, Front Seat, RH |
| 72123A | Cover, Seat Track Bracket, Outer Front RH |
| 72124 | Cover, Seat Track Bracket, Outer Front LH |
| 72127A | Cover, Seat Track Bracket, Inner Front RH |
| 72128A | Cover, Seat Track Bracket, Inner Front LH |
| 72137 | Cover, Seat Track, Outer RH |
| 72138 | Cover, Seat Track, Outer LH |
| 72157A | Cover, Seat Track Bracket, Inner RH |
| 72158 | Cover, Seat Track Bracket, Inner LH |
| 72462 | Cover, Vertical Adjuster RH |
| 72494 | Handle, Vertical Adjusting, RH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526A | Handle, Reclining Adjuster Release, LH |
| 73910A | Airbag Assy, Front Seat, RH |
| 73920A | Airbag Assy, Front Seat, LH |
| 82666M | Holder, Connector |
| 85821J | Motor Assy, Power Seat Reclining, RH |
| 85821K | Motor Assy, Power Seat Tilt, RH |
| 85821L | Motor Assy, Power Seat Lifter, RH |
| 85822A | Motor Assy, Power Seat Reclining, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
