Toyota Mark X Zio

2007-09 → 2013-10 · chassis ANA1#,GGA10 · catalogue 351130 · Japan

Supported model Data version 2015-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

19 part groups · 2 illustrations

Illustrations

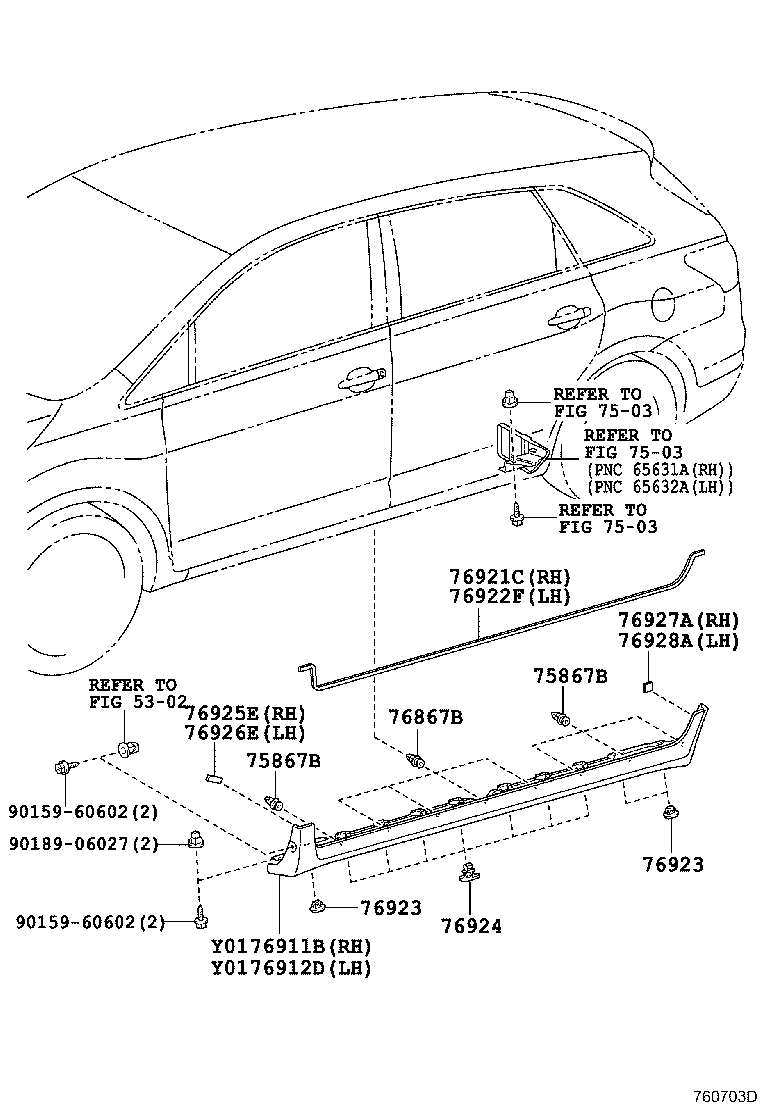

Figure 760612D 760612D 2007-09 → — Figure 760703D 760703D 2009-02 → —

Part groups

PNCDescription
75867B Clip, Rocker Panel Moulding
76085 Spoiler Sub-assy, Rear
76867B Retainer, Side Mudguard, NO.2
76872 Protector, Rear Spoiler, NO.1
76873 Protector, Rear Spoiler, NO.2
76874 Protector, Rear Spoiler, NO.3
76875 Protector, Rear Spoiler, NO.4
76881 Protector, Rear Spoiler Side, NO.1 RH
76882 Protector, Rear Spoiler Side, NO.1 LH
76911B Mudguard, Side, RH
76912D Mudguard, Side, LH
76921C Protector, Side Mudguard, RH
76922F Protector, Side Mudguard, LH
76923 Retainer, Side Mudguard
76924 Retainer, Side Mudguard, NO.2
76925E Protector, Side Mudguard, Front RH
76926E Protector, Side Mudguard, Front LH
76927A Protector, Side Mudguard, Rear RH
76928A Protector, Side Mudguard, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
