Toyota Mark X Zio

2007-09 → 2013-10 · chassis ANA1#,GGA10 · catalogue 351130 · Japan

Supported model Data version 2015-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

56 part groups · 14 illustrations

Illustrations

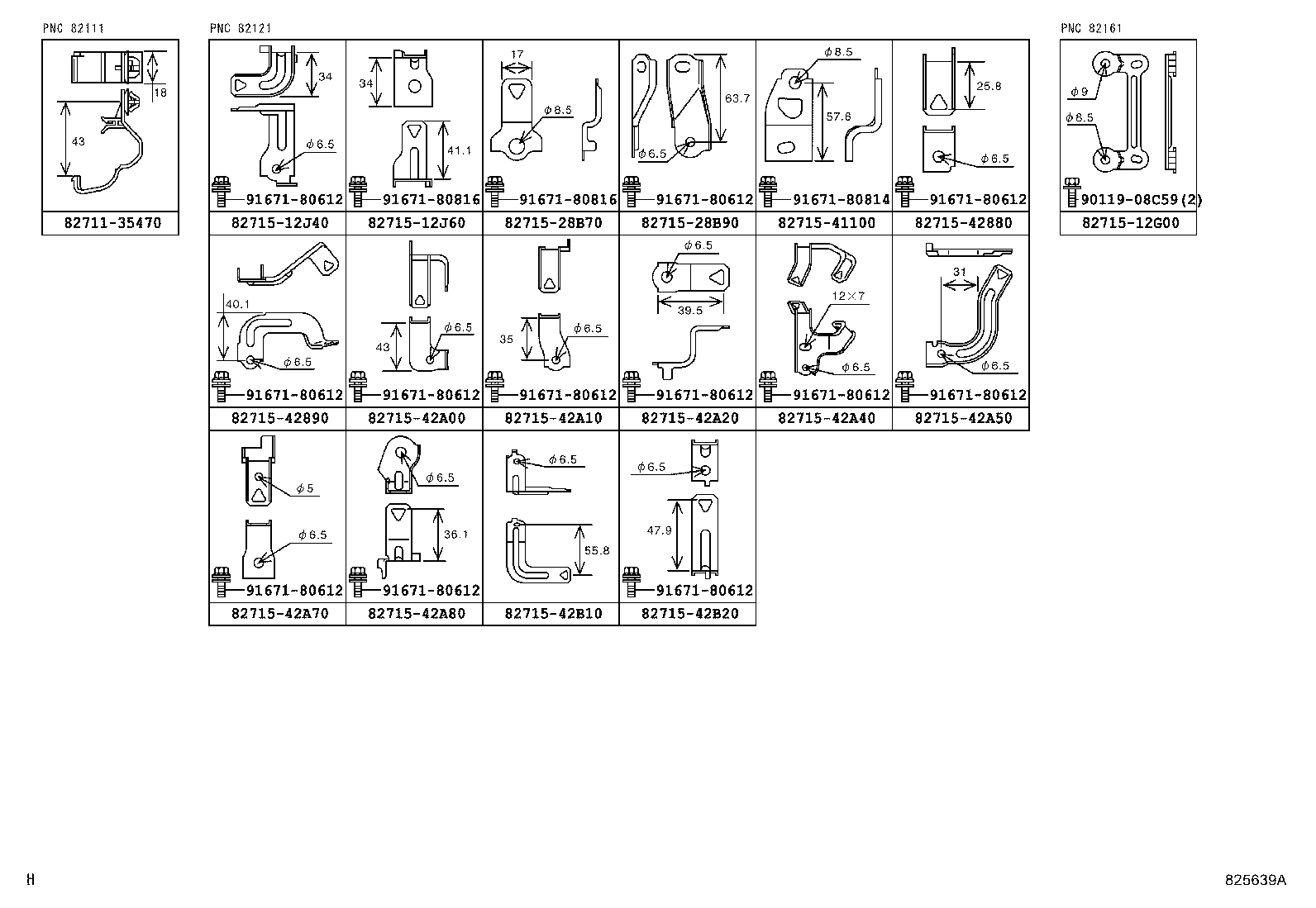

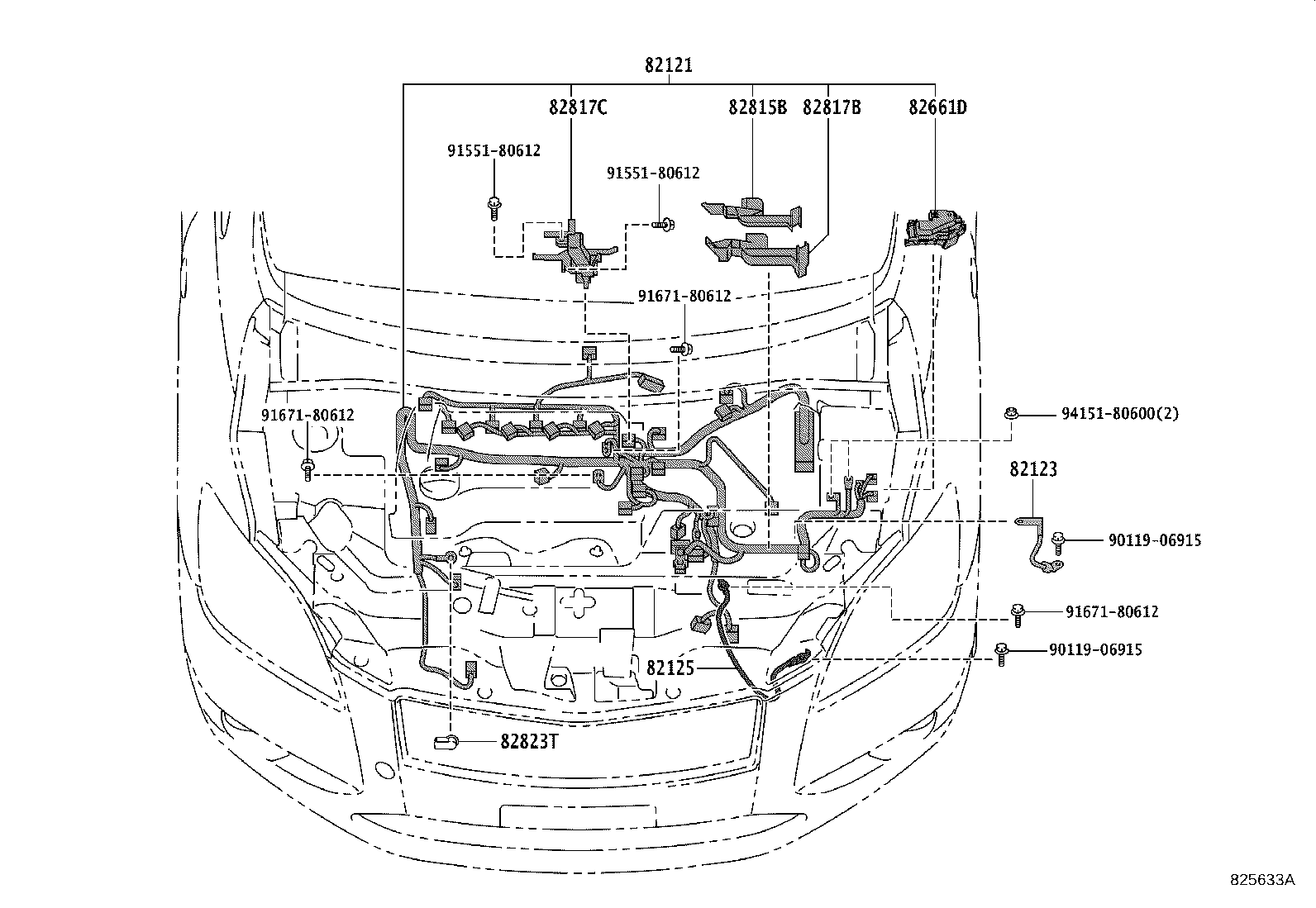

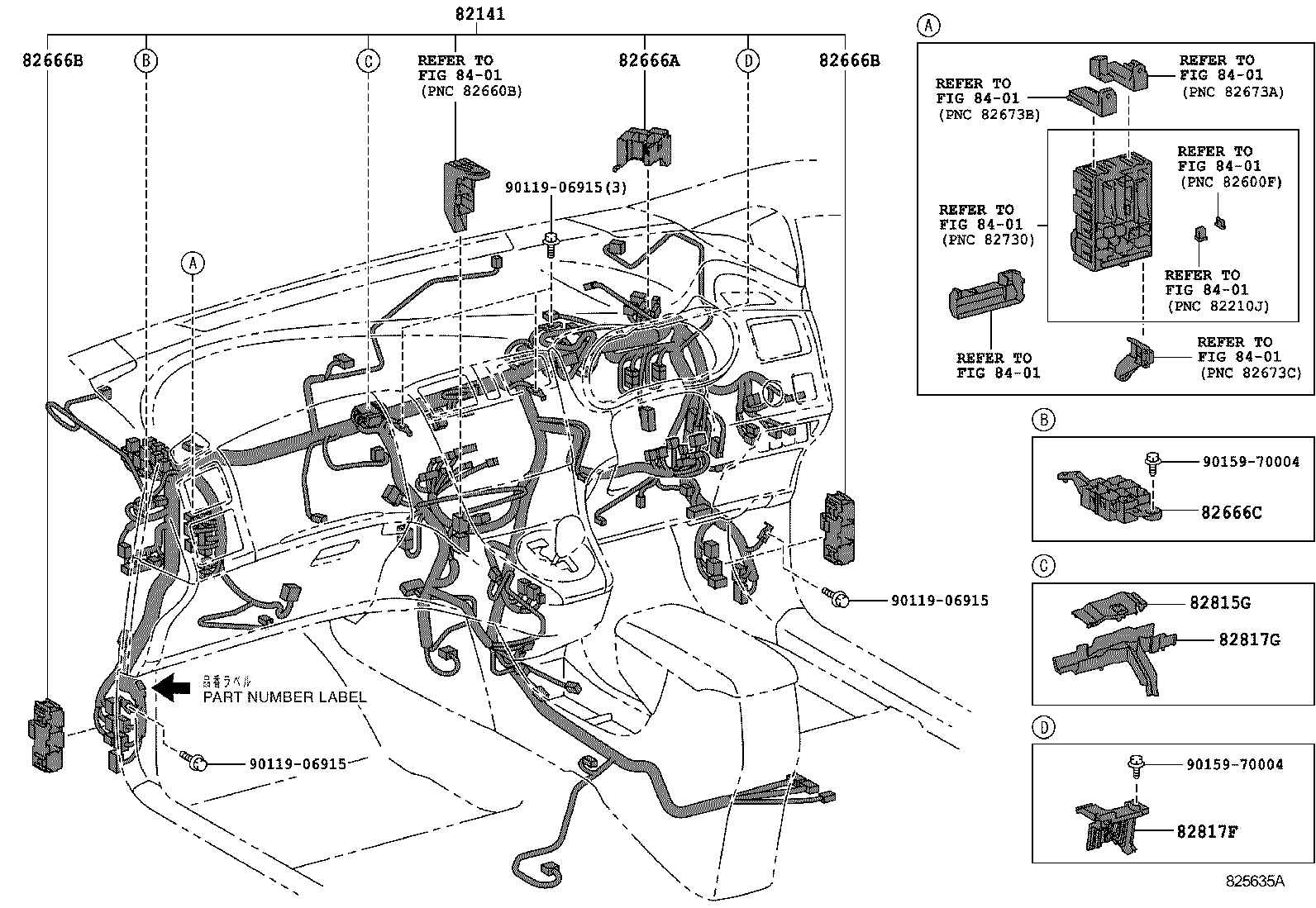

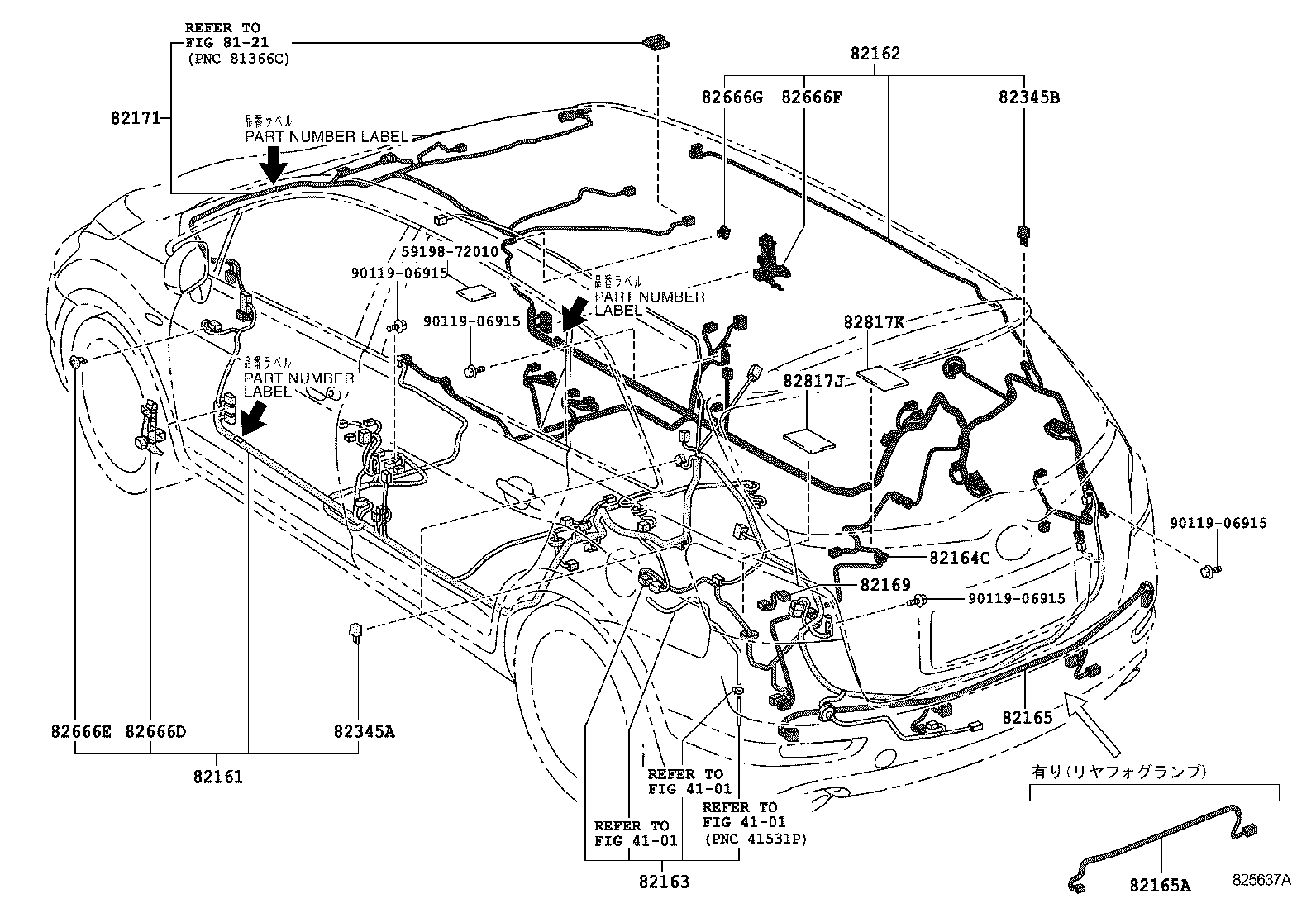

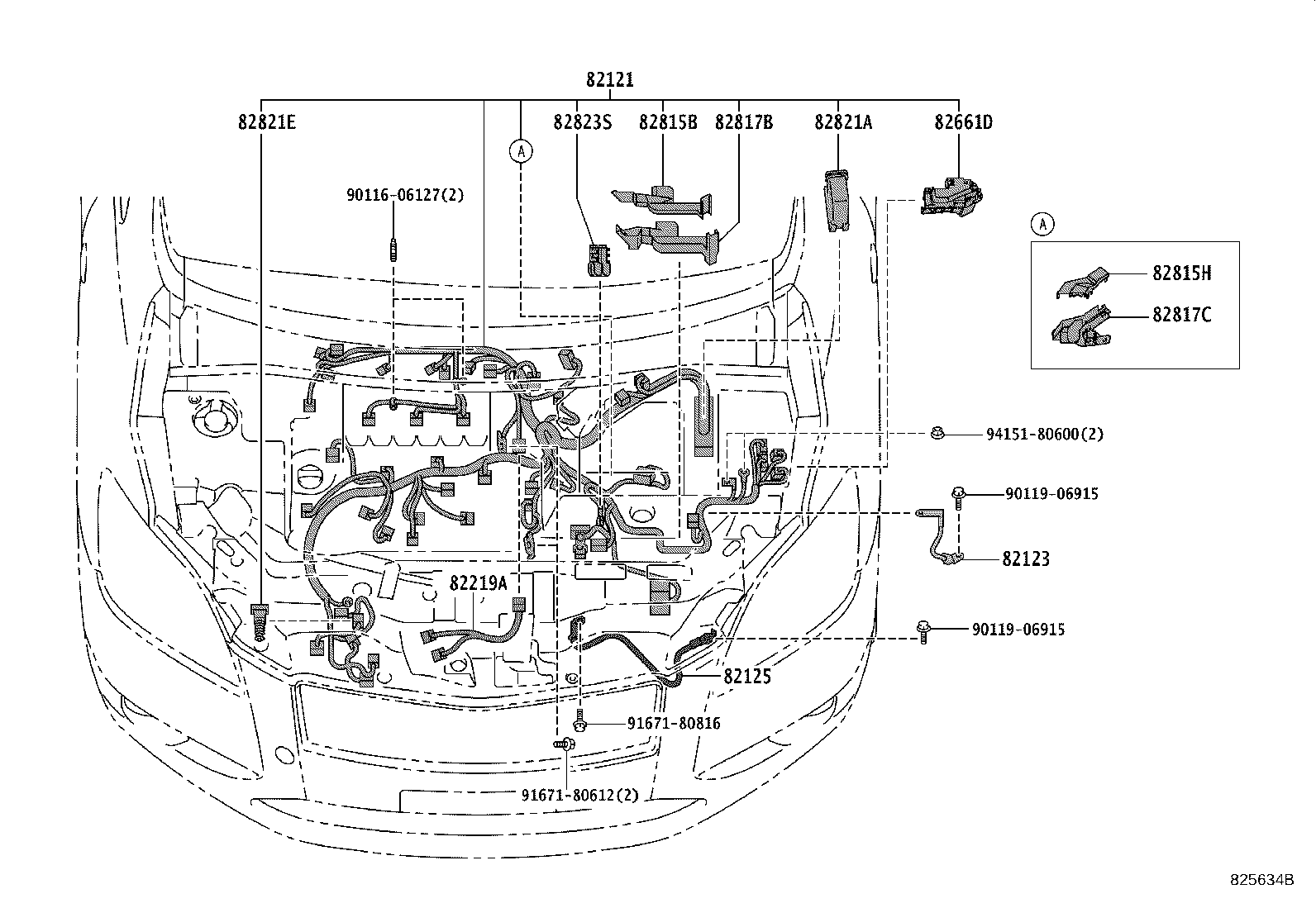

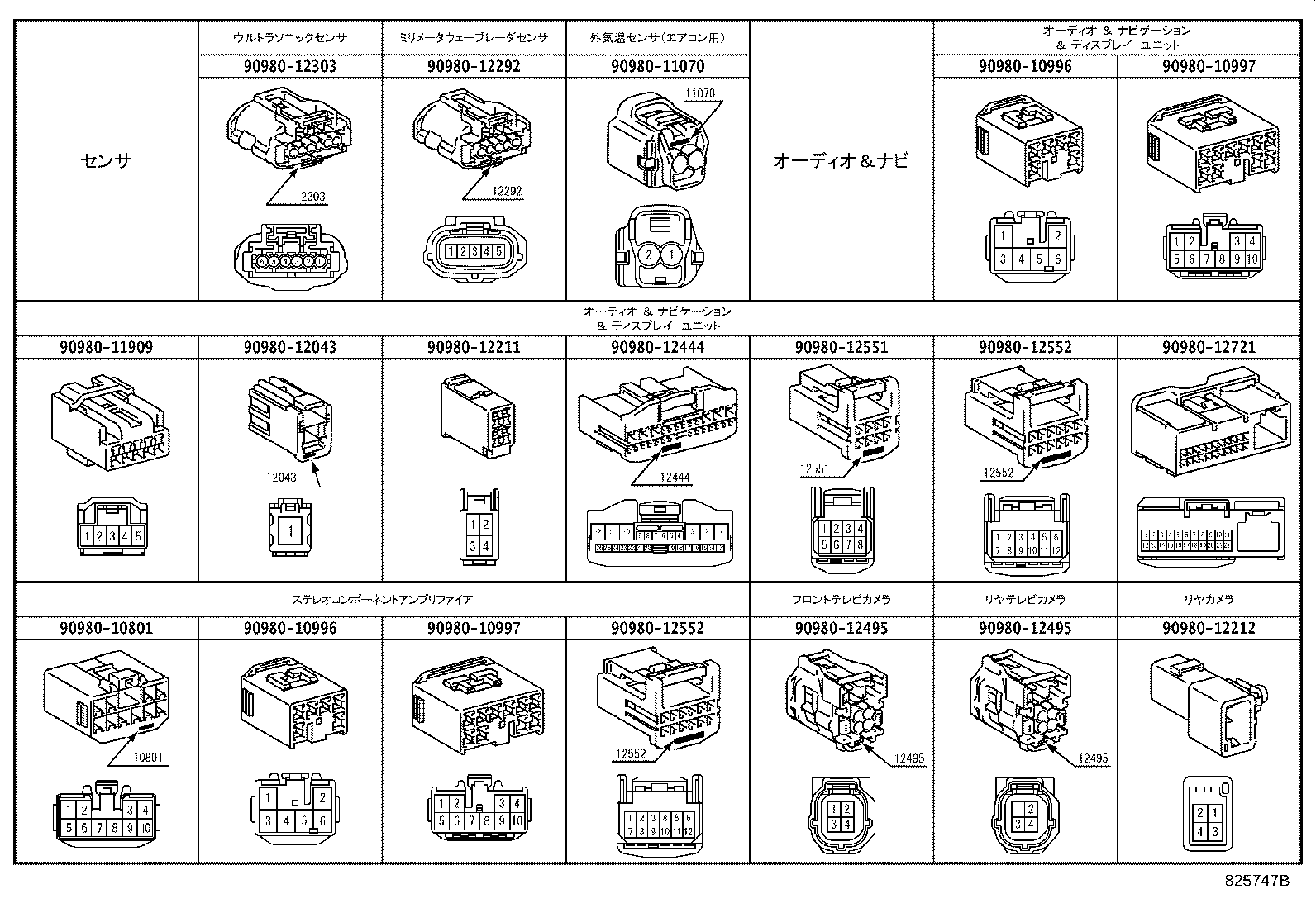

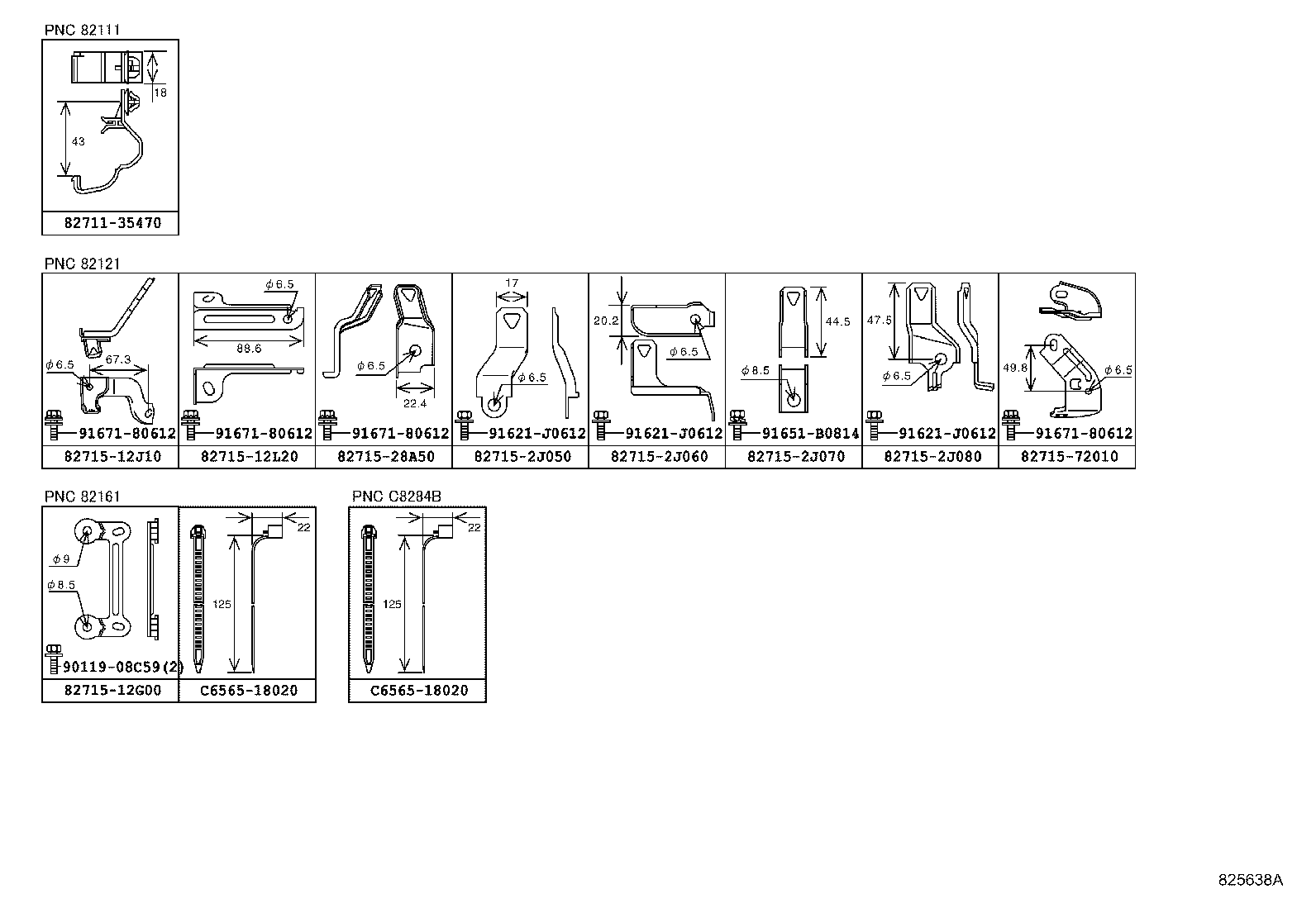

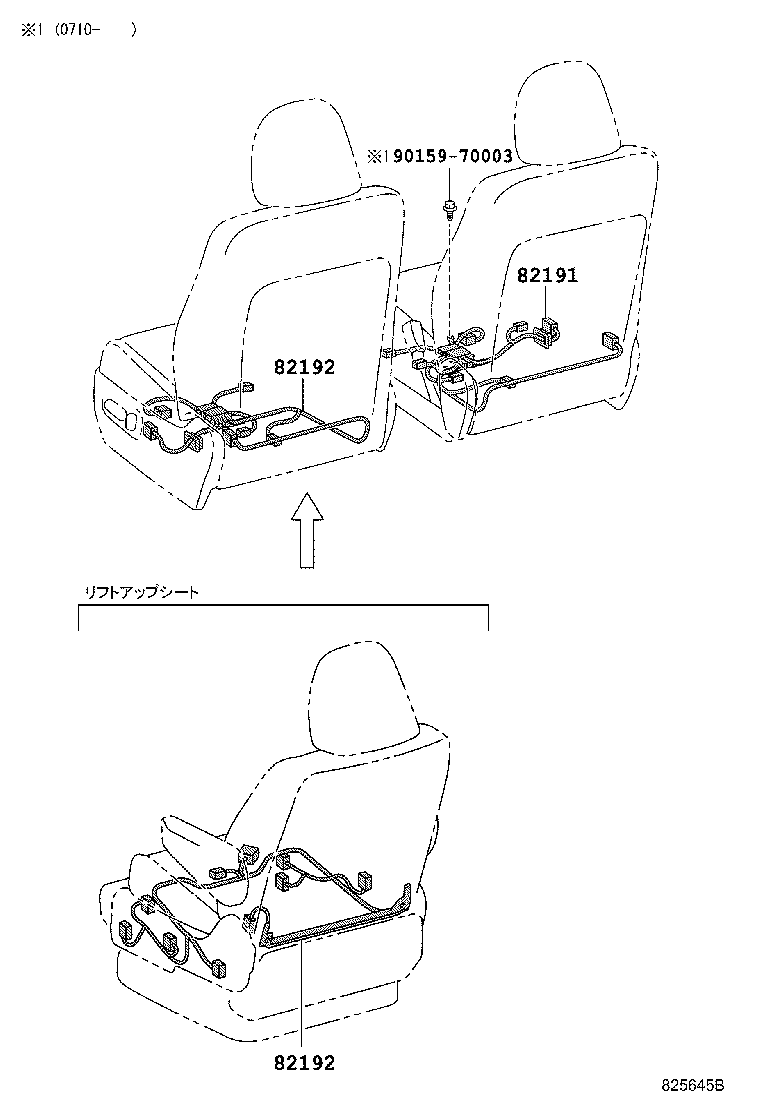

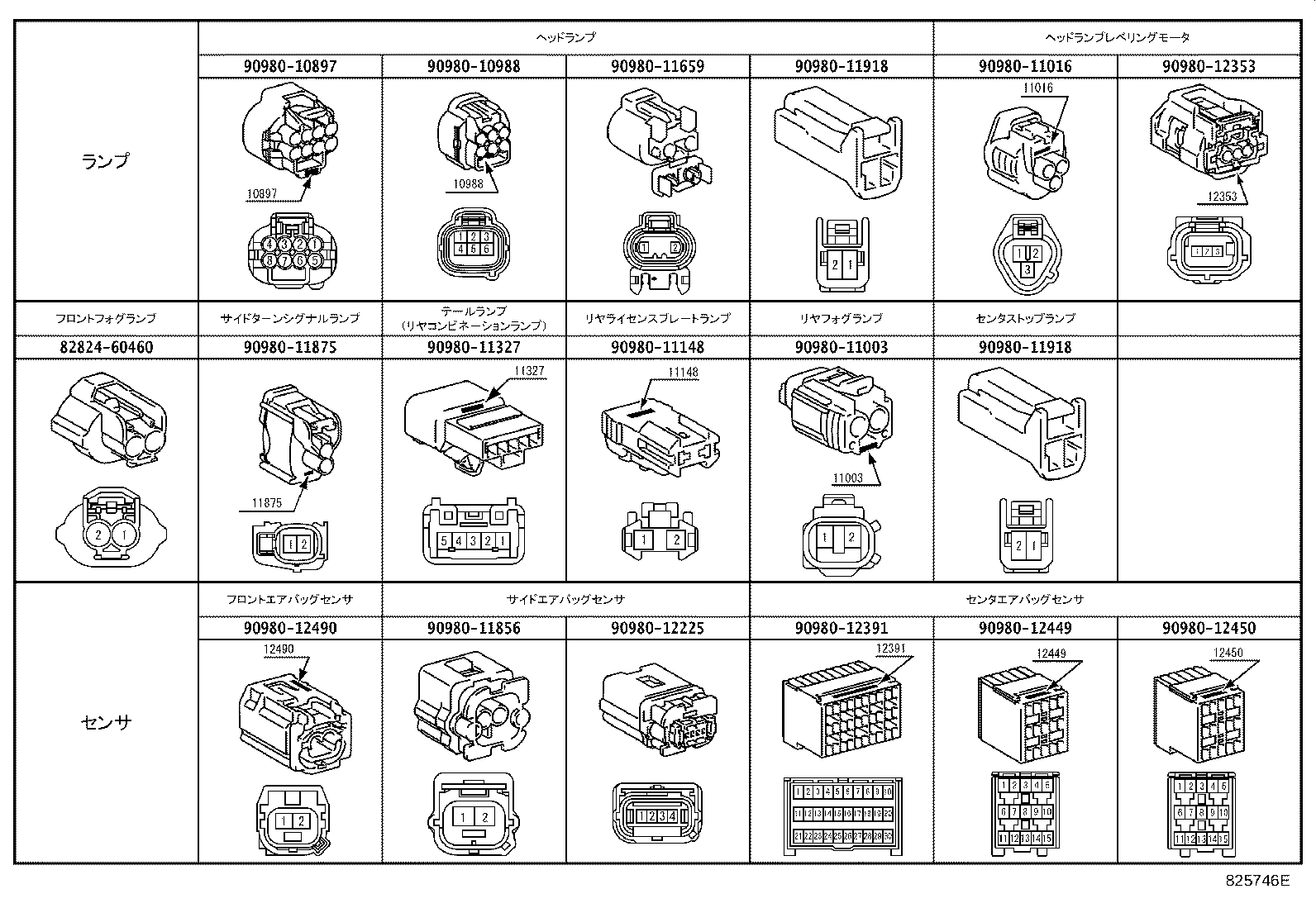

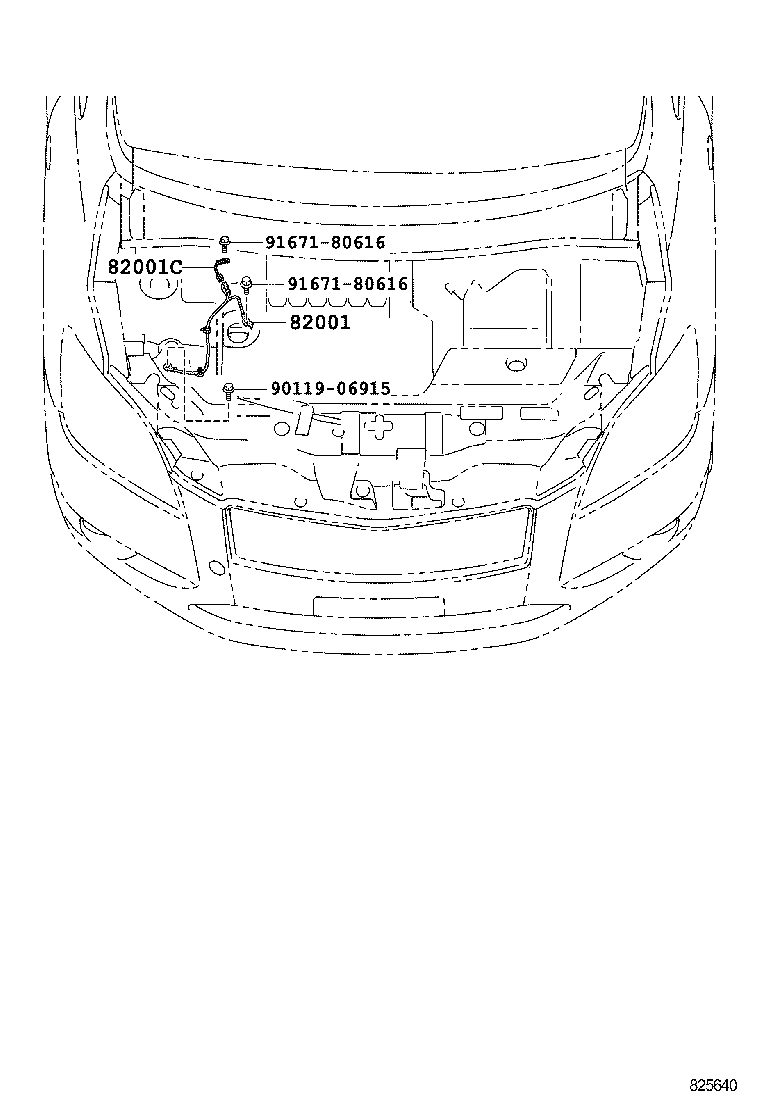

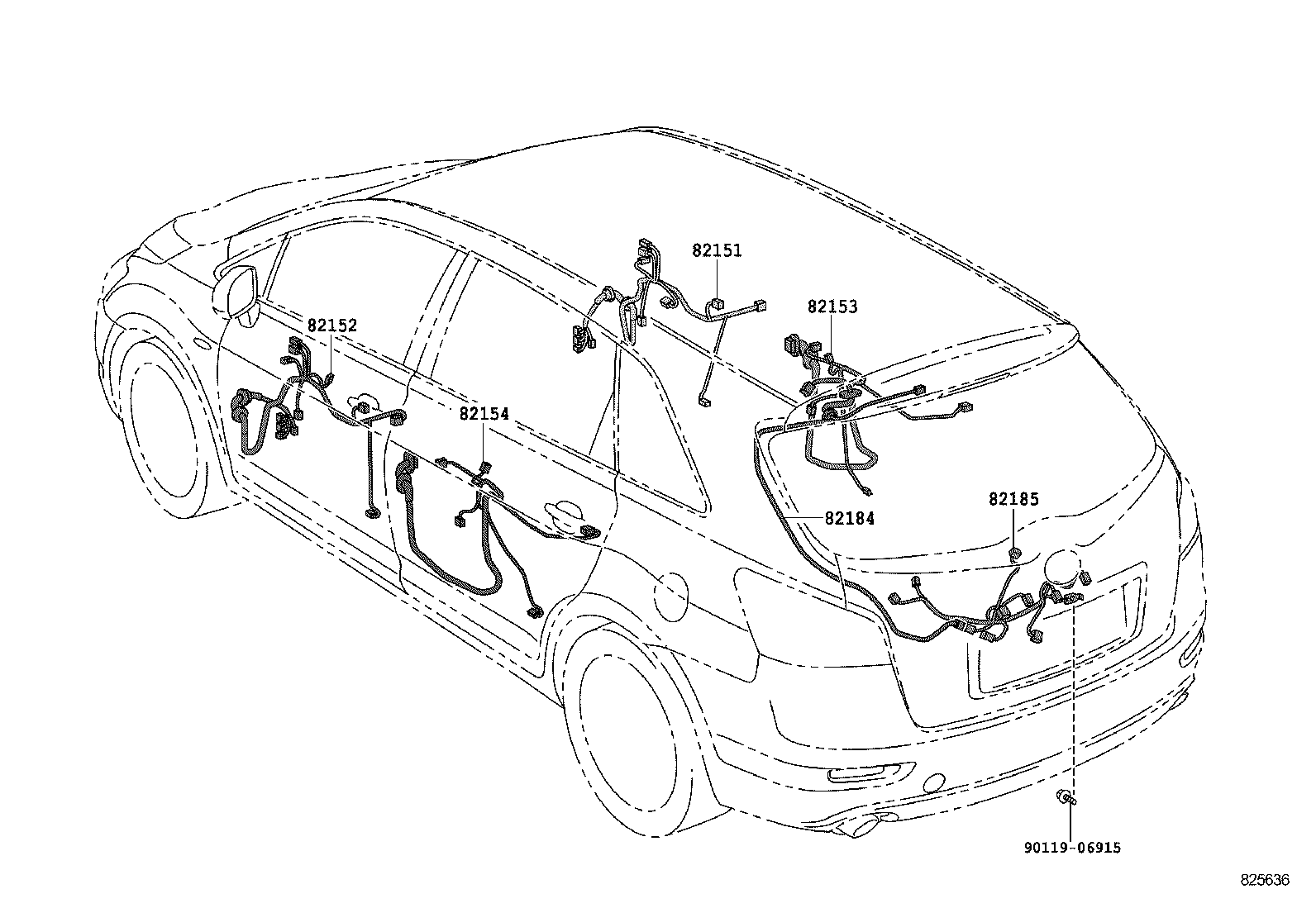

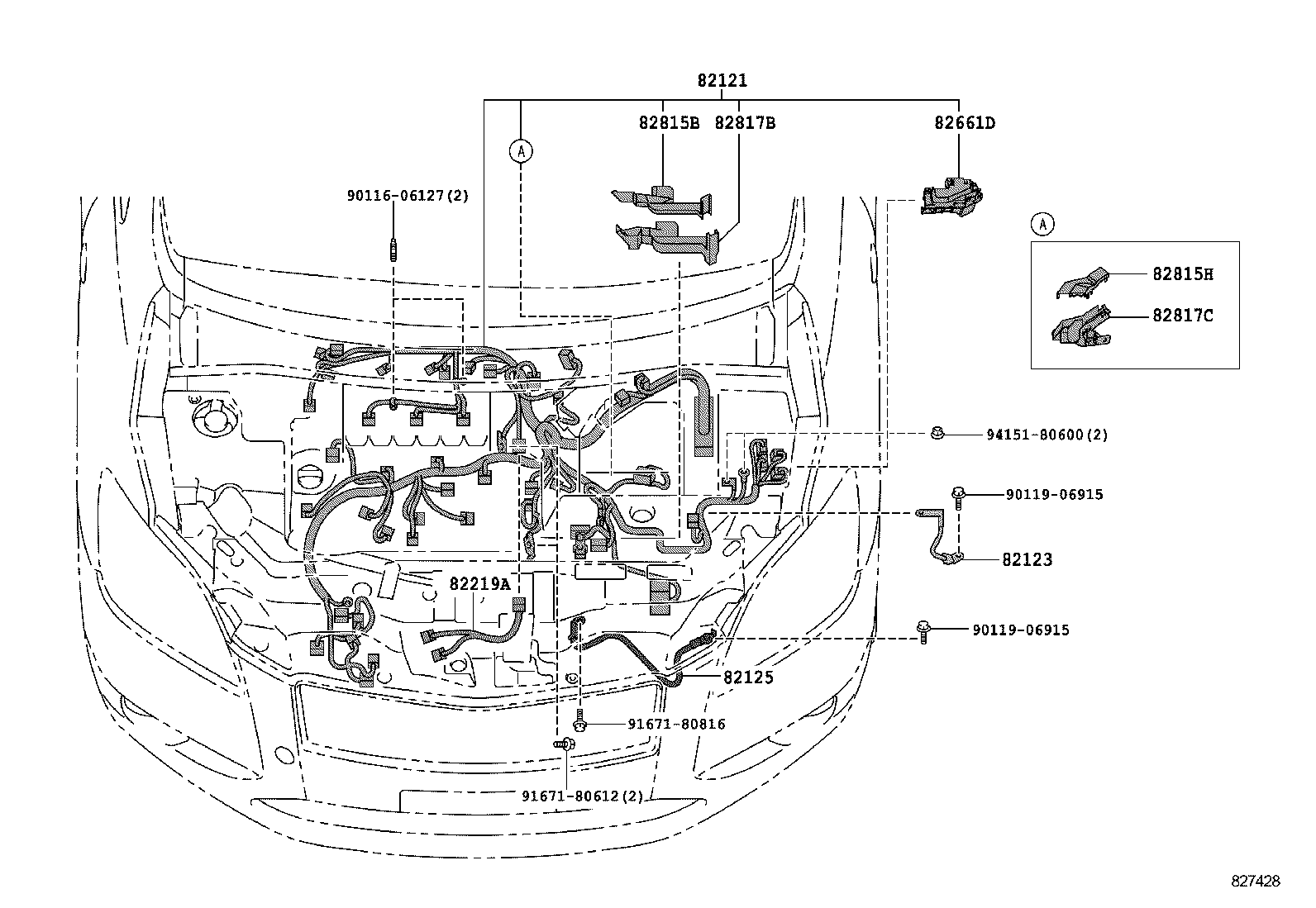

Figure 825632B 825632B 2007-09 → — Figure 825633A 825633A 2007-09 → — Figure 825634B 825634B 2007-09 → 2011-02 Figure 827428 827428 2011-02 → — Figure 825635A 825635A 2007-09 → — Figure 825636 825636 2007-09 → — Figure 825637A 825637A 2007-09 → — Figure 825645B 825645B 2007-09 → — Figure 825638A 825638A 2007-09 → — Figure 825639A 825639A 2007-09 → — Figure 825640 825640 2007-09 → — Figure 825746E 825746E 2007-09 → — Figure 825747B 825747B 2007-09 → — Figure 82E946 82E946 2007-09 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82121 Wire, Engine
82123 Wire, Engine, NO.3
82125 Wire, Transmission
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164C Wire, Floor, NO.4
82165 Wire, Frame, NO.2
82165A Wire, Frame, NO.2
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82219A Wire, Sensor
82345A Diode
82345B Diode
82661D Cover, Relay Block, Side NO.1
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82821A Cover, Connector
82821E Cover, Connector
82821M Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82991 Wire, Fusible Link Repair
