Toyota Mark X Zio

2007-09 → 2013-10 · chassis ANA1#,GGA10 · catalogue 351130 · Japan

Supported model Data version 2015-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

10 part groups · 2 illustrations

Illustrations

Figure 849129E

849129E 2007-09 → —

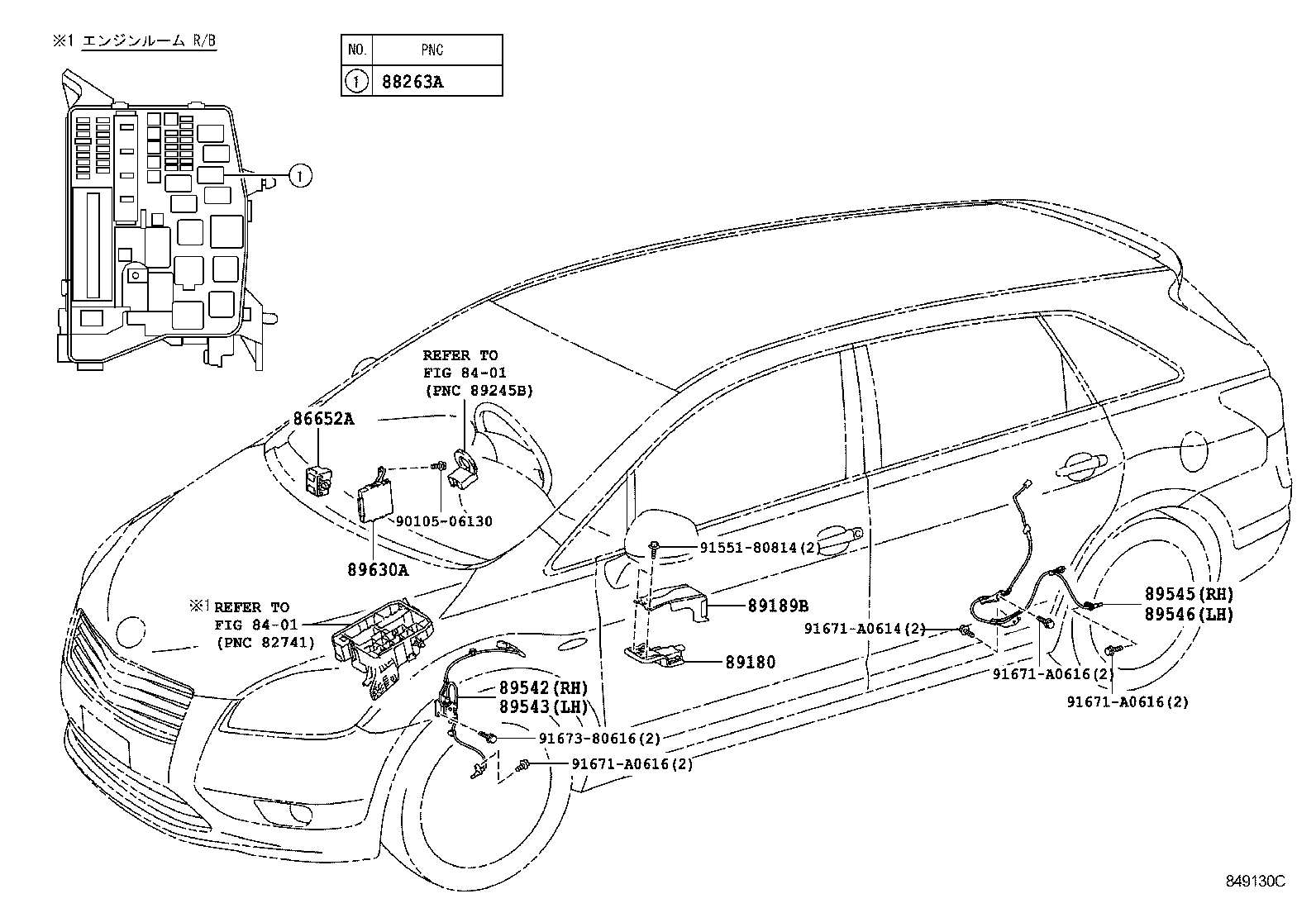

Figure 849130C

849130C 2007-09 → —

Part groups

PNC	Description
86652A	Buzzer Assy, Skid Control
88263A	Relay, Skid Control
89180	Sensor Assy, Yawrate
89189B	Bracket, Yawrate Sensor
89516	Wire, Skid Control Sensor
89542	Sensor, Speed, Front RH
89543	Sensor, Speed, Front LH
89545	Sensor, Speed, Rear RH
89546	Sensor, Speed, Rear LH
89630A	Computer Assy, 4WD

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
