Factory parts data · Europe

Toyota Mark X Zio

2007-09 → 2013-10 · chassis ANA1#,GGA10 · catalogue 351130 · Japan

Supported model Data version 2015-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

5 part groups · 2 illustrations

Illustrations

Figure 863315C

863315C 2007-09 → —

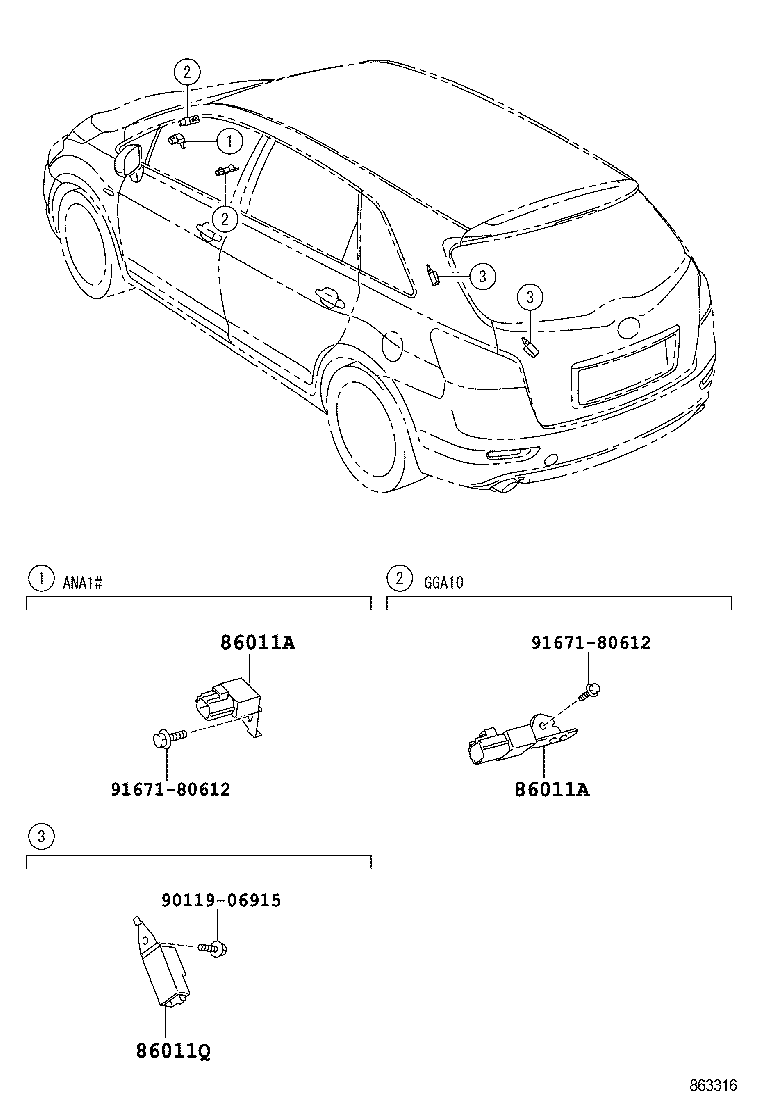

863316 2007-09 → —

Part groups

PNC	Description
86011A	Condenser, Radio Setting
86011Q	Condenser, Radio Setting
86100B	Amplifier Assy
86211	Bracket, Radio, NO.1
86212	Bracket, Radio, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
