Heating & Air Conditioning - Control & Air Duct

31 part groups · 7 illustrations

Illustrations

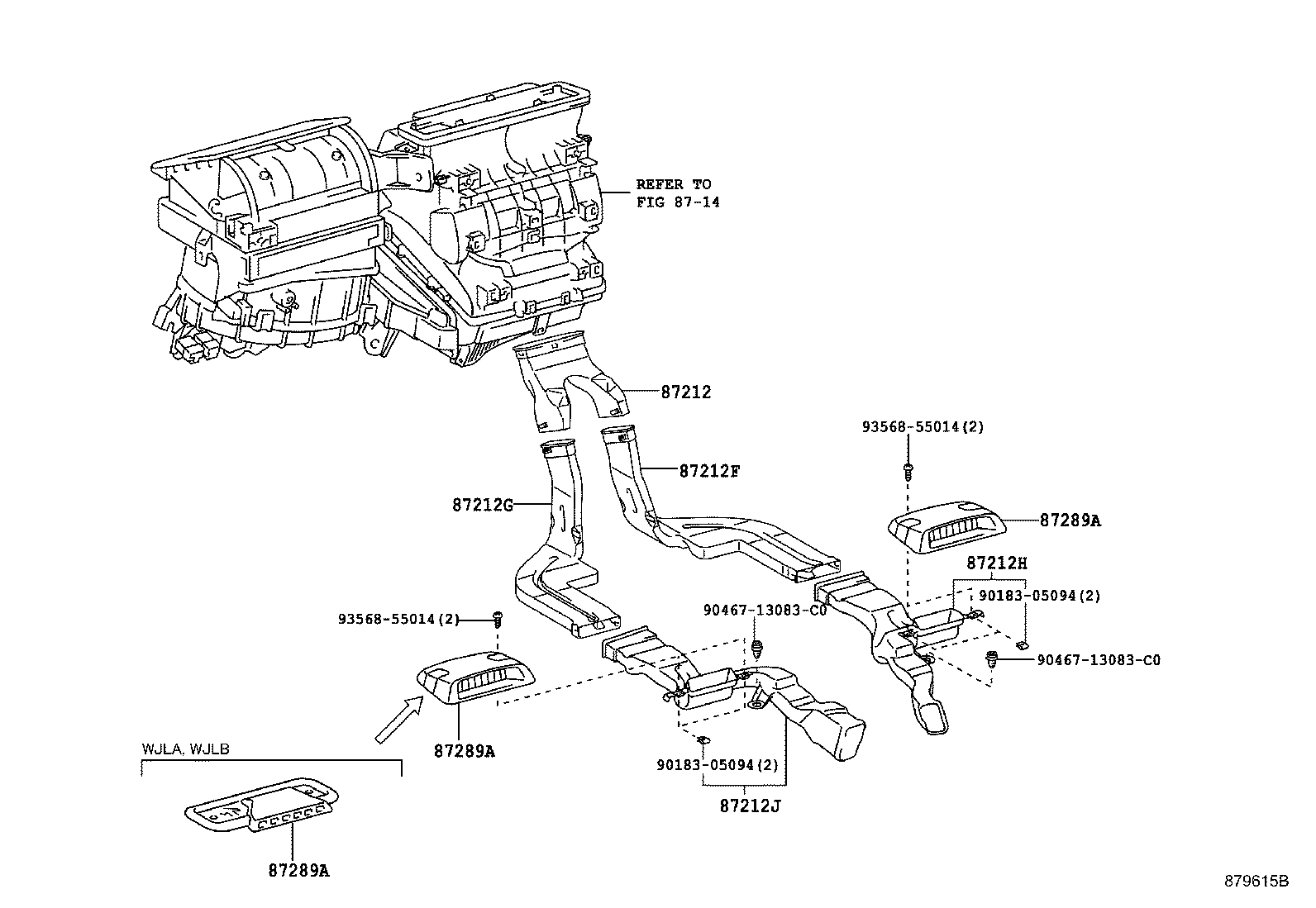

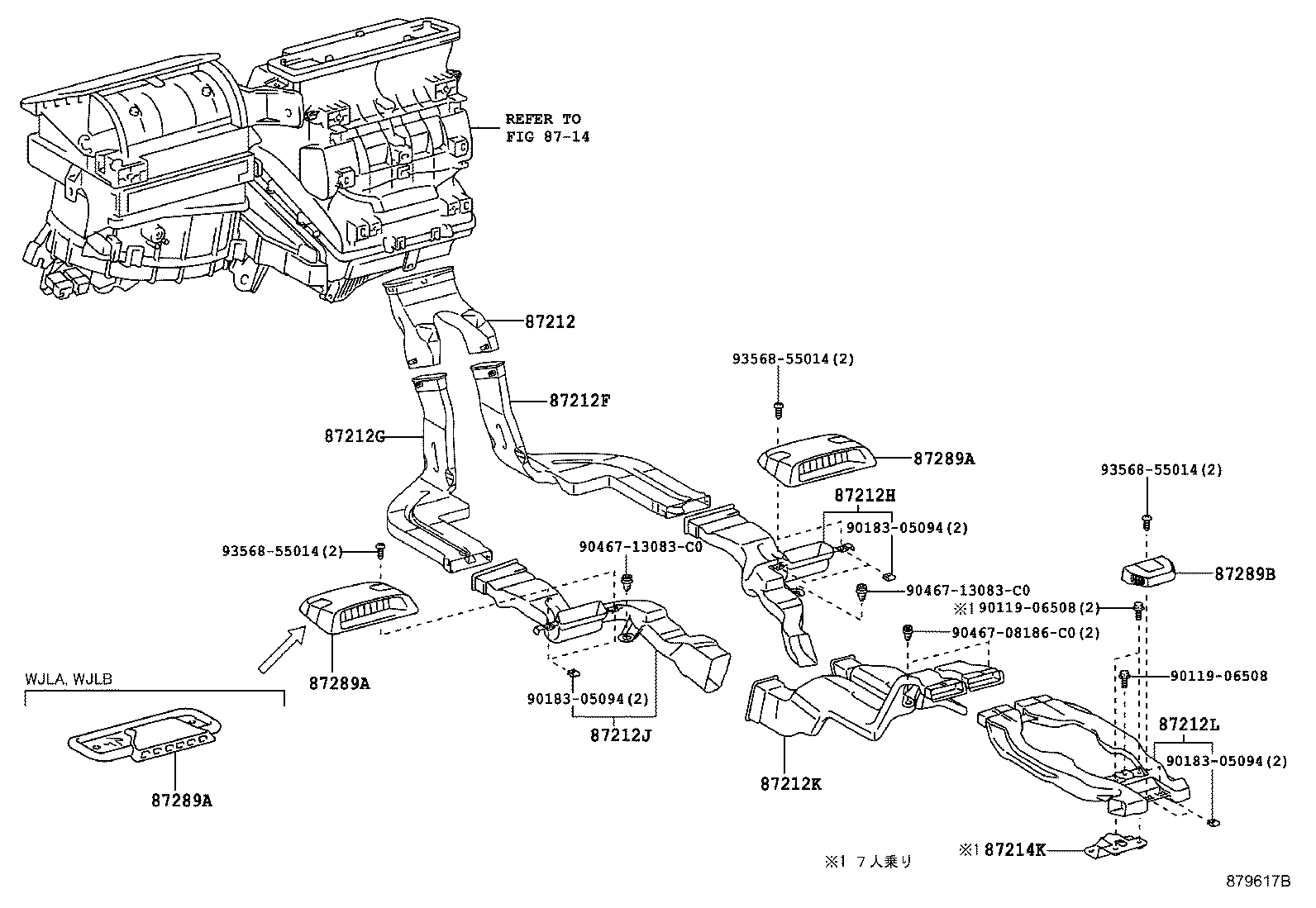

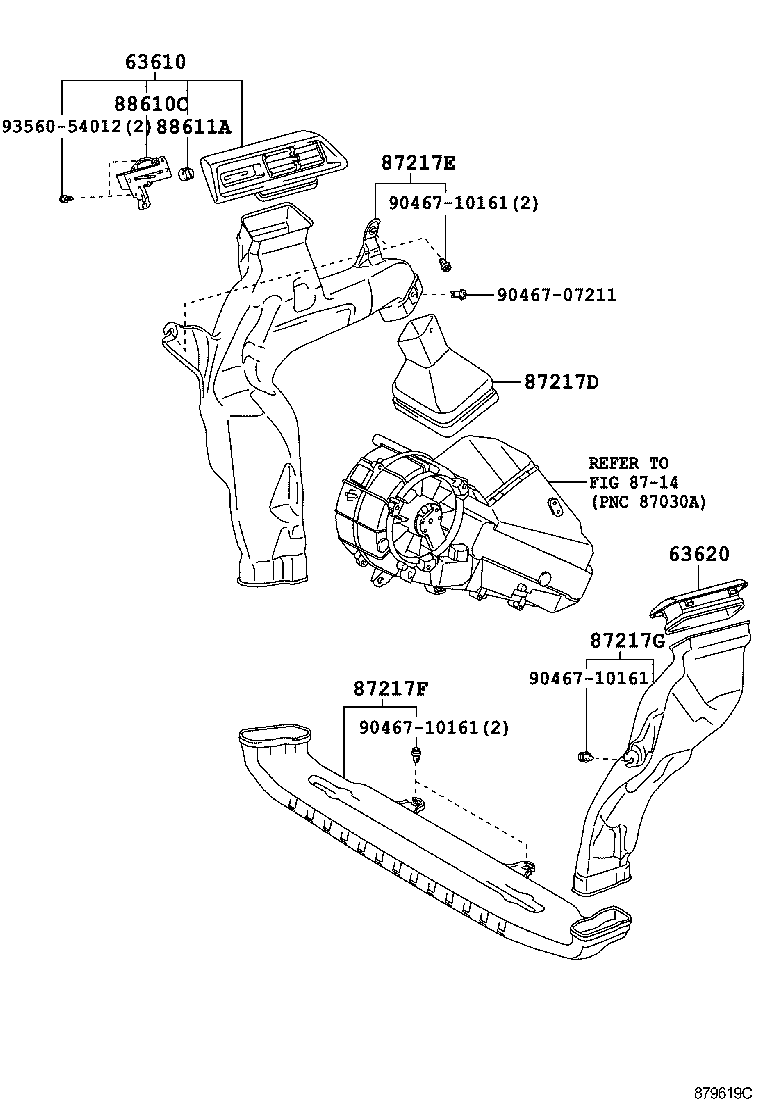

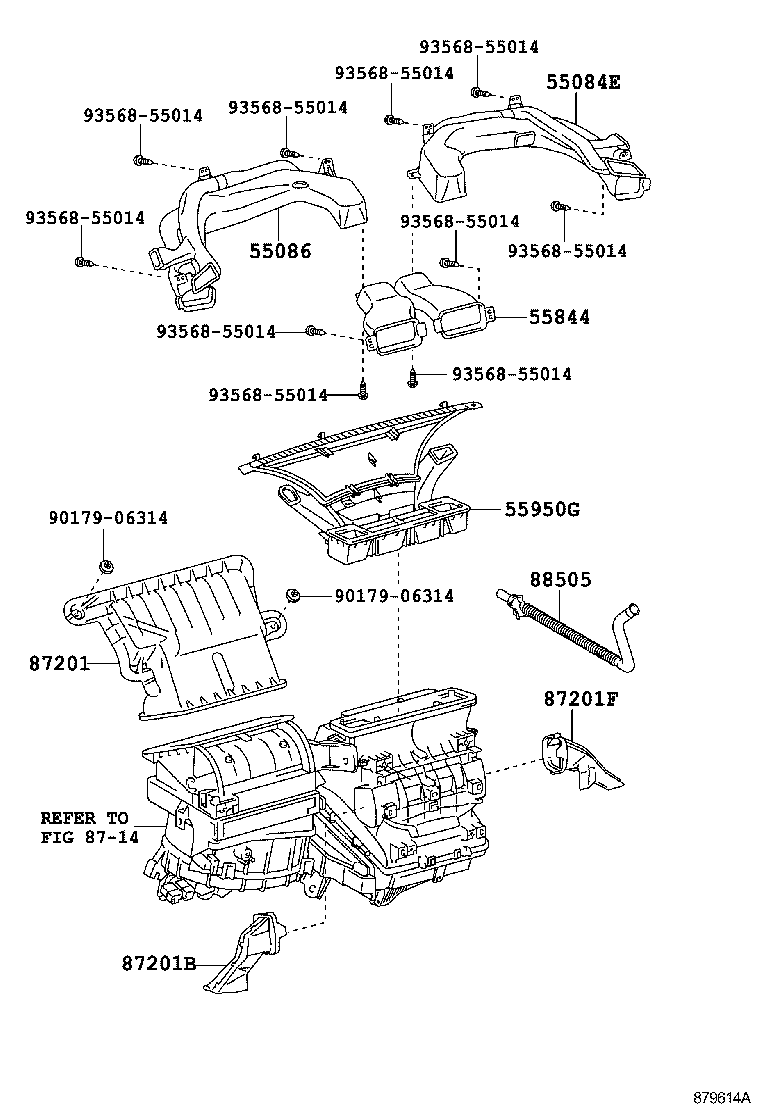

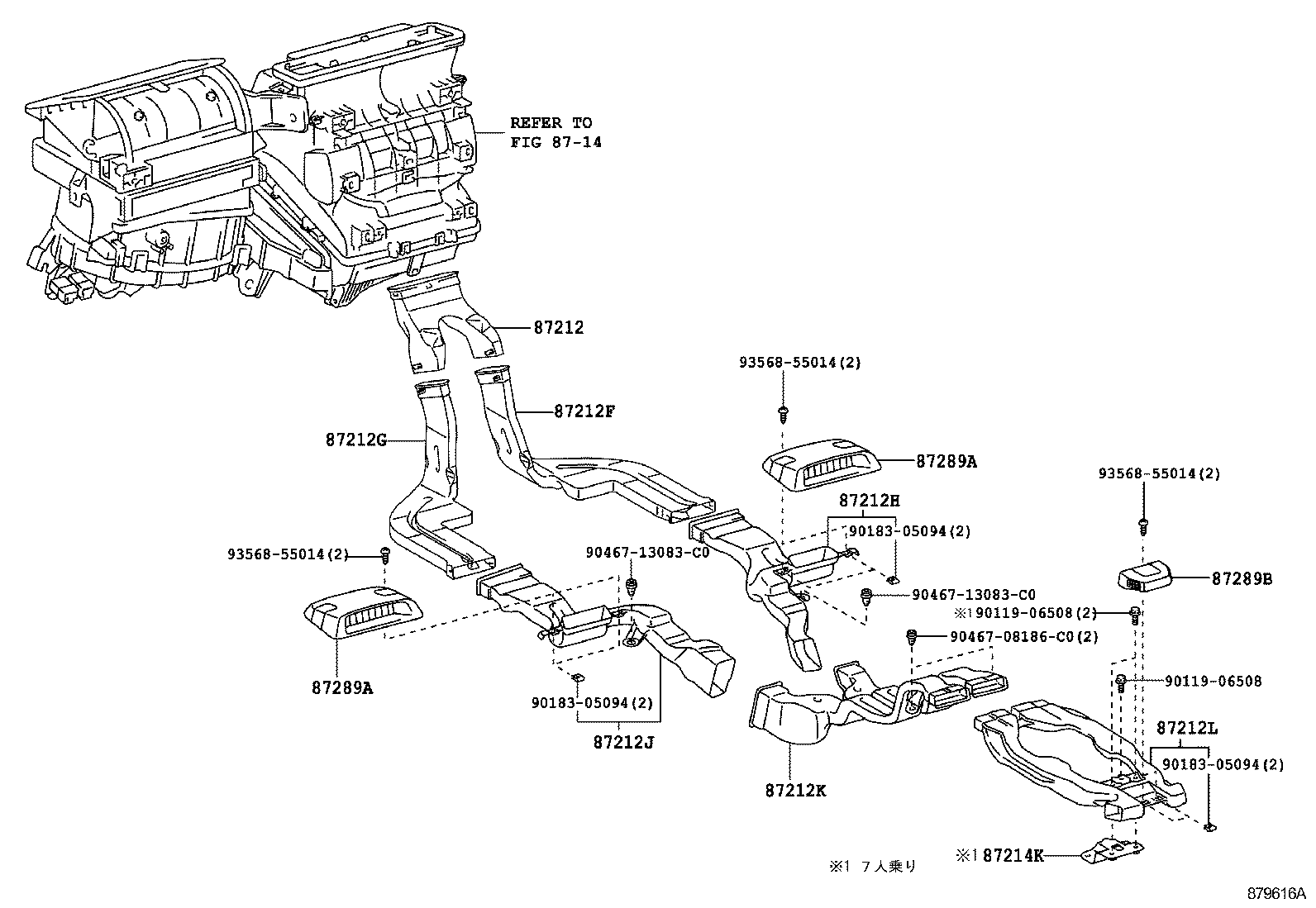

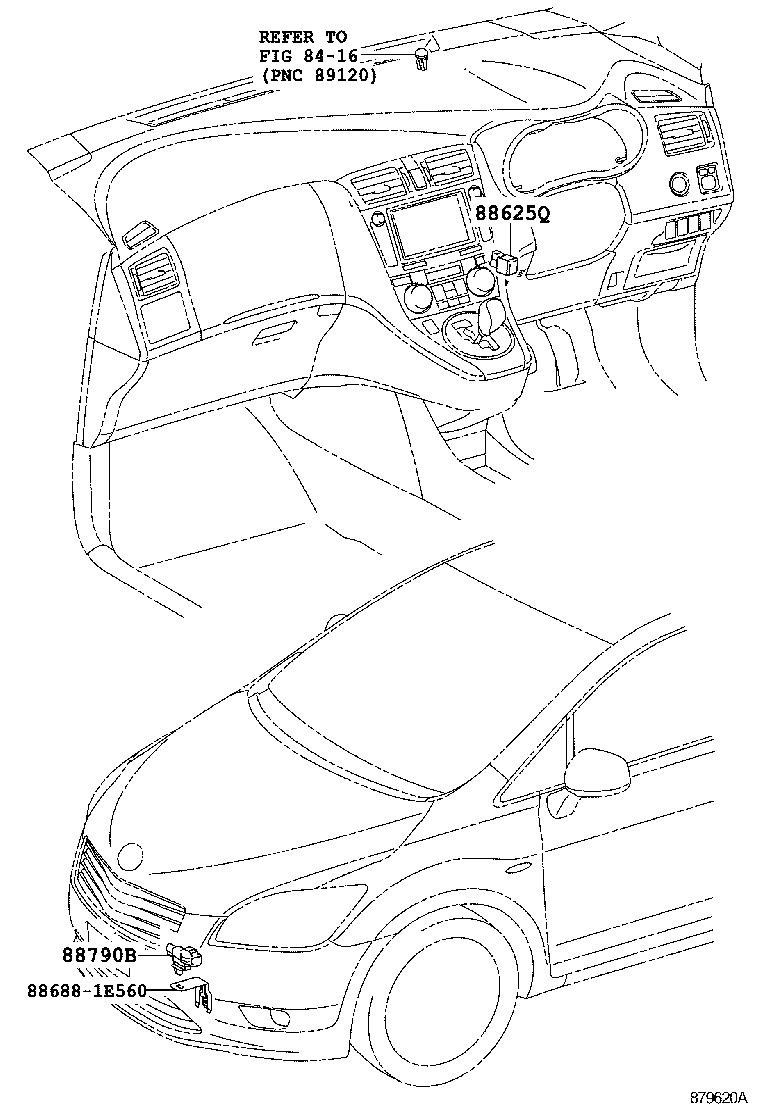

Figure 879613C 879613C 2007-09 → — Figure 879614A 879614A 2007-09 → — Figure 879615B 879615B 2007-09 → — Figure 879616A 879616A 2007-09 → — Figure 879617B 879617B 2007-09 → — Figure 879619C 879619C 2007-09 → — Figure 879620A 879620A 2007-09 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55086 Duct Sub-assy, Heater TO Register, NO.3
55844 Duct, Heater TO Register, NO.2
55900 Control Assy, Air Conditioner
55902C Panel Sub-assy, Air Conditioner
55912E Base, Heater Control, Lower
55950G Nozzle Assy, Defroster
63610 Register Assy, Air Outlet, NO.1
63620 Register Assy, Air Outlet, NO.2
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3
87212 Duct, Air, Rear NO.1
87212F Duct, Air, Rear NO.2
87212G Duct, Air, Rear NO.3
87212H Duct, Air, Rear NO.4
87212J Duct, Air, Rear NO.5
87212K Duct, Air, Rear NO.6
87212L Duct, Air, Rear NO.7
87214K Bracket, Air Duct
87217D Duct, Air, Rear Side NO.1
87217E Duct, Air, Rear Side NO.2
87217F Duct, Air, Rear Side NO.3
87217G Duct, Air, Rear Side NO.4
87289A Bezel, Rear Heater Register, NO.1
87289B Bezel, Rear Heater Register, NO.2
88505 Duct Sub-assy,Air Conditioner
88610C Switch Assy, Cooler Control
88611A Knob, Cooler Control Switch
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88790B Thermistor Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
