Toyota Mark X Zio

2007-09 → 2013-10 · chassis ANA1#,GGA10 · catalogue 351130 · Japan

Supported model Data version 2015-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

19 part groups · 3 illustrations

Illustrations

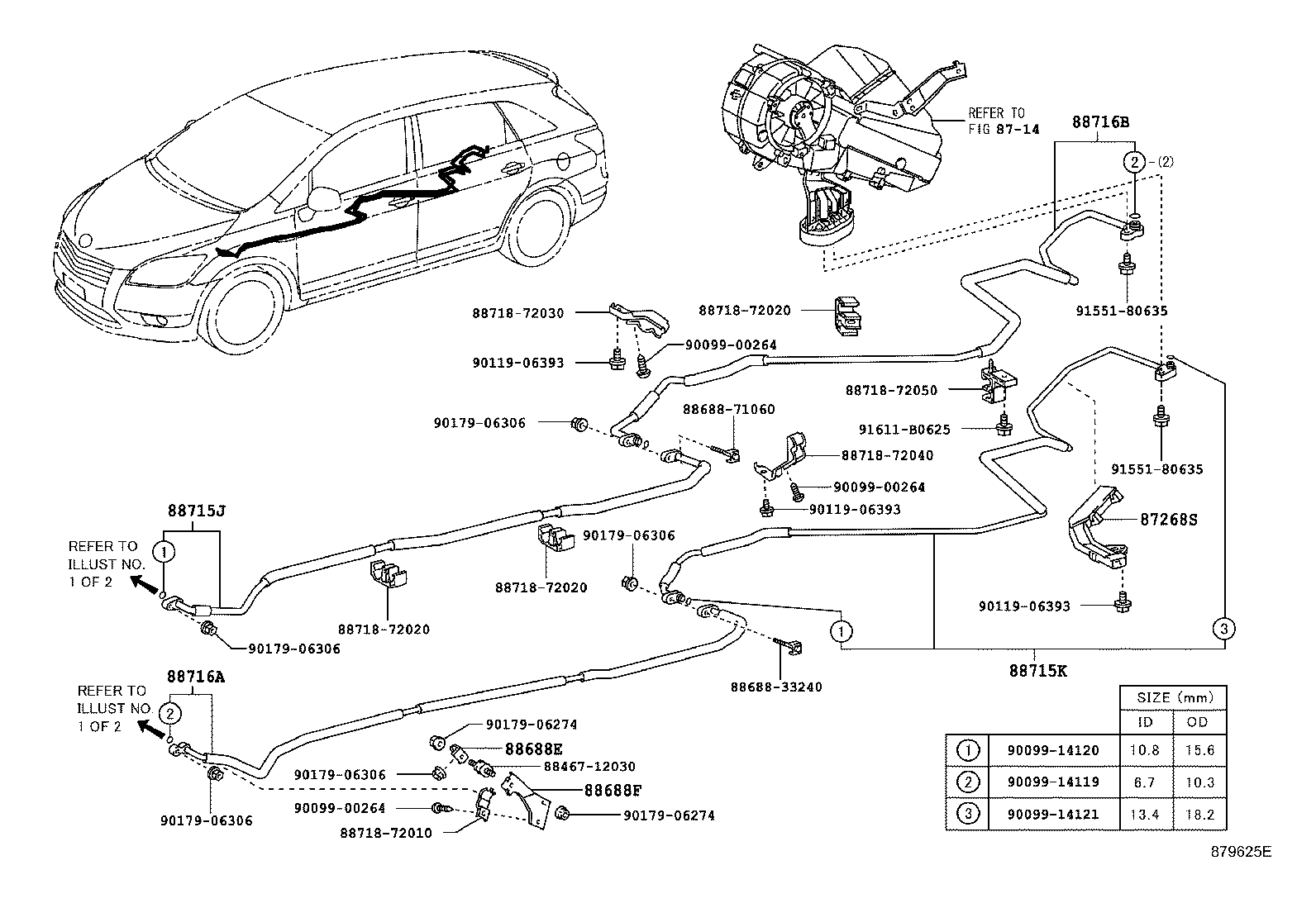

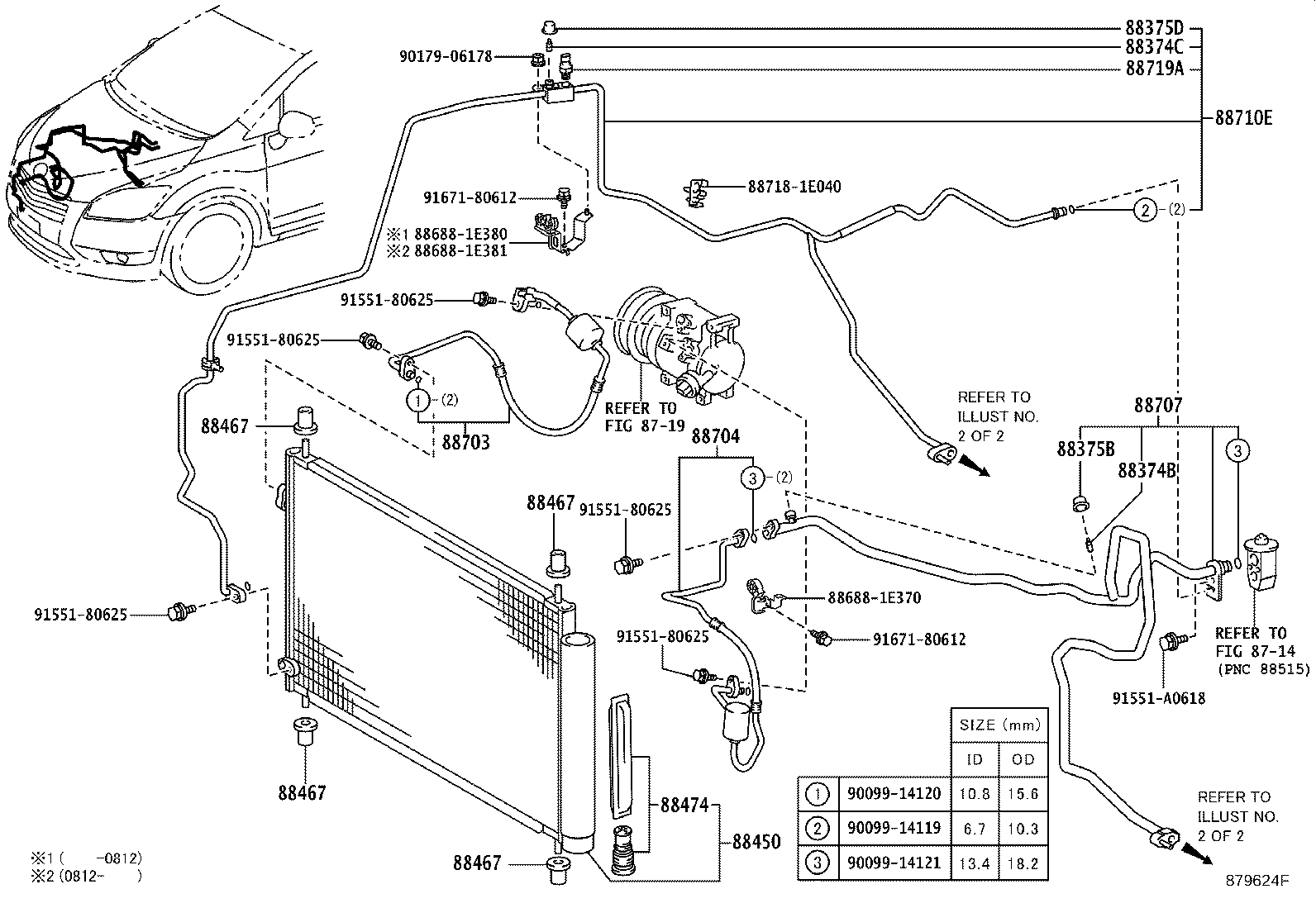

Figure 879623F 879623F 2007-09 → — Figure 879624F 879624F 2007-09 → — Figure 879625E 879625E 2007-09 → —

Part groups

PNCDescription
87268S Protector, Cooler Tube
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88450 Condenser Assy, W/Receiver
88467 Cushion, Cooler Condenser, NO.1
88474 Dryer, Cooler
88688E Bracket, Cooler Refrigerant Hose, NO.1
88688F Bracket, Cooler Refrigerant Hose, NO.2
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88707 Pipe Sub-assy, Suction
88710E Tube & Accessory Assy, Air Conditioner
88715J Tube, Discharge, J
88715K Tube, Discharge, K
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88719A Sensor, Air Conditioner Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
