Toyota Avalon
1995-03 → 2000-02 · chassis MCX10 · catalogue 361110 · Japan
Discontinued model
Data version 2000-10

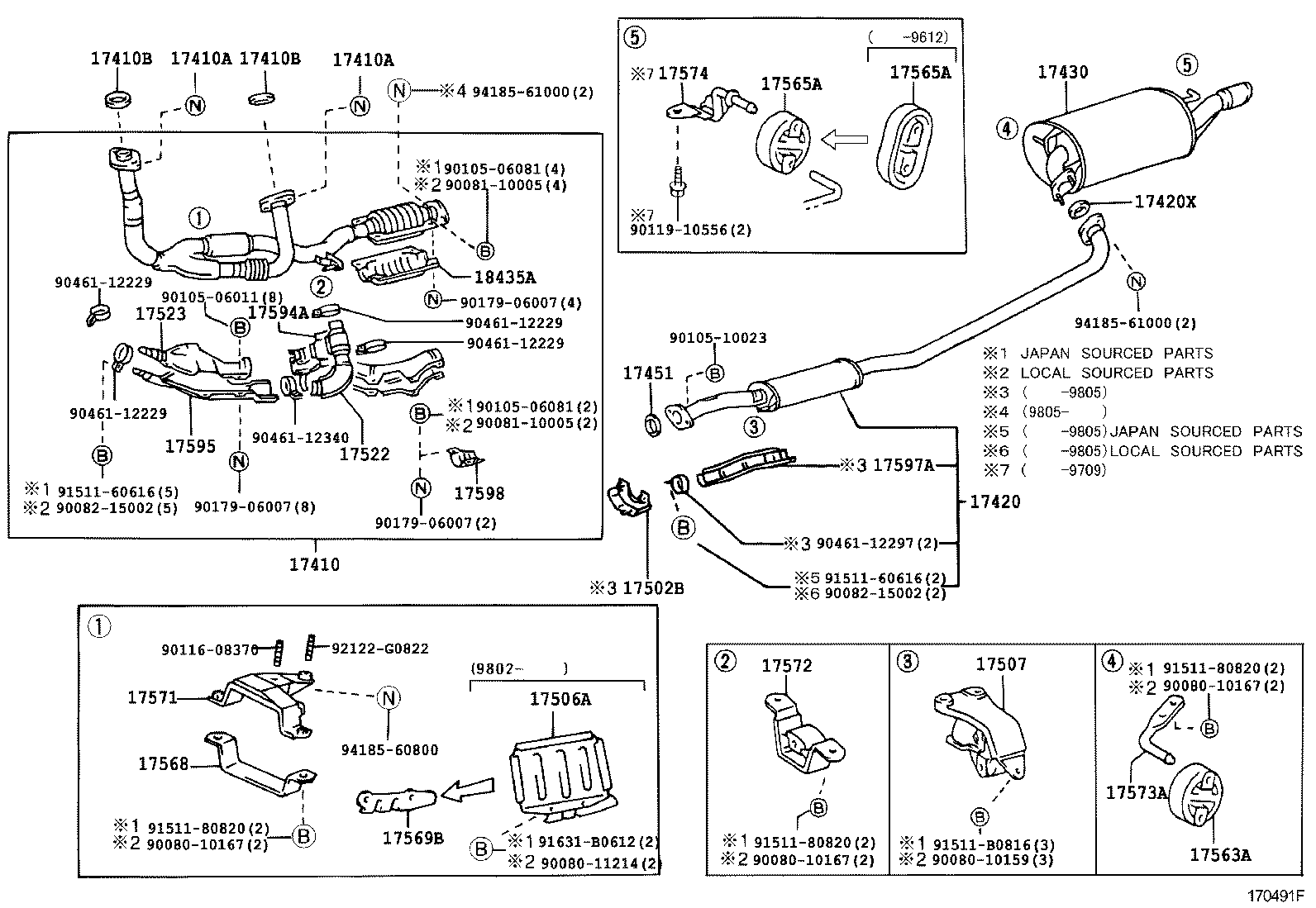

Exhaust Pipe
30 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17410 | Pipe Assy, Exhaust, Front |
| 17410A | Nut, Exhaust Pipe Set Stud Bolt |
| 17410B | Gasket, Exhaust Pipe |
| 17420 | Pipe Assy, Exhaust, Center |
| 17420X | Gasket, Exhaust Pipe, Center |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17451 | Gasket, Exhaust Pipe |
| 17502B | Bracket Sub-assy, Catalytic Converter, Front |
| 17503 | Bracket Sub-assy, Catalytic Converter, Rear |
| 17506A | Bracket Sub-assy, Exhaust Pipe NO.1 Support |
| 17507 | Bracket Sub-assy, Exhaust Pipe NO.2 Support |
| 17509A | Bracket Sub-assy, Exhaust Pipe NO.4 Support |
| 17522 | Protector, Exhaust Pipe, Upper NO.2 |
| 17523 | Protector, Exhaust Pipe, Upper NO.3 |
| 17563A | Support, Exhaust Pipe, NO.3 |
| 17565A | Support, Exhaust Pipe, NO.4 |
| 17568 | Stay, Exhaust Pipe Support |
| 17569B | Stay, Exhaust Pipe Support, NO.2 |
| 17571 | Bracket, Exhaust Pipe Support, NO.1 |
| 17572 | Bracket, Exhaust Pipe NO.1 Support |
| 17573A | Bracket, Exhaust Pipe Support, NO.3 |
| 17574 | Bracket, Exhaust Pipe Support, NO.4 |
| 17581A | Damper, Exhaust Pipe |
| 17594A | Protector, Exhaust Pipe, Lower NO.2 |
| 17595 | Protector, Exhaust Pipe, Lower NO.3 |
| 17597A | Protector, Exhaust Pipe, Lower NO.5 |
| 17598 | Protector, Exaust Pipe, Lower NO.6 |
| 18435A | Protector, Monolithic Converter |
| 18436 | Protector, Monolithic Converter, NO.1 |
| 18491 | Flange, Thermosensor Inlet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
