Toyota Avalon

1995-03 → 2000-02 · chassis MCX10 · catalogue 361110 · Japan

Discontinued model Data version 2000-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

21 part groups · 2 illustrations

Illustrations

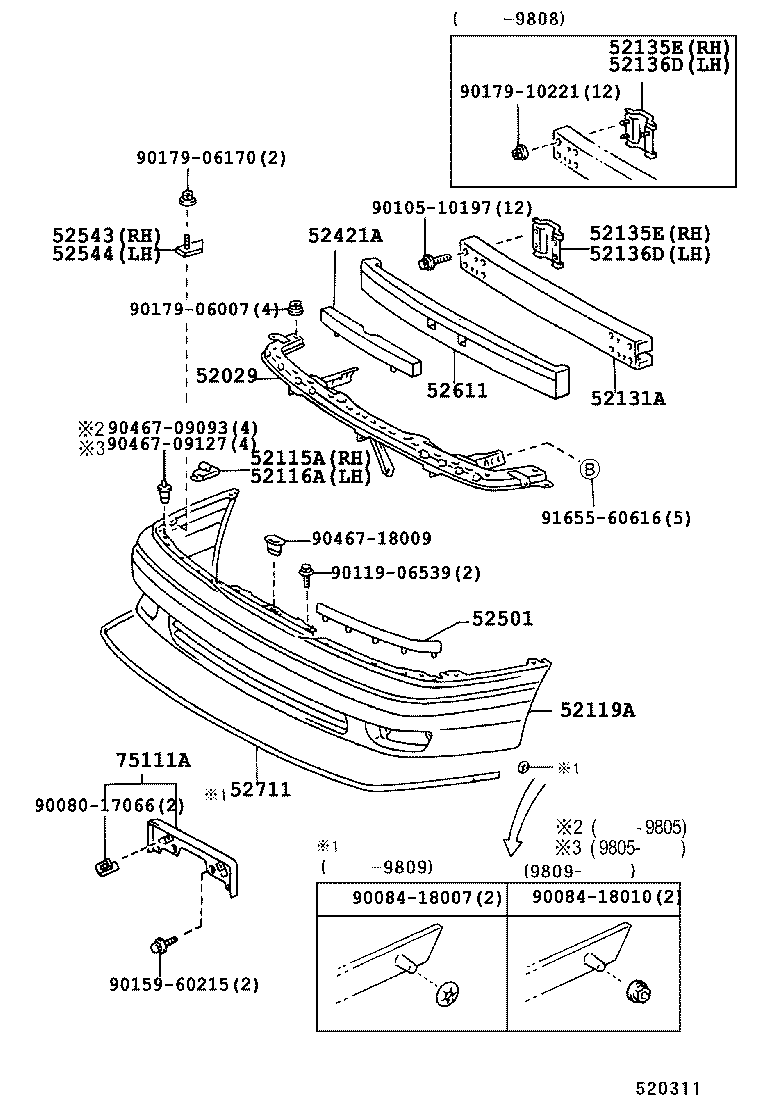

Figure MBZ345 MBZ345 1995-03 → 1997-09 Figure 520311I 520311I 1997-09 → —

Part groups

PNCDescription
52029 Reinforcement Sub-assy, Front Bumper, Upper
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52121B Bracket, Front Licence Plate Mounting
52131A Reinforcement, Front Bumper
52135E Reinforcement, Front Bumper Arm Mounting, RH
52136D Reinforcement, Front Bumper Arm Mounting, LH
52141B Stay, Front Bumper
52147E Bracket, Front Bumper Mounting, RH
52148E Bracket, Front Bumper Mounting, LH
52421A Pad, Front Bumper
52501 Filler Sub-assy, Front Bumper
52543 Seal, Front Bumper Side, RH
52544 Seal, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
52711 Moulding, Front Bumper
52711A Garnish, Front Bumper
53141C Garnish, Radiator Grille
53142C Garnish, Radiator Grille, NO.2
75111A Bracket, Front License Plate
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
