Toyota Avalon

1995-03 → 2000-02 · chassis MCX10 · catalogue 361110 · Japan

Discontinued model Data version 2000-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

20 part groups · 3 illustrations

Illustrations

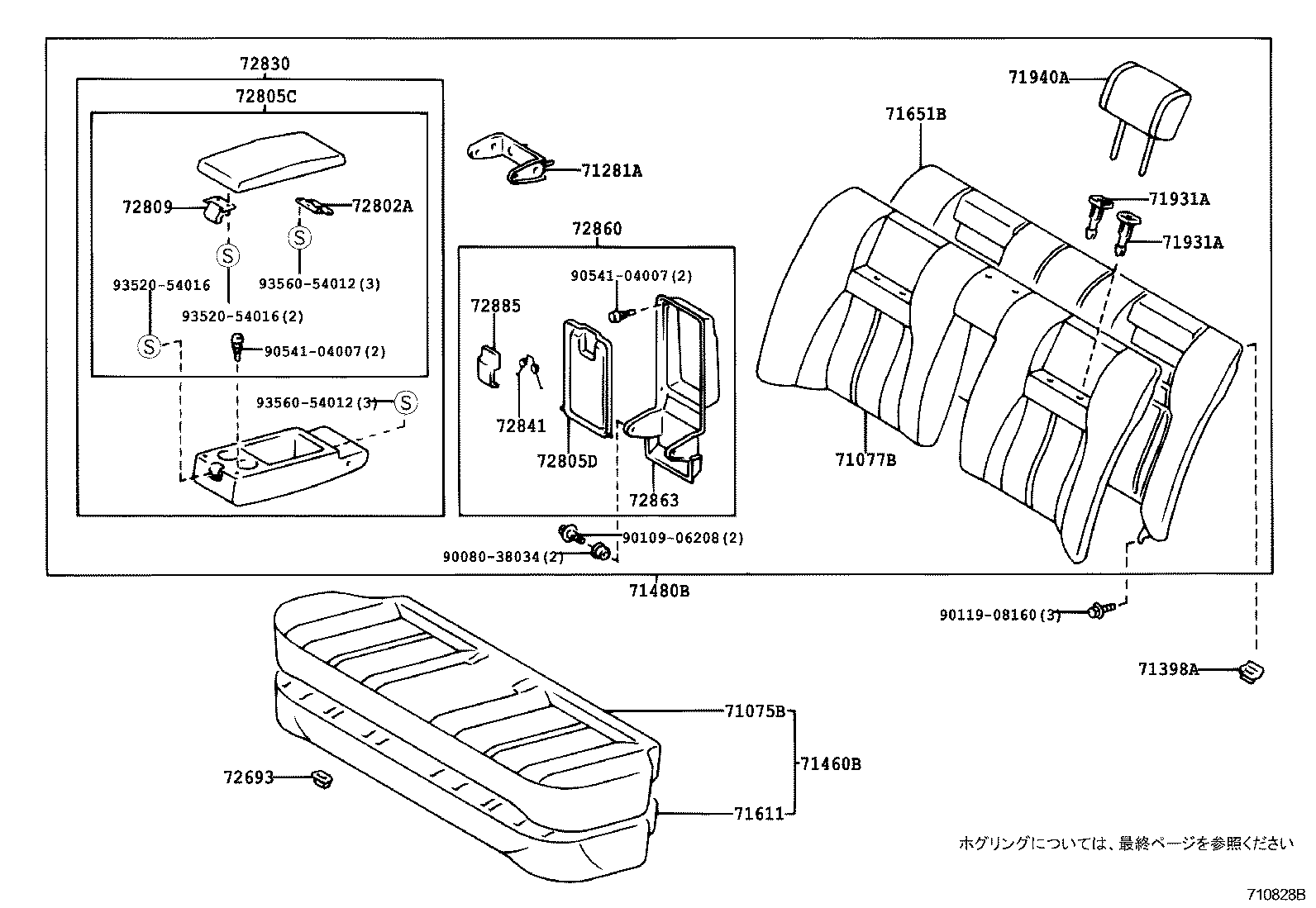

Figure 718178 718178 1995-03 → 1997-09 Figure 710828B 710828B 1997-09 → — Figure 718165A 718165A 1995-03 → —

Part groups

PNCDescription
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71281A Hinge, Rear Seat Center Armrest
71398A Holder, Rear Seatback
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71611 Pad, Rear Seat Cushion
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
72693 Hook, Rear Seat Cushion Lock
72802A Hinge Sub-assy, Armrest Console
72805C Door Sub-assy, Rear Seat Center Armrest NO.1
72805D Door, Rear Seat Center Armrest NO.2
72809 Lock Sub-assy, Center Armrest
72830 Armrest Assy, Rear Seat, Center
72841 Spring, Rear Seat Center Armrest, NO.1
72860 Box Assy, Rear Seat Center Armrest
72863 Box, Rear Seat Center Armrest
72885 Handle, Rear Seat Armrest
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
